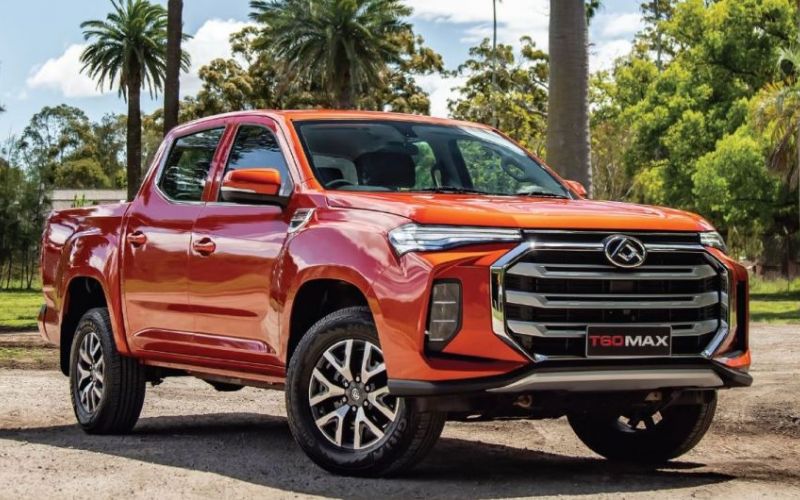

2022 LDV T60 MAX PRO (4x4)

2022 LDV T60 MAX PRO (4x4) Specifications

LDV Logo
MRLP $37,884
5 stars

About the 2022 LDV T60 MAX PRO (4x4)

The 2022 LDV T60 MAX PRO (4x4) is a four-wheel drive double cab utility that was released to the Australian market on 01/08/2021 classified as a SKC8 MY22. The T60 is regarded as a pick up or cab chassis 4x4 built in China with prices starting at $37,884 before on-road costs.

The T60 is a four-wheel drive 4 door with 5 seats, powered by a 2.0L TWIN TURBO 4 engine that has 160 kW of power (at 4000 rpm) and 500 Nm of torque (at 1500 rpm) via an Eight-speed Automatic. LDV claims the T60 MAX PRO (4x4) uses 9.3L/100km of Diesel in the combined city and highway cycle while putting out 244g of CO2. It has a 73L fuel tank, meaning it should be able to travel 785km per full tank.

The T60 measures 1809mm (71.2 inches) in height, 5365mm (211.2 inches) in length, 1900mm (74.8 inches) in width with a 3155mm (124.2 inches) wheelbase that brings about a total of 2125kg (4684.8 lbs) of unladen weight. The T60 MAX PRO (4x4) comes standard with 245/65 R17 front tyres and 245/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2022 LDV T60 MAX PRO (4x4) has a 215mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.1.

The T60 has received a 5 star rating from ANCAP. The VIN number can be found on the Front Driver Side Chassis and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to LSFAM11C9LA123456.


There are no current reviews of this variant. Click here to see reviews for other variants of the LDV T60
LDV T60 MAX PRO (4x4) Details
SeriesSKC8 MY22
Body Styledouble cab utility
Release date01/08/2021
Discontinued date-
Drive type4x4
VIN plate locationFront Driver Side Chassis
Compliance plate locationPass Side Front Floor
VIN ExampleLSFAM11C9LA123456
Country of originChina
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
LDV T60 MAX PRO (4x4) Engine Specifications
Size1996cc, 2.0L
Power @ RPM 160kW @ 4000rpm (214.6 hp)
Torque @ RPM500Nm @ 1500rpm (368.7 lb-ft)
Cylinderstwin-turbocharged four-cylinder
Number of Valves16
Euro RatingEURO 5
Compression ratio15.9
Power/weight ratio75.3kw/tonne
Bore/stroke83.0mm × 92.0mm (3.3in × 3.6in)
LDV T60 MAX PRO (4x4) Drivetrain and Wheels
TransmissionEight-speed Automatic
Drive typefour-wheel drive
Turning circle12.6m (41.3 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size245/65 R17 - 7Jx17
Rear tyre & wheel size245/65 R17 - 7Jx17
Front suspension typeDouble wishbone
Rear suspension typeLeaf Spring - Heavy Duty
LDV T60 MAX PRO (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity73L
Fuel consumption (combined average)9.3L / 100km
Fuel consumption city (average)13.3L / 100km
Fuel consumption highway (average)8L / 100km
Vehicle range784.9km (487.7 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)244g / 100km
CO2 emissions (city)296g / 100km
CO2 emissions (highway)211g / 100km
LDV T60 MAX PRO (4x4) Dimensions
Length5365mm (211.2 inches)
Width1900mm (74.8 inches)
Height1809mm (71.2 inches)
Wheelbase3155mm (124.2 inches)
Front track1580mm (62.2 inches)
Rear track1580mm (62.2 inches)
Ground clearance215mm (8.5 inches)
Unladen weight2125kg (4684.8 lbs)
Gross Vehicle Mass3050kg (6724.1 lbs)
Gross Combination Mass-
LDV T60 MAX PRO (4x4) Towing Capacity
Braked towing capacity3000kg (6613.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
LDV T60 MAX PRO (4x4) Warranty
Warranty length60 months
Warranty distance130,000km
LDV T60 MAX PRO (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
LDV T60 MAX PRO (4x4) Options
Standard Features
  • 12 Volt Power Outlet
  • 2WD & 4WD High & Low Selector
  • 300mm Front Brakes
  • 324mm Rear Brakes
  • Five Seat Interior
  • Attention Assist
  • Dual Front Airbags Package
  • Automatic Air Con / Climate Control
  • Apple Car Play
  • Adjustable Steering Column
  • 17 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Exterior Door Handles
  • Body Coloured Exterior Mirrors
  • Bluetooth Connectivity
  • Curtain Airbags
  • Comfort & Style Package
  • Cruise Control
  • Cup Holders - Front & Rear
  • Cargo Tie Down Hooks/Rings
  • Central Locking Remote Control
  • Child Seat - ISOFIX Anchorage System
  • Cloth Upholstery
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Driver Seat Manual Adjust 6 Way
  • Electronic Brake Force Distribution
  • ECO Mode
  • Electronic Stability Program
  • Extra USB Socket/s
  • Fatigue Reminder
  • Front Grill - Silver
  • Fog Lights - Rear
  • Headlights - Automatic Levelling
  • Hill Descent Control
  • Heavy Duty Suspension
  • Hill Start Assist
  • Engine Immobiliser
  • Intelligent Real Time Torque on Demand
  • LED Headlights
  • Lockable Glove Box Compartment
  • Mud Flaps - Front & Rear
  • Multi-function Steering Wheel
  • Manual Mode
  • Multi-media System with 10.25 inch Touch Screen
  • MP5 Compatibility
  • Normal Key
  • Parking Distance Control Rear
  • Power Mode
  • Power Steering
  • Passenger Seat Manual Adjust 6 Way
  • Radio AM/FM
  • Remote Key
  • Roll Movement Intervention
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror - Manual Dimming
  • Side Airbags - Front Seats side
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Sunglass Holder
  • Spray-In Bedliner
  • Skid Plates - Silver - Front
  • Smartphone Interface
  • Sound System with 6 Speakers
  • Spare Wheel 17 inch
  • Spare Wheel - Steel
  • Traction Control System
  • Towing Hook - Front
  • Tyre Pressure Monitoring System
  • USB Input Socket
  • Vehicle Dynamics Control System
  • Ventilated Front Disc Brakes
  • Ventilated Rear Disc Brakes
Optional Features
  • Premium Paint - $500
