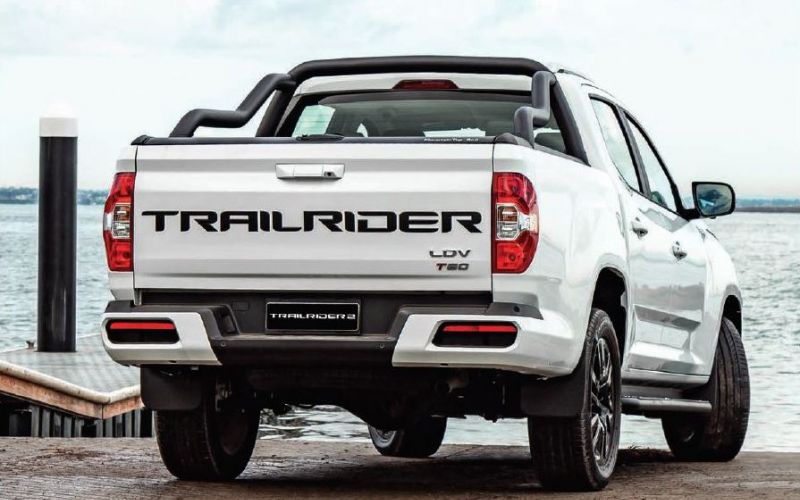

2020 LDV T60 TRAILRIDER 2 (4x4) D20 Specifications
The 2020 LDV T60 TRAILRIDER 2 (4x4) D20 is a four-wheel drive double cab utility that was released to the Australian market on 01/01/2020 classified as a SKC8 MY20. The T60 is regarded as a pick up or cab chassis 4x4 built in China with prices starting at A$42,095 before on-road costs.
The T60 is an four-wheel drive 4 door with 5 seats, powered by a 2.0L DIESEL TURBO 4 engine that has 120 kW of power (at 4000 rpm) and 375 Nm of torque (at 1500 rpm) via a Six-speed Automatic. LDV claims the T60 TRAILRIDER 2 (4x4) D20 uses 8.5L/100km of Diesel in the combined city and highway cycle while putting out 223g of CO2. It has a 75L fuel tank, meaning it should be able to travel 882km per full tank.
The T60 measures 1850mm (72.8 inches) in height, 5365mm (211.2 inches) in length, 1900mm (74.8 inches) in width with a 3155mm (124.2 inches) wheelbase that brings about a total of 2035kg (6956.8 lbs) of unladen weight. The T60 TRAILRIDER 2 (4x4) D20 comes standard with 255/55 R19 front tyres and 255/55 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.
The 2020 LDV T60 TRAILRIDER 2 (4x4) D20 has a 215mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.636.
The T60 has received a 5 star rating from ANCAP. The VIN number can be found on the Right Rear Chassis Rail and the compliance plate is located on the On C-Pillar Behind LH Door. An example VIN number would be similar to LSFAM11B7KA123456.
| LDV T60 TRAILRIDER 2 (4x4) D20 Details | |
|---|---|
| Price | A$42,095 |
| Series | SKC8 MY20 |
| Body Style | double cab utility |
| Release date | 01/01/2020 |
| Discontinued date | - |
| Drive type | 4x4 |
| VIN plate location | Right Rear Chassis Rail |
| Compliance plate location | On C-Pillar Behind LH Door |
| VIN Example | LSFAM11B7KA123456 |
| Country of origin | China |
| Segment | Pick Up or Cab Chassis 4X4 |
| Safety ANCAP rating | 5 stars |
| Number of doors | 4 |
| Seating capacity | 5 |
| LDV T60 TRAILRIDER 2 (4x4) D20 Engine Specifications | |
| Type | TURBO CDI |
| Size | 1996cc, 2.0L |
| Power @ RPM | 120kW @ 4000rpm (160.9 hp) |
| Torque @ RPM | 375Nm @ 1500rpm (276.5 lb-ft) |
| Cylinders | turbocharged four-cylinder |
| Number of Valves | 16 |
| Valves | DUAL OVERHEAD CAM |
| Euro Rating | EURO 5 |
| Compression ratio | 15.9 |
| Power/weight ratio | 59.0kw/tonne |
| Bore/stroke | 83mm × 92mm (3.3in × 3.6in) |
| LDV T60 TRAILRIDER 2 (4x4) D20 Drivetrain and Wheels | |
| Transmission | Six-speed Automatic |
| Drive type | four-wheel drive |
| Steering type | RACK & PINION - POWER ASSISTED |
| Turning circle | 12.6m (41.3 ft) |
| Brake (front) type | DISC |
| Brake (rear) type | DISC |
| Front tyre & wheel size | 255/55 R19 - 7.5Jx19 |
| Rear tyre & wheel size | 255/55 R19 - 7.5Jx19 |
| Front suspension type | Double wishbone |
| Rear suspension type | Leaf spring |
| LDV T60 TRAILRIDER 2 (4x4) D20 Fuel Specifications | |
| Fuel type | DIESEL |
| Fuel tank capacity | 75L |
| Fuel consumption (combined average) | 8.5L / 100km |
| Fuel consumption city (average) | - |
| Fuel consumption highway (average) | - |
| Vehicle range | 882.4km (548.3 miles) |
| Emission standard | EURO 5 |
| E10 compatible | - |
| CO2 emissions (combined) | 223g / 100km |
| CO2 emissions (city) | - |
| CO2 emissions (highway) | - |
| LDV T60 TRAILRIDER 2 (4x4) D20 Dimensions | |
| Length | 5365mm (211.2 inches) |
| Width | 1900mm (74.8 inches) |
| Height | 1850mm (72.8 inches) |
| Wheelbase | 3155mm (124.2 inches) |
| Front track | 1580mm (62.2 inches) |
| Rear track | 1580mm (62.2 inches) |
| Ground clearance | 215mm (8.5 inches) |
| Unladen weight | 2035kg (4487.2 lbs) |
| Gross Vehicle Mass | 2900kg (6394.5 lbs) |
| Gross Combination Mass | 5900kg (13009.5 lbs) |
| LDV T60 TRAILRIDER 2 (4x4) D20 Towing Capacity | |
| Braked towing capacity | 3000kg (6615.0 lbs) |
| Unbraked towing capacity | 750kg (1653.8 lbs) |
| LDV T60 TRAILRIDER 2 (4x4) D20 Warranty | |
| Warranty length | 60 months |
| Warranty distance | 130,000km |
| LDV T60 TRAILRIDER 2 (4x4) D20 Servicing | |
| Service interval (km) | 15,000 km |
| Service interval (months) | 12 months |
| LDV T60 TRAILRIDER 2 (4x4) D20 Options | |
| Standard Features |
|
| Optional Features |
|
