2012 Volkswagen Tiguan 155 TSI (4x4)

2012 Volkswagen Tiguan 155 TSI (4x4) Specifications

Volkswagen Logo
8.8L/100km
5 stars

About the 2012 Volkswagen Tiguan 155 TSI (4x4)

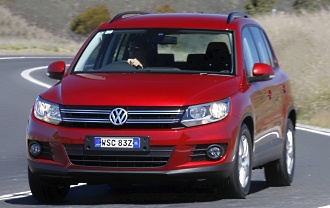

The 2012 Volkswagen Tiguan 155 TSI (4x4) is an all-wheel drive four-door wagon that was released to the Australian market on 01/10/2011 classified as a 5NC MY12. The Tiguan is regarded as a SUV compact built in Germany with prices from a dealer as a used car starting at A$14,900.

The Tiguan is an all-wheel drive 4 door with 5 seats, powered by a 2.0L TURBO 4 engine that has 155 kW of power (at 5300 rpm) and 280 Nm of torque (at 1700 rpm) via a Seven-speed Auto Direct Shift. VOLKSWAGEN claims the Tiguan 155 TSI (4x4) uses 8.8L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 205g of CO2. It has a 64L fuel tank, meaning it should be able to travel 727km per full tank.

The Tiguan measures 1686mm (66.4 inches) in height, 4427mm (174.3 inches) in length, 1809mm (71.2 inches) in width with a 2605mm (102.6 inches) wheelbase that brings about a total of 1642kg (3620.0 lbs) of unladen weight. The Tiguan 155 TSI (4x4) comes standard with 235/55 R17 front tyres and 235/55 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2012 Volkswagen Tiguan 155 TSI (4x4) has a 195mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

The Tiguan has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the Right Side in Boot Compartment. An example VIN number would be similar to WVGZZZ5NZ#**00011.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Tiguan
Volkswagen Tiguan 155 TSI (4x4) Details
Price-
Used Price From DealerA$14,900
Trade-In ValueA$11,200
Series5NC MY12
Body Stylefour-door wagon
Release date01/10/2011
Discontinued date31/07/2012
Drive typeAWD
VIN plate locationDriver Side Inner Guard
Compliance plate locationRight Side in Boot Compartment
VIN ExampleWVGZZZ5NZ#**00011
Country of originGermany
SegmentSUV COMPACT
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Volkswagen Tiguan 155 TSI (4x4) Engine Specifications
TypeTURBO MPFI
Size1984cc, 2.0L
Power @ RPM 155kW @ 5300rpm (207.9 hp)
Torque @ RPM280Nm @ 1700rpm (206.5 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio9.6
Power/weight ratio94.4kw/tonne
Bore/stroke82.5mm × 92.8mm (3.2in × 3.6in)
Volkswagen Tiguan 155 TSI (4x4) Drivetrain and Wheels
TransmissionSeven-speed Auto Direct Shift
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12m (39.4 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size235/55 R17 - 7x17
Rear tyre & wheel size235/55 R17 - 7x17
Front suspension typeMacPherson strut, Lower wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar
Volkswagen Tiguan 155 TSI (4x4) Fuel Specifications
Fuel typePREMIUM UNLEADED PETROL
Fuel tank capacity64L
Fuel consumption (combined average)8.8L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range727.3km (451.9 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)205g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Volkswagen Tiguan 155 TSI (4x4) Dimensions
Length4427mm (174.3 inches)
Width1809mm (71.2 inches)
Height1686mm (66.4 inches)
Wheelbase2605mm (102.6 inches)
Front track1559mm (61.4 inches)
Rear track1571mm (61.9 inches)
Ground clearance195mm (7.7 inches)
Unladen weight1642kg (3620.0 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Volkswagen Tiguan 155 TSI (4x4) Towing Capacity
Braked towing capacity2000kg (4409.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Volkswagen Tiguan 155 TSI (4x4) Warranty
Warranty length36 months
Warranty distanceUnlimited km
Volkswagen Tiguan 155 TSI (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Volkswagen Tiguan 155 TSI (4x4) Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Adjustable Steering Wheel - Tilt & Telescopic
  • 17 Inch Alloy Wheels
  • Brake Assist
  • Cruise Control
  • CD with 6 CD Stacker
  • Central Locking Remote Control
  • Cloth Trim
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Electronic Differential Lock
  • Electronic Stability Program
  • Fog Lights - Front
  • Head Airbags
  • Hill Holder
  • Engine Immobiliser
  • Lane Departure Warning
  • Leather Steering Wheel
  • Multi Function Steering Wheel
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Radio CD with 8 Speakers
  • Roof Rails
  • Rain Sensing Wipers
  • Reversing Camera
  • Seatbelts - Pre-tensioners Front Seats
  • Side Front AirBags
  • Sport Seats
  • Trip Computer
  • Traction Control System
  • Tinted Windows
Optional Features
  • Adaptive Damping Control - A$1,650
  • Alarm System/Remote Anti Theft - A$600
  • 18 Inch Alloy Wheels - A$1,300
  • Leather Upholstery - A$3,500
  • Metallic Paint - A$700
  • Parking Distance Control Rear - A$900
  • Power Sunroof - A$2,000
  • Satellite Navigation - A$2,500
  • Xenon Headlights - A$2,100
