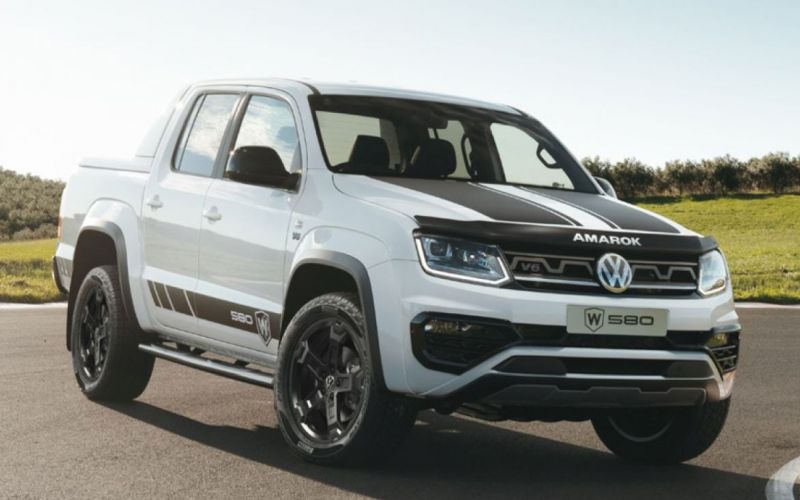

2021 Volkswagen Amarok TDI580 W580S 4MOTION

2021 Volkswagen Amarok TDI580 W580S 4MOTION Specifications

Volkswagen Logo
MRLP A$79,990
9.5L/100km
Not tested

About the 2021 Volkswagen Amarok TDI580 W580S 4MOTION

The 2021 Volkswagen Amarok TDI580 W580S 4MOTION is a four-wheel drive dual cab utility that was released to the Australian market on 01/10/2020 classified as a 2H MY21. The Amarok is regarded as a pick up or cab chassis 4x4 built in Argentina with prices starting at A$79,990 before on-road costs.

The Amarok is a four-wheel drive 4 door with 5 seats, powered by a 3.0L DIESEL TURBO V6 engine that has 190 kW of power (at 3250 rpm) and 580 Nm of torque (at 1400 rpm) via an Eight-speed Automatic. VOLKSWAGEN claims the Amarok TDI580 W580S 4MOTION uses 9.5L/100km of Diesel in the combined city and highway cycle while putting out 250g of CO2. It has a 80L fuel tank, meaning it should be able to travel 842km per full tank.

The Amarok measures 1882mm (74.1 inches) in height, 5254mm (206.9 inches) in length, 2019mm (79.5 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 2147kg (4733.3 lbs) of unladen weight. The Amarok TDI580 W580S 4MOTION comes standard with 275/50 R20 front tyres and 275/50 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2021 Volkswagen Amarok TDI580 W580S 4MOTION has a 258mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.

The VIN number can be found on the Front Driver Side Chassis and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to WV1ZZZ2HZ#*123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Amarok
Volkswagen Amarok TDI580 W580S 4MOTION Details
PriceA$79,990
Series2H MY21
Body Styledual cab utility
Release date01/10/2020
Discontinued date-
Drive type4x4
VIN plate locationFront Driver Side Chassis
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleWV1ZZZ2HZ#*123456
Country of originArgentina
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP ratingNot tested
Number of doors4
Seating capacity5
Volkswagen Amarok TDI580 W580S 4MOTION Engine Specifications
TypeDIESEL TURBO F/INJ
Size2967cc, 3.0L
Power @ RPM 190kW @ 3250rpm (254.8 hp)
Torque @ RPM580Nm @ 1400rpm (427.7 lb-ft)
Cylindersturbocharged six-cylinder
Number of Valves24
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio17
Power/weight ratio88.5kw/tonne
Bore/stroke83mm × 91.4mm (3.3in × 3.6in)
Volkswagen Amarok TDI580 W580S 4MOTION Drivetrain and Wheels
TransmissionEight-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.95m (42.5 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size275/50 R20 - 9x20
Rear tyre & wheel size275/50 R20 - 9x20
Front suspension typeTransverse link, A-frame Arm, Double wishbone, Anti roll bar
Rear suspension typeMulti-layer Rigid Axle, Leaf spring, Stabiliser bar
Volkswagen Amarok TDI580 W580S 4MOTION Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)9.5L / 100km
Fuel consumption city (average)11.4L / 100km
Fuel consumption highway (average)8.4L / 100km
Vehicle range842.1km (523.3 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)250g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Volkswagen Amarok TDI580 W580S 4MOTION Dimensions
Length5254mm (206.9 inches)
Width2019mm (79.5 inches)
Height1882mm (74.1 inches)
Wheelbase3095mm (121.9 inches)
Front track1712mm (67.4 inches)
Rear track1708mm (67.2 inches)
Ground clearance258mm (10.2 inches)
Unladen weight2147kg (4733.3 lbs)
Gross Vehicle Mass3080kg (6790.2 lbs)
Gross Combination Mass6000kg (13227.7 lbs)
Volkswagen Amarok TDI580 W580S 4MOTION Towing Capacity
Braked towing capacity3500kg (7716.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Volkswagen Amarok TDI580 W580S 4MOTION Warranty
Warranty length60 months
Warranty distanceUnlimited km
Volkswagen Amarok TDI580 W580S 4MOTION Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Volkswagen Amarok TDI580 W580S 4MOTION Options
Standard Features
  • Additional 12 Volt Socket/s
  • 12 Volt Power Outlet - Load Area
  • 12 Volt Power Outlet
  • 300mm Rear Brakes
  • 332mm Front Brakes
  • 4Motion Transmission - Permanent
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Apple Car Play
  • Active Roll Control
  • Automatic Hold Function
  • Alarm with Interior Movement Sensor
  • Anti-Slip Regulation
  • Adjustable Steering Column
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Android Auto
  • Audio Streaming
  • Auxiliary Input Socket
  • Art Velour Seat Upholstery
  • 20 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Front Bumper
  • Body Coloured Rear Bumper
  • Black Exterior Mirrors
  • Bottle Holders - Front and Rear
  • Bi-Xenon Headlights
  • Black Headliner
  • Bluetooth Connectivity
  • Cruise Control
  • Centre Console Storage
  • Centre Console with Armrest
  • Carpet Floor Covering - Cabin Only
  • Chrome Highlight - Exterior Mirrors
  • Chrome Radiator Grille Highlights
  • Chrome Highlight - Interior
  • Cargo Tie Down Hooks/Rings
  • Chrome Ornamentation
  • Cup Holders - Rear Seats
  • Central Locking Remote Control
  • Composition Media Audio
  • Connect App Services
  • Chrome Rear Bumper
  • Child Seat Anchor Points
  • Child Seat - ISOFIX Anchorage System
  • Cloth Upholstery - Premium
  • Dashboard Inserts
  • Digital Clock
  • Decal Pack
  • Discover Media Audio and Sat Nav System
  • Discover Media Navigation
  • Diesel Particulate Filter
  • Door Pockets - Front and Rear
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Entry Assist Grips
  • Entry Assist Grips - Rear
  • Electronic Brake Force Distribution
  • Emergency Brake Lights - Flashing
  • Electronic Control Unit
  • Electronic Differential Lock
  • Exhaust Gas Recirculation
  • Electronic Stability Program
  • Front Bumper Inserts
  • Flip/Folding key
  • Front Grille Special
  • Fog Lights - Front with Cornering Function
  • Fog Lights - LED
  • Fog Lights - Rear
  • Floor Mats - Special
  • Front Suspension Lift & Tune
  • Grab Handles - Front and Rear
  • Head Airbags - Front Seats (side)
  • Headlights - Automatic Levelling
  • Headrests - Adjustable Rear Seats
  • Headlights - Coming/Leaving Home Function
  • Hill Descent Control
  • Headlight Range Adjustment
  • High Mounted Rear Stop Light
  • Instrument Cluster with Colour Display
  • Engine Immobiliser
  • Vehicle Jack
  • Leather Appointed Seats
  • Lockable Glove Box Compartment
  • Leather Gear Knob
  • Leather Steering Wheel
  • Locking Tailgate
  • Multi Collision Brake
  • Memory Card Reader
  • Mechanical Diff Lock
  • Multi Function Display Plus
  • Mud Flaps - Front and Rear
  • Multi Function Steering Wheel
  • MirrorLink
  • Multi-media System with 6.33 inch Touch Screen
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front & Rear
  • Nappa Leather Door Beltlines
  • Navigation System with 4 Speakers
  • Optical Parking System
  • Off Road ABS
  • Off Road Mode
  • Overhead Storage Compartment
  • Power Front Seats 14 Way - Heated
  • Parking Distance Control Front & Rear
  • Painted Door Handles
  • Paddle Shifters on Steering Wheel
  • Painted Exterior Mirrors
  • Power Mirrors With Folding
  • Power Exterior Mirrors - Heated
  • Power Steering
  • Passenger Seat Height Adjustable - Manual
  • Power Windows With One-Touch Operation
  • Power Windows with Roll-back Function
  • Radio AM/FM
  • Roof Bar Mounting Points
  • Roof Gutter Inserts - Black
  • Rear Privacy Glass - Rear and Side Windows
  • Rear Step Bumper
  • Rear Seat Backrest Forward Folding
  • Rain Sensing Wipers
  • Reversing Camera
  • Remote Window Closing
  • Remote Window Opening
  • Safelock
  • Sail Plane
  • Styling Bar (Stainless Steel) Standard Type
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners 2nd Row Outer
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for Front Seats
  • Storage Compartment Under the Front Seats
  • Solar Control Glass
  • Split Fold Rear Seat
  • Separate Headlight and Fog Light Switch
  • Speed Limit Warning
  • Seatback Pockets - Front Seats
  • Sound System with 6 Speakers
  • Side Steps - Black
  • Side Steps - Stainless Steel
  • Spare Wheel - Full Size Alloy Wheel
  • Thorax Airbag - Driver
  • Thorax Airbag - Passenger
  • Tailgate - Comfort Closing
  • Tool Kit
  • Tyre Pressure Monitoring System
  • Tinted Rear Lights
  • Trailer Stability Control
  • Underbody Protection
  • USB Input Socket
  • Ute Tray Liner
  • Ventilated Front Disc Brakes
  • Vanity Mirror - Driver
  • Vanity Mirror - Passenger
  • Ventilated Rear Disc Brakes
  • Voice Recognition System
  • Wheel Arch Extensions
Optional Features
  • Metallic Paint - A$700
  • Pearl Effect Paint - A$700
