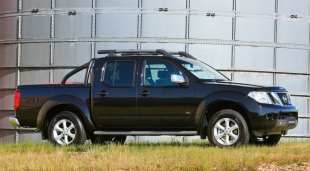

2012 Nissan Navara ST-X 550 (4x4)

2012 Nissan Navara ST-X 550 (4x4) Specifications

Nissan Logo
9.5L/100km
4 stars

About the 2012 Nissan Navara ST-X 550 (4x4)

The 2012 Nissan Navara ST-X 550 (4x4) is a four-wheel drive dual cab utility that was released to the Australian market on 01/02/2012 classified as a D40 MY12. The Navara is regarded as a pick up or cab chassis 4x4 built in Spain with prices from a dealer as a used car starting at A$27,400.

The Navara is a four-wheel drive 4 door with 5 seats, powered by a 3.0L DIESEL TURBO V6 engine that has 170 kW of power (at 3750 rpm) and 550 Nm of torque (at 1750 rpm) via a Seven-speed Automatic. NISSAN claims the Navara ST-X 550 (4x4) uses 9.5L/100km of Diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 80L fuel tank, meaning it should be able to travel 842km per full tank.

The Navara measures 1796mm (70.7 inches) in height, 5296mm (208.5 inches) in length, 1848mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1920kg (4232.9 lbs) of unladen weight. The Navara ST-X 550 (4x4) comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first.

The 2012 Nissan Navara ST-X 550 (4x4) has a 230mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.

The Navara has received a 4 star rating from ANCAP. The VIN number can be found on the Mid Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pilla. An example VIN number would be similar to VSKCLND40A0123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Nissan Navara
Nissan Navara ST-X 550 (4x4) Details
Price-
Used Price From DealerA$27,400
Trade-In ValueA$22,200
SeriesD40 MY12
Body Styledual cab utility
Release date01/02/2012
Discontinued date30/04/2015
Drive type4x4
VIN plate locationMid Driver Side Chassis
Compliance plate locationLower Pass Side Centre Pilla
VIN ExampleVSKCLND40A0123456
Country of originSpain
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating4 stars
Number of doors4
Seating capacity5
Nissan Navara ST-X 550 (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2991cc, 3.0L
Power @ RPM 170kW @ 3750rpm (228.0 hp)
Torque @ RPM550Nm @ 1750rpm (405.6 lb-ft)
Cylindersturbocharged six-cylinder
Number of Valves24
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio16
Power/weight ratio88.5kw/tonne
Bore/stroke84mm × 94mm (3.3in × 3.7in)
Nissan Navara ST-X 550 (4x4) Drivetrain and Wheels
TransmissionSeven-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle13.3m (43.6 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size255/65 R17 - 7x17
Rear tyre & wheel size255/65 R17 - 7x17
Front suspension typeDouble wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLive axle, Leaf spring, Hydraulic double acting shock absorber
Nissan Navara ST-X 550 (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)9.5L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range842.1km (523.3 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)246g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Nissan Navara ST-X 550 (4x4) Dimensions
Length5296mm (208.5 inches)
Width1848mm (72.8 inches)
Height1796mm (70.7 inches)
Wheelbase3200mm (126.0 inches)
Front track1570mm (61.8 inches)
Rear track1570mm (61.8 inches)
Ground clearance230mm (9.1 inches)
Unladen weight1920kg (4232.9 lbs)
Gross Vehicle Mass2860kg (6305.2 lbs)
Gross Combination Mass5860kg (12919.1 lbs)
Nissan Navara ST-X 550 (4x4) Towing Capacity
Braked towing capacity3000kg (6613.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Nissan Navara ST-X 550 (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Nissan Navara ST-X 550 (4x4) Servicing
Service interval (km)20,000 km
Service interval (months)12 months
Nissan Navara ST-X 550 (4x4) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Antenna - Roof-mounted Bee-sting type
  • Alloy Sports Bar
  • Adjustable Steering Wheel - Tilt Only
  • Ambient Temperature Display
  • AUX/USB Input Socket
  • 17 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Front Bumper
  • Bottle Holders - Front Seats
  • Cruise Control
  • Chrome Exterior Mirrors
  • Chrome Front Grille
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Child Seat Anchor Points
  • Collapsible Steering Column
  • Cloth Trim
  • Door Ajar Warning
  • Digital Clock
  • Driver Foot Rest
  • Door Pockets - Front Seat
  • Electronic Brake Force Distribution
  • Fog Lights - Front
  • Floor Mats - Front & Rear
  • Grab Handles - Front and Rear
  • Head Airbags
  • Hard Disk Drive (Built-in)
  • Heated Front Seats
  • Halogen Headlights
  • Headlights On Warning
  • Hard Tonneau Cover
  • Illuminated Ignition Key Ring
  • Engine Immobiliser
  • Intermittent Wipers - Variable
  • Leather Accented Gear Knob
  • Leather Accented Steering Wheel
  • Low Fuel Warning
  • Lockable Glove Box Compartment
  • Leather Upholstery
  • Multi Function Control Screen
  • Mud Flaps - Front
  • Multi Function Steering Wheel
  • MP3 Compatible Audio/CD Player
  • Map/Reading Lights - Front
  • Power front seats
  • Power Mirrors With Indicators & Folding
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Remote Fuel Lid Release
  • Rear Privacy Glass
  • Reversing Camera
  • Rear View Mirror Day/Night
  • Rear Window Demister
  • Satellite Navigation
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Side Door Impact Beams
  • Speed Dependent Volume Control
  • Side Front AirBags
  • Split Fold Rear Seat
  • Sunglass Holder
  • Seatback Pockets - Front Seats
  • Premium Sound System
  • Side Steps
  • Spare Wheel - Full Size Steel Wheel
  • Trip Computer
  • Vehicle Stability Control
Optional Features
  • Metallic Paint - A$495
