Overview

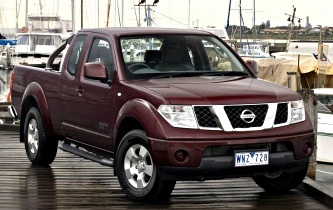

The 2012 Nissan Navara ST-X (4x4) is a four-wheel drive, King C/chas that was released to the Australian market on 3rd February 2012 classified as a D40 MY12. The Nissan Navara is regarded as an ute built in Thailand with prices from a dealer as a used car starting at $20,100.
This Nissan Navara is powered by a 2.5L engine that has 126 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. Nissan claims the Navara ST-X (4x4) uses 9.8L/100km of Diesel in the combined city and highway cycle while putting out 264g of CO2.
The Nissan Navara measures 1770mm (69.7 inches) in height, 5125mm (201.8 inches) in length, 1850mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1769kg (3900.0 lbs) of unladen weight. The Navara ST-X (4x4) comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2012 Nissan Navara ST-X (4x4) has a 205mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.692.
The VIN number can be found on the Mid Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pilla. An example VIN number would be similar to MNTNCUD40A0123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
Type | DIESEL TURBO F/INJ |
---|---|
Size (cc) | 2488 |
Size (L) | 2.5L |
Cylinders | - |
Camshaft | DUAL OVERHEAD CAM |
Valves/Ports per Cylinder | 16 |
Power | 126kW |
Power RPM | 4000 |
Torque | 403Nm |
Torque RPM | 2000 |
Bore Stroke | - |
Compression Ratio | 16.5 |
Transmission | 6 SP MANUAL |
---|---|
Final Gear Ratio | 3.692 |
Suspension Front | - |
Suspension Rear | - |
Steering Mechanism | RACK & PINION - POWER ASSISTED |
Drive | 4x4 |
Fuel Combined (L/100km) | 9.8 |
---|---|
Fuel Urban (L/100km) | - |
Fuel Extra Urban (L/100km) | - |
Tank Size (L) | - |
Fuel Type | DIESEL |
e10 Compatible | unknown |
CO2 Combined | 264 |
CO2 Urban | - |
CO2 Extra Urban | - |
Brake Front | DISC - VENTILATED |
---|---|
Brake Rear | DRUM |
Tyre Front | 255/70 R16 |
Tyre Rear | 255/70 R16 |
Front Rim Size | 7x16 |
Rear Rim Size | 7x16 |
Vehicle Height (mm) | 1770 |
---|---|
Vehicle Length (mm) | 5125 |
Vehicle Width (mm) | 1850 |
Ground Clearance (mm) | 205 |
Wheelbase (mm) | 3200 |
Turning Circle (m) | 13.2 |
Unladen Weight (kg) | 1769 |
Gross Combined Weight (kg) | 5860 |
Gross Vehicle Weight (kg) | 2860 |
Track Front (mm) | 1570 |
Track Rear (mm) | 1570 |
Towing Capacity Brake (kg) | 3000 |
Towing Capacity Unbraked (kg) | 750 |
Country Of Origin | THAILAND |
---|---|
Number of Doors | 2 |
Seats | 2 |
Service Interval KMs | 15 |
Service Interval Months | 12 |
VIN Location | Mid Driver Side Chassis |
VIN Number | MNTNCUD40A0123456 |
Warranty KMs | 100 |
Warranty Months | 36 |
Discontinued Date | 2013-05-31 |
ANCAP Rating | - |
---|---|
Euro Air Pollution Standard | - |
