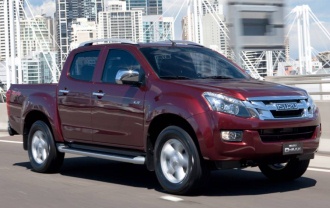

    2014 Isuzu D-Max

    New from

    $27,200 excl. on-roads

    Review Rating

    Good

    Safety Rating

    5

    Warranty

    5 year, 130,000 km

    Fuel Efficiency

    8 - 8.3 L / 100km

    About the Isuzu D-Max

    Last updated Dec 04, 2025

    The new Isuzu D-Max is a Pickup. Available in Australia from $27,200 (MLRP, excl. on-roads) for the SX variant and topping out at $52,500 for the Ls-terrain.

    There are 7 variants of the D-Max available in Australia and this generation went on sale in December of 2013.

    The Isuzu D-Max is only available with an diesel motor that produces 130kW and 380Nm of torque. Both four-wheel drive and rear-wheel drive configurations are available.

    The new 2014 D-Max is offered with a 5 year, 130,000 km warranty.

    CarExpert Rating
    Good
    Read the 2026 Isuzu D-Max review
    This rating has been converted from our previous rating system. Read about our new review ratings.

    Comparative Rating

    Quickly see how this car stacks up against its competition. Select any benchmark to see more details.

    Power to Weight
    64.58 - 81.25 kW/t
    42 kW/t
    109.38 kW/t
    Fuel Efficiency
    8 - 8.3 L/100km
    7.3 L/100km
    13 L/100km
    Vehicle Range
    916 - 950 km
    585 km
    1,096 km
    Price
    $27,200 - $52,500
    $18,990
    $62,990
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    130,000 km
    100,000 km
    Unlimited
    Years on Sale
    New this year - 1 year
    1 year
    3 years

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,850 - 2,950 kg
    2,710 kg
    3,500 kg
    Gross Comb. Mass
    5,350 - 5,950 kg
    4,480 kg
    6,000 kg
    Braked Towing Capacity
    2,500 - 3,500 kg
    1,800 kg
    3,500 kg
    Ground Clearance Unladen
    190 - 235 mm
    190 mm
    314 mm
    Payload Capacity
    937 - 1,250 kg
    726 kg
    1,648 kg

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Isuzu D-Max News

    2014 Isuzu D-Max Price

    *excl. on-roads

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    2014 Isuzu D-Max Specs

    See our comprehensive details for the Isuzu D-Max

    EX

    • Audio
      • Connection External Aux Jack Front
      • Connection External Usb Front
      • Connection External Ipod Front
      • Number Of Speakers: 2
      • System Cd Player Reads Mp3
      • System In-dash Cd
      • System Radio Type: Am/fm
    • Body exterior
      • Body Length: Regular

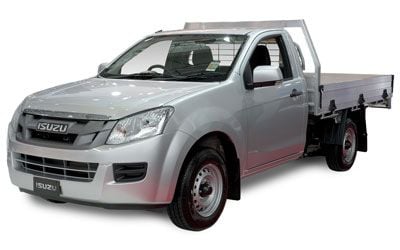

      • Body Type: Cab Chassis
      • Cab Type: Single Cab
      • Local Body Type: Cab Chassis
      • Local Number Of Doors: 2
      • Number Of Doors: 2
      • Platform Code: I-grip
      • Roof Type: Standard
      • Wheelbase Type: Short
    • Brakes
      • Number Of Disc Brakes: 2
      • Number Of Ventilated Disc Brakes: 2
    • Bumpers
      • Front Colour: Black
      • Front Location: Front
    • Calculated
      • Power-to-weight Ratio (kw/t): 75.14
    • Convenience
      • Bluetooth Includes Phone Connection
      • Power Outlet Front Location (12v): Front
    • Dimensions
      • External Dimensions Front Overhang (in): 35.6
      • External Dimensions Rear Overhang (in): 40.9
      • Front Overhang (mm): 905
      • Front Track (mm): 1570
      • Ground Clearance Unladen (mm): 225
      • Kerb To Kerb Turning Circle (mm): 12600
      • Overall Height (mm): 1790
      • Overall Length (mm): 5040
      • Overall Width (mm): 1860
      • Rear Overhang (mm): 1040
      • Rear Track (mm): 1570
      • Wheelbase (mm): 3095
    • Doors
      • Driver Door Location: Driver
      • Driver Door Type: Front Hinged
      • Passenger Door Location: Passenger
      • Passenger Door Type: Front Hinged
    • Engine
      • Bore Engine: 95.4
      • Co2 Level (combined): 220
      • Compressor: Turbo
      • Emission Control Level Standard Met: Eu4
      • Engine (l): 3.0
      • Engine (cc): 2999
      • Engine Code: 4jj1-tc
      • Engine Configuration: In-line
      • Number Of Cylinders: 4
      • Number Of Vavles Per Cylinder: 4
      • Stroke Engine: 104.9
      • Vavle Gear Type: Double Overhead Cam
    • Fuel
      • Fuel System Injection Carburetion: Diesel Common Rail
      • Fuel Tank Main Capacity (l): 76
      • Fuel Tanks Main Type: Total
      • Fuel Type: Diesel
      • Generic Primary Fuel Type: Diesel
      • Minimum Fuel Type: Diesel
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Plastic/rubber
      • Upholstery Color: Black
    • Lights
      • Headlights Bulb Type Low Beam: Halogen
    • Paint
      • External Color: White
      • Type: Gloss
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 916
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.3
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.0
      • Fuel Consumption Adr 81/02 Country Highway (l/100km): 7.0
      • Fuel Consumption Adr 81/02 Country Highway (km/l): 14.3
      • Fuel Consumption Adr 81/02 Standard: Adr 81/02
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.6
      • Fuel Consumption Adr 81/02 Urban (km/l): 9.4
      • Fuel Economy Adr 81/02 (l/100km): 8.3
      • Power Maximum Power (hp/ps): 177
      • Power Maximum Power (kw): 130
      • Power Maximum Torque (nm): 380
      • Power Measurement Standard: Din
      • Power Primary Or Secondary Fuel Power Figure: Primary
      • Power Rpm For Maximum Power Low: 3600
      • Power Rpm For Maximum Torque Low: 1800
    • Safety
      • Crash Test Results Ancap Date Tested: 20130826
      • Crash Test Results Ancap Overall: 4.00
      • Crash Test Results Ancap Standard: Ancap
      • Crash Test Results Ancap Version Tested: 2.5 Litre Crew Cab 4x4
      • Front Airbag Driver Location: Driver
      • Front Airbag Passenger Location: Passenger
      • Front Seat Belts Center Seat Position: Center
      • Front Seat Belts Driver Height Adjustable
      • Front Seat Belts Driver Pre Tensioners
      • Front Seat Belts Driver Seat Position: Driver
      • Front Seat Belts Passenger Height Adjustable
      • Front Seat Belts Passenger Pre Tensioners
      • Front Seat Belts Passenger Seat Position: Passenger
      • Head Restraints Front Seats Location: Front Seats
      • Side Airbag Front Location: Front
      • Side Curtain Airbag Front Location: Front
    • Seats
      • Center Front Seat Location: Centre
      • Center Front Seat Type: Bench
      • Driver Front Seat Location: Driver
      • Driver Front Seat Reach Type: Manual
      • Driver Front Seat Type: Bench
      • Passenger Front Seat Location: Passenger
      • Passenger Front Seat Reach Type: Manual
      • Passenger Front Seat Type: Bench
      • Seat Upholstery Additional Seat Material: Cloth
      • Seat Upholstery Main Seat Material: Cloth
      • Seating Capacity: 3
      • Seating Configuration: 3+0
    • Service
      • Intermediate Service Distance (km): 10000
    • Steering
      • Power Steering Type: Hydraulic
      • Steering Wheel Type: Plastic
    • Storage
      • Cup Holders Front Seats Location: Front Seats
    • Suspension
      • Suspension Front Location: Front
      • Suspension Front Spring Type: Coil
      • Suspension Front Stabilizer Bar
      • Suspension Front Type: Wishbone
      • Suspension Front Wheel Dependence: Independent
      • Suspension Rear Location: Rear
      • Suspension Rear Spring Type: Leaf
      • Suspension Rear Type: Beam
      • Suspension Rear Wheel Dependence: Rigid
    • Transmission
      • Axle Ratio: 3.727
      • Drive Driven Wheels: 4x4
      • Drive Four-wheel Drive Type: Part-time
      • Drive Selection: Manual
      • Limited Slip Differential Rear Location: Rear
      • Transmission Description: Manual
      • Transmission Low High Gear Ranges
      • Transmission Number Of Speeds: 5
      • Transmission Type: Manual
    • Ventilation
      • Air Conditioning Type: Manual
    • Visibility
      • Driver Door Mirrors/cameras Colour: Black
      • Driver Door Mirrors/cameras Location: Driver
      • Driver Door Mirrors/cameras Type: Externally Adjustable
      • Intermittent Wipe Windshield Wipers: Fixed
      • Passenger Door Mirrors/cameras Colour: Black
      • Passenger Door Mirrors/cameras Location: Passenger
      • Passenger Door Mirrors/cameras Type: Externally Adjustable
    • Warranty
      • Anti-corrosion Distance (km): 130000
      • Anti-corrosion Duration (months): 60
      • Roadside Assistance Distance (km): 130000
      • Roadside Assistance Duration (months): 60
      • Total Powertrain Distance (km): 130000
      • Total Powertrain Duration (months): 60
      • Total Whole Vehicle Distance (km): 130000
      • Total Whole Vehicle Duration (months): 60
    • Weights
      • Front Axle Weight (kg): 1350
      • Front Axle Weight (lb): 2976
      • Gross Trailer Weight Braked (kg): 3500
      • Gross Trailer Weight Unbraked (kg): 750
      • Gross Train Weight (kg): 5950
      • Gross Vehicle Weight (kg): 2950
      • Payload Allowance (kg): 1220
      • Published Kerb Weight (kg): 1730
      • Rear Axle Weight (kg): 1870
      • Tare Weight (kg): 1657
    • Wheels
      • Front Wheels Location: Front
      • Front Wheels Rim Diameter Inch: 16
      • Front Wheels Rim Type: Steel
      • Front Wheels Rim Width Inch: 7.0
      • Front Wheels Tire Load Index: 111
      • Front Wheels Tire Location: Front
      • Front Wheels Tire Profile: 70
      • Front Wheels Tire Type: All Terrain
      • Front Wheels Tire Width: 245
      • Rear Wheels Axle 1 Location: 1
      • Rear Wheels Location: Rear
      • Rear Wheels Rim Diameter Inch: 16
      • Rear Wheels Rim Type: Steel
      • Rear Wheels Rim Width Inch: 7.0
      • Rear Wheels Tire Load Index: 111
      • Rear Wheels Tire Location: Rear
      • Rear Wheels Tire Profile: 70
      • Rear Wheels Tire Type: All Terrain
      • Rear Wheels Tire Width: 245

    LS

    Adds to EX:
    • Audio
      • Number Of Speakers: 6
      • Remote Control Type: Steering Wheel Mounted
    • Body exterior
      • Body Type: Utility
      • Cab Type: Double Cab
      • Local Body Type: Utility
      • Local Number Of Doors: 4
      • Number Of Doors: 4
      • Side Step Location: Side
    • Bumpers
      • Front Colour: Painted
      • Rear Colour: Painted
      • Rear Location: Rear
    • Calculated
      • Power-to-weight Ratio (kw/t): 68.13
    • Cargo area
      • Tray/tub Type: Straight Side
    • Dimensions
      • Cargo Area Height (in): 18.3
      • Cargo Area Height (mm): 1550
      • Cargo Area Length (in): 58.5
      • Cargo Area Length (mm): 1485
      • Cargo Area Standard Measurement: Manufacturer's Own
      • Cargo Area Width (in): 61.0
      • Cargo Area Width (mm): 1550
      • Cargo Area Width Between Wheelhouses (in): 43.5
      • Cargo Area Width Between Wheelhouses (mm): 1105
      • External Dimensions Rear Overhang (in): 51.0
      • Ground Clearance Unladen (mm): 235
      • Overall Height (mm): 1795
      • Overall Length (mm): 5295
      • Rear Overhang (mm): 1295
    • Doors
      • Cargo Doors Rear Height (mm): 465
      • Cargo Doors Rear Height In: 18.3
      • Cargo Doors Rear Location: Rear
      • Cargo Doors Rear Opening Angle: 90
      • Cargo Doors Rear Operation: Dropping Gate
      • Cargo Doors Rear Width (mm): 1460
      • Cargo Doors Rear Width In: 57.5
      • Rear Driver Door Location: Rear Driver
      • Rear Driver Door Type: Front Hinged
      • Rear Passenger Door Location: Rear Passenger
      • Rear Passenger Door Type: Front Hinged
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Textile
      • Luxury Trim On Center Floor Console: Alloy Look
      • Luxury Trim On Doors: Alloy Look
      • Luxury Trim On Instrument Panel: Alloy Look
      • Upholstery Color: Gray
    • Lights
      • Headlights Lens Type: Ellipsoidal
    • Locks
      • Power Locks Operation: Remote
    • Safety
      • Head Restraints Rear Seats Location: Rear Seats
      • Head Restraints Rear Seats Number: 3
      • Number Of Airbags: 6
      • Rear Seat Belts Center Seat Position: Centre
      • Rear Seat Belts Center Type: 3-point
      • Rear Seat Belts Driver Seat Position: Driver
      • Rear Seat Belts Passenger Seat Position: Passenger
      • Side Curtain Airbag Front And Rear Location: Front And Rear
    • Seats
      • Driver Front Seat Height Type: Manual
      • Driver Front Seat Type: Bucket
      • Front Rear Seat Facing Direction: Front
      • Front Rear Seat Seating Capacity: 3
      • Front Rear Seat Type: Bench
      • Passenger Front Seat Type: Bucket
      • Seat Upholstery Additional Seat Material: Upgraded Cloth/velour
      • Seat Upholstery Main Seat Material: Upgraded Cloth/velour
      • Seating Capacity: 5
      • Seating Configuration: 2+3
    • Steering
      • Steering Wheel Height Adjustment
      • Steering Wheel Type: Leather Covered
    • Storage
      • Cup Holders Rear Seats Location: Rear Seats
    • Transmission
      • Drive Driven Wheels: Rear
    • Visibility
      • Driver Door Mirrors/cameras Colour: Chrome
      • Driver Door Mirrors/cameras Type: Electrically Adjustable
      • Front Electric Windows: Front
      • Intermittent Wipe Windshield Wipers: Variable
      • Passenger Door Mirrors/cameras Colour: Chrome
      • Passenger Door Mirrors/cameras Type: Electrically Adjustable
      • Rear Electric Windows: Rear
      • Rear Side Windows Driver Location: Driver
      • Rear Side Windows Passenger Location: Passenger
    • Weights
      • Gross Trailer Weight Braked (kg): 2500
      • Gross Train Weight (kg): 5350
      • Gross Vehicle Weight (kg): 2850
      • Payload Allowance (kg): 942
      • Published Kerb Weight (kg): 1908
      • Tare Weight (kg): 1835
    • Wheels
      • Front Wheels Rim Diameter Inch: 17
      • Front Wheels Rim Type: Alloy
      • Front Wheels Tire Profile: 65
      • Front Wheels Tire Type: Conventional/summer
      • Front Wheels Tire Width: 255
      • Rear Wheels Rim Diameter Inch: 17
      • Rear Wheels Rim Type: Alloy
      • Rear Wheels Tire Profile: 65
      • Rear Wheels Tire Type: Conventional/summer
      • Rear Wheels Tire Width: 255
    Removes from EX:
    • Audio
      • Number Of Speakers: 2
    • Body exterior
      • Body Type: Cab Chassis
      • Cab Type: Single Cab
      • Local Body Type: Cab Chassis
      • Local Number Of Doors: 2
      • Number Of Doors: 2
    • Bumpers
      • Front Colour: Black
    • Calculated
      • Power-to-weight Ratio (kw/t): 75.14
    • Dimensions
      • External Dimensions Rear Overhang (in): 40.9
      • Ground Clearance Unladen (mm): 225
      • Overall Height (mm): 1790
      • Overall Length (mm): 5040
      • Rear Overhang (mm): 1040
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Plastic/rubber
      • Upholstery Color: Black
    • Safety
      • Front Seat Belts Center Seat Position: Center
      • Side Curtain Airbag Front Location: Front
    • Seats
      • Center Front Seat Location: Centre
      • Center Front Seat Type: Bench
      • Driver Front Seat Type: Bench
      • Passenger Front Seat Type: Bench
      • Seat Upholstery Additional Seat Material: Cloth
      • Seat Upholstery Main Seat Material: Cloth
      • Seating Capacity: 3
      • Seating Configuration: 3+0
    • Steering
      • Steering Wheel Type: Plastic
    • Transmission
      • Drive Driven Wheels: 4x4
      • Drive Four-wheel Drive Type: Part-time
      • Drive Selection: Manual
      • Transmission Low High Gear Ranges
    • Visibility
      • Driver Door Mirrors/cameras Colour: Black
      • Driver Door Mirrors/cameras Type: Externally Adjustable
      • Intermittent Wipe Windshield Wipers: Fixed
      • Passenger Door Mirrors/cameras Colour: Black
      • Passenger Door Mirrors/cameras Type: Externally Adjustable
    • Weights
      • Gross Trailer Weight Braked (kg): 3500
      • Gross Train Weight (kg): 5950
      • Gross Vehicle Weight (kg): 2950
      • Payload Allowance (kg): 1220
      • Published Kerb Weight (kg): 1730
      • Tare Weight (kg): 1657
    • Wheels
      • Front Wheels Rim Diameter Inch: 16
      • Front Wheels Rim Type: Steel
      • Front Wheels Tire Load Index: 111
      • Front Wheels Tire Profile: 70
      • Front Wheels Tire Type: All Terrain
      • Front Wheels Tire Width: 245
      • Rear Wheels Rim Diameter Inch: 16
      • Rear Wheels Rim Type: Steel
      • Rear Wheels Tire Load Index: 111
      • Rear Wheels Tire Profile: 70
      • Rear Wheels Tire Type: All Terrain
      • Rear Wheels Tire Width: 245

    SX

    Adds to LS:
    • Audio
      • Number Of Speakers: 2
    • Body exterior
      • Body Type: Cab Chassis
      • Cab Type: Extended
      • Local Body Type: Cab Chassis
      • Local Number Of Doors: 2
      • Number Of Doors: 2
    • Calculated
      • Power-to-weight Ratio (kw/t): 71.47
    • Dimensions
      • External Dimensions Rear Overhang (in): 40.2
      • Ground Clearance Unladen (mm): 225
      • Overall Height (mm): 1790
      • Overall Length (mm): 5020
      • Rear Overhang (mm): 1020
    • Engine
      • Co2 Level (combined): 214
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Plastic/rubber
      • Upholstery Color: Black
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 938
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.1
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.3
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.0
      • Fuel Consumption Adr 81/02 Urban (km/l): 10.0
      • Fuel Economy Adr 81/02 (l/100km): 8.1
    • Safety
      • Side Curtain Airbag Front Location: Front
    • Seats
      • Front Rear Seat Seating Capacity: 2
      • Front Rear Seat Type: Jump
      • Seat Upholstery Additional Seat Material: Cloth
      • Seat Upholstery Main Seat Material: Cloth
      • Seating Capacity: 4
      • Seating Configuration: 2+2
    • Steering
      • Steering Wheel Type: Plastic
    • Transmission
      • Drive Descent Control System
      • Drive Driven Wheels: 4x4
      • Drive Four-wheel Drive Type: Part-time
      • Drive Selection: Manual
      • Transmission Code: Awtb50-ls
      • Transmission Description: Automatic With Manual Mode
      • Transmission Low High Gear Ranges
      • Transmission Manual Mode
      • Transmission Type: Automatic
    • Visibility
      • Driver Door Mirrors/cameras Colour: Painted
      • Intermittent Wipe Windshield Wipers: Fixed
      • Passenger Door Mirrors/cameras Colour: Painted
    • Weights
      • Gross Trailer Weight Braked (kg): 3500
      • Gross Train Weight (kg): 5950
      • Gross Vehicle Weight (kg): 2950
      • Payload Allowance (kg): 1131
      • Published Kerb Weight (kg): 1819
      • Tare Weight (kg): 1746
    • Wheels
      • Front Wheels Rim Diameter Inch: 16
      • Front Wheels Rim Type: Steel
      • Front Wheels Tire Load Index: 111
      • Front Wheels Tire Profile: 70
      • Front Wheels Tire Type: All Terrain
      • Front Wheels Tire Width: 245
      • Rear Wheels Rim Diameter Inch: 16
      • Rear Wheels Rim Type: Steel
      • Rear Wheels Tire Load Index: 111
      • Rear Wheels Tire Profile: 70
      • Rear Wheels Tire Type: All Terrain
      • Rear Wheels Tire Width: 245
    Removes from LS:
    • Audio
      • Number Of Speakers: 6
      • Remote Control Type: Steering Wheel Mounted
    • Body exterior
      • Body Type: Utility
      • Cab Type: Double Cab
      • Local Body Type: Utility
      • Local Number Of Doors: 4
      • Number Of Doors: 4
      • Side Step Location: Side
    • Bumpers
      • Rear Colour: Painted
      • Rear Location: Rear
    • Calculated
      • Power-to-weight Ratio (kw/t): 68.13
    • Cargo area
      • Tray/tub Type: Straight Side
    • Dimensions
      • Cargo Area Height (in): 18.3
      • Cargo Area Height (mm): 1550
      • Cargo Area Length (in): 58.5
      • Cargo Area Length (mm): 1485
      • Cargo Area Standard Measurement: Manufacturer's Own
      • Cargo Area Width (in): 61.0
      • Cargo Area Width (mm): 1550
      • Cargo Area Width Between Wheelhouses (in): 43.5
      • Cargo Area Width Between Wheelhouses (mm): 1105
      • External Dimensions Rear Overhang (in): 51.0
      • Ground Clearance Unladen (mm): 235
      • Overall Height (mm): 1795
      • Overall Length (mm): 5295
      • Rear Overhang (mm): 1295
    • Doors
      • Cargo Doors Rear Height (mm): 465
      • Cargo Doors Rear Height In: 18.3
      • Cargo Doors Rear Location: Rear
      • Cargo Doors Rear Opening Angle: 90
      • Cargo Doors Rear Operation: Dropping Gate
      • Cargo Doors Rear Width (mm): 1460
      • Cargo Doors Rear Width In: 57.5
      • Rear Driver Door Location: Rear Driver
      • Rear Driver Door Type: Front Hinged
      • Rear Passenger Door Location: Rear Passenger
      • Rear Passenger Door Type: Front Hinged
    • Engine
      • Co2 Level (combined): 220
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Textile
      • Luxury Trim On Center Floor Console: Alloy Look
      • Luxury Trim On Doors: Alloy Look
      • Luxury Trim On Instrument Panel: Alloy Look
      • Upholstery Color: Gray
    • Lights
      • Headlights Lens Type: Ellipsoidal
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 916
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.3
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.0
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.6
      • Fuel Consumption Adr 81/02 Urban (km/l): 9.4
      • Fuel Economy Adr 81/02 (l/100km): 8.3
    • Safety
      • Head Restraints Rear Seats Location: Rear Seats
      • Head Restraints Rear Seats Number: 3
      • Number Of Airbags: 6
      • Rear Seat Belts Center Seat Position: Centre
      • Rear Seat Belts Center Type: 3-point
      • Side Curtain Airbag Front And Rear Location: Front And Rear
    • Seats
      • Driver Front Seat Height Type: Manual
      • Front Rear Seat Seating Capacity: 3
      • Front Rear Seat Type: Bench
      • Seat Upholstery Additional Seat Material: Upgraded Cloth/velour
      • Seat Upholstery Main Seat Material: Upgraded Cloth/velour
      • Seating Capacity: 5
      • Seating Configuration: 2+3
    • Steering
      • Steering Wheel Type: Leather Covered
    • Storage
      • Cup Holders Rear Seats Location: Rear Seats
    • Transmission
      • Drive Driven Wheels: Rear
      • Transmission Description: Manual
      • Transmission Type: Manual
    • Visibility
      • Driver Door Mirrors/cameras Colour: Chrome
      • Intermittent Wipe Windshield Wipers: Variable
      • Passenger Door Mirrors/cameras Colour: Chrome
      • Rear Electric Windows: Rear
    • Weights
      • Gross Trailer Weight Braked (kg): 2500
      • Gross Train Weight (kg): 5350
      • Gross Vehicle Weight (kg): 2850
      • Payload Allowance (kg): 942
      • Published Kerb Weight (kg): 1908
      • Tare Weight (kg): 1835
    • Wheels
      • Front Wheels Rim Diameter Inch: 17
      • Front Wheels Rim Type: Alloy
      • Front Wheels Tire Profile: 65
      • Front Wheels Tire Type: Conventional/summer
      • Front Wheels Tire Width: 255
      • Rear Wheels Rim Diameter Inch: 17
      • Rear Wheels Rim Type: Alloy
      • Rear Wheels Tire Profile: 65
      • Rear Wheels Tire Type: Conventional/summer
      • Rear Wheels Tire Width: 255

    Ls-M

    Adds to SX:
    • Audio
      • Number Of Speakers: 6
      • Remote Control Type: Steering Wheel Mounted
    • Body exterior
      • Body Type: Utility
      • Cab Type: Double Cab
      • Local Body Type: Utility
      • Local Number Of Doors: 4
      • Number Of Doors: 4
    • Bumpers
      • Rear Colour: Black
      • Rear Location: Rear
    • Calculated
      • Power-to-weight Ratio (kw/t): 66.23
    • Cargo area
      • Tray/tub Type: Straight Side
    • Dimensions
      • Cargo Area Height (in): 18.3
      • Cargo Area Height (mm): 1530
      • Cargo Area Length (in): 58.5
      • Cargo Area Length (mm): 1485
      • Cargo Area Standard Measurement: Manufacturer's Own
      • Cargo Area Width (in): 60.2
      • Cargo Area Width (mm): 1530
      • Cargo Area Width Between Wheelhouses (in): 43.5
      • Cargo Area Width Between Wheelhouses (mm): 1105
      • External Dimensions Rear Overhang (in): 46.9
      • Overall Height (mm): 1785
      • Overall Length (mm): 5190
      • Rear Overhang (mm): 1190
    • Doors
      • Cargo Doors Rear Height (mm): 465
      • Cargo Doors Rear Height In: 18.3
      • Cargo Doors Rear Location: Rear
      • Cargo Doors Rear Opening Angle: 90
      • Cargo Doors Rear Operation: Dropping Gate
      • Cargo Doors Rear Width (mm): 1460
      • Cargo Doors Rear Width In: 57.5
      • Rear Driver Door Location: Rear Driver
      • Rear Driver Door Type: Front Hinged
      • Rear Passenger Door Location: Rear Passenger
      • Rear Passenger Door Type: Front Hinged
    • Engine
      • Australia Air Pollution Rating: 3.0
      • Australia Greenhouse Rating: 6.0
      • Australia Overall Emission Control Level Rating: 2.5
      • Co2 Level (combined): 220
    • Interior trim
      • Luxury Trim On Center Floor Console: Alloy Look
      • Luxury Trim On Doors: Alloy Look
      • Luxury Trim On Instrument Panel: Alloy Look
      • Upholstery Color: Gray
    • Lights
      • Headlights Lens Type: Ellipsoidal
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 916
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.3
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.0
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.6
      • Fuel Consumption Adr 81/02 Urban (km/l): 9.4
      • Fuel Economy Adr 81/02 (l/100km): 8.3
    • Safety
      • Crash Test Results Ancap Date Tested: 20131218
      • Crash Test Results Ancap Overall: 5.00
      • Crash Test Results Ancap Version Tested: 3.0 Litre Crew Cab 4x4
      • Head Restraints Rear Seats Location: Rear Seats
      • Head Restraints Rear Seats Number: 3
      • Number Of Airbags: 6
      • Rear Seat Belts Center Operation: Reel
      • Rear Seat Belts Center Seat Position: Centre
      • Rear Seat Belts Center Type: 3-point
      • Side Curtain Airbag Front And Rear Location: Front And Rear
    • Seats
      • Driver Front Seat Height Type: Manual
      • Front Rear Seat Seating Capacity: 3
      • Front Rear Seat Type: Bench
      • Seat Upholstery Additional Seat Material: Upgraded Cloth/velour
      • Seat Upholstery Main Seat Material: Upgraded Cloth/velour
      • Seating Capacity: 5
      • Seating Configuration: 2+3
    • Steering
      • Steering Wheel Type: Leather Covered
    • Storage
      • Cup Holders Rear Seats Location: Rear Seats
    • Transmission
      • Electronic Traction Control Controlled By: Abs & Engine Management
      • Transmission Description: Manual
      • Transmission Type: Manual
    • Visibility
      • Intermittent Wipe Windshield Wipers: Variable
      • Rear Electric Windows: Rear
    • Weights
      • Payload Allowance (kg): 987
      • Published Kerb Weight (kg): 1963
      • Tare Weight (kg): 1890
    • Wheels
      • Front Wheels Rim Type: Alloy
      • Rear Wheels Rim Type: Alloy
    Removes from SX:
    • Audio
      • Number Of Speakers: 2
    • Body exterior
      • Body Type: Cab Chassis
      • Cab Type: Extended
      • Local Body Type: Cab Chassis
      • Local Number Of Doors: 2
      • Number Of Doors: 2
    • Calculated
      • Power-to-weight Ratio (kw/t): 71.47
    • Dimensions
      • External Dimensions Rear Overhang (in): 40.2
      • Overall Height (mm): 1790
      • Overall Length (mm): 5020
      • Rear Overhang (mm): 1020
    • Engine
      • Co2 Level (combined): 214
    • Interior trim
      • Upholstery Color: Black
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 938
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.1
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.3
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.0
      • Fuel Consumption Adr 81/02 Urban (km/l): 10.0
      • Fuel Economy Adr 81/02 (l/100km): 8.1
    • Safety
      • Crash Test Results Ancap Date Tested: 20130826
      • Crash Test Results Ancap Overall: 4.00
      • Crash Test Results Ancap Version Tested: 2.5 Litre Crew Cab 4x4
      • Side Curtain Airbag Front Location: Front
    • Seats
      • Front Rear Seat Seating Capacity: 2
      • Front Rear Seat Type: Jump
      • Seat Upholstery Additional Seat Material: Cloth
      • Seat Upholstery Main Seat Material: Cloth
      • Seating Capacity: 4
      • Seating Configuration: 2+2
    • Steering
      • Steering Wheel Type: Plastic
    • Transmission
      • Drive Descent Control System
      • Transmission Code: Awtb50-ls
      • Transmission Description: Automatic With Manual Mode
      • Transmission Manual Mode
      • Transmission Type: Automatic
    • Visibility
      • Intermittent Wipe Windshield Wipers: Fixed
    • Weights
      • Payload Allowance (kg): 1131
      • Published Kerb Weight (kg): 1819
      • Tare Weight (kg): 1746
    • Wheels
      • Front Wheels Rim Type: Steel
      • Rear Wheels Rim Type: Steel

    Ls-U

    Adds to Ls-M:
    • Body exterior
      • Cab Type: Extended
      • Local Number Of Doors: 2
      • Number Of Doors: 2
      • Side Step Location: Side
    • Bumpers
      • Rear Colour: Painted
    • Calculated
      • Power-to-weight Ratio (kw/t): 65.72
    • Dimensions
      • Cargo Area Length (in): 70.7
      • Cargo Area Length (mm): 1795
      • External Dimensions Rear Overhang (in): 51.0
      • Ground Clearance Unladen (mm): 235
      • Overall Height (mm): 1790
      • Overall Length (mm): 5295
      • Rear Overhang (mm): 1295
    • Doors
      • Cargo Doors Rear Opening Angle: 180
    • Engine
      • Co2 Level (combined): 214
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Textile
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 938
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.1
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.3
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.0
      • Fuel Consumption Adr 81/02 Urban (km/l): 10.0
      • Fuel Economy Adr 81/02 (l/100km): 8.1
    • Safety
      • Crash Test Results Ancap Date Tested: 20130826
      • Crash Test Results Ancap Overall: 4.00
      • Crash Test Results Ancap Version Tested: 2.5 Litre Crew Cab 4x4
      • Head Restraints Rear Seats Number: 2
      • Side Curtain Airbag Front Location: Front
    • Seats
      • Front Rear Seat Seating Capacity: 2
      • Front Rear Seat Type: Jump
      • Seating Capacity: 4
      • Seating Configuration: 2+2
    • Transmission
      • Drive Descent Control System
      • Transmission Code: Awtb50-ls
      • Transmission Description: Automatic With Manual Mode
      • Transmission Manual Mode
      • Transmission Type: Automatic
    • Visibility
      • Driver Door Mirrors/cameras Colour: Chrome
      • Passenger Door Mirrors/cameras Colour: Chrome
    • Weights
      • Payload Allowance (kg): 972
      • Published Kerb Weight (kg): 1978
      • Tare Weight (kg): 1905
    • Wheels
      • Front Wheels Rim Diameter Inch: 17
      • Front Wheels Tire Profile: 65
      • Front Wheels Tire Type: Conventional/summer
      • Front Wheels Tire Width: 255
      • Rear Wheels Rim Diameter Inch: 17
      • Rear Wheels Tire Profile: 65
      • Rear Wheels Tire Type: Conventional/summer
      • Rear Wheels Tire Width: 255
    Removes from Ls-M:
    • Body exterior
      • Cab Type: Double Cab
      • Local Number Of Doors: 4
      • Number Of Doors: 4
    • Bumpers
      • Rear Colour: Black
    • Calculated
      • Power-to-weight Ratio (kw/t): 66.23
    • Dimensions
      • Cargo Area Length (in): 58.5
      • Cargo Area Length (mm): 1485
      • External Dimensions Rear Overhang (in): 46.9
      • Ground Clearance Unladen (mm): 225
      • Overall Height (mm): 1785
      • Overall Length (mm): 5190
      • Rear Overhang (mm): 1190
    • Doors
      • Cargo Doors Rear Height (mm): 465
      • Cargo Doors Rear Height In: 18.3
      • Cargo Doors Rear Opening Angle: 90
      • Cargo Doors Rear Width (mm): 1460
      • Cargo Doors Rear Width In: 57.5
      • Rear Driver Door Location: Rear Driver
      • Rear Driver Door Type: Front Hinged
      • Rear Passenger Door Location: Rear Passenger
      • Rear Passenger Door Type: Front Hinged
    • Engine
      • Australia Air Pollution Rating: 3.0
      • Australia Greenhouse Rating: 6.0
      • Australia Overall Emission Control Level Rating: 2.5
      • Co2 Level (combined): 220
    • Interior trim
      • Floor Covering Vehicle Cab Compartment: Plastic/rubber
    • Lights
      • Headlights Lens Type: Ellipsoidal
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 916
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.3
      • Fuel Consumption Adr 81/02 Combined (km/l): 12.0
      • Fuel Consumption Adr 81/02 Urban (l/100km): 10.6
      • Fuel Consumption Adr 81/02 Urban (km/l): 9.4
      • Fuel Economy Adr 81/02 (l/100km): 8.3
    • Safety
      • Crash Test Results Ancap Date Tested: 20131218
      • Crash Test Results Ancap Overall: 5.00
      • Crash Test Results Ancap Version Tested: 3.0 Litre Crew Cab 4x4
      • Head Restraints Rear Seats Number: 3
      • Number Of Airbags: 6
      • Rear Seat Belts Center Operation: Reel
      • Rear Seat Belts Center Seat Position: Centre
      • Rear Seat Belts Center Type: 3-point
      • Side Curtain Airbag Front And Rear Location: Front And Rear
    • Seats
      • Front Rear Seat Seating Capacity: 3
      • Front Rear Seat Type: Bench
      • Seating Capacity: 5
      • Seating Configuration: 2+3
    • Storage
      • Cup Holders Rear Seats Location: Rear Seats
    • Transmission
      • Electronic Traction Control Controlled By: Abs & Engine Management
      • Transmission Description: Manual
      • Transmission Type: Manual
    • Visibility
      • Driver Door Mirrors/cameras Colour: Painted
      • Passenger Door Mirrors/cameras Colour: Painted
      • Rear Electric Windows: Rear
    • Weights
      • Payload Allowance (kg): 987
      • Published Kerb Weight (kg): 1963
      • Tare Weight (kg): 1890
    • Wheels
      • Front Wheels Rim Diameter Inch: 16
      • Front Wheels Tire Load Index: 111
      • Front Wheels Tire Profile: 70
      • Front Wheels Tire Type: All Terrain
      • Front Wheels Tire Width: 245
      • Rear Wheels Rim Diameter Inch: 16
      • Rear Wheels Tire Load Index: 111
      • Rear Wheels Tire Profile: 70
      • Rear Wheels Tire Type: All Terrain
      • Rear Wheels Tire Width: 245

    X-Runner

    Adds to Ls-U:
    • Body exterior
      • Cab Type: Double Cab
      • Local Number Of Doors: 4
      • Number Of Doors: 4
    • Calculated
      • Power-to-weight Ratio (kw/t): 64.58
    • Cargo area
      • Tray/tub Liner: Composite
    • Dimensions
      • Cargo Area Length (in): 58.5
      • Cargo Area Length (mm): 1485
      • Overall Height (mm): 1795
    • Doors
      • Cargo Doors Rear Height (mm): 465
      • Cargo Doors Rear Height In: 18.3
      • Cargo Doors Rear Opening Angle: 90
      • Cargo Doors Rear Width (mm): 1460
      • Cargo Doors Rear Width In: 57.5
      • Rear Driver Door Location: Rear Driver
      • Rear Driver Door Type: Front Hinged
      • Rear Passenger Door Location: Rear Passenger
      • Rear Passenger Door Type: Front Hinged
    • Interior trim
      • Luxury Trim On Instrument Panel: Piano Black
    • Lights
      • Headlights Lens Type: Ellipsoidal
    • Paint
      • Type: Metallic
    • Safety
      • Crash Test Results Ancap Date Tested: 20121010
      • Head Restraints Rear Seats Number: 3
      • Number Of Airbags: 6
      • Rear Seat Belts Center Seat Position: Centre
      • Rear Seat Belts Center Type: 3-point
      • Side Curtain Airbag Front And Rear Location: Front And Rear
    • Seats
      • Front Rear Seat Seating Capacity: 3
      • Front Rear Seat Type: Bench
      • Seating Capacity: 5
      • Seating Configuration: 2+3
    • Storage
      • Cup Holders Rear Seats Location: Rear Seats
    • Visibility
      • Rear Electric Windows: Rear
    • Warranty
      • Oem Powertrain Distance (km): 130000
      • Oem Powertrain Duration (months): 60
      • Whole Vehicle Oem Distance (km): 130000
      • Whole Vehicle Oem Duration (months): 60
    • Weights
      • Payload Allowance (kg): 937
      • Published Kerb Weight (kg): 2013
      • Tare Weight (kg): 1940
    Removes from Ls-U:
    • Audio
      • Connection External Aux Jack Front
      • Connection External Usb Front
    • Body exterior
      • Cab Type: Extended
      • Local Number Of Doors: 2
      • Number Of Doors: 2
    • Calculated
      • Power-to-weight Ratio (kw/t): 65.72
    • Dimensions
      • Cargo Area Length (in): 70.7
      • Cargo Area Length (mm): 1795
      • Overall Height (mm): 1790
    • Doors
      • Cargo Doors Rear Opening Angle: 180
    • Interior trim
      • Luxury Trim On Center Floor Console: Alloy Look
      • Luxury Trim On Doors: Alloy Look
      • Luxury Trim On Instrument Panel: Alloy Look
    • Paint
      • Type: Gloss
    • Safety
      • Crash Test Results Ancap Date Tested: 20130826
      • Head Restraints Rear Seats Number: 2
      • Side Curtain Airbag Front Location: Front
    • Seats
      • Front Rear Seat Seating Capacity: 2
      • Front Rear Seat Type: Jump
      • Seating Capacity: 4
      • Seating Configuration: 2+2
    • Weights
      • Payload Allowance (kg): 972
      • Published Kerb Weight (kg): 1978
      • Tare Weight (kg): 1905

    Ls-Terrain

    Adds to X-Runner:
    • Audio
      • Connection External Aux Jack Front
      • Connection External Usb Front
    • Convenience
      • Navigational Systems Information Type: Full Map And Voice
      • Parking Distance System Rear Location: Rear
      • Parking Distance System Rear Type: Camera
    • Engine
      • Australia Air Pollution Rating: 3.0
      • Australia Greenhouse Rating: 6.0
      • Australia Overall Emission Control Level Rating: 2.5
    • Instrumentation
      • Display Screen Location: ?
    • Interior trim
      • Luxury Trim On Center Floor Console: Alloy Look
      • Luxury Trim On Doors: Alloy Look
      • Luxury Trim On Instrument Panel: Alloy Look
    • Paint
      • Type: Gloss
    • Safety
      • Crash Test Results Ancap Date Tested: 20131218
      • Crash Test Results Ancap Overall: 5.00
      • Crash Test Results Ancap Version Tested: 3.0 Litre Crew Cab 4x4
      • Rear Seat Belts Center Operation: Reel
    • Seats
      • Driver Front Seat Height Type: Electric
      • Driver Front Seat Power Adjustable
      • Driver Front Seat Reach Type: Electric
      • Seat Upholstery Additional Seat Material: Leather
      • Seat Upholstery Main Seat Material: Leather
    • Transmission
      • Electronic Traction Control Controlled By: Abs & Engine Management
    • Ventilation
      • Air Conditioning Type: Fully-auto
    • Visibility
      • Electrically Foldable Mirrors Operation: Electric
    Removes from X-Runner:
    • Cargo area
      • Tray/tub Liner: Composite
    • Interior trim
      • Luxury Trim On Instrument Panel: Piano Black
    • Paint
      • Type: Metallic
    • Safety
      • Crash Test Results Ancap Date Tested: 20121010
      • Crash Test Results Ancap Overall: 4.00
      • Crash Test Results Ancap Version Tested: 2.5 Litre Crew Cab 4x4
    • Seats
      • Driver Front Seat Height Type: Manual
      • Driver Front Seat Reach Type: Manual
      • Seat Upholstery Additional Seat Material: Upgraded Cloth/velour
      • Seat Upholstery Main Seat Material: Upgraded Cloth/velour
    • Ventilation
      • Air Conditioning Type: Manual
    • Warranty
      • Oem Powertrain Distance (km): 130000
      • Oem Powertrain Duration (months): 60
      • Whole Vehicle Oem Distance (km): 130000
      • Whole Vehicle Oem Duration (months): 60
    See all 2014 Isuzu D-Max Specs

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    2014 Isuzu D-Max Fuel Economy

    There are 4 different fuel economy figures for the Isuzu D-Max

    The most fuel efficient Isuzu D-Max is the SX with a 5-speed Manual which is powered by a 3.0L Turbo Diesel Common Rail and uses 8L of Diesel per 100km on the combined cycle.

    The Isuzu D-Max that uses the most amount of fuel is the EX with a 5-speed Manual which is powered by a 3.0L Turbo Diesel Common Rail and uses 8.3L of Diesel per 100km on the combined rural and urban test cycle.

    Below is a table of all the Isuzu D-Max variants and their fuel economy figures. Click below the table to see an expansion and additional details, including specific usage for city and highway driving.

    Isuzu D-MaxFuel TypeCombined
    3.0L, 5-speed manual, 2-door Cab Chassis, Diesel, 4x4Diesel8.3 L/100km
    See all Isuzu D-Max Fuel Economy

    2014 Isuzu D-Max Warranty

    What is the warranty on a Isuzu D-Max?

    The Isuzu D-Max offers a 5 year 130,000 km limit warranty. This is separate to the warranty on offer under Australian Consumer Law which can be greater for certain parts based on what is deemed as a reasonable period of time.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Isuzu D-Max FAQs

    The cheapest Isuzu D-Max is the SX that starts from $27,200.

    The most expensive Isuzu D-Max is the Ls-Terrain that starts from $52,500.

    The best towing capacity of a Isuzu D-Max is 3500 kg offered by the following variants: EX, SX, Ls-U, Ls-M, X-Runner and Ls-Terrain.

    The largest Isuzu D-Max is the Ls-U which measures 1860mm wide, 5295mm in length and sits 1795mm tall.

    The most powerful Isuzu D-Max is the Ls-U which has 130kW of power from its 3.0L Turbo Diesel Common Rail engine.

    The Isuzu D-Max is built in Thailand and shipped to Australia.

    The heaviest Isuzu D-Max is the Ls-U which weighs 2950 kg (kerb weight).

    The Isuzu D-Max uses Diesel.

    Â
