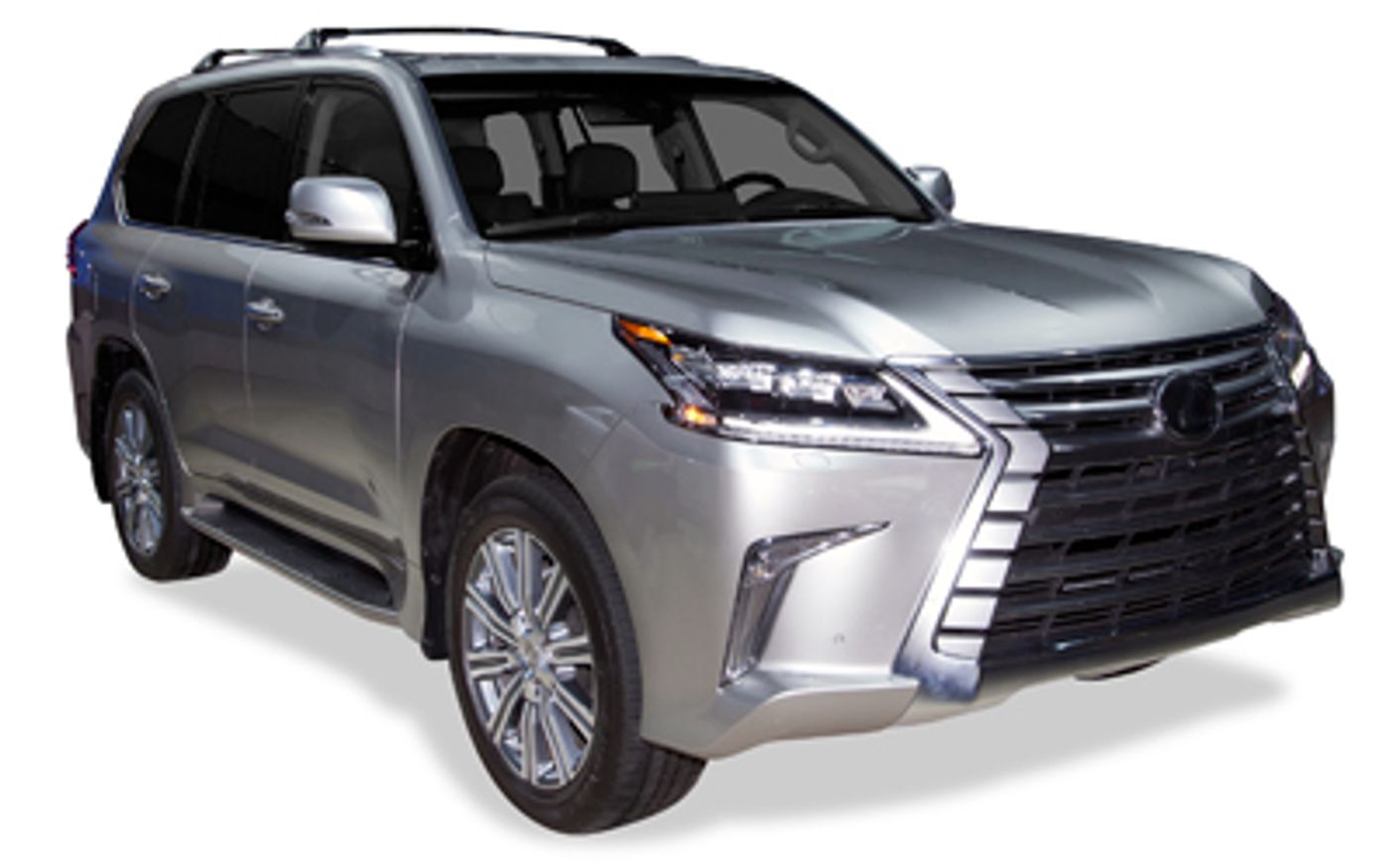

Lexus LX Base (2020) price & specs
Base
Overview
The 2020 Lexus LX Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd July 2020 classified as a Vdj201r. The Lexus LX is regarded as a Suv Upper Large Luxury built in Japan with prices starting at $137,636 before on-road costs.
This Lexus LX is powered by a 4.5L 8-cylinder engine that has 200 kW of power (at 3600 rpm) and 650 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Lexus claims the LX Base uses 9.5L/100km of Diesel in the combined city and highway cycle while putting out 250g of CO2. It has a 93L fuel tank, meaning it should be able to travel 979km per full tank
The Lexus LX measures 1865mm (73.4 inches) in height, 5080mm (200.0 inches) in length, 1980mm (78.0 inches) in width with a 2850mm (112.2 inches) wheelbase that brings about a total of 2758kg (6080.3 lbs) of unladen weight. The LX Base comes standard with 285/50 R20 front tyres and 285/50 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 48 month, 100,000 km warranty.
The 2020 Lexus LX Base has a 220mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the LX compare?
Quickly see how the 2020 Lexus LX Base stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,080 mm |
| Overall Width | 1,980 mm |
| Overall Height | 1,865 mm |
| Wheelbase | 2,850 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 592 mm |
Looking for complete Lexus LX size & space specs?
Our Lexus LX Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Lexus LX Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Entertainment Display Screen
Location: Front
Front Screen Size (in): 12.3
Media Control
Mouse: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
USB Charging Port
Location: Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 250
Standard Met: EU5
Engine
Bore Engine: 86.0
Engine (cc): 4461
Engine Configuration: V
Engine Code: 1vd-Ftv
Engine (L): 4.5
Number of Cylinders: 8
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Auxiliary Capacity Gal: 11.9
Auxiliary Capacity (L): 45
Auxiliary Capacity Uk Gallons: 9.9
Auxiliary Count: 1
Auxiliary Type: Auxiliary
Main Capacity Gal: 24.6
Main Capacity (L): 93
Main Capacity Uk Gallons: 20.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 12.3
Location: Instrument Cluster 1
Instrument Cluster
Head Up Display: Windscreen
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 979
ADR 81/02 Calculated Vehicle Range (miles): 608
ADR 81/02 Combined (km/L): 10.5
ADR 81/02 Combined (L/100km): 9.5
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 11.8
ADR 81/02 Country Highway (L/100km): 8.5
ADR 81/02 Country Highway (miles per UK gallon): 33
ADR 81/02 Country Highway (mpg): 28
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.9
ADR 81/02 Urban (L/100km): 11.2
ADR 81/02 Urban (miles per UK gallon): 25
ADR 81/02 Urban (mpg): 21
Fuel Economy
ADR 81/02 (L/100km): 9.5
Performance
Acceleration 0 To 100 km/h: 8.6
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 272
Maximum Power (kW): 200
Maximum Torque (Nm): 650
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Dual Range Transmission
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Centre
Center Type: Mechanical
Terrain Type Selection
Includes Suspension Adjustment: yes
Includes TR ESP Adjustment: yes
Transmission
Code: Ab60f
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Wood & Leather
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Suspension Levelling
Location: Front
Front Operation: Interactive
Location: Rear
Rear Operation: Interactive
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 50
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 285
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 50
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 285
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Rear Two Tone: yes
Cargo Capacity
Rear Seat Up to Lower Window (cu ft): 14.1
Rear Seat Up to Lower Window (L): 400
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 65.0
Front Track (mm): 1650
Ground Clearance Unladen (in): 8.7
Ground Clearance Unladen (mm): 220
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 73.4
Overall Height (mm): 1865
Overall Length (in): 200.0
Overall Length (mm): 5080
Overall Width (in): 78.0
Overall Width (mm): 1980
Rear Track (in): 65.0
Rear Track (mm): 1650
Wheelbase (in): 112.2
Wheelbase (mm): 2850
Internal Dimensions
Front Headroom (in): 38.3
Front Headroom (mm): 973
Rear Headroom (in): 38.9
Rear Headroom (mm): 988
Front Hip Room (in): 58.2
Front Hip Room (mm): 1478
Rear Hip Room (in): 58.1
Rear Hip Room (mm): 1476
Front Leg Room (in): 42.9
Front Leg Room (mm): 1090
Rear Leg Room (in): 34.4
Rear Leg Room (mm): 874
3rd Row Shoulder Room (in): 62.3
3rd Row Shoulder Room (mm): 1582
Front Shoulder Room (in): 61.0
Front Shoulder Room (mm): 1549
Rear Shoulder Room (in): 59.1
Rear Shoulder Room (mm): 1501
Ramp Angles
Approach Angle: 25.0
Departure Angle: 20.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: IMV
Wheelbase Type: Short
Spoiler
Location: Roof
Step
Step Location: Side
Side Step Type: Platform
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Split Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3350
Gross Vehicle Weight (lb): 7386
Published Kerb Weight (kg): 2758
Published Kerb Weight (lb): 6079
Tare Weight (kg): 2670
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Luxury Trim
Centre Floor Console: Wood & Leather
Doors: Alloy & Leather & Wood
Gear Selector: Alloy & Leather
Instrument Panel: Alloy & Leather & Wood
Airbags
Number of Airbags: 10
Autonomous Drive
Level: 1 - Driver Assistance
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Location: Passenger
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Individual Rear Location: Individual Rear
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
