2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK

2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Specifications

Hyundai Logo
7L/100km
Not tested

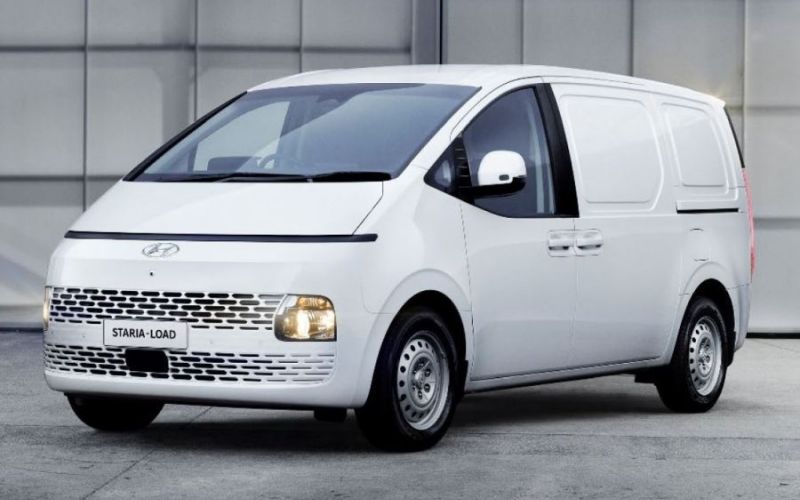

About the 2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK

The 2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK is a front-wheel drive five-door van that was released to the Australian market on 01/06/2021 classified as a US4.V1 MY22. The Staria is regarded as a VAN 2.5-3.5t built in Korea with prices from a dealer as a used car starting at A$0.

The Staria is a front-wheel drive 5 door with 2 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 130 kW of power (at 3800 rpm) and 430 Nm of torque (at 1500 rpm) via an Eight-speed Automatic Sequential. HYUNDAI claims the Staria LOAD LR 2S 2.2D LIFTBACK uses 7L/100km of Diesel in the combined city and highway cycle while putting out 183g of CO2. It has a 75L fuel tank, meaning it should be able to travel 1071km per full tank.

The Staria measures 2000mm (78.7 inches) in height, 5253mm (206.8 inches) in length, 1997mm (78.6 inches) in width with a 3273mm (128.9 inches) wheelbase that brings about a total of 1938kg (4272.6 lbs) of unladen weight. The Staria LOAD LR 2S 2.2D LIFTBACK comes standard with 215/65 R17 108H front tyres and 215/65 R17 108H rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK has a 186mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.32.

The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMFYAX11LMU000001.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Hyundai Staria
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Details
Price-
SeriesUS4.V1 MY22
Body Stylefive-door van
Release date01/06/2021
Discontinued date31/07/2021
Drive typeFWD
VIN plate locationDriver Side Front Floor
Compliance plate locationPass Side Lower A-Pillar
VIN ExampleKMFYAX11LMU000001
Country of originKorea
SegmentVANS/CC 2.5-3.5t
Safety ANCAP ratingNot tested
Number of doors5
Seating capacity2
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Engine Specifications
TypeTURBO CDI
Size2199cc, 2.2L
Power @ RPM 130kW @ 3800rpm (174.3 hp)
Torque @ RPM430Nm @ 1500rpm (317.1 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 5
Compression ratio16
Power/weight ratio67.1kw/tonne
Bore/stroke85.4mm × 96mm (3.3in × 3.8in)
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Drivetrain and Wheels
TransmissionEight-speed Automatic Sequential
Drive typefront-wheel drive
Steering typeCOLUMN MOUNTED MOTOR DRIVEN PWR STEERING
Turning circle11.94m (39.2 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size215/65 R17 108H - 6.5Jx17
Rear tyre & wheel size215/65 R17 108H - 6.5Jx17
Front suspension typeMacPherson strut
Rear suspension typeRigid axle, Leaf Spring - Heavy Duty
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity75L
Fuel consumption (combined average)7L / 100km
Fuel consumption city (average)8.9L / 100km
Fuel consumption highway (average)5.9L / 100km
Vehicle range1071.4km (665.7 miles)
Emission standardEURO 5
E10 compatibleNO
CO2 emissions (combined)183g / 100km
CO2 emissions (city)233g / 100km
CO2 emissions (highway)155g / 100km
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Dimensions
Length5253mm (206.8 inches)
Width1997mm (78.6 inches)
Height2000mm (78.7 inches)
Wheelbase3273mm (128.9 inches)
Front track1732mm (68.2 inches)
Rear track1716mm (67.6 inches)
Ground clearance186mm (7.3 inches)
Unladen weight1938kg (4272.6 lbs)
Gross Vehicle Mass3020kg (6658.0 lbs)
Gross Combination Mass5520kg (12169.5 lbs)
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Towing Capacity
Braked towing capacity2500kg (5511.5 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Warranty
Warranty length60 months
Warranty distanceUnlimited km
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Hyundai Staria LOAD LR 2S 2.2D LIFTBACK Options
Standard Features
  • 12 Volt Power Outlet
  • 2 Seat Interior
  • 325mm Rear Brakes
  • 345mm Front Brakes
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • AEB Junction Assist
  • Automatic Hold Function
  • Auto/Intelligent Speed Limiter
  • Alarm System/Remote Anti Theft
  • Active Speed Limit Assist
  • Adjustable Steering Column
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Audio Streaming
  • Around View Monitor
  • Brake Assist
  • Body Coloured Exterior Mirrors
  • Body Coloured Grille
  • Black Front Garnish
  • Bottle Holders - Front Seats
  • Bluetooth Connectivity
  • Curtain Airbags - Front
  • Cabin Lighting
  • Cabin Air Filter
  • Configurable Active Lock/Unlock Operation
  • Console - Centre Floor
  • Cruise Control Intelligent/Active
  • Cruise Control with Stop & Go
  • Cup Holders - Front Seats
  • Cargo Tie Down Hooks/Rings
  • Central Locking Remote Control
  • Comfort Mode
  • Cloth Upholstery - Black
  • City/Urban/Interurban Operational Speeds
  • Cyclist Recognition
  • Driver Attention Warning
  • Driver Mode Selection
  • Door Pockets - Front Seat
  • Dusk Sensing Headlights
  • Driver Seat Height Adjustable
  • Digital Speedometer
  • Electronic Brake Force Distribution
  • ECO Mode
  • Electric Parking Brake
  • Electronic Stability Control
  • Emergency Stop Signal
  • Extra USB Socket/s
  • Front Centre Airbag
  • Front Mud Guard
  • Front View Camera
  • Forward Collision-Avoidance Assist
  • Glovebox Compartment
  • Grab Handles - Front Seats
  • Headrests - Adjustable Front Seats
  • Heated Rear Windshield
  • Hill Start Assist
  • Haptic Warning Function
  • Hyundai Smartsense
  • Instrument Cluster Display - 4.2 Inch
  • Illuminated - Entry/Exit with Delayed Fade
  • Engine Immobiliser
  • Impact Sensing Auto Door Unlock
  • Keyless Remote x 2
  • Luggage/Cargo Area Light(s)
  • Lane Following Assist
  • Lane Keeping Assist - Line
  • Lead Vehicle Start Alert
  • Multi Collision Brake
  • Multi Function Steering Wheel
  • Multi-media System with 8 inch Touch Screen
  • Mobile Phone Connectivity
  • Manual Temperature Control
  • Overhead Storage Shelf
  • One Touch Directional Indicators
  • Parking Distance Control Front & Rear
  • Pedestrian Recognition
  • Power Mirrors With Heated & Folding
  • Power Mirrors With Auto Folding
  • Power Steering
  • Power Windows - Front With One-Touch Operation
  • Power Windows Anti-trap - Front
  • Quiet Mode Function
  • Radio AM/FM
  • Radio Data System
  • Rear Lift Door
  • Rear Mud Guard
  • Roll-over Sensor
  • Reversing Camera
  • Rear View Monitor
  • Rear View Mirror Auto Dimming
  • Remote Window Closing
  • Remote Window Opening
  • Rear Wiper/Washer
  • Rear Wiper Automatically Triggered in Reverse Gear
  • Side Airbags - Front Seats side
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for Front Seats
  • Storage Compartment - In Dash
  • Sliding Doors Dual
  • Sports Mode
  • Smart Mode
  • Sound System with 2 Speakers
  • Sunvisor Extensions
  • Spare Wheel - Full Size Steel Wheel
  • Steel Wheels
  • Thorax Airbag - Driver
  • Thorax Airbag - Passenger
  • Trip Computer
  • Traction Control System
  • Tailgate - Windowed
  • Ticket Holders - Sunvisors (both)
  • TFT LCD Instrument Cluster
  • Tyre Pressure Monitoring Display
  • Tyre Pressure Monitoring System
  • USB Input Socket
  • USB Charging Port/s - Rear
  • Upper Tail Light Garnish
  • Vinyl Floor Covering - Load Area
  • Ventilated Front Disc Brakes
  • Ventilated Rear Disc Brakes
  • Vehicle Stability Management System
  • Wireless Apple Car Play
  • Wireless Android Auto
  • Wireless Charging Pad
  • Warning Reflectors Front Doors
Optional Features
  • Premium Paint - A$695
