Overview

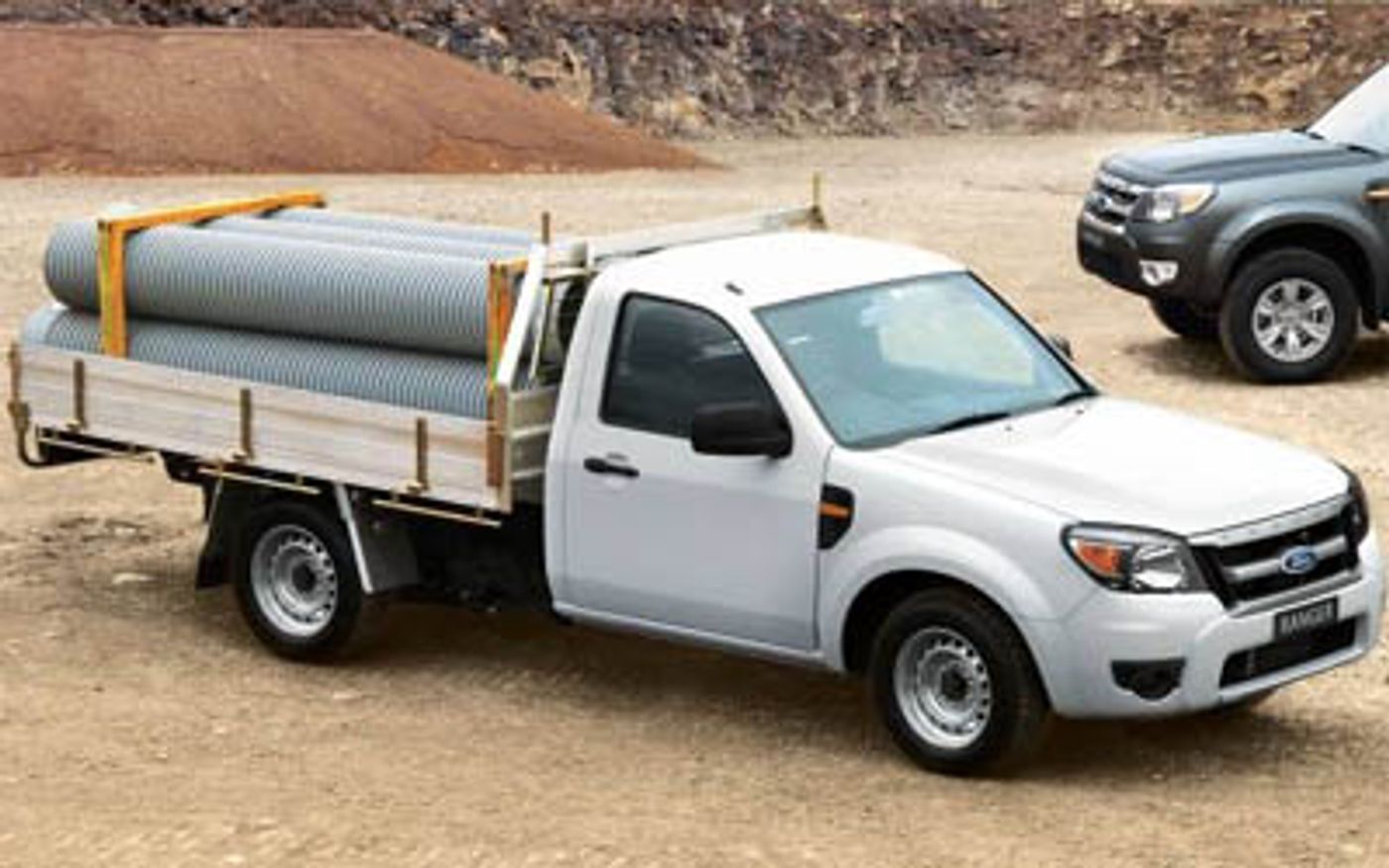

The 2009 Ford Ranger XL is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970 classified as a PK. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $27,490 before on-road costs.
This Ford Ranger is powered by a 3.0L 4-cylinder engine that has 115 kW of power (at 3200 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Ford claims the Ranger XL uses 9.5L/100km of Diesel in the combined city and highway cycle while putting out 251g of CO2. It has a 70L fuel tank, meaning it should be able to travel 737km per full tank
The Ford Ranger measures 1743mm (68.6 inches) in height, 4848mm (190.9 inches) in length, 1788mm (70.4 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1535kg (3384.1 lbs) of unladen weight. The Ranger XL comes standard with 235/75 R15 front tyres and 235/75 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Ford Ranger XL has a 207mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ranger compare?
Quickly see how the 2009 Ford Ranger XL stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.36 - 74.92 kW/t
36.74 kW/t
91.09 kW/t
Fuel Efficiency
8.3 - 10.4 L/100km
7.9 L/100km
13 L/100km
Vehicle Range
636 - 761 km
636 km
962 km
Price
$24,490 - $51,390
$19,990
$61,240
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,790 - 3,042 kg
2,720 kg
3,500 kg
Gross Comb. Mass
4,875 - 5,500 kg
4,445 kg
6,800 kg
Braked Towing Capacity
2,250 - 3,000 kg
1,800 kg
3,500 kg
Approach Angle
34°
33°
49°
Departure Angle
33°
21°
35°
Ground Clearance Unladen
181 - 214 mm
181 mm
314 mm
Payload Capacity
1,016 - 1,383 kg
859 kg
1,441 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,848 mm
1,788 mm
1,743 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,848 mm |
| Overall Width | 1,788 mm |
| Overall Height | 1,743 mm |
| Wheelbase | 3,000 mm |
| Turning Circle | 12,000 mm |
| Load Capacity | 1,307 mm |
Looking for complete Ford Ranger size & space specs?
Our Ford Ranger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Ranger Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 4.0
Australia Greenhouse Rating: 5.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 251
Engine
Bore Engine: 96.0
Engine (cc): 2953
Engine Configuration: In-Line
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 102.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 737
ADR 81/02 Calculated Vehicle Range (miles): 458
ADR 81/02 Combined (km/L): 10.5
ADR 81/02 Combined (L/100km): 9.5
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 12.2
ADR 81/02 Country Highway (L/100km): 8.2
ADR 81/02 Country Highway (miles per UK gallon): 34
ADR 81/02 Country Highway (mpg): 29
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.5
ADR 81/02 Urban (L/100km): 11.7
ADR 81/02 Urban (miles per UK gallon): 24
ADR 81/02 Urban (mpg): 20
Fuel Economy
ADR 81/02 (L/100km): 9.5
Power
Maximum Power (hp/PS): 156
Maximum Power (kW): 115
Maximum Torque (Nm): 380
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3200
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Code: R15m-D
Description: Manual
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 235
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: Un46
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Painted
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12000
Front Overhang (in): 35.0
Front Overhang (mm): 888
Front Track (in): 56.9
Front Track (mm): 1445
Ground Clearance Unladen (in): 8.1
Ground Clearance Unladen (mm): 207
Kerb To Kerb Turning Circle (ft): 39.4
Overall Height (in): 68.6
Overall Height (mm): 1743
Overall Length (in): 190.9
Overall Length (mm): 4848
Overall Width (in): 70.4
Overall Width (mm): 1788
Rear Track (in): 56.7
Rear Track (mm): 1440
Wheelbase (in): 118.1
Wheelbase (mm): 3000
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1430
Front Axle Weight (lb): 3153
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5500
Gross Train Weight (lb): 12125
Gross Vehicle Weight (kg): 2842
Gross Vehicle Weight (lb): 6266
Payload Allowance (kg): 1307
Payload Allowance (lb): 2881
Published Kerb Weight (kg): 1535
Published Kerb Weight (lb): 3384
Rear Axle Weight (kg): 1850
Rear Axle Weight (lb): 4079
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Speakers
Number of Speakers: 2
Power Outlet 12V
Location (12V): Front
Luxury Trim
Doors: Alloy Look
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
