Wildtrak
3.0L, 5-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$50,990â€

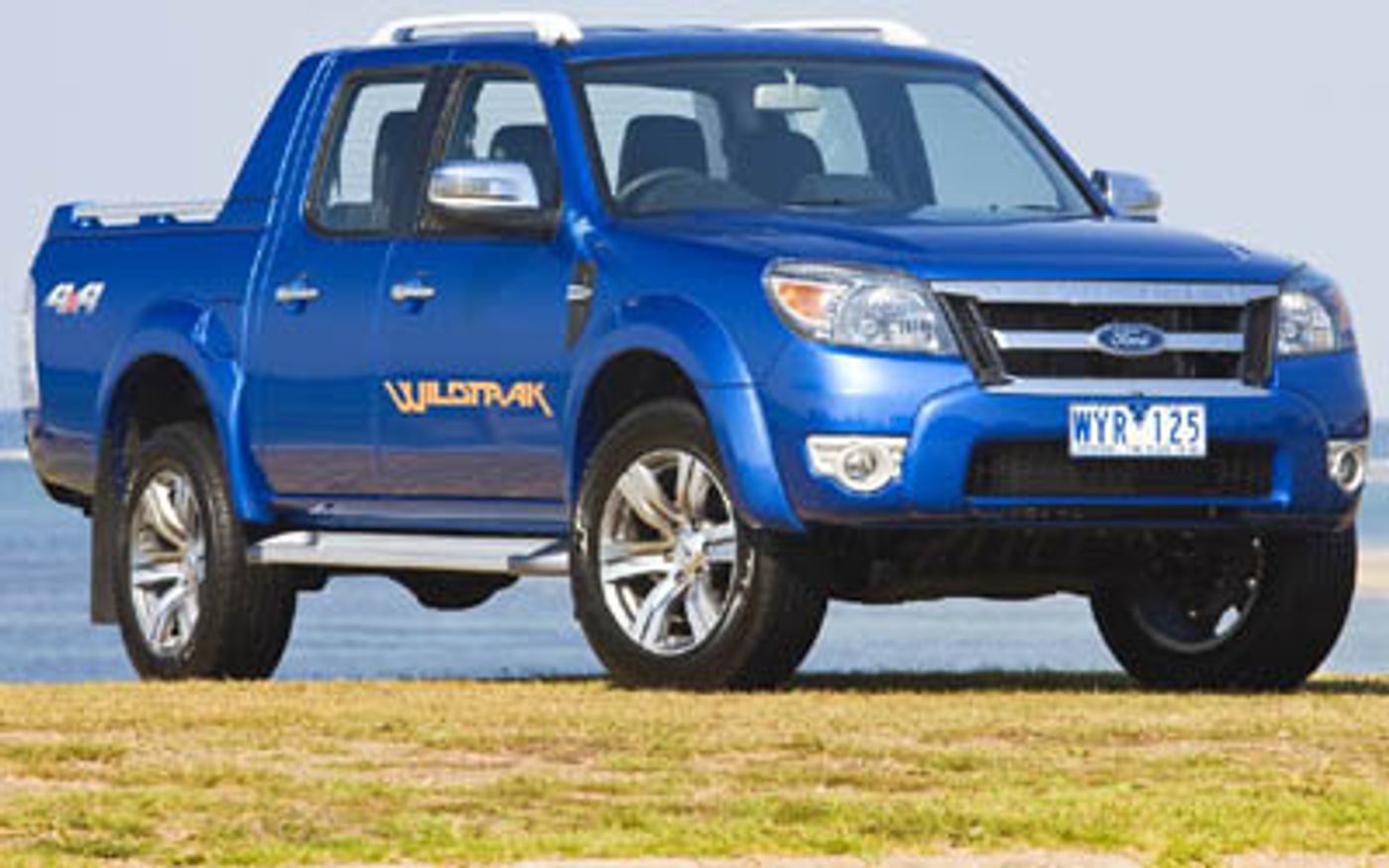

Ford Ranger Wildtrak (2009) price & specs
From
$50,990â€
Save thousands with CarExpert*
Wildtrak
Overview
The 2009 Ford Ranger Wildtrak is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a PK. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $50,990 before on-road costs.
This Ford Ranger is powered by a 3.0L 4-cylinder engine that has 115 kW of power (at 3200 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Automatic transmission. Ford claims the Ranger Wildtrak uses 10.4L/100km of Diesel in the combined city and highway cycle while putting out 274g of CO2. It has a 70L fuel tank, meaning it should be able to travel 673km per full tank
The Ford Ranger measures 1762mm (69.4 inches) in height, 5179mm (203.9 inches) in length, 1788mm (70.4 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 2005kg (4420.3 lbs) of unladen weight. The Ranger Wildtrak comes standard with 255/60 R18 front tyres and 255/60 R18 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Ford Ranger Wildtrak has a 214mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ranger compare?
Quickly see how the 2009 Ford Ranger Wildtrak stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.36 - 74.92 kW/t
36.74 kW/t
91.09 kW/t
Fuel Efficiency
8.3 - 10.4 L/100km
7.9 L/100km
13 L/100km
Vehicle Range
636 - 761 km
636 km
962 km
Price
$24,490 - $51,390
$19,990
$61,240
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,790 - 3,042 kg
2,720 kg
3,500 kg
Gross Comb. Mass
4,875 - 5,500 kg
4,445 kg
6,800 kg
Braked Towing Capacity
2,250 - 3,000 kg
1,800 kg
3,500 kg
Approach Angle
34°
33°
49°
Departure Angle
33°
21°
35°
Ground Clearance Unladen
181 - 214 mm
181 mm
314 mm
Payload Capacity
1,016 - 1,383 kg
859 kg
1,441 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,179 mm
1,788 mm
1,762 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,179 mm |
| Overall Width | 1,788 mm |
| Overall Height | 1,762 mm |
| Wheelbase | 3,000 mm |
| Turning Circle | 13,000 mm |
| Load Capacity | 1,016 mm |
Looking for complete Ford Ranger size & space specs?
Our Ford Ranger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Ranger Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 4.5
Australia Overall Emission Control Level Rating: 2.0
CO2 Level (Combined): 274
Engine
Bore Engine: 96.0
Engine (cc): 2953
Engine Configuration: In-Line
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 102.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (L/100km): 10.4
ADR 81/02 Combined (miles per UK gallon): 27
ADR 81/02 Combined (mpg): 23
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 10.4
Power
Maximum Power (hp/PS): 156
Maximum Power (kW): 115
Maximum Torque (Nm): 380
Measurement Standard: DIN
Rpm For Maximum Power Low: 3200
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selection: Manual
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Code: N4a-Hl
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: Un46
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Bulkhead
Type: Tubular
Tray/Tub
Liner: Insert
Cover: Tonneau Cover
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
Cargo Area Dimensions
Height (in): 18.3
Height (mm): 1459
Length (in): 60.2
Length (mm): 1530
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 42.9
Width Between Wheelhouses (mm): 1090
Width (in): 57.4
Width (mm): 1459
External Dimensions
Kerb to Kerb Turning Circle (mm): 13000
Front Overhang (in): 35.0
Front Overhang (mm): 888
Front Track (in): 58.5
Front Track (mm): 1485
Ground Clearance Unladen (in): 8.4
Ground Clearance Unladen (mm): 214
Kerb To Kerb Turning Circle (ft): 42.7
Overall Height (in): 69.4
Overall Height (mm): 1762
Overall Length (in): 203.9
Overall Length (mm): 5179
Overall Width (in): 70.4
Overall Width (mm): 1788
Rear Overhang (in): 50.8
Rear Overhang (mm): 1291
Rear Track (in): 58.3
Rear Track (mm): 1480
Wheelbase (in): 118.1
Wheelbase (mm): 3000
Cargo Doors
Rear Height (in): 18.3
Rear Height (mm): 465
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Rear Width (in): 52.3
Rear Width (mm): 1328
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Silver
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1430
Front Axle Weight (lb): 3153
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4875
Gross Train Weight (lb): 10748
Gross Vehicle Weight (kg): 3021
Gross Vehicle Weight (lb): 6660
Payload Allowance (kg): 1016
Payload Allowance (lb): 2240
Published Kerb Weight (kg): 2005
Published Kerb Weight (lb): 4420
Rear Axle Weight (kg): 1850
Rear Axle Weight (lb): 4079
Audio System
CD Player Reads MP3: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Dashboard Media Type: CD
External Connections
Aux Jack (Front): yes
Speakers
Number of Speakers: 6
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Luxury Trim
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Synthetic Suede
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
