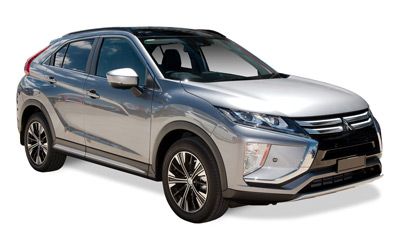

Mitsubishi Eclipse Cross LS (2020) price & specs
Save $$$ with CarExpert*
From
$34,490â€
Overview
The 2020 Mitsubishi Eclipse Cross LS is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th October 2019 classified as a YA. The Mitsubishi Eclipse Cross is regarded as a small SUV built in Japan with prices starting at $34,490 before on-road costs.
This Mitsubishi Eclipse Cross is powered by a 1.5L 4-cylinder engine that has 110 kW of power (at 5500 rpm) and 250 Nm of torque (at 2000 rpm) via a Variable SP AUTOMATIC transmission. Mitsubishi claims the Eclipse Cross LS uses 7.7L/100km of Unleaded in the combined city and highway cycle while putting out 174g of CO2. It has a 60L fuel tank, meaning it should be able to travel 779km per full tank
The Mitsubishi Eclipse Cross measures 1685mm (66.3 inches) in height, 4405mm (173.4 inches) in length, 1805mm (71.1 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1555kg (3428.2 lbs) of unladen weight. The Eclipse Cross LS comes standard with 225/55 R18 front tyres and 225/55 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, 100,000 km warranty.
The 2020 Mitsubishi Eclipse Cross LS has a 175mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Eclipse Cross compare?
Quickly see how the 2020 Mitsubishi Eclipse Cross LS stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
70.74 - 73.83 kW/t
58.22 kW/t
94.75 kW/t
Boot Space
374 litres
264 litres
551 litres
Fuel Efficiency
7.3 - 7.7 L/100km
3.8 L/100km
9.7 L/100km
Vehicle Range
779 - 863 km
610 km
1,053 km
Price
$29,990 - $39,490
$19,990
$65,290
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
3 - 6 years
3 years
7 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,100 kg
1,600 kg
2,189 kg
Braked Towing Capacity
1,600 kg
400 kg
2,000 kg
Approach Angle
18.8°
15.8°
30.3°
Departure Angle
29.6°
22°
33.6°
Ground Clearance Unladen
175 mm
125 mm
225 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,405 mm
1,805 mm
1,685 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,405 mm |
| Overall Width | 1,805 mm |
| Overall Height | 1,685 mm |
| Wheelbase | 2,670 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 545 mm |
Looking for complete Mitsubishi Eclipse Cross size & space specs?
Our Mitsubishi Eclipse Cross Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mitsubishi Eclipse Cross Sales rolling 12-months#
Explore Mitsubishi Eclipse Cross Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 174
Standard Met: EU6
Engine
Bore Engine: 75.0
Engine (cc): 1499
Engine Configuration: In-Line
Engine Code: 4b40
Engine (L): 1.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 84.8
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Gasoline Direct Injection & Multi-Point
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Interested in buying a Mitsubishi Eclipse Cross LS?
Save $$$ with CarExpert*
From
$34,490â€
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Dashboard Centre 1 Screen Control Type: Touch Pad
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 779
ADR 81/02 Calculated Vehicle Range (miles): 484
ADR 81/02 Combined (km/L): 13.0
ADR 81/02 Combined (L/100km): 7.7
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 15.4
ADR 81/02 Country Highway (L/100km): 6.5
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.2
ADR 81/02 Urban (L/100km): 9.8
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.7
Performance
Acceleration 0 To 100 km/h: 10.3
Maximum Speed (km/h): 195
Maximum Speed (mph): 121
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Code: W1cjc
Description: Continuously Variable With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: GK
Wheelbase Type: Short
Mud Flaps
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 39.6
Rear Seat Down (L): 1122
Rear Seat Up to Lower Window (cu ft): 13.2
Rear Seat Up to Lower Window (L): 374
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 60.8
Front Track (mm): 1545
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 175
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 66.3
Overall Height (mm): 1685
Overall Length (in): 173.4
Overall Length (mm): 4405
Overall Width (in): 71.1
Overall Width (mm): 1805
Rear Track (in): 60.8
Rear Track (mm): 1545
Wheelbase (in): 105.1
Wheelbase (mm): 2670
Internal Dimensions
Front Headroom (in): 39.5
Front Headroom (mm): 1003
Rear Headroom (in): 37.3
Rear Headroom (mm): 947
Front Hip Room (in): 53.0
Front Hip Room (mm): 1346
Rear Hip Room (in): 52.0
Rear Hip Room (mm): 1321
Front Leg Room (in): 40.9
Front Leg Room (mm): 1039
Rear Leg Room (in): 35.3
Rear Leg Room (mm): 897
Front Shoulder Room (in): 56.2
Front Shoulder Room (mm): 1428
Rear Shoulder Room (in): 55.1
Rear Shoulder Room (mm): 1400
Ramp Angles
Approach Angle: 18.8
Departure Angle: 29.6
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: Silver
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2100
Gross Vehicle Weight (lb): 4630
Published Kerb Weight (kg): 1555
Published Kerb Weight (lb): 3428
Tare Weight (kg): 1518
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Media Control
Touch Pad: yes
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Date Tested: 20171128
ANCAP Overall: 5.00
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 1.5 Litre Petrol
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
