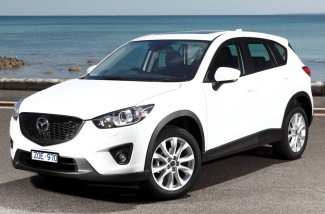

2014 Mazda CX-5 MAXX SPORT (4x4) Specifications
About the 2014 Mazda CX-5 MAXX SPORT (4x4)
The 2014 Mazda CX-5 MAXX SPORT (4x4) is an all-wheel drive four-door wagon that was released to the Australian market on 01/11/2013 classified as a MY13 UPGRADE. The CX-5 is regarded as a medium SUV built in Japan with prices from a dealer as a used car starting at A$17,800.
The CX-5 is an all-wheel drive 4 door with 5 seats, powered by a 2.5L INLINE 4 engine that has 138 kW of power (at 5700 rpm) and 250 Nm of torque (at 4000 rpm) via a Six-speed Automatic. MAZDA claims the CX-5 MAXX SPORT (4x4) uses 7.4L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 172g of CO2. It has a 58L fuel tank, meaning it should be able to travel 784km per full tank.
The CX-5 measures 1710mm (67.3 inches) in height, 4540mm (178.7 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1543kg (3401.7 lbs) of unladen weight. The CX-5 MAXX SPORT (4x4) comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first.
The 2014 Mazda CX-5 MAXX SPORT (4x4) has a 150mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.624.
The CX-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KE107100123456.
Reviews
There are no current reviews of this variant. Click here to see reviews for other variants of the Mazda CX-5| Mazda CX-5 MAXX SPORT (4x4) Details | |
|---|---|
| Price | - |
| Used Price From Dealer | A$17,800 |
| Trade-In Value | A$13,500 |
| Series | MY13 UPGRADE |
| Body Style | four-door wagon |
| Release date | 01/11/2013 |
| Discontinued date | 31/01/2015 |
| Drive type | AWD |
| VIN plate location | Driver Side Front Floor |
| Compliance plate location | Lower Pass Side Centre Pillar |
| VIN Example | JM0KE107100123456 |
| Country of origin | Japan |
| Segment | Medium SUV |
| Safety ANCAP rating | 5 stars |
| Number of doors | 4 |
| Seating capacity | 5 |
| Mazda CX-5 MAXX SPORT (4x4) Engine Specifications | |
| Type | MULTI POINT F/INJ |
| Size | 2488cc, 2.5L |
| Power @ RPM | 138kW @ 5700rpm (185.1 hp) |
| Torque @ RPM | 250Nm @ 4000rpm (184.4 lb-ft) |
| Cylinders | four-cylinder |
| Number of Valves | 16 |
| Valves | VARIABLE DOUBLE OVERHEAD CAM |
| Euro Rating | - |
| Compression ratio | 13 |
| Power/weight ratio | 89.4kw/tonne |
| Bore/stroke | 89mm × 100mm (3.5in × 3.9in) |
| Mazda CX-5 MAXX SPORT (4x4) Drivetrain and Wheels | |
| Transmission | Six-speed Automatic |
| Drive type | all-wheel drive |
| Steering type | RACK & PINION - POWER ASSISTED |
| Turning circle | 11.2m (36.7 ft) |
| Brake (front) type | DISC - VENTILATED |
| Brake (rear) type | DISC |
| Front tyre & wheel size | 225/65 R17 - 7x17 |
| Rear tyre & wheel size | 225/65 R17 - 7x17 |
| Front suspension type | MacPherson strut, Coil Spring, Gas damper, Anti roll bar |
| Rear suspension type | Multi-link system, Coil Spring, Gas damper, Anti roll bar |
| Mazda CX-5 MAXX SPORT (4x4) Fuel Specifications | |
| Fuel type | UNLEADED PETROL |
| Fuel tank capacity | 58L |
| Fuel consumption (combined average) | 7.4L / 100km |
| Fuel consumption city (average) | - |
| Fuel consumption highway (average) | - |
| Vehicle range | 783.8km (487.0 miles) |
| Emission standard | - |
| E10 compatible | - |
| CO2 emissions (combined) | 172g / 100km |
| CO2 emissions (city) | - |
| CO2 emissions (highway) | - |
| Mazda CX-5 MAXX SPORT (4x4) Dimensions | |
| Length | 4540mm (178.7 inches) |
| Width | 1840mm (72.4 inches) |
| Height | 1710mm (67.3 inches) |
| Wheelbase | 2700mm (106.3 inches) |
| Front track | 1585mm (62.4 inches) |
| Rear track | 1590mm (62.6 inches) |
| Ground clearance | 150mm (5.9 inches) |
| Unladen weight | 1543kg (3401.7 lbs) |
| Gross Vehicle Mass | - |
| Gross Combination Mass | - |
| Mazda CX-5 MAXX SPORT (4x4) Towing Capacity | |
| Braked towing capacity | 1800kg (3968.3 lbs) |
| Unbraked towing capacity | 750kg (1653.5 lbs) |
| Mazda CX-5 MAXX SPORT (4x4) Warranty | |
| Warranty length | 36 months |
| Warranty distance | 100,000km |
| Mazda CX-5 MAXX SPORT (4x4) Servicing | |
| Service interval (km) | 10,000 km |
| Service interval (months) | 12 months |
