Base
2.2L, 5-speed manual, 4-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$24,490â€
Base
Overview

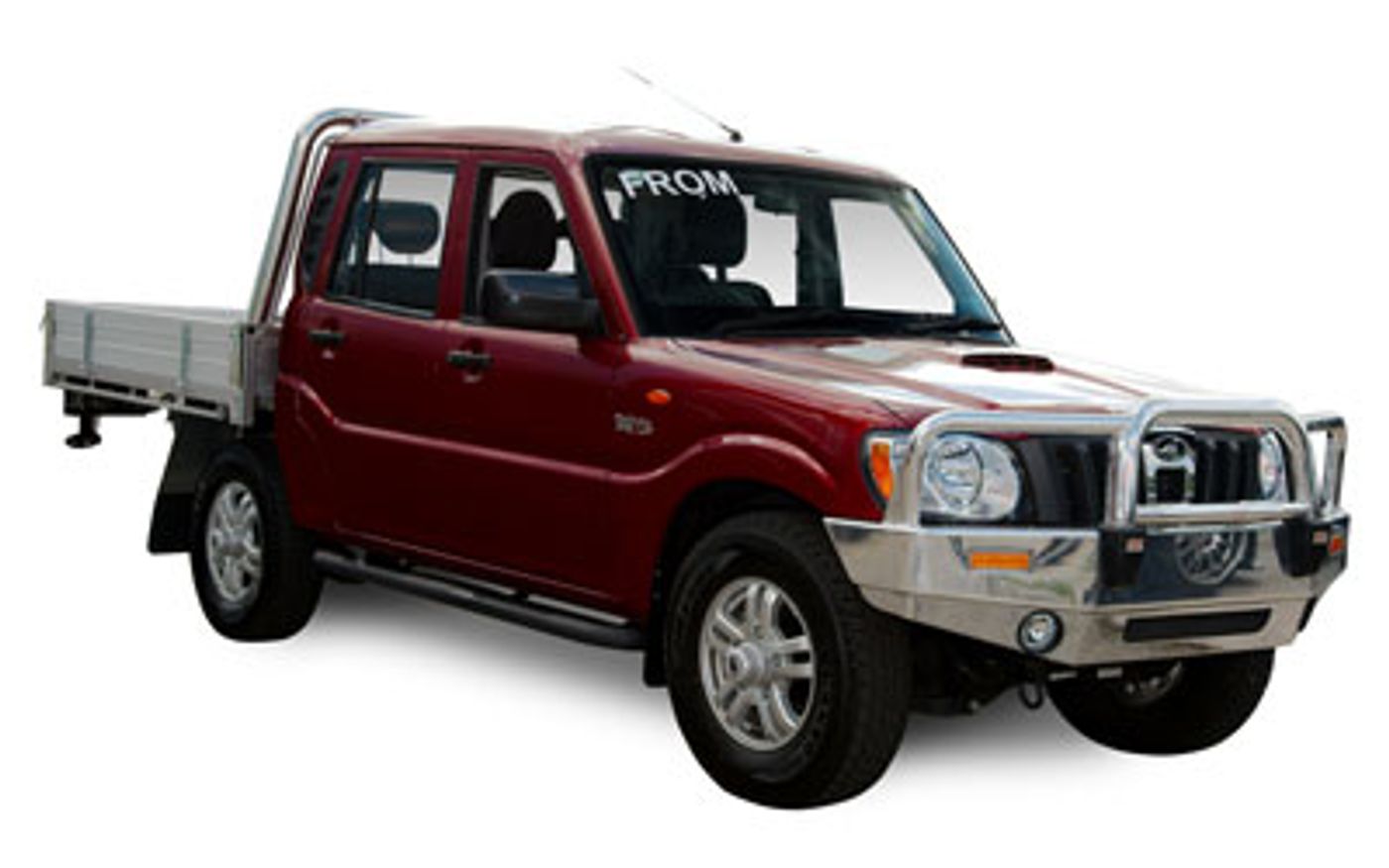

The 2016 Mahindra Pik-Up Base is a rear-wheel drive, 4-door Cab Chassis that was released to the Australian market on 5th April 2016. The Mahindra Pik-Up is regarded as a Pickup built in India with prices starting at $24,490 before on-road costs.
This Mahindra Pik-Up is powered by a 2.2L 4-cylinder engine that has 88 kW of power (at 4000 rpm) and 280 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Mahindra claims the Pik-Up Base uses 8.4L/100km of Diesel in the combined city and highway cycle while putting out nullg of CO2. It has a 80L fuel tank, meaning it should be able to travel 952km per full tank
The Mahindra Pik-Up measures 1942mm (76.5 inches) in height, 5118mm (201.5 inches) in length, 1770mm (69.7 inches) in width with a 3040mm (119.7 inches) wheelbase that brings about a total of 1880kg (4144.7 lbs) of unladen weight. The Pik-Up Base comes standard with 245/75 R16 front tyres and 245/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2016 Mahindra Pik-Up Base has a 210mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Pik-Up compare?
Quickly see how the 2016 Mahindra Pik-Up Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
41.51 - 50 kW/t
41.51 kW/t
86.73 kW/t
Fuel Efficiency
8.4 L/100km
6.5 L/100km
12.7 L/100km
Vehicle Range
952 km
551 km
1,231 km
Price
$18,990 - $27,990
$18,990
$63,990
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
3,150 kg
2,720 kg
3,500 kg
Gross Comb. Mass
5,150 kg
4,435 kg
6,000 kg
Braked Towing Capacity
2,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
210 mm
171 mm
314 mm
Payload Capacity
1,030 - 1,390 kg
790 kg
1,533 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,118 mm
1,770 mm
1,942 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,118 mm |
| Overall Width | 1,770 mm |
| Overall Height | 1,942 mm |
| Wheelbase | 3,040 mm |
| Turning Circle | 12,600 mm |
| Load Capacity | 1,270 mm |
Looking for complete Mahindra Pik-Up size & space specs?
Our Mahindra Pik-Up Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mahindra Pik-Up Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU4
Engine
Engine (cc): 2179
Engine Configuration: In-Line
Engine Code: Mhawk
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 952
ADR 81/02 Calculated Vehicle Range (miles): 592
ADR 81/02 Combined (km/L): 11.9
ADR 81/02 Combined (L/100km): 8.4
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 28
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.4
Power
Maximum Power (hp/PS): 120
Maximum Power (kW): 88
Maximum Torque (Nm): 280
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1800
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Code: Ngt530
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 245
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Double Cab
Local Body Type: Cab Chassis
Roof Type: low
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Step
Step Location: Side
Bumpers
Front Bumper Colour: Painted
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12600
Front Overhang (in): 28.3
Front Overhang (mm): 720
Front Track (in): 57.1
Front Track (mm): 1450
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 210
Kerb To Kerb Turning Circle (ft): 41.3
Overall Height (in): 76.5
Overall Height (mm): 1942
Overall Length (in): 201.5
Overall Length (mm): 5118
Overall Width (in): 69.7
Overall Width (mm): 1770
Rear Overhang (in): 53.5
Rear Overhang (mm): 1358
Rear Track (in): 57.1
Rear Track (mm): 1450
Wheelbase (in): 119.7
Wheelbase (mm): 3040
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1210
Front Axle Weight (lb): 2668
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5150
Gross Train Weight (lb): 11354
Gross Vehicle Weight (kg): 3150
Gross Vehicle Weight (lb): 6945
Payload Allowance (kg): 1270
Payload Allowance (lb): 2800
Published Kerb Weight (kg): 1880
Published Kerb Weight (lb): 4145
Rear Axle Weight (kg): 1940
Rear Axle Weight (lb): 4277
Tare Weight (kg): 1821
Audio System
CD Player Reads MP3: yes
Digital Media Card: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Airbags
Number of Airbags: 2
Crash Test Results
ANCAP Date Tested: 20110921
ANCAP Overall: 2.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Dual Cab 4x4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
