Base
2.5L, 5-speed manual, 2-door Cab Chassis, Diesel, 4x4
Save $$$ with CarExpert*
$22,990†

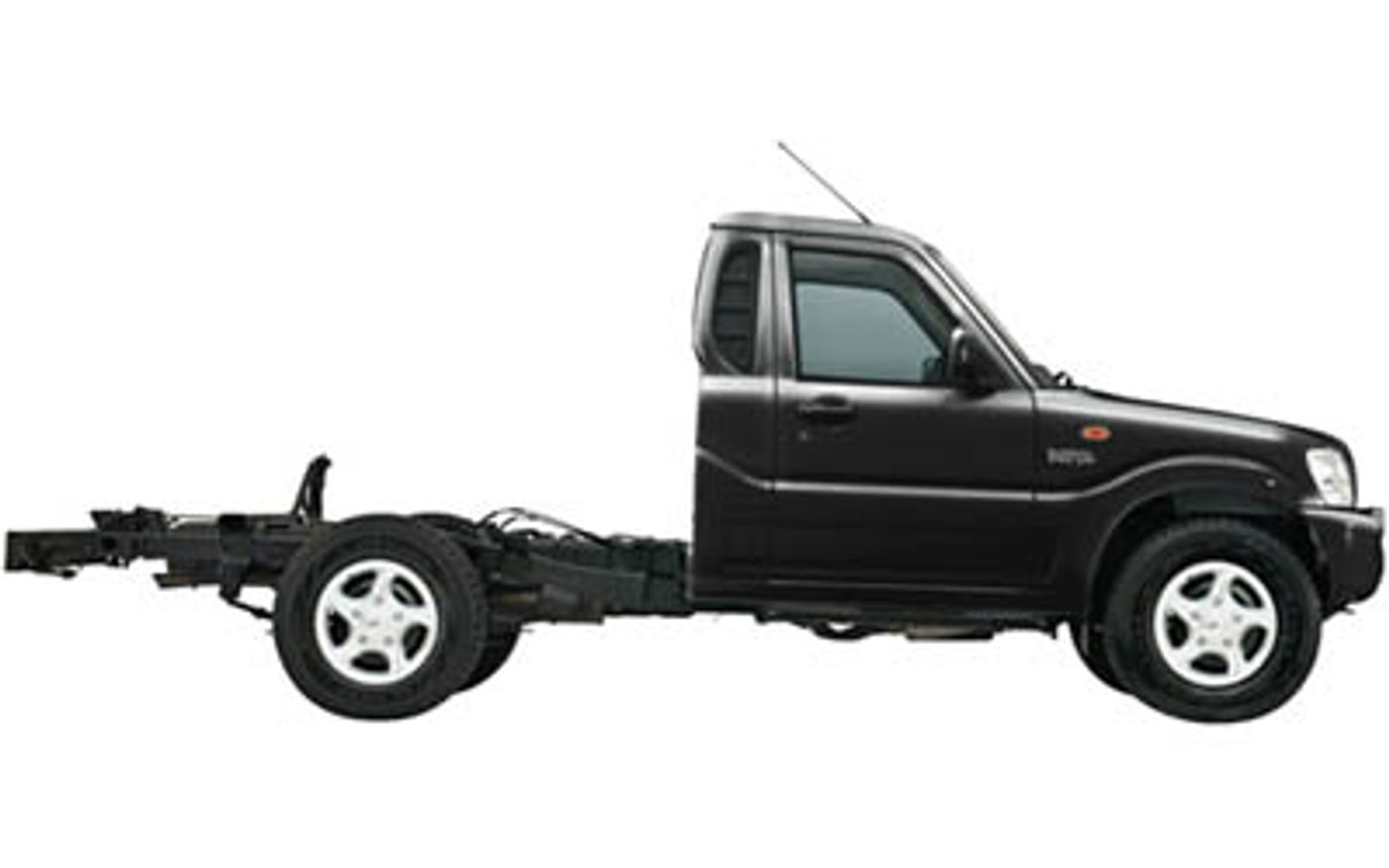

Mahindra Pik-Up Base (2009) price & specs
From
$22,990†
Save thousands with CarExpert*
Base
Overview
The 2009 Mahindra Pik-Up Base is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Mahindra Pik-Up is regarded as a Pickup built in India with prices starting at $22,990 before on-road costs.
This Mahindra Pik-Up is powered by a 2.5L 4-cylinder engine that has 79 kW of power (at 3800 rpm) and 247 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Mahindra claims the Pik-Up Base uses 9.9L/100km of Diesel in the combined city and highway cycle while putting out 260g of CO2. It has a 80L fuel tank, meaning it should be able to travel 808km per full tank
The Mahindra Pik-Up measures 1860mm (73.2 inches) in height, 5098mm (200.7 inches) in length, 1770mm (69.7 inches) in width with a 3040mm (119.7 inches) wheelbase that brings about a total of 1890kg (4166.7 lbs) of unladen weight. The Pik-Up Base comes standard with 245/75 R16 front tyres and 245/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Mahindra Pik-Up Base has a 210mm ground clearance with a 2500kg braked and nullkg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Pik-Up compare?
Quickly see how the 2009 Mahindra Pik-Up Base stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
36.74 - 44.13 kW/t
36.74 kW/t
91.09 kW/t
Fuel Efficiency
9.9 L/100km
7.9 L/100km
13 L/100km
Price
$19,990 - $29,990
$19,990
$61,240
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
3,150 kg
2,720 kg
3,500 kg
Gross Comb. Mass
5,150 kg
4,445 kg
6,800 kg
Braked Towing Capacity
2,500 kg
1,800 kg
3,500 kg
Approach Angle
39°
33°
49°
Departure Angle
21°
21°
35°
Ground Clearance Unladen
210 mm
181 mm
314 mm
Payload Capacity
1,000 - 1,360 kg
859 kg
1,441 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,098 mm
1,770 mm
1,860 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,098 mm |
| Overall Width | 1,770 mm |
| Overall Height | 1,860 mm |
| Wheelbase | 3,040 mm |
| Turning Circle | 12,600 mm |
| Load Capacity | 1,260 mm |
Looking for complete Mahindra Pik-Up size & space specs?
Our Mahindra Pik-Up Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mahindra Pik-Up Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 5.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 260
Standard Met: EU4
Engine
Bore Engine: 94.0
Engine (cc): 2498
Compression Ratio: 18.5
Engine Configuration: In-Line
Engine Code: Crde
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 90.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (km/L): 10.1
ADR 81/02 Combined (L/100km): 9.9
ADR 81/02 Combined (miles per UK gallon): 29
ADR 81/02 Combined (mpg): 24
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 9.9
Power
Maximum Power (hp/PS): 107
Maximum Power (kW): 79
Maximum Torque (Nm): 247
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1800
Drive
Assisted Four-Wheel Drive Selection: yes
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selectable While Driving: yes
Selection: Manual
Speed Limited Manual Only: yes
Limited Slip Differential
Location: Rear
Transmission
Code: Ngt530r
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Torsion Beam
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Width: 245
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: low
Wheelbase Type: Short
Step
Step Location: Side
Bumpers
Front Bumper Colour: Painted
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12600
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 210
Kerb To Kerb Turning Circle (ft): 41.3
Overall Height (in): 73.2
Overall Height (mm): 1860
Overall Length (in): 200.7
Overall Length (mm): 5098
Overall Width (in): 69.7
Overall Width (mm): 1770
Wheelbase (in): 119.7
Wheelbase (mm): 3040
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Metallic
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Internally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Internally Adjustable
Power Windows
Front Electric Windows: Front
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Train Weight (kg): 5150
Gross Train Weight (lb): 11354
Gross Vehicle Weight (kg): 3150
Gross Vehicle Weight (lb): 6945
Payload Allowance (kg): 1260
Payload Allowance (lb): 2778
Published Kerb Weight (kg): 1890
Published Kerb Weight (lb): 4167
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Standard: Ancap
Front Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Power Locks
Operation: Remote
