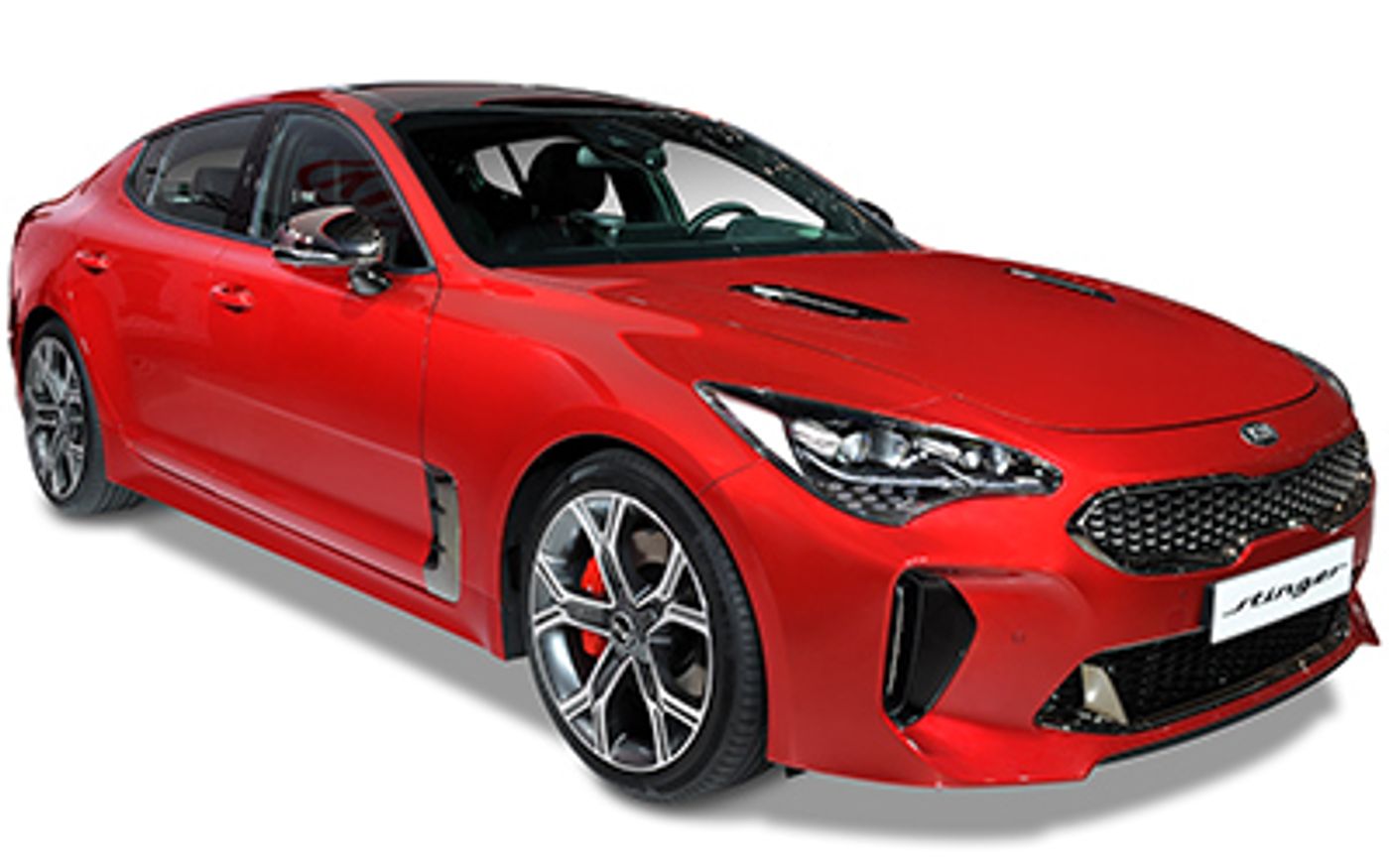

Kia Stinger Rafa Signature Edition (2018) price & specs
Save $$$ with CarExpert*
From
$47,990â€
Rafa Signature Edition
Overview
The 2018 Kia Stinger Rafa Signature Edition is a rear-wheel drive, 5-door Hatchback that was released to the Australian market on 4th January 1970 classified as a CK. The Kia Stinger is regarded as a large car built in Korea with prices starting at $47,990 before on-road costs.
This Kia Stinger is powered by a 2.0L 4-cylinder engine that has 182 kW of power (at 6200 rpm) and 353 Nm of torque (at 1400 rpm) via an Eight-speed Automatic transmission. Kia claims the Stinger Rafa Signature Edition uses 8.8L/100km of Unleaded in the combined city and highway cycle while putting out 201g of CO2. It has a 60L fuel tank, meaning it should be able to travel 682km per full tank
The Kia Stinger measures 1400mm (55.1 inches) in height, 4830mm (190.2 inches) in length, 1870mm (73.6 inches) in width with a 2905mm (114.4 inches) wheelbase that brings about a total of 1746kg (3849.3 lbs) of unladen weight. The Stinger Rafa Signature Edition comes standard with 225/35 R19 front tyres and 255/35 R19 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2018 Kia Stinger Rafa Signature Edition has a 130mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Stinger compare?
Quickly see how the 2018 Kia Stinger Rafa Signature Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
104.24 - 148.39 kW/t
87.5 kW/t
175.79 kW/t
Boot Space
406 litres
406 litres
660 litres
Fuel Efficiency
8.8 - 10.2 L/100km
4.8 L/100km
13 L/100km
Vehicle Range
588 - 682 km
539 km
1,375 km
Price
$45,990 - $59,990
$40,690
$75,000
Warranty (Years)
7 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
1,500 kg
450 kg
2,200 kg
Ground Clearance Unladen
130 mm
122 mm
149 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,830 mm
1,870 mm
1,400 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,830 mm |
| Overall Width | 1,870 mm |
| Overall Height | 1,400 mm |
| Wheelbase | 2,905 mm |
| Turning Circle | 11,200 mm |
Looking for complete Kia Stinger size & space specs?
Our Kia Stinger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Kia Stinger Sales rolling 12-months#
Explore Kia Stinger Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 201
Standard Met: EU5
Engine
Bore Engine: 86.0
Engine (cc): 1998
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 86.0
Variable Valve Timing Camshaft: yes
Interested in buying a Kia Stinger Rafa Signature Edition?
Save $$$ with CarExpert*
From
$47,990â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 682
ADR 81/02 Calculated Vehicle Range (miles): 424
ADR 81/02 Combined (km/L): 11.4
ADR 81/02 Combined (L/100km): 8.8
ADR 81/02 Combined (miles per UK gallon): 32
ADR 81/02 Combined (mpg): 27
ADR 81/02 Country Highway (km/L): 15.4
ADR 81/02 Country Highway (L/100km): 6.5
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.9
ADR 81/02 Urban (L/100km): 12.7
ADR 81/02 Urban (miles per UK gallon): 22
ADR 81/02 Urban (mpg): 19
Fuel Economy
ADR 81/02 (L/100km): 8.8
Power
Maximum Power (hp/PS): 248
Maximum Power (kW): 182
Maximum Torque (Nm): 353
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6200
Rpm For Maximum Torque Low: 1400
Drive
Driven Wheels: Rear
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 89
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 39.3
Rear Seat Down (L): 1114
Rear Seat Up to Lower Window (cu ft): 14.3
Rear Seat Up to Lower Window (L): 406
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 62.8
Front Track (mm): 1596
Ground Clearance Unladen (in): 5.1
Ground Clearance Unladen (mm): 130
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 55.1
Overall Height (mm): 1400
Overall Length (in): 190.2
Overall Length (mm): 4830
Overall Width (in): 73.6
Overall Width (mm): 1870
Rear Track (in): 64.8
Rear Track (mm): 1647
Wheelbase (in): 114.4
Wheelbase (mm): 2905
Internal Dimensions
Front Headroom (in): 38.3
Front Headroom (mm): 974
Rear Headroom (in): 37.0
Rear Headroom (mm): 939
Front Leg Room (in): 42.6
Front Leg Room (mm): 1083
Rear Leg Room (in): 36.4
Rear Leg Room (mm): 925
Front Shoulder Room (in): 56.4
Front Shoulder Room (mm): 1433
Rear Shoulder Room (in): 54.8
Rear Shoulder Room (mm): 1391
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: Gray
Type: Metallic
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Published Kerb Weight (kg): 1746
Published Kerb Weight (lb): 3848
Tare Weight (kg): 1693
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Leather
Instrument Panel: Piano Black
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20180507
ANCAP Overall: 3.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Litre Diesel Gt Line
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
