Isuzu MU-X Ls-M (2015) price & specs
Ls-M
Overview

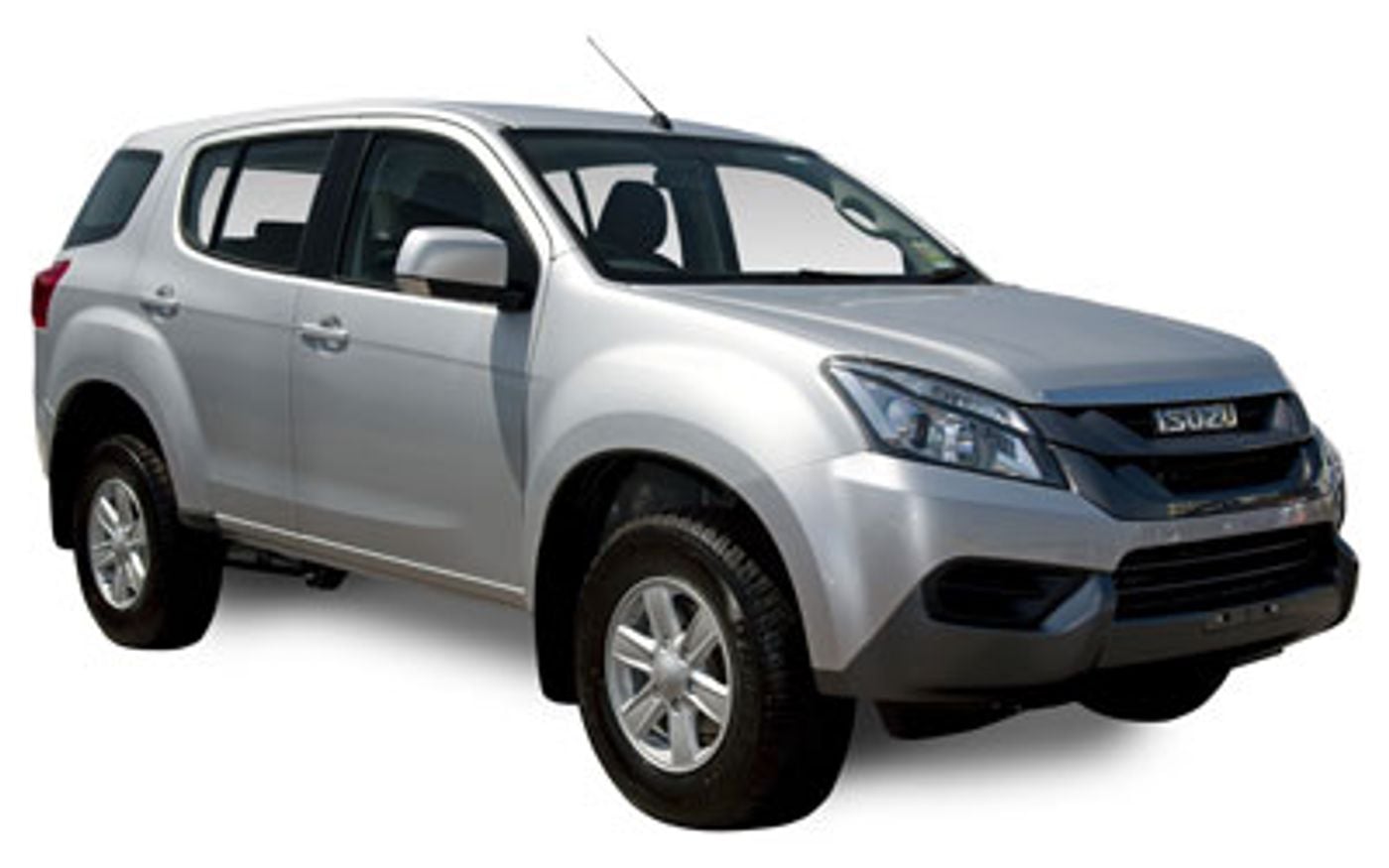

The 2015 Isuzu MU-X Ls-M is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th July 2016. The Isuzu MU-X is regarded as a large SUV built in Thailand with prices starting at $45,700 before on-road costs.
This Isuzu MU-X is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Isuzu claims the MU-X Ls-M uses 8.1L/100km of Diesel in the combined city and highway cycle while putting out 215g of CO2. It has a 65L fuel tank, meaning it should be able to travel 802km per full tank
The Isuzu MU-X measures 1825mm (71.9 inches) in height, 4825mm (190.0 inches) in length, 1860mm (73.2 inches) in width with a 2845mm (112.0 inches) wheelbase that brings about a total of 2049kg (4517.3 lbs) of unladen weight. The MU-X Ls-M comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, 130,000 km warranty.
The 2015 Isuzu MU-X Ls-M has a 220mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the MU-X compare?
Quickly see how the 2015 Isuzu MU-X Ls-M stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 4,825 mm |
| Overall Width | 1,860 mm |
| Overall Height | 1,825 mm |
| Wheelbase | 2,845 mm |
| Turning Circle | 11,600 mm |
| Load Capacity | 701 mm |
Looking for complete Isuzu MU-X size & space specs?
Our Isuzu MU-X Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Isuzu MU-X Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 215
Standard Met: EU4
Engine
Bore Engine: 95.4
Engine (cc): 2999
Engine Configuration: In-Line
Engine Code: 4jj1-Tc
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.9
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 17.2
Main Capacity (L): 65
Main Capacity Uk Gallons: 14.3
Main Type: Total
Computer
Average Fuel Consumption: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 802
ADR 81/02 Calculated Vehicle Range (miles): 498
ADR 81/02 Combined (km/L): 12.3
ADR 81/02 Combined (L/100km): 8.1
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.7
ADR 81/02 Country Highway (L/100km): 6.8
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.5
ADR 81/02 Urban (L/100km): 10.5
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 22
Fuel Economy
ADR 81/02 (L/100km): 8.1
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 380
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Description: Manual
Low High Gear Ranges: yes
Number of Speeds: 5
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 111
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 111
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: I-Grip
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Underbody Protection
Location: Engine
Location: Transfer Case
Cargo Capacity
Rear Seat Down (cu ft): 64.6
Rear Seat Down (L): 1830
Rear Seat Up to Lower Window (cu ft): 8.3
Rear Seat Up to Lower Window (L): 235
External Dimensions
Kerb to Kerb Turning Circle (mm): 11600
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 8.7
Ground Clearance Unladen (mm): 220
Kerb To Kerb Turning Circle (ft): 38.1
Overall Height (in): 71.9
Overall Height (mm): 1825
Overall Length (in): 190.0
Overall Length (mm): 4825
Overall Width (in): 73.2
Overall Width (mm): 1860
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 112.0
Wheelbase (mm): 2845
Internal Dimensions
3rd Row Headroom (in): 36.6
3rd Row Headroom (mm): 929
Front Headroom (in): 39.7
Front Headroom (mm): 1009
Rear Headroom (in): 38.6
Rear Headroom (mm): 980
3rd Row Leg Room (in): 32.1
3rd Row Leg Room (mm): 815
Front Leg Room (in): 43.5
Front Leg Room (mm): 1106
Rear Leg Room (in): 36.0
Rear Leg Room (mm): 915
3rd Row Shoulder Room (in): 52.8
3rd Row Shoulder Room (mm): 1340
Front Shoulder Room (in): 57.4
Front Shoulder Room (mm): 1458
Rear Shoulder Room (in): 57.2
Rear Shoulder Room (mm): 1453
Ramp Angles
Approach Angle: 29.5
Departure Angle: 24.6
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2750
Gross Vehicle Weight (lb): 6063
Published Kerb Weight (kg): 2049
Published Kerb Weight (lb): 4517
Tare Weight (kg): 1985
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20131217
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 3.0 Litre Diesel 4x4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
