Arctic Pearl
3.0L, 4-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$47,500â€

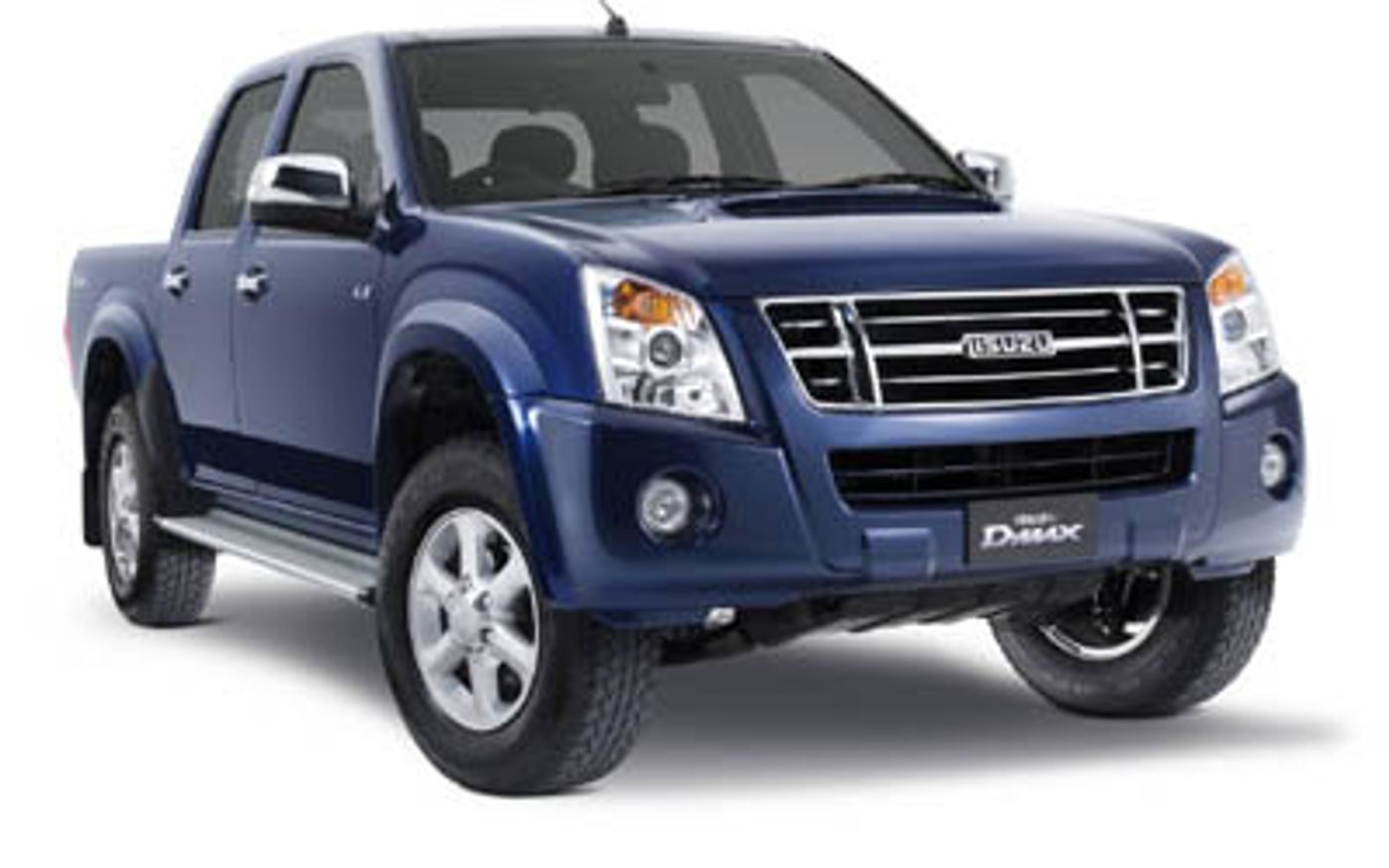

Isuzu D-Max Arctic Pearl (2009) price & specs
Save $$$ with CarExpert*
From
$47,500â€
Arctic Pearl
Overview
The 2009 Isuzu D-Max Arctic Pearl is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $47,500 before on-road costs.
This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 333 Nm of torque (at 1600 rpm) via a Four-speed Automatic transmission. Isuzu claims the D-Max Arctic Pearl uses 9.0L/100km of Diesel in the combined city and highway cycle while putting out 237g of CO2. It has a 76L fuel tank, meaning it should be able to travel 844km per full tank
The Isuzu D-Max measures 1735mm (68.3 inches) in height, 5030mm (198.0 inches) in length, 1800mm (70.9 inches) in width with a 3050mm (120.1 inches) wheelbase that brings about a total of 1920kg (4232.9 lbs) of unladen weight. The D-Max Arctic Pearl comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Isuzu D-Max Arctic Pearl has a 225mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the D-Max compare?
Quickly see how the 2009 Isuzu D-Max Arctic Pearl stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
62.5 - 79.73 kW/t
36.74 kW/t
91.09 kW/t
Fuel Efficiency
7.9 - 9 L/100km
7.9 L/100km
13 L/100km
Vehicle Range
844 - 962 km
636 km
962 km
Price
$23,300 - $47,500
$19,990
$61,240
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,800 - 2,900 kg
2,720 kg
3,500 kg
Gross Comb. Mass
5,300 - 5,900 kg
4,445 kg
6,800 kg
Braked Towing Capacity
2,500 - 3,000 kg
1,800 kg
3,500 kg
Approach Angle
34.6°
33°
49°
Departure Angle
23.3°
21°
35°
Ground Clearance Unladen
195 - 225 mm
181 mm
314 mm
Payload Capacity
980 - 1,295 kg
859 kg
1,441 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,030 mm
1,800 mm
1,735 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,030 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,735 mm |
| Wheelbase | 3,050 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 980 mm |
Looking for complete Isuzu D-Max size & space specs?
Our Isuzu D-Max Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Isuzu D-Max Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 237
Standard Met: EU4
Engine
Bore Engine: 95.4
Engine (cc): 2999
Engine Configuration: In-Line
Engine Code: 4jj1-Tc
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.9
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 844
ADR 81/02 Calculated Vehicle Range (miles): 524
ADR 81/02 Combined (km/L): 11.1
ADR 81/02 Combined (L/100km): 9.0
ADR 81/02 Combined (miles per UK gallon): 31
ADR 81/02 Combined (mpg): 26
ADR 81/02 Country Highway (km/L): 12.7
ADR 81/02 Country Highway (L/100km): 7.9
ADR 81/02 Country Highway (miles per UK gallon): 36
ADR 81/02 Country Highway (mpg): 30
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.0
ADR 81/02 Urban (L/100km): 10.0
ADR 81/02 Urban (miles per UK gallon): 28
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 9.0
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 333
Measurement Standard: DIN
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 4
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 245
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Roof Type: Standard
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Step Location: Side
Tray/Tub
Cover: Hard Top
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Height (in): 18.9
Height (mm): 1550
Length (in): 54.3
Length (mm): 1380
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 42.6
Width Between Wheelhouses (mm): 1082
Width (in): 61.0
Width (mm): 1550
External Dimensions
Kerb to Kerb Turning Circle (mm): 12200
Front Overhang (in): 30.3
Front Overhang (mm): 770
Front Track (in): 59.8
Front Track (mm): 1520
Ground Clearance Unladen (in): 8.9
Ground Clearance Unladen (mm): 225
Kerb To Kerb Turning Circle (ft): 40.0
Overall Height (in): 68.3
Overall Height (mm): 1735
Overall Length (in): 198.0
Overall Length (mm): 5030
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Overhang (in): 47.6
Rear Overhang (mm): 1210
Rear Track (in): 60.0
Rear Track (mm): 1525
Wheelbase (in): 120.1
Wheelbase (mm): 3050
Cargo Doors
Location: Rear
Rear Opening Angle: 180
Rear Operation: Dropping Gate
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Pearl
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1300
Front Axle Weight (lb): 2866
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5900
Gross Train Weight (lb): 13007
Gross Vehicle Weight (kg): 2900
Gross Vehicle Weight (lb): 6393
Payload Allowance (kg): 980
Payload Allowance (lb): 2161
Published Kerb Weight (kg): 1920
Published Kerb Weight (lb): 4233
Rear Axle Weight (kg): 1680
Rear Axle Weight (lb): 3704
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 6
Bluetooth
Type: Bluetooth
Power Outlet 12V
Location (12V): Front
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Upgraded Cloth/Velour
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
