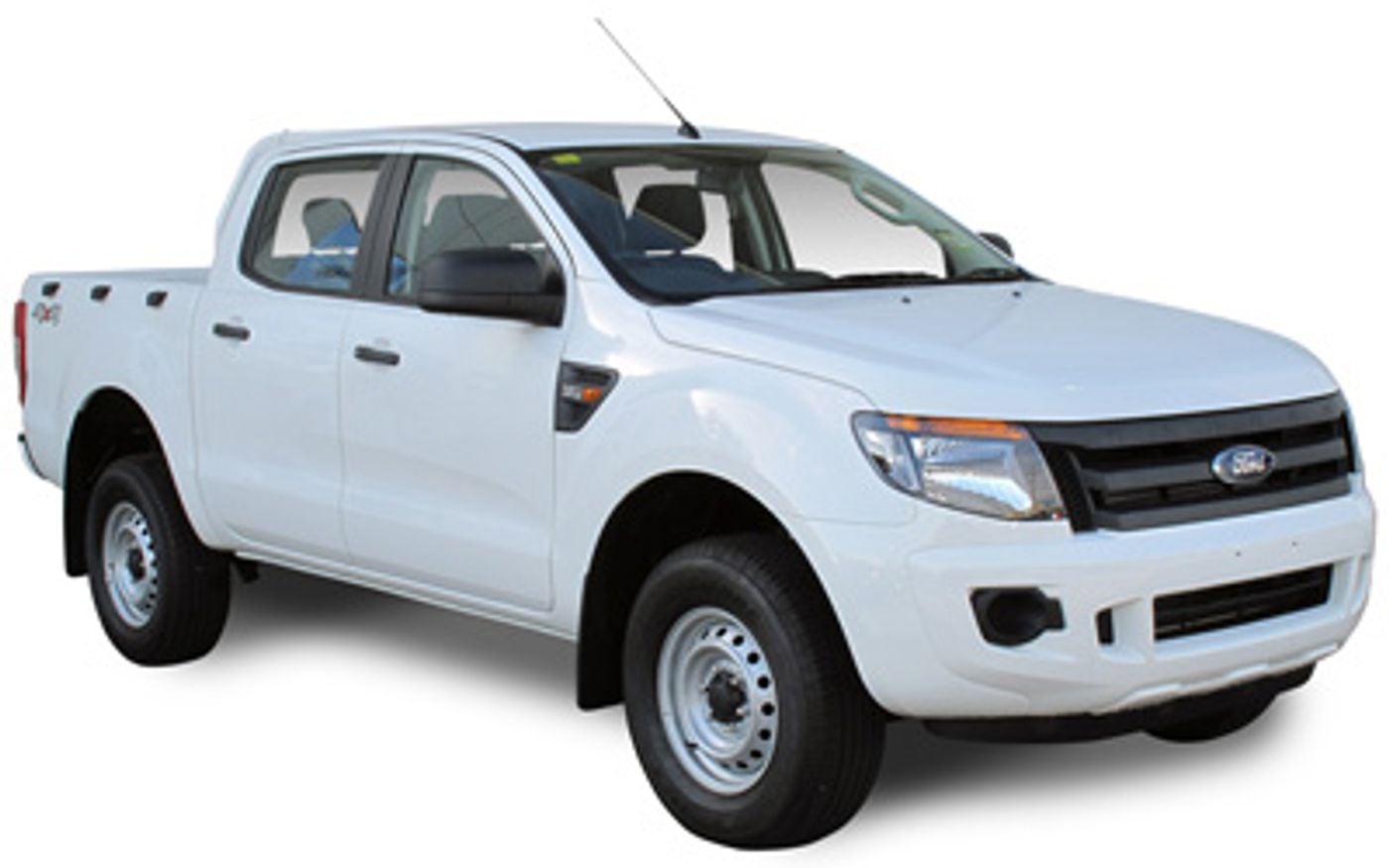

Ford Ranger XL (2011) price & specs
Overview
The 2011 Ford Ranger XL is a rear-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a PX. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $30,240 before on-road costs.
This Ford Ranger is powered by a 2.5L 4-cylinder engine that has 122 kW of power (at 6000 rpm) and 226 Nm of torque (at 4500 rpm) via a Five-speed Manual transmission. Ford claims the Ranger XL uses 10.6L/100km of Unleaded in the combined city and highway cycle while putting out 254g of CO2. It has a 80L fuel tank, meaning it should be able to travel 755km per full tank
The Ford Ranger measures 1716mm (67.6 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1789kg (3944.1 lbs) of unladen weight. The Ranger XL comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2011 Ford Ranger XL has a 201mm ground clearance with a 2200kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ranger compare?
Quickly see how the 2011 Ford Ranger XL stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,359 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,716 mm |
| Wheelbase | 3,220 mm |
| Turning Circle | 12,000 mm |
| Load Capacity | 1,136 mm |
Looking for complete Ford Ranger size & space specs?
Our Ford Ranger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Ranger Features & Specs
Emission Control Level
Australia Air Pollution Rating: 5.5
Australia Greenhouse Rating: 5.0
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 254
Standard Met: EU4
Engine
Bore Engine: 89.0
Engine (cc): 2489
Engine Configuration: In-Line
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 755
ADR 81/02 Calculated Vehicle Range (miles): 469
ADR 81/02 Combined (km/L): 9.4
ADR 81/02 Combined (L/100km): 10.6
ADR 81/02 Combined (miles per UK gallon): 27
ADR 81/02 Combined (mpg): 22
ADR 81/02 Country Highway (km/L): 11.5
ADR 81/02 Country Highway (L/100km): 8.7
ADR 81/02 Country Highway (miles per UK gallon): 33
ADR 81/02 Country Highway (mpg): 27
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.2
ADR 81/02 Urban (L/100km): 13.9
ADR 81/02 Urban (miles per UK gallon): 20
ADR 81/02 Urban (mpg): 17
Fuel Economy
ADR 81/02 (L/100km): 10.6
Power
Maximum Power (hp/PS): 166
Maximum Power (kW): 122
Maximum Torque (Nm): 226
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4500
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: Gcpp
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bulkhead
Type: Tubular
Tray/Tub
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Height (in): 20.1
Height (mm): 1560
Length (in): 61.0
Length (mm): 1549
Loading Floor Height (in): 28.5
Loading Floor Height (mm): 723
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.8
Width Between Wheelhouses (mm): 1139
Width (in): 61.4
Width (mm): 1560
External Dimensions
Kerb to Kerb Turning Circle (mm): 12000
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 62.6
Front Track (mm): 1590
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 201
Kerb To Kerb Turning Circle (ft): 39.4
Overall Height (in): 67.6
Overall Height (mm): 1716
Overall Length (in): 211.0
Overall Length (mm): 5359
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Overhang (in): 48.6
Rear Overhang (mm): 1234
Rear Track (in): 62.6
Rear Track (mm): 1590
Wheelbase (in): 126.8
Wheelbase (mm): 3220
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Rear Width (in): 52.4
Rear Width (mm): 1330
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1325
Front Axle Weight (lb): 2921
Gross Trailer Weight Braked (kg): 2200
Gross Trailer Weight Braked (lb): 4850
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5125
Gross Train Weight (lb): 11299
Gross Vehicle Weight (kg): 2925
Gross Vehicle Weight (lb): 6449
Payload Allowance (kg): 1136
Payload Allowance (lb): 2504
Published Kerb Weight (kg): 1789
Published Kerb Weight (lb): 3944
Rear Axle Weight (kg): 1755
Rear Axle Weight (lb): 3869
Tare Weight (kg): 1737
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
