Base
2.0L, 6-speed manual, 4-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$56,450â€

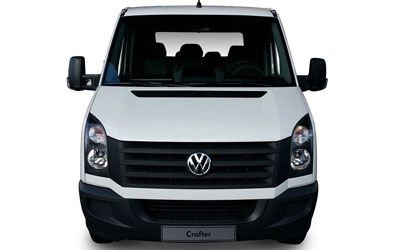

Volkswagen Crafter Base (2016) price & specs
From
$56,450â€
Save thousands with CarExpert*
Base
Overview
The 2016 Volkswagen Crafter Base is a rear-wheel drive, 4-door Cab Chassis that was released to the Australian market on 2nd September 2015. The Volkswagen Crafter is regarded as a Van Over 3.5t built in Germany with prices starting at $56,450 before on-road costs.
This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 400 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2385mm (93.9 inches) in height, 6842mm (269.4 inches) in length, 1990mm (78.3 inches) in width with a 4325mm (170.3 inches) wheelbase that brings about a total of 2311kg (5094.9 lbs) of unladen weight. The Crafter Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2016 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Crafter compare?
Quickly see how the 2016 Volkswagen Crafter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
35.12 - 58.72 kW/t
35.12 kW/t
75 kW/t
Price
$40,600 - $66,140
$38,990
$66,140
Warranty (Years)
3 years
3 years
Warranty (Distance)
Unlimited
200,000 km
Unlimited
Years on Sale
New this year - 7 years
2 years
4 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 5,000 kg
3,510 kg
5,000 kg
Braked Towing Capacity
2,000 kg
2,000 kg
3,000 kg
Ground Clearance Unladen
176 mm
166 mm
219 mm
Payload Capacity
1,226 - 2,916 kg
1,226 kg
2,916 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,842 mm
1,990 mm
2,385 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,842 mm |
| Overall Width | 1,990 mm |
| Overall Height | 2,385 mm |
| Wheelbase | 4,325 mm |
| Load Capacity | 2,689 mm |
Looking for complete Volkswagen Crafter size & space specs?
Our Volkswagen Crafter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volkswagen Crafter Features & Specs
Auxiliary Power Take Off
Auxiliary Power Take Off Transmission Location: Transmission
Compressor
Compressor: Turbo
Emission Control Level
Emission Control Level Standard Met: EU5
Engine
Engine Liters: 2.0
Engine Configuration: In-Line
Engine Cc: 1968
Engine Number Of Cylinders: 4
Engine Bore: 81.0
Engine Stroke: 95.5
Engine Number Of Valves Per Cylinder: 4
Fuel
Fuel Type: Diesel
Fuel Generic Primary Fuel Type: Diesel
Fuel Minimum Fuel Type: Diesel
Fuel System
Fuel Fuel System Injection Carburetion: Diesel Common Rail
Fuel Tanks
Fuel Tanks Main Type: Total
Fuel Tanks Main Capacity L: 75
Fuel Tanks Main Capacity Gal: 19.8
Fuel Tanks Main Capacity Uk Gallons: 16.5
Fuel Tanks Main Fuel Type: Diesel
Computer
Computer Average Fuel Consumption: yes
Computer Range For Remaining Fuel: yes
Computer Instantaneous Fuel Consumption: yes
Power
Power Maximum Power Kw: 120
Power Maximum Power Hp Ps: 163
Power Maximum Torque Nm: 400
Power Rpm For Maximum Torque Low: 1800
Power Measurement Standard: EEC
Power Rpm For Maximum Power Low: 3600
Power Primary Or Secondary Fuel Power Figure: Primary
Drive
Drive Driven Wheels: Rear
Limited Slip Differential
Limited Slip Differential Rear Location: Rear
Limited Slip Differential Rear Type: Electronic
Transmission
Transmission Type: Manual
Transmission Number Of Speeds: 6
Transmission Description: Manual
Disc Brakes
Disc Brakes Number Of: 4
Disc Brakes Number Of Ventilated Discs: 4
Power Steering
Power Steering Type: Hydraulic
Steering Wheel
Steering Wheel Type: Plastic
Steering Wheel Height Adjustment: yes
Steering Wheel Telescopic Adjustment: yes
Steering Wheel Multi Function: yes
Alternate Suspension
Alternate Suspension Type: Heavy Duty
Suspension
Suspension Rear Location: Rear
Suspension Rear Spring Type: Leaf
Suspension Front Location: Front
Suspension Front Spring Type: Leaf
Suspension Rear Wheel Dependence: Rigid
Suspension Front Type: Wishbone
Suspension Rear Type: Beam
Suspension Front Stabilizer Bar: yes
Suspension Front Wheel Dependence: Independent
Suspension Rear Stabilizer Bar: yes
Tires
Wheels Tire Rear Location: Rear
Wheels Tire Front Location: Front
Wheels Tire Rear Width: 195
Wheels Tire Front Width: 195
Wheels Tire Rear Profile: 75
Wheels Tire Front Profile: 75
Wheels Tire Front Type: Conventional/Summer
Wheels Tire Rear Type: Conventional/Summer
Wheels Tire Front Load Index: 104
Wheels Tire Rear Load Index: 104
Wheels
Wheels Rear Axle1 Axle Location: 1
Wheels Rear Location: Rear
Wheels Front Location: Front
Wheels Rear Rim Diameter Inch: 16
Wheels Front Rim Diameter Inch: 16
Wheels Front Rim Type: Steel
Wheels Rear Rim Type: Steel
Wheels Front Rim Width Inch: 5.5
Wheels Rear Rim Width Inch: 5.5
Body Style
Body Type: Cab Chassis
Local Body Type: Cab Chassis
Platform Code: Ncv3
Wheelbase Type: Long
Cab Type: Double Cab
Roof Type: Standard
Mud Flaps
Mud Flaps Front Location: Front
Mud Flaps Rear Location: Rear
Bumpers
Front Location: Front
Rear Location: Rear
Front Color: Black
Rear Color: Painted
Front Material: Plastic
Rear Material: Plastic
Front Type: Integrated
Rear Type: Integrated
External Dimensions
External Dimensions Overall Height In: 93.9
External Dimensions Overall Height Mm: 2385
External Dimensions Wheelbase Mm: 4325
External Dimensions Wheelbase In: 170.3
External Dimensions Overall Width In: 78.3
External Dimensions Overall Width Mm: 1990
External Dimensions Overall Length In: 269.4
External Dimensions Overall Length Mm: 6842
External Dimensions Rear Track Mm: 1521
External Dimensions Rear Track In: 59.9
External Dimensions Front Track Mm: 1708
External Dimensions Front Track In: 67.2
External Dimensions Ground Clearance Unladen Mm: 176
External Dimensions Ground Clearance Unladen In: 6.9
External Dimensions Wall To Wall Turning Circle Ft: 51.2
External Dimensions Wall To Wall Turning Circle Mm: 15600
External Dimensions Rear Overhang In: 67.3
External Dimensions Rear Overhang Mm: 1709
External Dimensions Front Overhang Mm: 1000
External Dimensions Front Overhang In: 39.4
Doors
Doors Passenger Location: Passenger
Doors Driver Location: Driver
Doors Passenger Type: Front Hinged
Doors Driver Type: Front Hinged
Doors Rear Passenger Location: Rear Passenger
Doors Rear Passenger Type: Front Hinged
Doors Rear Driver Location: Rear Driver
Doors Rear Driver Type: Front Hinged
Headlight Control
Headlight Control Height Adjustment: Manual
Headlight Control Internal Height Adjustment: yes
Headlights
Headlights Bulb Type Low Beam: Halogen
Headlights Lens Type: Complex Surface
Headlights Bulb Type High Beam: Halogen
Paint
External Color: Blue
Type: Gloss
Door Mirrors Cameras
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Color: Black
Door Mirrors Cameras Passenger Color: Black
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Rear Side Windows
Rear Side Windows Driver Location: Driver
Rear Side Windows Passenger Location: Passenger
Tinted Glass
Tinted Glass Rear Location: Rear
Windshield Wipers
Windshield Wipers Intermittent Wipe: Fixed
Weights
Published Kerb Weight Lbs: 5095
Published Kerb Weight Kg: 2311
Gross Trailer Weight Braked Kg: 2000
Gross Trailer Weight Braked Lbs: 4409
Gross Trailer Weight Unbraked Kg: 750
Gross Trailer Weight Unbraked Lbs: 1653
Gross Vehicle Weight Kg: 5000
Gross Vehicle Weight Lbs: 11023
Tare Weight Kg: 2256
Payload Allowance Lbs: 5928
Payload Allowance Kg: 2689
Audio System
System Radio Type: Am/Fm
System Digital Media Card: yes
Connection To Ext Entertainment Devices
Connection External Usb Front: yes
Connection External Aux Jack Front: yes
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 2
Bluetooth
Bluetooth Includes Phone Connection: yes
Bluetooth Includes Music Streaming: yes
Passenger Assist Handles
Passenger Assist Handles Number Of Handles: 2
Power Outlet12v
Power Outlet Front Location12v: Front
Power Outlet Front Number Of Outlets12v: 2
Floor Covering
Floor Covering Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number Of Airbags: 2
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Passenger Seat Position: Passenger
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Driver Height Adjustable: yes
Front Seat Belts Passenger Pre Tensioners: yes
Front Seat Belts Driver Pre Tensioners: yes
Head Restraints
Head Restraints Front Seats Location: Front Seats
Head Restraints Rear Seats Location: Rear Seats
Head Restraints Rear Seats Number: 4
Rear Seat Belts
Rear Seat Belts Driver Seat Position: Driver
Rear Seat Belts Passenger Seat Position: Passenger
Rear Seat Belts Center Seat Position: Centre
Rear Seat Belts Center Type: 3-Point
Side Airbag
Side Airbag Front Location: Front
Side Curtain Airbag
Side Curtain Airbag Front Location: Front
Front Seat
Front Seat Passenger Location: Passenger
Front Seat Driver Location: Driver
Front Seat Passenger Type: Bucket
Front Seat Driver Type: Bucket
Front Seat Driver Height Type: Manual
Front Seat Driver Reach Type: Manual
Front Seat Driver Lumbar Type: Manual
Front Seat Passenger Reach Type: Manual
Front Seat Passenger Lumbar Adjustment: yes
Front Seat Center Location: Centre
Front Seat Center Type: Bench
Front Seat Driver Swivelling: yes
Front Seat Passenger Swivelling: yes
Front Seat Center Armrest
Front Seat Center Armrest Folding: yes
Seat Upholstery
Seat Upholstery Main Seat Material: Cloth
Seat Upholstery Additional Seat Material: Cloth
Seating
Seating Capacity: 6
Seating Configuration: 2+4
Cup Holders
Cup Holders Front Seats Location: Front Seats
Air Conditioning
Air Conditioning Type: Semi-Auto
Anti Theft Protection
Anti Theft Protection Remote Operation: yes
Power Locks
Power Locks Operation: Remote
Intermediate Service
Intermediate Service Distance Km: 30000
Intermediate Service Distance Miles: 18641
Intermediate Service Period Months: 12
