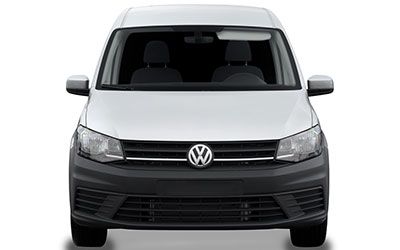

Volkswagen Caddy Maxi Crewvan (2019) price & specs
From
$36,290â€
Save thousands with CarExpert*
Maxi Crewvan
Overview
The 2019 Volkswagen Caddy Maxi Crewvan is a front-wheel drive, 5-door Combi that was released to the Australian market on 2nd October 2018. The Volkswagen Caddy is regarded as a Van Under 3.5t built in Poland with prices starting at $36,290 before on-road costs.
This Volkswagen Caddy is powered by a 2.0L 4-cylinder engine that has 75 kW of power (at 2900 rpm) and 250 Nm of torque (at 1300 rpm) via a Six-speed Manual transmission. Volkswagen claims the Caddy Maxi Crewvan uses 5.3L/100km of Diesel in the combined city and highway cycle while putting out 140g of CO2. It has a 55L fuel tank, meaning it should be able to travel 1038km per full tank
The Volkswagen Caddy measures 1831mm (72.1 inches) in height, 4878mm (192.0 inches) in length, 1793mm (70.6 inches) in width with a 3006mm (118.3 inches) wheelbase that brings about a total of 1609kg (3547.2 lbs) of unladen weight. The Caddy Maxi Crewvan comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Caddy compare?
Quickly see how the 2019 Volkswagen Caddy Maxi Crewvan stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.61 - 69.64 kW/t
29.14 kW/t
97.64 kW/t
Fuel Efficiency
5.3 - 6.2 L/100km
4.7 L/100km
12.4 L/100km
Vehicle Range
887 - 1,038 km
565 km
1,327 km
Price
$24,990 - $36,890
$24,490
$63,170
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
3 - 4 years
3 years
5 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,034 - 2,329 kg
1,810 kg
3,500 kg
Braked Towing Capacity
1,300 - 1,400 kg
322 kg
2,800 kg
Approach Angle
13.2 - 17.1°
13.2°
21.2°
Departure Angle
14.8 - 18.1°
14.8°
19.9°
Ground Clearance Unladen
172 - 187 mm
154 mm
234 mm
Payload Capacity
720 - 843 kg
540 kg
1,419 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,878 mm
1,793 mm
1,831 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,878 mm |
| Overall Width | 1,793 mm |
| Overall Height | 1,831 mm |
| Wheelbase | 3,006 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 720 mm |
Looking for complete Volkswagen Caddy size & space specs?
Our Volkswagen Caddy Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volkswagen Caddy Features & Specs
Bluetooth
Bluetooth Includes Music Streaming: yes
Bluetooth Includes Phone Connection: yes
Cruise Control
Cruise Control Adaptive Cruise Control: yes
Cruise Control Manufacturer Name: Adaptive Cruise Control
Cruise Control Speed Limiter: yes
Mobile Integration
Mobile Integration Android Auto: yes
Mobile Integration Apple Carplay: yes
Mobile Integration Mirrorlink: yes
Parking Distance System
Parking Distance System Rear Location: Rear
Parking Distance System Rear Type: Sensor
Power Outlet12v
Power Outlet Boot Cargo Location12v: Boot/Cargo
Power Outlet Front Location12v: Front
Reading Lights
Reading Lights Front Location: Front
Vanity Mirror
Vanity Mirror Driver Location: Driver
Vanity Mirror Passenger Location: Passenger
Compressor
Compressor: Turbo
Emission Control Level
Emission Control Level Co2 Level Combined: 140
Emission Control Level Standard Met: EU5
Engine
Engine Bore: 81.0
Engine Cc: 1968
Engine Configuration: In-Line
Engine Liters: 2.0
Engine Number Of Cylinders: 4
Engine Number Of Valves Per Cylinder: 4
Engine Stroke: 95.5
Interested in buying a Volkswagen Caddy Maxi Crewvan?
Save $$$ with CarExpert*
From
$36,290â€
Fuel
Fuel Generic Primary Fuel Type: Diesel
Fuel Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Fuel Fuel System Injection Carburetion: Diesel Common Rail
Fuel Tanks
Fuel Tanks Main Capacity Gal: 14.5
Fuel Tanks Main Capacity L: 55
Fuel Tanks Main Capacity Uk Gallons: 12.1
Fuel Tanks Main Type: Total
Fuel Consumption
Fuel Consumption Adr8102 Calculated Vehicle Range Km: 1038
Fuel Consumption Adr8102 Calculated Vehicle Range Miles: 645
Fuel Consumption Adr8102 Combined Km Ll: 18.9
Fuel Consumption Adr8102 Combined L100km: 5.3
Fuel Consumption Adr8102 Combined Miles Per Uk Gallon: 53
Fuel Consumption Adr8102 Combined Mpg: 44
Fuel Consumption Adr8102 Country Highway Km Ll: 20.4
Fuel Consumption Adr8102 Country Highway L100km: 4.9
Fuel Consumption Adr8102 Country Highway Miles Per Uk Gallon: 58
Fuel Consumption Adr8102 Country Highway Mpg: 48
Fuel Consumption Adr8102 Standard: Adr 81/02
Fuel Consumption Adr8102 Urban Km Ll: 16.7
Fuel Consumption Adr8102 Urban L100km: 6.0
Fuel Consumption Adr8102 Urban Miles Per Uk Gallon: 47
Fuel Consumption Adr8102 Urban Mpg: 39
Fuel Economy
Fuel Economy Adr8102 L100km: 5.3
Power
Power Maximum Power Hp Ps: 102
Power Maximum Power Kw: 75
Power Maximum Torque Nm: 250
Power Measurement Standard: EEC
Power Primary Or Secondary Fuel Power Figure: Primary
Power Rpm For Maximum Power Low: 2900
Power Rpm For Maximum Torque Low: 1300
Drive
Drive Driven Wheels: Front
Limited Slip Differential
Limited Slip Differential Front Location: Front
Limited Slip Differential Front Type: Electronic
Transmission
Transmission Automatic Mode: yes
Transmission Description: Dual Clutch Sequential Trans (Dct)
Transmission Manual Sequential: yes
Transmission Number Of Speeds: 6
Transmission Type: Manual
Disc Brakes
Disc Brakes Number Of: 4
Disc Brakes Number Of Ventilated Discs: 2
Power Steering
Power Steering Type: Electro-Hydraulic
Steering Wheel
Steering Wheel Height Adjustment: yes
Steering Wheel Telescopic Adjustment: yes
Steering Wheel Type: Leather Covered
Alternate Suspension
Alternate Suspension Type: Heavy Duty
Suspension
Suspension Front Location: Front
Suspension Front Spring Type: Coil
Suspension Front Stabilizer Bar: yes
Suspension Front Type: Strut
Suspension Front Wheel Dependence: Independent
Suspension Rear Location: Rear
Suspension Rear Spring Type: Leaf
Suspension Rear Stabilizer Bar: yes
Suspension Rear Type: Beam
Suspension Rear Wheel Dependence: Rigid
Tires
Wheels Tire Front Load Index: 94
Wheels Tire Front Location: Front
Wheels Tire Front Profile: 55
Wheels Tire Front Type: Conventional/Summer
Wheels Tire Front Width: 205
Wheels Tire Rear Load Index: 94
Wheels Tire Rear Location: Rear
Wheels Tire Rear Profile: 55
Wheels Tire Rear Type: Conventional/Summer
Wheels Tire Rear Width: 205
Wheels
Wheels Front Location: Front
Wheels Front Rim Diameter Inch: 16
Wheels Front Rim Type: Steel
Wheels Front Rim Width Inch: 6.0
Wheels Rear Axle1 Axle Location: 1
Wheels Rear Location: Rear
Wheels Rear Rim Diameter Inch: 16
Wheels Rear Rim Type: Steel
Wheels Rear Rim Width Inch: 6.0
Cargo Area Dimensions
Cargo Area Cargo Volume Cu Ft: 139.5
Cargo Area Cargo Volume L: 3950
Cargo Area Height In: 48.8
Cargo Area Height Mm: 1190
Cargo Area Length In: 71.8
Cargo Area Length Mm: 1823
Cargo Area Loading Floor Height In: 22.9
Cargo Area Loading Floor Height Mm: 581
Cargo Area Standard Measurement: Manufacturer'S Own
Cargo Area Width Between Wheelhouses In: 46.0
Cargo Area Width Between Wheelhouses Mm: 1168
Cargo Area Width In: 46.9
Cargo Area Width Mm: 1190
External Dimensions
External Dimensions Curb To Curb Turning Circle Mm: 12200
External Dimensions Front Overhang In: 34.6
External Dimensions Front Overhang Mm: 879
External Dimensions Front Track In: 60.5
External Dimensions Front Track Mm: 1537
External Dimensions Ground Clearance Unladen In: 7.4
External Dimensions Ground Clearance Unladen Mm: 187
External Dimensions Kerb To Kerb Turning Circle Ft: 40.0
External Dimensions Overall Height In: 72.1
External Dimensions Overall Height Mm: 1831
External Dimensions Overall Length In: 192.0
External Dimensions Overall Length Mm: 4878
External Dimensions Overall Width In: 70.6
External Dimensions Overall Width Mm: 1793
External Dimensions Rear Overhang In: 39.1
External Dimensions Rear Overhang Mm: 993
External Dimensions Rear Track In: 60.8
External Dimensions Rear Track Mm: 1544
External Dimensions Wheelbase In: 118.3
External Dimensions Wheelbase Mm: 3006
Ramp Angles
Ramp Angles Approach Angle: 15.9
Ramp Angles Departure Angle: 15.3
Body Style
Body Type: Combi
Local Body Type: Combi
Platform Code: MQB
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Color: Black
Front Location: Front
Rear Color: Black
Rear Location: Rear
Cargo Doors
Cargo Doors Driver Height In: 42.7
Cargo Doors Driver Height Mm: 1084
Cargo Doors Driver Location: Driver
Cargo Doors Driver Operation: Sliding
Cargo Doors Driver Width In: 27.6
Cargo Doors Driver Width Mm: 701
Cargo Doors Passenger Height In: 42.7
Cargo Doors Passenger Height Mm: 1084
Cargo Doors Passenger Location: Passenger
Cargo Doors Passenger Operation: Sliding
Cargo Doors Passenger Width In: 27.6
Cargo Doors Passenger Width Mm: 701
Cargo Doors Rear Height In: 44.6
Cargo Doors Rear Height Mm: 1134
Cargo Doors Rear Location: Rear
Cargo Doors Rear Opening Angle: 180
Cargo Doors Rear Operation: Double Hinged
Cargo Doors Rear Width In: 46.6
Cargo Doors Rear Width Mm: 1183
Doors
Doors Driver Location: Driver
Doors Driver Type: Front Hinged
Doors Passenger Location: Passenger
Doors Passenger Type: Front Hinged
Doors Rear Driver Location: Rear Driver
Doors Rear Driver Type: Sliding
Doors Rear Passenger Location: Rear Passenger
Doors Rear Passenger Type: Sliding
Headlight Control
Headlight Control Height Adjustment: Manual
Headlight Control Internal Height Adjustment: yes
Headlights
Headlights Bulb Type High Beam: Halogen
Headlights Bulb Type Low Beam: Halogen
Headlights Lens Type: Complex Surface
Led Lights
Led Lights Day Time Running Lights Location: Day Time Running Lights
Paint
External Color: White
Type: Gloss
Door Mirrors Cameras
Door Mirrors Cameras Driver Color: Black
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Color: Black
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Rear Side Windows
Rear Side Windows Driver Location: Driver
Rear Side Windows Driver Type: Sliding
Rear Side Windows Passenger Location: Passenger
Rear Side Windows Passenger Type: Sliding
Third Row Windows
Third Row Windows Driver Location: Driver
Third Row Windows Driver Type: Fixed
Third Row Windows Passenger Location: Passenger
Third Row Windows Passenger Type: Fixed
Windshield Wipers
Windshield Wipers Intermittent Wipe: Variable
Weights
Front Axle Weight Kg: 1200
Front Axle Weight Lbs: 2646
Gross Trailer Weight Braked Kg: 0
Gross Trailer Weight Braked Lbs: 0
Gross Trailer Weight Unbraked Kg: 0
Gross Trailer Weight Unbraked Lbs: 0
Gross Vehicle Weight Kg: 2329
Gross Vehicle Weight Lbs: 5135
Payload Allowance Kg: 720
Payload Allowance Lbs: 1587
Published Kerb Weight Kg: 1609
Published Kerb Weight Lbs: 3547
Rear Axle Weight Kg: 1230
Rear Axle Weight Lbs: 2712
Tare Weight Kg: 1344
Antenna
Antenna Type: Element
Audio System
System Cd Player Reads Mp3: yes
System Colour Screen: yes
System Digital Media Card: yes
System In Dash Cd: yes
System Radio Type: Am/Fm
System Rds: yes
System Touch Screen: yes
Connection To Ext Entertainment Devices
Connection External Aux Jack Front: yes
Connection External Ipod Front: yes
Connection External Usb Front: yes
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 2
Display Screen
Display Screen Instrument Cluster1 Location: Instrument Cluster 1
Display Screen Instrument Cluster1 Number: 1
Display Screen Number: 1
Display Screen Size Inch: 6.3
Display Screen Touch Screen: yes
Floor Covering
Floor Covering Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number Of Airbags: 4
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Driver Height Adjustable: yes
Front Seat Belts Driver Pre Tensioners: yes
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Passenger Pre Tensioners: yes
Front Seat Belts Passenger Seat Position: Passenger
Head Restraints
Head Restraints Front Seats Location: Front Seats
Head Restraints Rear Seats Location: Rear Seats
Head Restraints Rear Seats Number: 3
Lane Departure Warning
Lane Departure Warning Activates Steering: yes
Rear Seat Belts
Rear Seat Belts Center Seat Position: Centre
Rear Seat Belts Center Type: 3-Point
Rear Seat Belts Driver Seat Position: Driver
Rear Seat Belts Passenger Seat Position: Passenger
Side Airbag
Side Airbag Front Head Protection: yes
Side Airbag Front Location: Front
Front Seat
Front Seat Driver Height Type: Manual
Front Seat Driver Location: Driver
Front Seat Driver Lumbar Type: Manual
Front Seat Driver Reach Type: Manual
Front Seat Driver Type: Bucket
Front Seat Passenger Height Adjustment: yes
Front Seat Passenger Height Type: Manual
Front Seat Passenger Location: Passenger
Front Seat Passenger Lumbar Adjustment: yes
Front Seat Passenger Reach Type: Manual
Front Seat Passenger Type: Bucket
Seat Upholstery
Seat Upholstery Additional Seat Material: Cloth
Seat Upholstery Main Seat Material: Cloth
Seating
Seating Capacity: 5
Seating Configuration: 2+3
Cup Holders
Cup Holders Front Seats Location: Front Seats
Cup Holders Rear Seats Location: Rear Seats
Air Conditioning
Air Conditioning Type: Manual
Power Locks
Power Locks Operation: Remote
Intermediate Service
Intermediate Service Distance Km: 15000
Intermediate Service Distance Miles: 9321
Intermediate Service Period Months: 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
