Nissan Navara DX (2002) price & specs
Overview

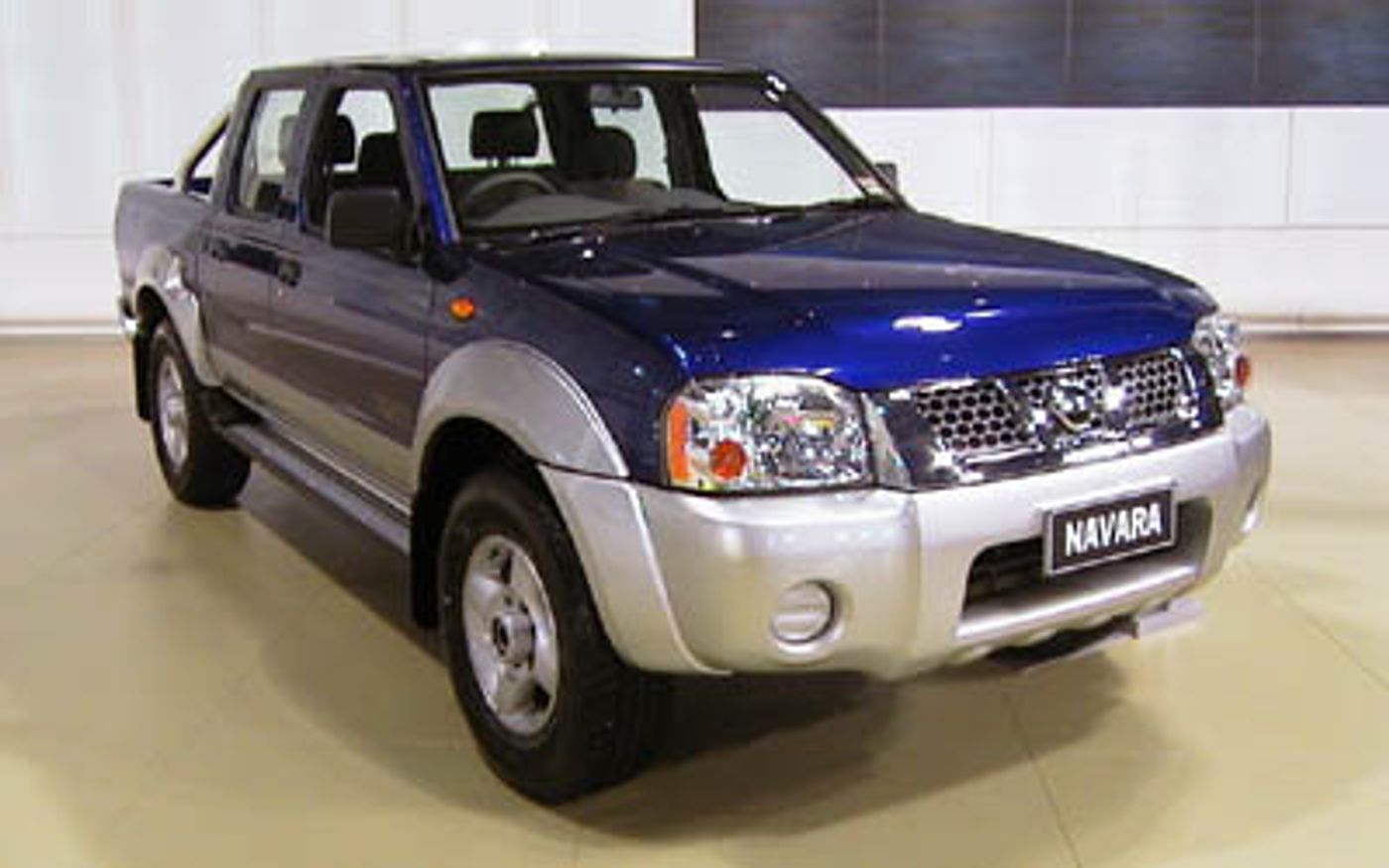

The 2002 Nissan Navara DX is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a 2002 Series 3. The Nissan Navara is regarded as a Pickup built in Japan with prices starting at $38,840 before on-road costs.
This Nissan Navara is powered by a 3L 4-cylinder engine that has 110 kW of power (at 3400 rpm) and 314 Nm of torque (at 2000 rpm) via a Five-speed Manual transmission. It has a 75L fuel tank
It has a 36 month, 100,000 km warranty.
The 2002 Nissan Navara DX has a 220mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Navara compare?
Quickly see how the 2002 Nissan Navara DX stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 4,945 mm |
| Overall Width | 1,825 mm |
| Overall Height | 1,715 mm |
| Wheelbase | 2,950 mm |
| Turning Circle | 12,000 mm |
| Load Capacity | 1,015 mm |
Looking for complete Nissan Navara size & space specs?
Our Nissan Navara Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Nissan Navara Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 96
Engine (cc): 2953
Compression Ratio: 17.9
Engine Configuration: In-Line
Engine Code: Zd30
Engine (L): 3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 102
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Diesel
Main Type: Total
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 314
Measurement Standard: DIN
Rpm For Maximum Power Low: 3400
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Manual Hubs
Four-Wheel Drive Type: Part-Time
Selection: Manual
Speed Limited Manual Only: yes
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Description: Manual
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Utility
Cab Type: Double Cab
Driver Location: RHD
Local Body Type: Utility
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Trailer Towing Preparation
Trailer Hitch: yes
Brush Guard
Type: Rigid
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Load Restraint
Type: Hooks
Tray/Tub
Type: Straight Side
Cargo Area Dimensions
Height (in): 17.1
Height (mm): 1390
Length (in): 54.9
Length (mm): 1395
Standard Measurement: Manufacturer'S Own
Width (in): 54.7
Width (mm): 1390
External Dimensions
Kerb to Kerb Turning Circle (mm): 12000
Front Track (in): 60
Front Track (mm): 1525
Ground Clearance Unladen (in): 8.7
Ground Clearance Unladen (mm): 220
Kerb To Kerb Turning Circle (ft): 39.4
Overall Height (in): 67.5
Overall Height (mm): 1715
Overall Length (in): 194.7
Overall Length (mm): 4945
Overall Width (in): 71.9
Overall Width (mm): 1825
Rear Track (in): 59.3
Rear Track (mm): 1505
Wheelbase (in): 116.1
Wheelbase (mm): 2950
Cargo Doors
Rear Height (in): 17.1
Rear Height (mm): 435
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1380
Front Axle Weight (lb): 3042
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2920
Gross Vehicle Weight (lb): 6438
Payload Allowance (kg): 1015
Payload Allowance (lb): 2238
Published Kerb Weight (kg): 1905
Published Kerb Weight (lb): 4200
Rear Axle Weight (kg): 1800
Rear Axle Weight (lb): 3968
Audio Anti-Theft Protection
Type: Code
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Cigar Lighter
Location: Front Seats
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Door Pockets Bins
Location: Driver
Location: Passenger
