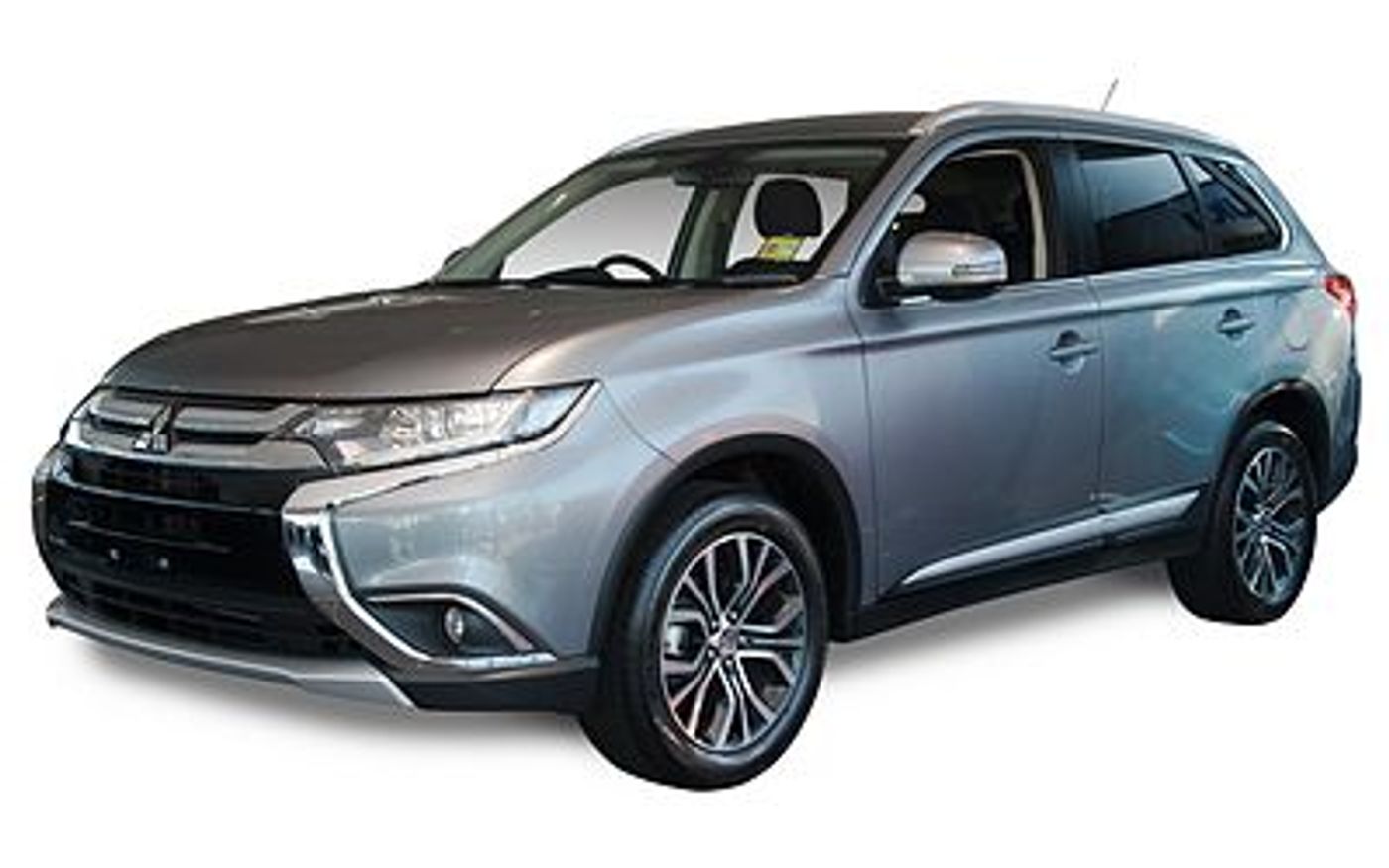

Mitsubishi Outlander LS (2017) price & specs
Overview
The 2017 Mitsubishi Outlander LS is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a ZK. The Mitsubishi Outlander is regarded as a small SUV built in Japan with prices starting at $50,490 before on-road costs.
This Mitsubishi Outlander uses a fully electric engine.
The Mitsubishi Outlander measures 1710mm (67.3 inches) in height, 4695mm (184.8 inches) in length, 1800mm (70.9 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1810kg (3990.4 lbs) of unladen weight. The Outlander LS comes standard with 225/55 R18 front tyres and 225/55 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, 100,000 km warranty.
The 2017 Mitsubishi Outlander LS has a 190mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Outlander compare?
Quickly see how the 2017 Mitsubishi Outlander LS stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Battery & Charging
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 4,695 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,710 mm |
| Wheelbase | 2,670 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 500 mm |
Looking for complete Mitsubishi Outlander size & space specs?
Our Mitsubishi Outlander Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mitsubishi Outlander Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 44
Standard Met: EU5
Engine
Bore Engine: 86.0
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: 4b11 Mivec
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 86.0
Variable Valve Timing Camshaft: yes
Additional Fuel Types
Unleaded Fuel: Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Other Fuel Type: Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 11.9
Main Capacity (L): 45
Main Capacity Uk Gallons: 9.9
Main Type: Total
Charging Connector
Mode 2 (EVSE) Charging Cable Included: yes
Mode 2 (EVSE) Type: Mode 2 (Evse)
Charging Information
Mode 2 Amps: 15
Mode 2 Duration: 4.00
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 200
Electric Driven Wheels
Electric Driven Wheels: Rear
Electric Motor
Motor 1 Max Torque Motor (Nm): 137
Motor 1 Number: 1
Motor 2 Max Torque Motor (Nm): 195
Motor 2 Number: 2
Electric Power Source
Battery Type: Lithium Ion
Battery Voltage: 300
High Power Charger: yes
Maximum Battery (kWh): 12.0
Range (km): 52.00
Range (miles): 32.31
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Combined (km/L): 52.6
ADR 81/02 Combined (L/100km): 1.9
ADR 81/02 Combined (miles per UK gallon): 149
ADR 81/02 Combined (mpg): 124
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 1.9
Power
Maximum Power (hp/PS): 200
Maximum Power hp/PS Electric Motor: 163
Maximum Power (kW): 147
Maximum Power kW Electric Motor: 120
Maximum Torque Electric Motor (Nm): 332
Measurement Standard: EEC
Secondary Power
Maximum Power (hp/PS): 118
Maximum Power (kW): 87
Maximum Torque (Nm): 186
Rpm For Maximum Power Low: 4500
Rpm For Maximum Torque Low: 4500
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Transmission
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Cargo Capacity
Rear Seat Down (cu ft): 56.6
Rear Seat Down (L): 1602
Rear Seat Up to Lower Window (cu ft): 16.4
Rear Seat Up to Lower Window (L): 463
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 60.6
Front Track (mm): 1540
Ground Clearance Unladen (in): 7.5
Ground Clearance Unladen (mm): 190
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 67.3
Overall Height (mm): 1710
Overall Length (in): 184.8
Overall Length (mm): 4695
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Track (in): 60.6
Rear Track (mm): 1540
Wheelbase (in): 105.1
Wheelbase (mm): 2670
Ramp Angles
Approach Angle: 19.5
Departure Angle: 20.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: GF
Wheelbase Type: Short
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2310
Gross Vehicle Weight (lb): 5093
Published Kerb Weight (kg): 1810
Published Kerb Weight (lb): 3990
Audio System
Colour Screen: yes
Digital Media Card: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Luxury Trim
Doors: Alloy Look / Synthetic Leather
Gear Selector: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 3
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
