Mitsubishi Outlander XLS (2012) price & specs
XLS
Overview

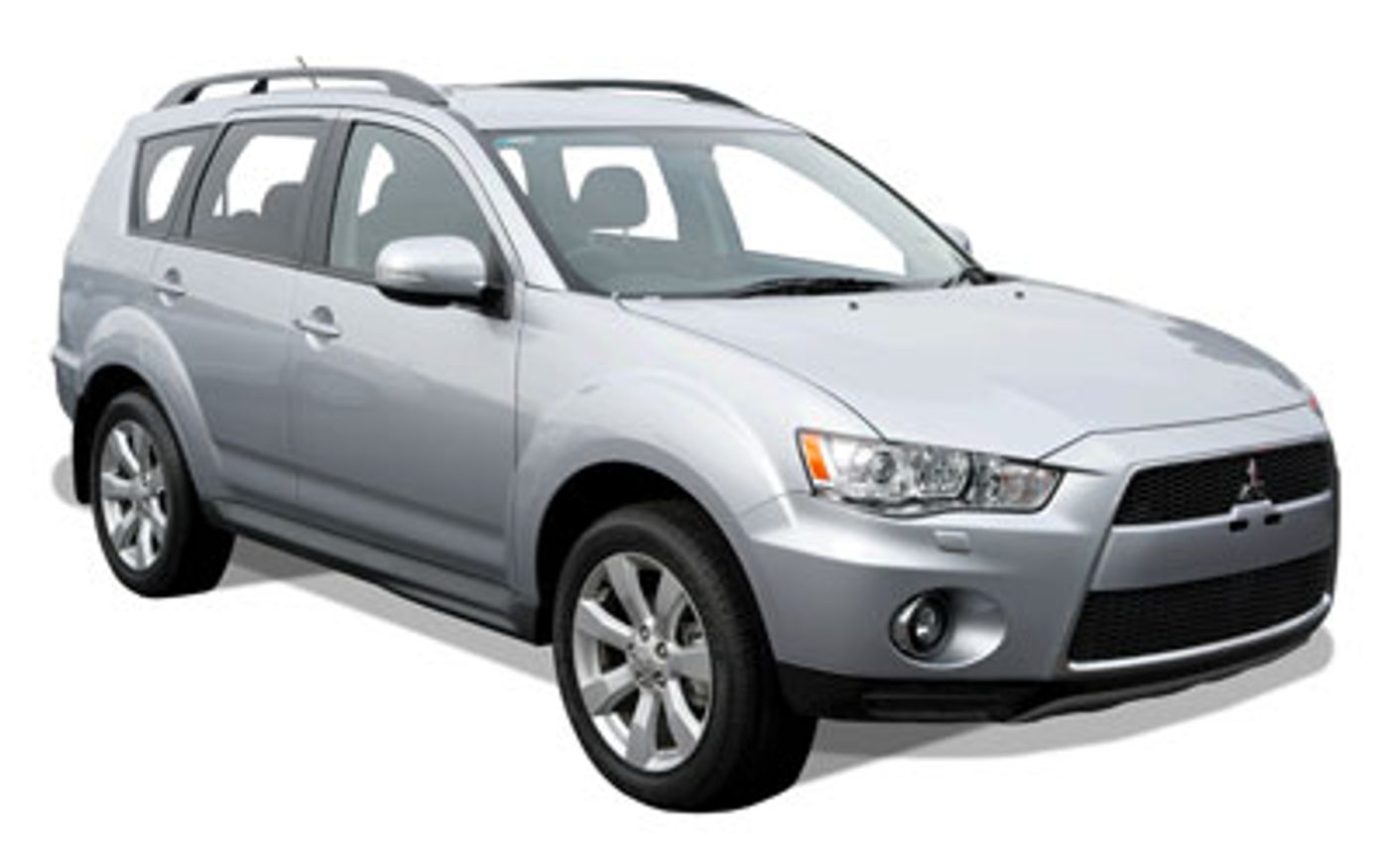

The 2012 Mitsubishi Outlander XLS is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd April 2009 classified as a ZH. The Mitsubishi Outlander is regarded as a small SUV built in Japan with prices starting at $40,990 before on-road costs.
This Mitsubishi Outlander is powered by a 2.4L 4-cylinder engine that has 125 kW of power (at 6000 rpm) and 226 Nm of torque (at 4100 rpm) via a Variable SP AUTOMATIC transmission. Mitsubishi claims the Outlander XLS uses 9.3L/100km of Unleaded in the combined city and highway cycle while putting out 222g of CO2. It has a 60L fuel tank, meaning it should be able to travel 645km per full tank
The Mitsubishi Outlander measures 1720mm (67.7 inches) in height, 4665mm (183.7 inches) in length, 1800mm (70.9 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1593kg (3512.0 lbs) of unladen weight. The Outlander XLS comes standard with 225/55 R18 front tyres and 225/55 R18 rear tyres. It has a 60 month, 130,000 km warranty.
The 2012 Mitsubishi Outlander XLS has a 215mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Outlander compare?
Quickly see how the 2012 Mitsubishi Outlander XLS stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 4,665 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,720 mm |
| Wheelbase | 2,670 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 677 mm |
Looking for complete Mitsubishi Outlander size & space specs?
Our Mitsubishi Outlander Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mitsubishi Outlander Features & Specs
Emission Control Level
Australia Air Pollution Rating: 6.5
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 222
Standard Met: EU4
Engine
Bore Engine: 88.0
Engine (cc): 2359
Engine Configuration: In-Line
Engine Code: 4b12
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 97.0
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 645
ADR 81/02 Calculated Vehicle Range (miles): 401
ADR 81/02 Combined (km/L): 10.8
ADR 81/02 Combined (L/100km): 9.3
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 13.3
ADR 81/02 Country Highway (L/100km): 7.5
ADR 81/02 Country Highway (miles per UK gallon): 38
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.9
ADR 81/02 Urban (L/100km): 12.6
ADR 81/02 Urban (miles per UK gallon): 22
ADR 81/02 Urban (mpg): 19
Fuel Economy
ADR 81/02 (L/100km): 9.3
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 226
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4100
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: W1cja
Description: Continuously Variable With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 97
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 97
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: GS
Mud Flaps
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Underbody Protection
Location: Engine
Cargo Capacity
Rear Seat Down (cu ft): 59.7
Rear Seat Down (L): 1691
Rear Seat Up to Lower Window (cu ft): 20.8
Rear Seat Up to Lower Window (L): 589
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 60.6
Front Track (mm): 1540
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 215
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 67.7
Overall Height (mm): 1720
Overall Length (in): 183.7
Overall Length (mm): 4665
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Track (in): 60.6
Rear Track (mm): 1540
Wheelbase (in): 105.1
Wheelbase (mm): 2670
Internal Dimensions
Front Headroom (in): 40.3
Front Headroom (mm): 1023
Rear Headroom (in): 38.3
Rear Headroom (mm): 973
Front Hip Room (in): 52.2
Front Hip Room (mm): 1326
Rear Hip Room (in): 51.9
Rear Hip Room (mm): 1319
Front Leg Room (in): 41.6
Front Leg Room (mm): 1056
Rear Leg Room (in): 39.6
Rear Leg Room (mm): 1007
Front Shoulder Room (in): 56.4
Front Shoulder Room (mm): 1433
Rear Shoulder Room (in): 56.1
Rear Shoulder Room (mm): 1426
Ramp Angles
Approach Angle: 22.0
Departure Angle: 21.0
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Split Gate
Headlight Control
Directional Headlights: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Xenon
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Includes Rear View Camera: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2270
Gross Vehicle Weight (lb): 5005
Published Kerb Weight (kg): 1593
Published Kerb Weight (lb): 3512
Tare Weight (kg): 1556
Audio System
CD Player Reads MP3: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Dashboard Media Type: CD
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Type: Manual
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Phone: yes
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Crash Test Results
ANCAP Overall: 5.0
ANCAP Pedestrian: 2
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
