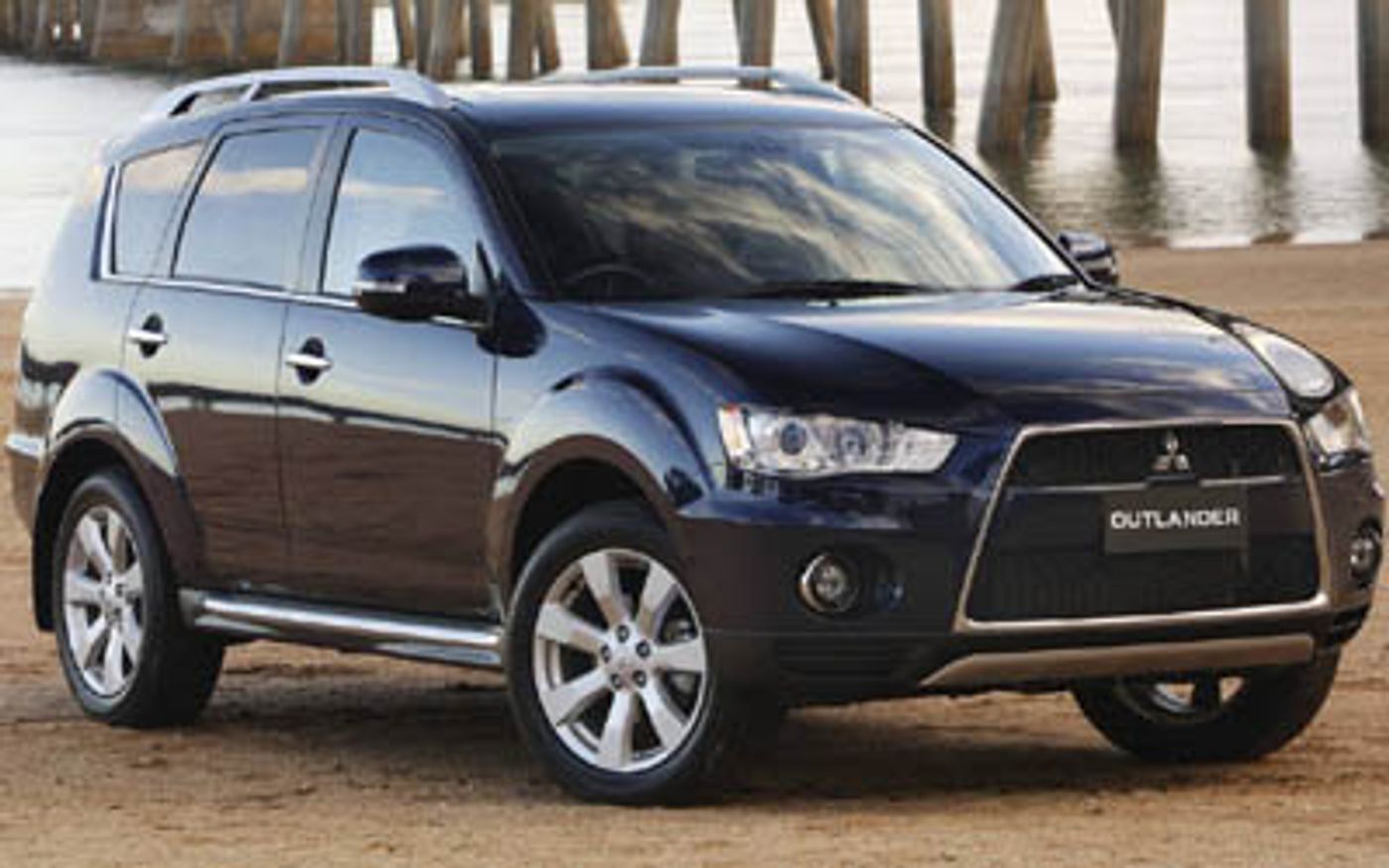

2010 Mitsubishi Outlander Activ Pricing and Spec
From
$38,490†
Save thousands with CarExpert*
Activ
Overview
The 2010 Mitsubishi Outlander Activ is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd April 2009 classified as a ZH. The Mitsubishi Outlander is regarded as a small SUV built in Japan with prices starting at $38,490 before on-road costs.
This Mitsubishi Outlander is powered by a 2.4L 4-cylinder engine that has 125 kW of power (at 6000 rpm) and 226 Nm of torque (at 4100 rpm) via a Variable SP AUTOMATIC transmission. Mitsubishi claims the Outlander Activ uses 9.3L/100km of Unleaded in the combined city and highway cycle while putting out 222g of CO2. It has a 60L fuel tank, meaning it should be able to travel 645km per full tank
The Mitsubishi Outlander measures 1720mm (67.7 inches) in height, 4665mm (183.7 inches) in length, 1800mm (70.9 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1610kg (3549.4 lbs) of unladen weight. The Outlander Activ comes standard with 225/55 R18 front tyres and 225/55 R18 rear tyres. It has a 60 month, 130,000 km warranty.
The 2010 Mitsubishi Outlander Activ has a 215mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
How does the Outlander compare?
Quickly see how the 2010 Mitsubishi Outlander Activ stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
76.69 - 103.05 kW/t
44.1 kW/t
111.92 kW/t
Boot Space
589 litres
395 litres
667 litres
Fuel Efficiency
9.3 - 10.4 L/100km
6.4 L/100km
12 L/100km
Vehicle Range
577 - 645 km
532 km
1,000 km
Price
$32,990 - $51,990
$24,990
$63,320
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
130,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
3 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,270 - 2,335 kg
2,000 kg
3,050 kg
Braked Towing Capacity
1,500 - 1,600 kg
1,200 kg
3,500 kg
Approach Angle
22°
22°
38.2°
Departure Angle
21°
21°
32.2°
Ground Clearance Unladen
215 mm
185 mm
323 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,665 mm
1,800 mm
1,720 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,665 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,720 mm |
| Wheelbase | 2,670 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 660 mm |
Looking for complete Mitsubishi Outlander size & space specs?
Our Mitsubishi Outlander Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mitsubishi Outlander Features & Specs
Emission Control Level
Emission Control Level Standard Met: EU4
Emission Control Level Co2 Level Combined: 222
Emission Control Level Australia Greenhouse Rating: 5.5
Emission Control Level Australia Overall Rating: 3.5
Emission Control Level Australia Air Pollution Rating: 6.5
Engine
Engine Liters: 2.4
Engine Configuration: In-Line
Engine Cc: 2359
Engine Number Of Cylinders: 4
Engine Bore: 88.0
Engine Stroke: 97.0
Engine Number Of Valves Per Cylinder: 4
Engine Variable Valve Timing Camshaft: yes
Engine Valve Gear Type: Double Overhead Cam
Engine Engine Code: 4b12
Fuel
Fuel Type: Unleaded
Fuel Generic Primary Fuel Type: Petrol
Fuel Minimum Fuel Type: Unleaded
Fuel Type Octane No: 91
Fuel Minimum Fuel Octane Number: 91
Fuel System
Fuel Fuel System Injection Carburetion: Multi-Point Injection
Fuel Tanks
Fuel Tanks Main Type: Total
Fuel Tanks Main Capacity L: 60
Fuel Tanks Main Capacity Gal: 15.9
Fuel Tanks Main Capacity Uk Gallons: 13.2
Computer
Computer Average Fuel Consumption: yes
Computer Range For Remaining Fuel: yes
Computer Average Speed: yes
Computer Instantaneous Fuel Consumption: yes
Fuel Consumption
Fuel Consumption Adr8102 Standard: Adr 81/02
Fuel Consumption Adr8102 Combined L100km: 9.3
Fuel Consumption Adr8102 Combined Mpg: 25
Fuel Consumption Adr8102 Combined Miles Per Uk Gallon: 30
Fuel Consumption Adr8102 Combined Km Ll: 10.8
Fuel Consumption Adr8102 Calculated Vehicle Range Km: 645
Fuel Consumption Adr8102 Calculated Vehicle Range Miles: 401
Fuel Consumption Adr8102 Urban Mpg: 19
Fuel Consumption Adr8102 Urban L100km: 12.6
Fuel Consumption Adr8102 Country Highway Mpg: 31
Fuel Consumption Adr8102 Country Highway L100km: 7.5
Fuel Consumption Adr8102 Urban Miles Per Uk Gallon: 22
Fuel Consumption Adr8102 Country Highway Miles Per Uk Gallon: 38
Fuel Consumption Adr8102 Urban Km Ll: 7.9
Fuel Consumption Adr8102 Country Highway Km Ll: 13.3
Fuel Economy
Fuel Economy Adr8102 L100km: 9.3
Power
Power Maximum Power Kw: 125
Power Maximum Power Hp Ps: 170
Power Maximum Torque Nm: 226
Power Rpm For Maximum Torque Low: 4100
Power Measurement Standard: EEC
Power Rpm For Maximum Power Low: 6000
Drive
Drive Driven Wheels: 4x4
Drive Four Wheel Drive Type: Full And Part-Time
Drive Selection: Manual & Automatic
Electronic Traction Control
Electronic Traction Control Controlled By: Abs & Engine Management
Transmission
Transmission Type: Automatic
Transmission Number Of Speeds: Variable
Transmission Manual Mode: yes
Transmission Description: Continuously Variable With Manual Mode
Transmission Shift Lever Location: Steering Wheel
Transmission Code: W1cja
Disc Brakes
Disc Brakes Number Of: 4
Disc Brakes Number Of Ventilated Discs: 2
Steering Wheel
Steering Wheel Type: Leather Covered
Steering Wheel Height Adjustment: yes
Suspension
Suspension Rear Location: Rear
Suspension Rear Spring Type: Coil
Suspension Front Location: Front
Suspension Front Spring Type: Coil
Suspension Rear Wheel Dependence: Independent
Suspension Front Type: Strut
Suspension Rear Type: Multi-Link
Suspension Front Stabilizer Bar: yes
Suspension Front Wheel Dependence: Independent
Suspension Rear Stabilizer Bar: yes
Tires
Wheels Tire Rear Location: Rear
Wheels Tire Front Location: Front
Wheels Tire Rear Width: 225
Wheels Tire Front Width: 225
Wheels Tire Rear Profile: 55
Wheels Tire Front Profile: 55
Wheels Tire Front Speed Rating: H
Wheels Tire Rear Speed Rating: H
Wheels Tire Front Type: Conventional/Summer
Wheels Tire Rear Type: Conventional/Summer
Wheels Tire Front Load Index: 97
Wheels Tire Rear Load Index: 97
Wheels
Wheels Rear Location: Rear
Wheels Front Location: Front
Wheels Rear Rim Diameter Inch: 18
Wheels Front Rim Diameter Inch: 18
Wheels Front Rim Type: Alloy
Wheels Rear Rim Type: Alloy
Wheels Front Rim Width Inch: 7.0
Wheels Rear Rim Width Inch: 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: GS
Mud Flaps
Mud Flaps Rear Location: Rear
Spoiler
Spoiler Roof Location: Roof
Underbody Protection
Underbody Protection Engine Location: Engine
Cargo Capacity
Cargo Capacity Rear Seat Up To Lower Window L: 589
Cargo Capacity Rear Seat Up To Lower Window Cuft: 20.8
Cargo Capacity Rear Seat Down Cuft: 59.9
Cargo Capacity Rear Seat Down L: 1697
External Dimensions
External Dimensions Overall Height In: 67.7
External Dimensions Overall Height Mm: 1720
External Dimensions Wheelbase Mm: 2670
External Dimensions Wheelbase In: 105.1
External Dimensions Overall Width In: 70.9
External Dimensions Overall Width Mm: 1800
External Dimensions Overall Length In: 183.7
External Dimensions Overall Length Mm: 4665
External Dimensions Rear Track Mm: 1540
External Dimensions Rear Track In: 60.6
External Dimensions Front Track Mm: 1540
External Dimensions Front Track In: 60.6
External Dimensions Curb To Curb Turning Circle Mm: 10600
External Dimensions Kerb To Kerb Turning Circle Ft: 34.8
External Dimensions Ground Clearance Unladen Mm: 215
External Dimensions Ground Clearance Unladen In: 8.5
Internal Dimensions
Interior Dimensions Headroom Front In: 40.3
Interior Dimensions Headroom Front Mm: 1023
Interior Dimensions Headroom Rear In: 38.3
Interior Dimensions Headroom Rear Mm: 973
Interior Dimensions Shoulder Room Front Mm: 1433
Interior Dimensions Shoulder Room Front In: 56.4
Interior Dimensions Shoulder Room Rear Mm: 1426
Interior Dimensions Shoulder Room Rear In: 56.1
Interior Dimensions Hip Room Front Mm: 1326
Interior Dimensions Hip Room Front In: 52.2
Interior Dimensions Hip Room Rear Mm: 1319
Interior Dimensions Hip Room Rear In: 51.9
Interior Dimensions Leg Room Front Mm: 1056
Interior Dimensions Leg Room Front In: 41.6
Interior Dimensions Leg Room Rear Mm: 934
Interior Dimensions Leg Room Rear In: 36.8
Ramp Angles
Ramp Angles Approach Angle: 22.0
Ramp Angles Departure Angle: 21.0
Bumpers
Front Location: Front
Rear Location: Rear
Front Color: Painted
Rear Color: Painted
Doors
Doors Passenger Location: Passenger
Doors Driver Location: Driver
Doors Passenger Type: Front Hinged
Doors Driver Type: Front Hinged
Doors Rear Passenger Location: Rear Passenger
Doors Rear Passenger Type: Front Hinged
Doors Rear Driver Location: Rear Driver
Doors Rear Driver Type: Front Hinged
Rear Door
Doors Rear Door Type: Split Gate
Headlight Control
Headlight Control Internal Height Adjustment: yes
Headlights
Headlights Bulb Type Low Beam: Halogen
Paint
External Color: Black
Type: Gloss
Roof Rails
Roof Rails Cross Bars: Removable
Door Mirrors Cameras
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Color: Painted
Door Mirrors Cameras Passenger Color: Painted
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Power Windows Rear Location: Rear
Windshield Wipers
Windshield Wipers Intermittent Wipe: Automatic
Weights
Published Kerb Weight Lbs: 3549
Published Kerb Weight Kg: 1610
Gross Trailer Weight Braked Kg: 1500
Gross Trailer Weight Braked Lbs: 3307
Gross Trailer Weight Unbraked Kg: 750
Gross Trailer Weight Unbraked Lbs: 1653
Gross Vehicle Weight Kg: 2270
Gross Vehicle Weight Lbs: 5005
Audio System
System Radio Type: Am/Fm
System In Dash Cd: yes
System Cd Player Reads Mp3: yes
Connection To Ext Entertainment Devices
Connection External Usb Front: yes
Connection External Aux Jack Front: yes
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 6
Bluetooth
Bluetooth Type: Bluetooth
Power Outlet12v
Power Outlet Front Location12v: Front
Power Outlet Boot Cargo Location12v: Boot/Cargo
Vanity Mirror
Vanity Mirror Passenger Location: Passenger
Vanity Mirror Driver Location: Driver
Luxury Trim
Luxury Trim On Instrument Panel: Alloy Look
Luxury Trim On Center Floor Console: Alloy Look
Luxury Trim On Gear Selector: Leather
Crash Test Results
Crash Test Results Ancap Standard: Ancap
Crash Test Results Ancap Overall: 5.0
Crash Test Results Ancap Pedestrian: 2
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Passenger Seat Position: Passenger
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Driver Height Adjustable: yes
Front Seat Belts Passenger Pre Tensioners: yes
Front Seat Belts Driver Pre Tensioners: yes
Head Restraints
Head Restraints Front Seats Location: Front Seats
Head Restraints Rear Seats Location: Rear Seats
Head Restraints Rear Seats Number: 3
Head Restraints3rd Row Seats Location: 3rd Row Seats
Head Restraints3rd Row Seats Number: 2
Rear Seat Belts
Rear Seat Belts Driver Seat Position: Driver
Rear Seat Belts Passenger Seat Position: Passenger
Rear Seat Belts Center Seat Position: Centre
Rear Seat Belts Center Type: 3-Point
Rear Seat Belts Center Operation: Reel
Side Airbag
Side Airbag Front Location: Front
Side Curtain Airbag
Side Curtain Airbag Front And Rear Location: Front And Rear
Third Row Seat Belts
Third Row Seat Belts Driver Seat Position: Driver
Third Row Seat Belts Passenger Seat Position: Passenger
Front Seat
Front Seat Passenger Location: Passenger
Front Seat Driver Location: Driver
Front Seat Passenger Type: Sports
Front Seat Driver Type: Sports
Front Seat Driver Height Type: Manual
Front Seat Driver Reach Type: Manual
Front Seat Passenger Reach Type: Manual
Front Seat Driver Height Adjustment: yes
Front Seat Driver Reclining Type: Manual
Front Seat Passenger Reclining Type: Manual
Seat Upholstery
Seat Upholstery Main Seat Material: Cloth
Seat Upholstery Additional Seat Material: Cloth
Seating
Seating Capacity: 7
Seating Configuration: 2+3+2
Cup Holders
Cup Holders Front Seats Location: Front Seats
Cup Holders Rear Seats Location: Rear Seats
Air Conditioning
Air Conditioning Type: Fully-Auto
Aircon Climate Control Number Of Zones: 1
Aircon Fully Automated Climate Control: yes
Ventilation System
Ventilation System Digital Display: yes
Power Locks
Power Locks Operation: Remote
Intermediate Service
Intermediate Service Distance Km: 15000
Intermediate Service Distance Miles: 9321
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
† Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
