Overview

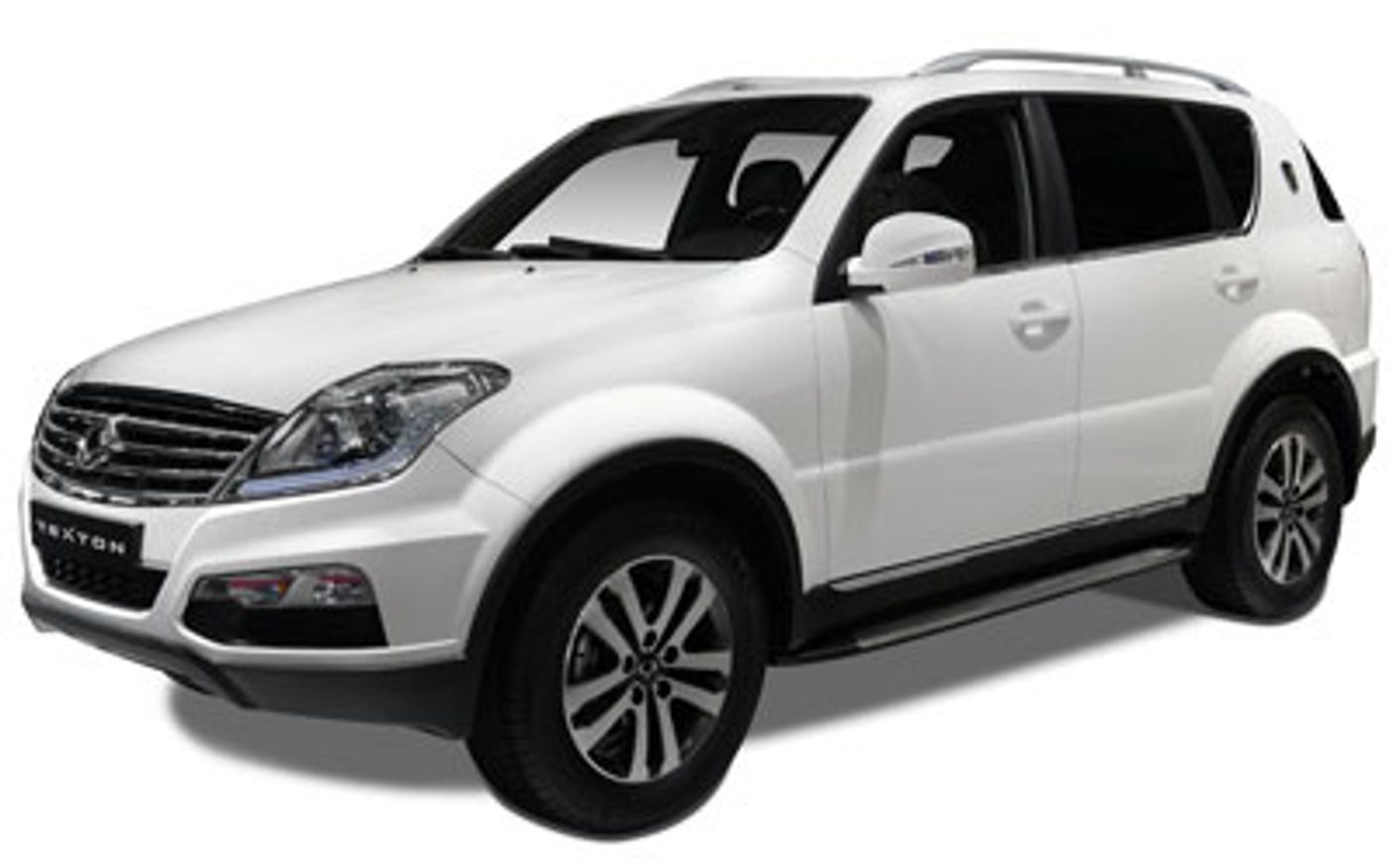

The 2014 KGM Rexton SX is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd July 2014. The KGM Rexton is regarded as a small SUV built in Korea with prices starting at $39,990 before on-road costs.
This KGM Rexton is powered by a 2.0L 4-cylinder engine that has 115 kW of power (at 4000 rpm) and 360 Nm of torque (at 1500 rpm) via a Five-speed Automatic transmission. KGM claims the Rexton SX uses 7.8L/100km of Diesel in the combined city and highway cycle while putting out 206g of CO2. It has a 78L fuel tank, meaning it should be able to travel 1000km per full tank
The KGM Rexton measures 1840mm (72.4 inches) in height, 4755mm (187.2 inches) in length, 1900mm (74.8 inches) in width with a 2835mm (111.6 inches) wheelbase that brings about a total of 1985kg (4376.2 lbs) of unladen weight. The Rexton SX comes standard with 235/75 R16 front tyres and 235/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2014 KGM Rexton SX has a 216mm ground clearance with a 2600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Rexton compare?
Quickly see how the 2014 KGM Rexton SX stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.93 kW/t
43.77 kW/t
108.66 kW/t
Boot Space
678 litres
395 litres
740 litres
Fuel Efficiency
7.8 L/100km
1.9 L/100km
11.1 L/100km
Vehicle Range
1,000 km
600 km
1,132 km
Price
$39,990
$25,990
$52,490
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,710 kg
1,945 kg
3,050 kg
Braked Towing Capacity
2,600 kg
800 kg
3,500 kg
Approach Angle
28°
16.7°
29.9°
Departure Angle
25.5°
21°
32.2°
Ground Clearance Unladen
216 mm
150 mm
323 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,755 mm
1,900 mm
1,840 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,755 mm |
| Overall Width | 1,900 mm |
| Overall Height | 1,840 mm |
| Wheelbase | 2,835 mm |
| Turning Circle | 11,400 mm |
| Load Capacity | 725 mm |
Looking for complete KGM Rexton size & space specs?
Our KGM Rexton Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore KGM Rexton Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 206
Standard Met: EU5
Engine
Bore Engine: 86.2
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: E-Xdi200 Let
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 85.6
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.6
Main Capacity (L): 78
Main Capacity Uk Gallons: 17.2
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1000
ADR 81/02 Calculated Vehicle Range (miles): 621
ADR 81/02 Combined (km/L): 12.8
ADR 81/02 Combined (L/100km): 7.8
ADR 81/02 Combined (miles per UK gallon): 36
ADR 81/02 Combined (mpg): 30
ADR 81/02 Country Highway (km/L): 14.9
ADR 81/02 Country Highway (L/100km): 6.7
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.1
ADR 81/02 Urban (L/100km): 9.9
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.8
Power
Maximum Power (hp/PS): 156
Maximum Power (kW): 115
Maximum Torque (Nm): 360
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 5
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Type: Wood & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 108
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Ssangyong Y
Wheelbase Type: Short
Mud Flaps
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Step
Step Location: Side
Side Step Type: Platform
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 73.7
Rear Seat Down (L): 2086
Rear Seat Up to Lower Window (cu ft): 23.9
Rear Seat Up to Lower Window (L): 678
External Dimensions
Kerb to Kerb Turning Circle (mm): 11400
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 216
Kerb To Kerb Turning Circle (ft): 37.4
Overall Height (in): 72.4
Overall Height (mm): 1840
Overall Length (in): 187.2
Overall Length (mm): 4755
Overall Width (in): 74.8
Overall Width (mm): 1900
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 111.6
Wheelbase (mm): 2835
Ramp Angles
Approach Angle: 28.0
Departure Angle: 25.5
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2600
Gross Trailer Weight Braked (lb): 5732
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2710
Gross Vehicle Weight (lb): 5975
Published Kerb Weight (kg): 1985
Published Kerb Weight (lb): 4376
Tare Weight (kg): 1927
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood Or Woodlook
Gear Selector: Wood & Leather
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 2
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Secondary Ventilation Controls
3rd Row Location: 3rd Row
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Variable Distance Period: yes
