Base
Overview

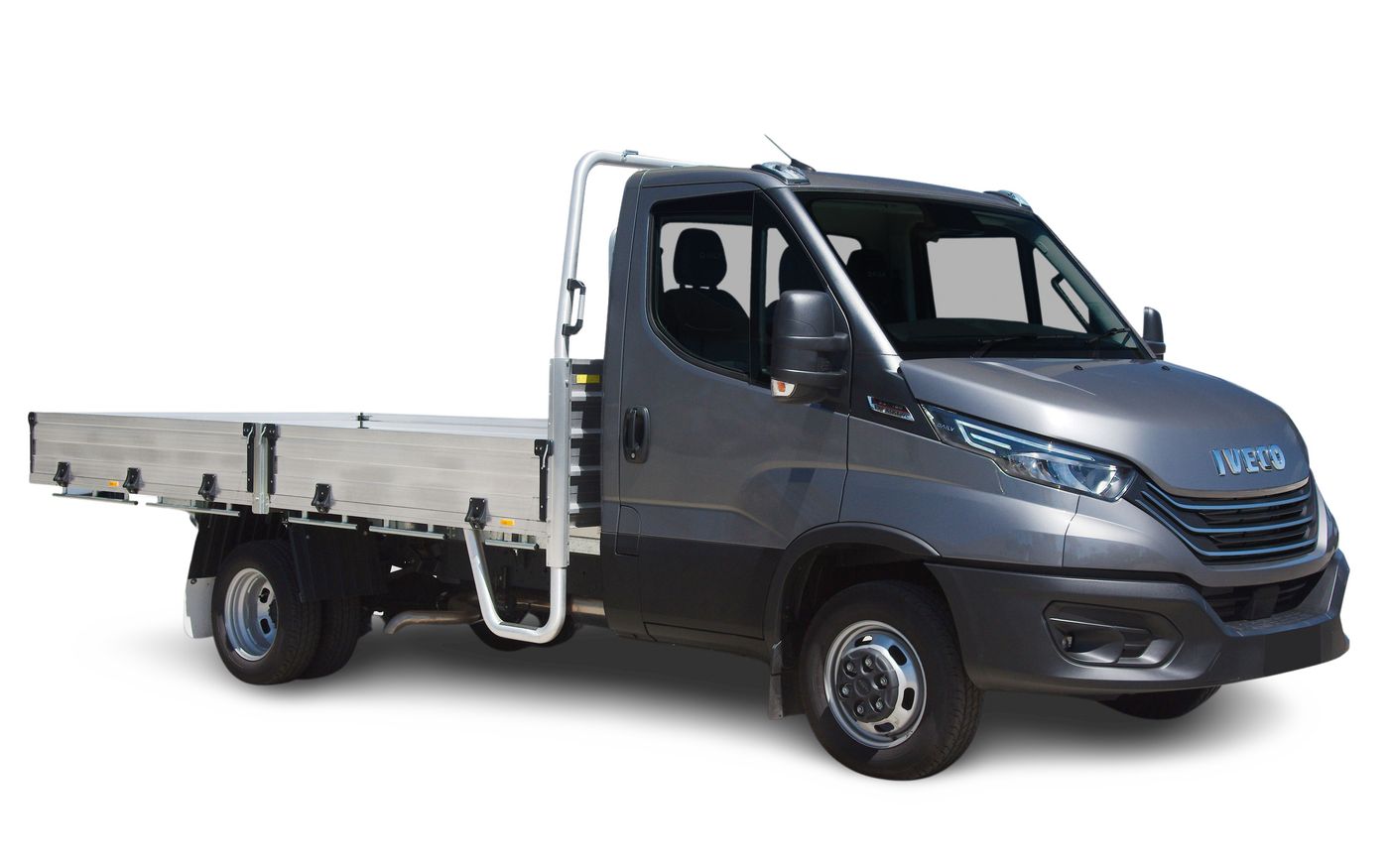

The 2022 Iveco Daily Base is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 2nd August 2023 classified as a E6. The Iveco Daily is regarded as a Van Over 3.5t built in Italy and when it was new had prices starting at .
This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 132 kW of power (at 3500 rpm) and 430 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. It has a 90L fuel tank
The Iveco Daily measures 2501mm (98.5 inches) in height, 6818mm (268.4 inches) in length, 2056mm (80.9 inches) in width with a 4175mm (164.4 inches) wheelbase that brings about a total of 3000kg (6613.9 lbs) of unladen weight. The Daily Base comes standard with 265/70 R19.5 front tyres and 265/70 R19.5 rear tyres. It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2022 Iveco Daily Base has a 225mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2022 Iveco Daily Base stacks up against its competition.
Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 6,818 mm |
| Overall Width | 2,056 mm |
| Overall Height | 2,501 mm |
| Wheelbase | 4,175 mm |
| Turning Circle | 16,100 mm |
| Load Capacity | 4,000 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU6
Engine
Bore Engine: 95.8
Engine (cc): 2998
Engine Configuration: In-Line
Engine Code: F1cfl411f
Engine (L): 3.0
Number of Cylinders: 4
Stroke Engine: 104.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 7.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 3.50
Power
Maximum Power (hp/PS): 180
Maximum Power (kW): 132
Maximum Torque (Nm): 430
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Centre
Location: Front
Location: Rear
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Code: Zf 8v470a
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Simulated Gears: 0
Number of Speeds: 8
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Electric
Steering Wheel
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 265
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19.5
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 19.5
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: X70
Roof Type: Standard
Wheelbase Type: Short
Underbody Protection
Location: Engine
External Dimensions
Kerb to Kerb Turning Circle (mm): 16100
Front Overhang (in): 36.5
Front Overhang (mm): 928
Front Track (in): 67.9
Front Track (mm): 1725
Ground Clearance Unladen (in): 8.9
Ground Clearance Unladen (mm): 225
Kerb To Kerb Turning Circle (ft): 52.8
Overall Height (in): 98.5
Overall Height (mm): 2501
Overall Length (in): 268.4
Overall Length (mm): 6818
Overall Width (in): 80.9
Overall Width (mm): 2056
Rear Overhang (in): 67.5
Rear Overhang (mm): 1715
Rear Track (in): 67.4
Rear Track (mm): 1713
Wheelbase (in): 164.4
Wheelbase (mm): 4175
Ramp Angles
Approach Angle: 35.0
Departure Angle: 17.0
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 2700
Front Axle Weight (lb): 5953
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 10500
Gross Train Weight (lb): 23149
Gross Vehicle Weight (kg): 7000
Gross Vehicle Weight (lb): 15432
Kerb Weight Inc Driver (kg): 3000
Kerb Weight Inc Driver (lb): 6614
Kerb Weight Includes Driver: yes
Manufacturer Driver Weight (kg): 75
Manufacturer Driver Weight (lb): 165
Payload Allowance (kg): 4000
Payload Allowance (lb): 8819
Payload Inc Driver (kg): 4075
Payload Inc Driver (lb): 8984
Published Kerb Weight (kg): 3000
Published Kerb Weight (lb): 6614
Rear Axle Weight (kg): 5000
Rear Axle Weight (lb): 11023
Tare Weight (kg): 2932
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 1
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
Period (Months): 12
