XL
2.2L, 6-speed auto, 4-door Double Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$39,390â€

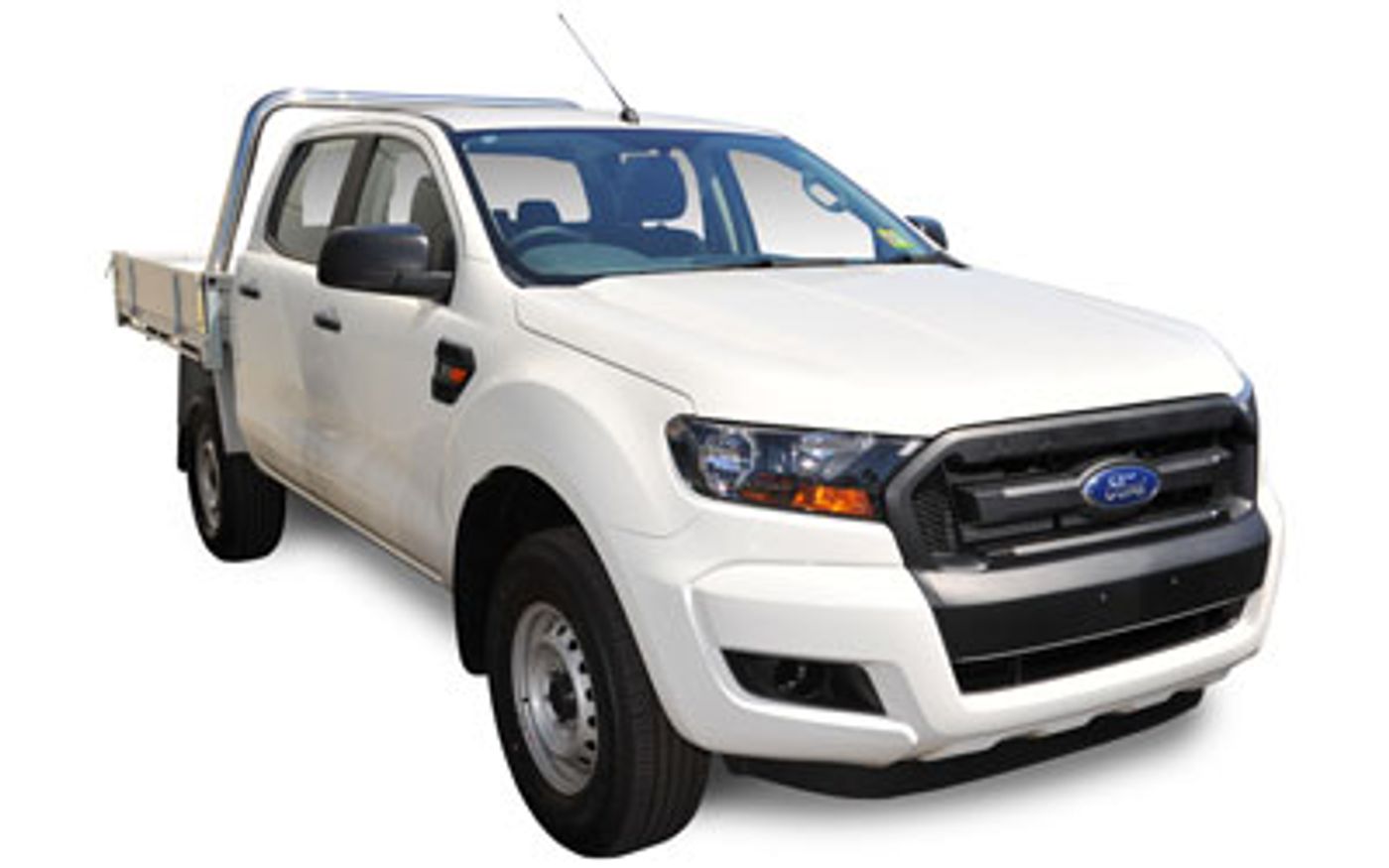

Ford Ranger XL (2020) price & specs
From
$39,390â€
Save thousands with CarExpert*
Overview
The 2020 Ford Ranger XL is a rear-wheel drive, 4-door Double Cab Chassis that was released to the Australian market on 5th May 2020 classified as a Px Mkiii. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $39,390 before on-road costs.
This Ford Ranger is powered by a 2.2L 4-cylinder engine that has 118 kW of power (at 3200 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Ford claims the Ranger XL uses 7.8L/100km of Diesel in the combined city and highway cycle while putting out 203g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1026km per full tank
The Ford Ranger measures 1815mm (71.5 inches) in height, 5133mm (202.1 inches) in length, 1867mm (73.5 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1845kg (4067.5 lbs) of unladen weight. The Ranger XL comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Ford Ranger XL has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ranger compare?
Quickly see how the 2020 Ford Ranger XL stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.17 - 78.65 kW/t
47.8 kW/t
120.94 kW/t
Fuel Efficiency
6.5 - 8.9 L/100km
6.3 L/100km
12.4 L/100km
Vehicle Range
899 - 1,231 km
658 km
1,270 km
Price
$28,590 - $77,190
$22,490
$113,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
57,936 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,925 - 3,200 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,350 - 6,000 kg
4,435 kg
7,237 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,800 kg
4,500 kg
Approach Angle
22 - 32.5°
15.2°
40.7°
Departure Angle
21 - 28°
15°
29°
Ground Clearance Unladen
201 - 283 mm
174 mm
283 mm
Payload Capacity
758 - 1,476 kg
527 kg
1,476 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,133 mm
1,867 mm
inc mirror: 2,163 mm
inc mirror: 2,163 mm
1,815 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,133 mm |
| Overall Width | 1,867 mm |
| Overall Width (Inc Mirror) | 2,163 mm |
| Overall Height | 1,815 mm |
| Wheelbase | 3,220 mm |
| Turning Circle | 12,700 mm |
| Load Capacity | 1,355 mm |
Looking for complete Ford Ranger size & space specs?
Our Ford Ranger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Ranger Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 175
CO2 Level (Combined): 203
CO2 Level (Urban): 252
Standard Met: EU5
Engine
Bore Engine: 86.0
Engine (cc): 2198
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1026
ADR 81/02 Calculated Vehicle Range (miles): 638
ADR 81/02 Combined (km/L): 12.8
ADR 81/02 Combined (L/100km): 7.8
ADR 81/02 Combined (miles per UK gallon): 36
ADR 81/02 Combined (mpg): 30
ADR 81/02 Country Highway (km/L): 14.9
ADR 81/02 Country Highway (L/100km): 6.7
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.3
ADR 81/02 Urban (L/100km): 9.7
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.8
Power
Maximum Power (hp/PS): 160
Maximum Power (kW): 118
Maximum Torque (Nm): 385
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3200
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 111
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 111
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Cab Chassis
Cab Type: Double Cab
Local Body Type: Double Cab Chassis
Platform Code: Gcpp
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12700
Front Overhang (in): 36.5
Front Overhang (mm): 928
Front Track (in): 61.4
Front Track (mm): 1560
Ground Clearance Unladen (in): 9.1
Ground Clearance Unladen (mm): 232
Kerb To Kerb Turning Circle (ft): 41.7
Overall Height (in): 71.5
Overall Height (mm): 1815
Overall Length (in): 202.1
Overall Length (mm): 5133
Overall Width Folded Mirror (in): 77.8
Overall Width Folded Mirror (mm): 1977
Overall Width (in): 73.5
Overall Width Inc Mirror (in): 85.2
Overall Width Inc Mirror (mm): 2163
Overall Width (mm): 1867
Rear Overhang (in): 38.8
Rear Overhang (mm): 985
Rear Track (in): 61.4
Rear Track (mm): 1560
Wheelbase (in): 126.8
Wheelbase (mm): 3220
Ramp Angles
Approach Angle: 28.0
Departure Angle: 28.0
Bumpers
Front Bumper Colour: Painted
Location: Front
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1480
Front Axle Weight (lb): 3263
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 6000
Gross Train Weight (lb): 13228
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Payload Allowance (kg): 1355
Payload Allowance (lb): 2987
Published Kerb Weight (kg): 1845
Published Kerb Weight (lb): 4068
Rear Axle Weight (kg): 1850
Rear Axle Weight (lb): 4079
Tare Weight (kg): 1786
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Remote Services
Beep Flash: yes
Find My Car: yes
Remote Lock Unlock: yes
Send Destination To Car: yes
Vehicle Start: yes
USB Charging Port
Location: Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20150101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Pedestrian Score: 63.80
ANCAP Rating Year: 2015
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Double Cab 4x4 (Px Mk Ii)
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Ventilation System
Touch Screen Controls: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
