Long Range
Overview

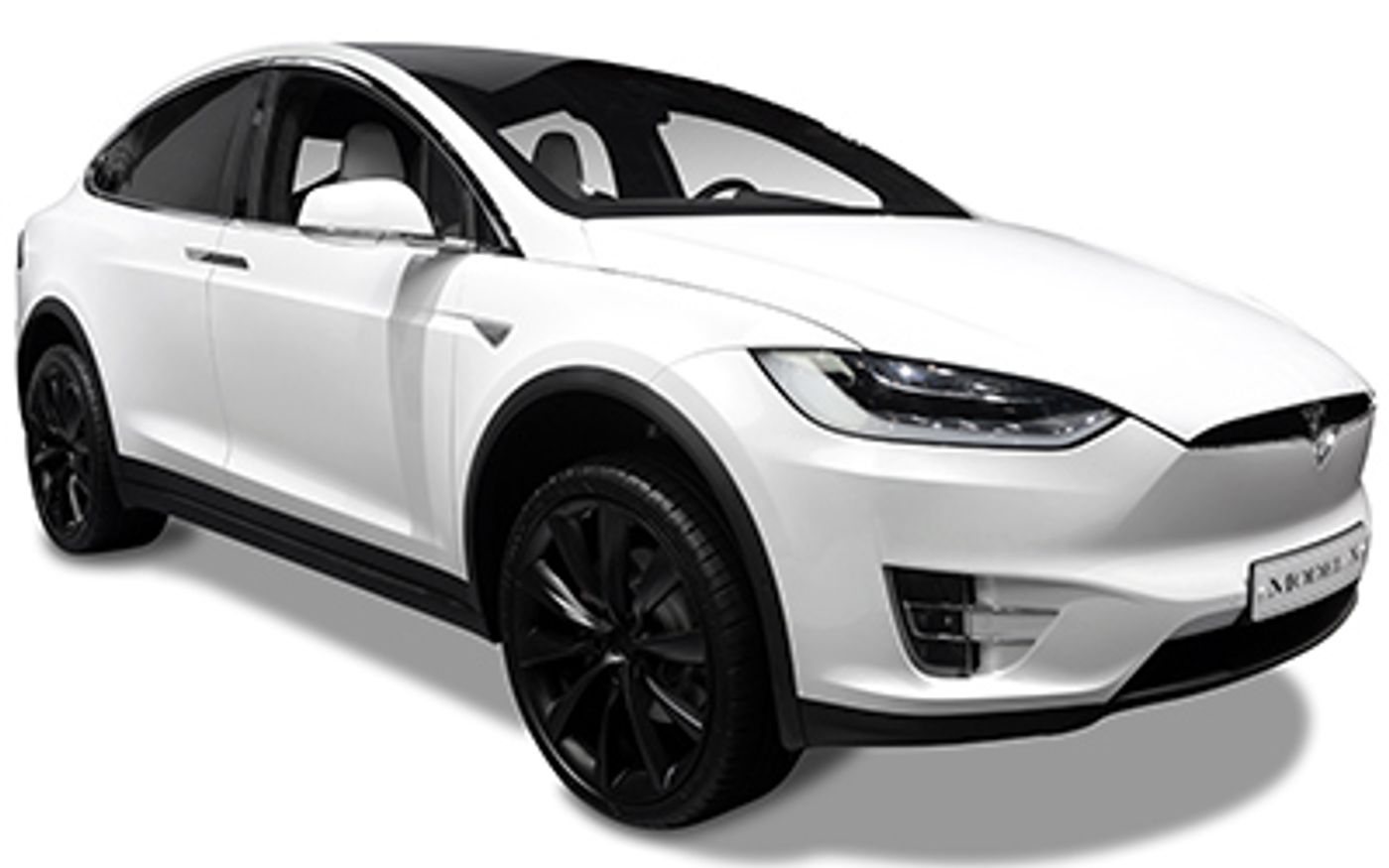

The 2020 Tesla Model X Long Range is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd July 2020. The Tesla Model X is regarded as a Suv Upper Large Luxury built in USA with prices starting at $157,417 before on-road costs.
This Tesla Model X uses a fully electric engine.
The Tesla Model X measures 1684mm (66.3 inches) in height, 5036mm (198.3 inches) in length, 2072mm (81.6 inches) in width with a 2965mm (116.7 inches) wheelbase that brings about a total of 2459kg (5421.2 lbs) of unladen weight. The Model X Long Range comes standard with 265/45 R20 front tyres and 275/45 R20 rear tyres. It has a 48 month, 80,000 km warranty.
The 2020 Tesla Model X Long Range has a 211mm ground clearance with a 2250kg braked and 450kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Model X compare?
Quickly see how the 2020 Tesla Model X Long Range stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
167.95 - 235.22 kW/t
72.52 kW/t
235.22 kW/t
Price
$157,417 - $177,529
$124,900
$760,000
Warranty (Years)
4 years
3 years
5 years
Warranty (Distance)
80,000 km
80,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
3,079 - 3,120 kg
3,079 kg
3,385 kg
Braked Towing Capacity
2,250 kg
2,250 kg
3,500 kg
Ground Clearance Unladen
211 mm
200 mm
295 mm
Battery & Charging
Max. battery kilowatt hour
100 kWh
0.2 kWh
100 kWh
DC Fast Charging (max kW)
140 - 200 kW
22 kW
200 kW
Vehicle Range (EV)
619 - 633 km
51 km
633 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,036 mm
2,072 mm
1,684 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,036 mm |
| Overall Width | 2,072 mm |
| Overall Height | 1,684 mm |
| Wheelbase | 2,965 mm |
| Turning Circle | 12,440 mm |
| Load Capacity | 620 mm |
Looking for complete Tesla Model X size & space specs?
Our Tesla Model X Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Tesla Model X Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Side Doors: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Assistance
Location: Front
Front Type: Guidance Display
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote Battery Management
Includes Battery Status Checking: yes
Includes Charge Completion Alert: yes
Includes Remote Charge Activation: yes
Includes Timer Remote Charge Activation: yes
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Includes Programmable Settings: yes
Telematics
Connection Type: Via Sim In Vehicle
Tracker System: yes
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 0
Standard Met: ZEV
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Type: Electric
Fuel Type: Electric
Charging Connector
CCS (Combo) Type: Ccs (Combo)
NACS (J3400) Type: Nacs (J3400)
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 32
Mode 2 Duration: 50.00
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 230
Mode 4 Duration: 1.75
Mode 4 Max kW Supplied To Vehicle: 200.00
Mode 4 Scenario: Mode 4
Mode 4 Voltage: 400
Electric Driven Wheels
Electric Driven Wheels: 4x4
Electric Motor
Motor 1 Max Torque Motor (Nm): 420
Motor 1 Number: 1
Motor 2 Max Torque Motor (Nm): 355
Motor 2 Number: 2
Electric Power Source
Actively Heated Cooled Battery: yes
Battery Type: Lithium Ion
Battery Voltage: 400.0
High Power Charger: yes
Maximum Battery (kWh): 100.00
Onboard Charger: 16.5
Range (km): 633.00
Range (miles): 393.33
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 17.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster
Reconfigurable: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Performance
Acceleration 0 To 100 km/h: 4.6
Max Speed On Electric Power Only (km/h): 250
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 562
Maximum Power hp/PS Electric Motor: 562
Maximum Power (kW): 413
Maximum Power kW Electric Motor: 413
Maximum Torque (Nm): 775
Maximum Torque Electric Motor (Nm): 775
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Torque Low: 0
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 30.7
Combined (kWh/100km): 19.1
Combined (kWh/km): 0.5
Combined (kWh/mile): 0.3
Combined (miles/kWh): 0.3
Combined (Wh/km): 191
Combined (Wh/mile): 307
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Column
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Responsive Suspension
Type: Electronic
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Interactive
Location: Rear
Rear Operation: Interactive
Tires
Front Wheels Tire Diameter: 22
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 265
Rear Wheels Tire Diameter: 22
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 10.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Tesla1
Wheelbase Type: Short
Spoiler
Location: Boot/Hatch
Cargo Capacity
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 87.8
Rear Seat Down (L): 2487
External Dimensions
Kerb to Kerb Turning Circle (mm): 12440
Front Track (in): 67.1
Front Track (mm): 1705
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 211
Kerb To Kerb Turning Circle (ft): 40.8
Overall Height (in): 66.3
Overall Height (mm): 1684
Overall Length (in): 198.3
Overall Length (mm): 5036
Overall Width (in): 81.6
Overall Width (mm): 2072
Rear Track (in): 67.3
Rear Track (mm): 1710
Wheelbase (in): 116.7
Wheelbase (mm): 2965
Internal Dimensions
3rd Row Headroom (in): 37.1
3rd Row Headroom (mm): 942
Front Headroom (in): 41.7
Front Headroom (mm): 1059
Rear Headroom (in): 40.9
Rear Headroom (mm): 1039
3rd Row Hip Room (in): 38.5
3rd Row Hip Room (mm): 978
Front Hip Room (in): 55.6
Front Hip Room (mm): 1412
Rear Hip Room (in): 59.0
Rear Hip Room (mm): 1499
3rd Row Leg Room (in): 32.7
3rd Row Leg Room (mm): 831
Front Leg Room (in): 41.2
Front Leg Room (mm): 1046
Rear Leg Room (in): 38.4
Rear Leg Room (mm): 975
3rd Row Shoulder Room (in): 40.0
3rd Row Shoulder Room (mm): 1016
Front Shoulder Room (in): 60.7
Front Shoulder Room (mm): 1542
Rear Shoulder Room (in): 56.8
Rear Shoulder Room (mm): 1443
Doors
Driver Auxiliary Door Shut: yes
Location: Driver
Driver Door Type: Front Hinged
Passenger Auxiliary Door Shut: yes
Location: Passenger
Passenger Door Type: Front Hinged
Rear Driver Auxiliary Door Shut: yes
Rear Driver Electric Door: yes
Location: Rear Driver
Rear Driver Door Type: Gull Wing
Rear Passenger Auxiliary Door Shut: yes
Rear Passenger Electric Door: yes
Location: Rear Passenger
Rear Passenger Door Type: Gull Wing
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Front Fog Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Pearl
Luxury Inner Roof Upholstery
Material: Synthetic Suede
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2250
Gross Trailer Weight Braked (lb): 4960
Gross Trailer Weight Unbraked (kg): 450
Gross Trailer Weight Unbraked (lb): 992
Gross Vehicle Weight (kg): 3079
Gross Vehicle Weight (lb): 6788
Published Kerb Weight (kg): 2459
Published Kerb Weight (lb): 5421
Tare Weight (kg): 2459
Audio System
Digital Radio: yes
Radio Type: FM
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 17
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood & Alloy
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 8
Autonomous Drive
Active Lane Control: yes
Lane Changing: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20191220
ANCAP Overall: 5.0
ANCAP Standard: Ancap
ANCAP Version Tested: Model X Long Range Lhd 5 Door Suv
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Head Restraints
Front Seats Electric Adjustable: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Location: Passenger
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Memory
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: 3rd Row Seats
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Active Carbon Filter: yes
Power Locks
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
