Base
Overview

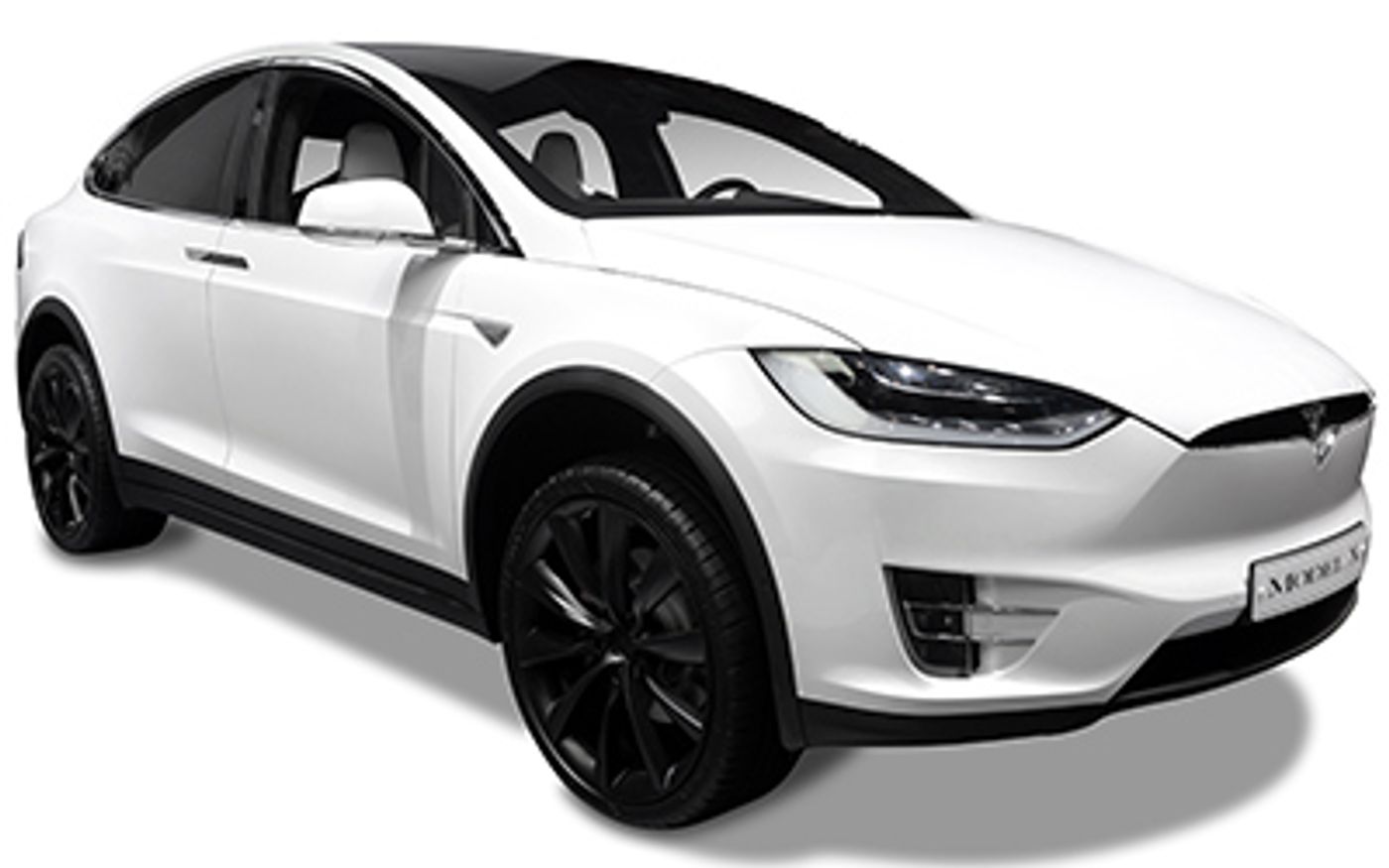

The 2017 Tesla Model X Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th August 2016. The Tesla Model X is regarded as a Suv Upper Large Luxury built in USA and when it was new had prices starting at .
This Tesla Model X uses a fully electric engine.
It has a 48 month, 80,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Model X compare?
Quickly see how the 2017 Tesla Model X Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
102.47 - 232.69 kW/t
70.04 kW/t
232.69 kW/t
Price
$122,812 - $270,752
$110,900
$373,900
Warranty (Years)
4 years
3 years
4 years
Warranty (Distance)
80,000 km
80,000 km
Unlimited
Service Interval
12 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
2,250 kg
2,250 kg
3,500 kg
Ground Clearance Unladen
139 - 185 mm
139 mm
296 mm
Battery & Charging
Max. battery kilowatt hour
60 - 100 kWh
60 kWh
100 kWh
Vehicle Range (EV)
355 - 565 km
1.61 km
565 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,037 mm
2,271 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,037 mm |
| Overall Width | 2,271 mm |
| Wheelbase | 2,965 mm |
Looking for complete Tesla Model X size & space specs?
Our Tesla Model X Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Tesla Model X Features & Specs
Emission Control Level
CO2 Level (Combined): 0
Standard Met: ZEV
Fuel
Generic Primary Fuel Type: Electric
Fuel Type: Electric
Charging Information
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 110
Mode 4 Duration: 12.00
Mode 4 Scenario: Mode 4
Mode 4 Voltage: 240
Electric Driven Wheels
Electric Driven Wheels: 4x4
Electric Motor
Motor 1 Max Torque Motor (Nm): 525
Motor 1 Number: 1
Motor 2 Number: 2
Electric Power Source
Battery (Ah): 48.0
Battery Swap Time: 2
Battery Type: Lithium Ion
Maximum Battery (kWh): 60.0
Onboard Charger: 10.0
Range (km): 355.00
Range (miles): 220.59
Swappable Battery: yes
Computer
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 17.0
Touch Screen: yes
Instrument Cluster
Reconfigurable: yes
Performance
Acceleration 0 To 100 km/h: 6.2
Max Speed On Electric Power Only (km/h): 210
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 333
Maximum Power (kW): 245
Maximum Torque (Nm): 525
Rpm For Maximum Torque Low: 0
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Automatic
Number of Speeds: 1
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 10.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Tesla1
Wheelbase Type: Short
External Dimensions
Front Track (in): 65.4
Front Track (mm): 1661
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 185
Overall Length (in): 198.3
Overall Length (mm): 5037
Overall Width (in): 89.4
Overall Width (mm): 2271
Rear Track (in): 65.7
Rear Track (mm): 1669
Wheelbase (in): 116.7
Wheelbase (mm): 2965
Internal Dimensions
3rd Row Headroom (in): 37.1
3rd Row Headroom (mm): 942
Front Headroom (in): 41.7
Front Headroom (mm): 1059
Rear Headroom (in): 40.9
Rear Headroom (mm): 1039
3rd Row Hip Room (in): 38.5
3rd Row Hip Room (mm): 978
Front Hip Room (in): 55.6
Front Hip Room (mm): 1412
Rear Hip Room (in): 59.0
Rear Hip Room (mm): 1499
3rd Row Leg Room (in): 32.7
3rd Row Leg Room (mm): 831
Front Leg Room (in): 41.2
Front Leg Room (mm): 1046
Rear Leg Room (in): 38.4
Rear Leg Room (mm): 975
3rd Row Shoulder Room (in): 40.0
3rd Row Shoulder Room (mm): 1016
Front Shoulder Room (in): 60.7
Front Shoulder Room (mm): 1542
Rear Shoulder Room (in): 56.8
Rear Shoulder Room (mm): 1443
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Gull Wing
Location: Rear Passenger
Rear Passenger Door Type: Gull Wing
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
Type: Gloss
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Luxury Trim
Centre Floor Console: Wood & Alloy
Doors: Wood & Alloy
Instrument Panel: Wood & Alloy
Airbags
Number of Airbags: 8
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Location: Passenger
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Power Locks
Operation: Card Key
