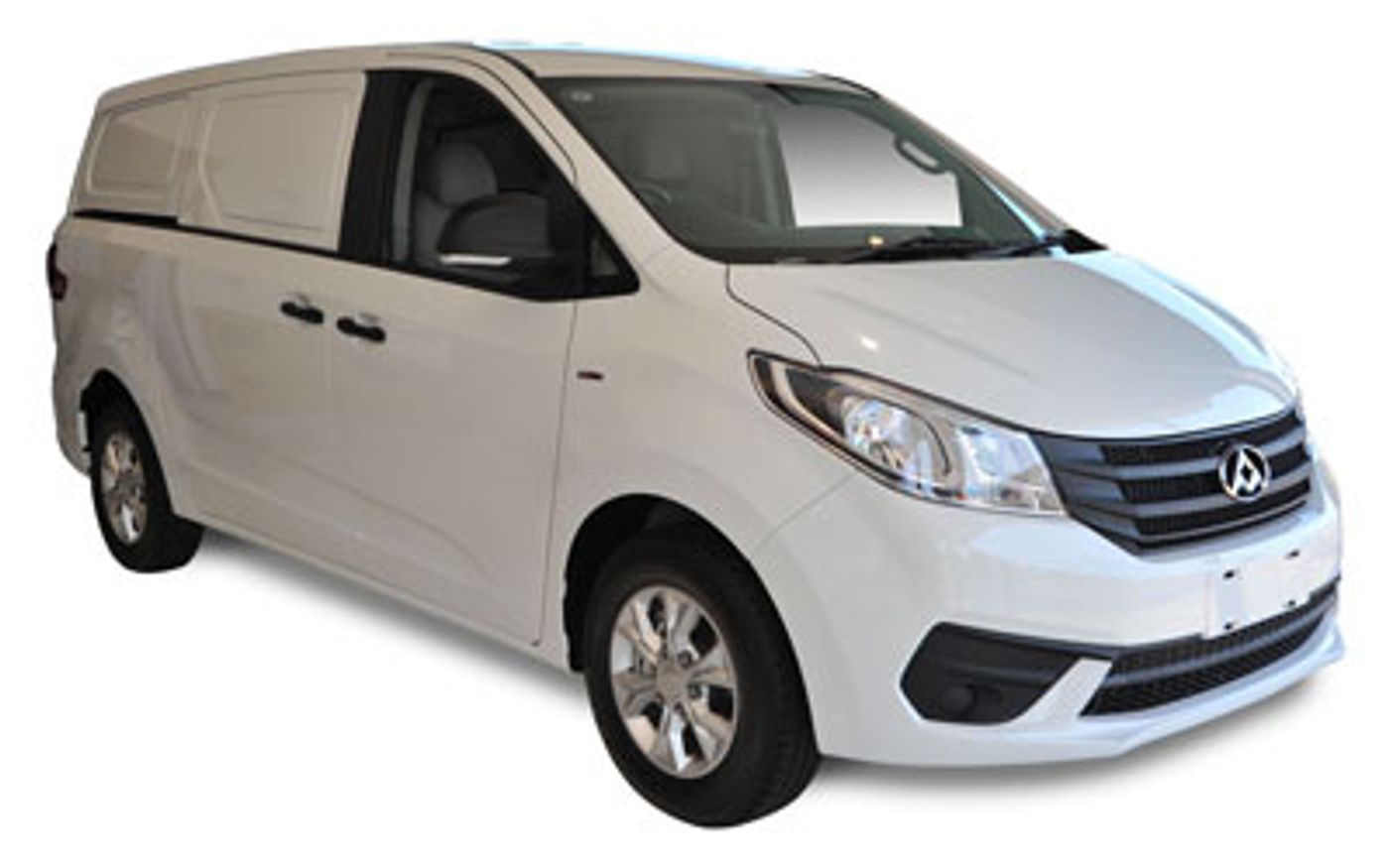

2021 LDV G10 Base Pricing and Spec
From
$34,200â€
Save thousands with CarExpert*
Base
Overview
The 2021 LDV G10 Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 1st July 2021 classified as a Sv7c. The LDV G10 is regarded as a Van Under 3.5t built in China with prices starting at $34,200 before on-road costs.
This LDV G10 is powered by a 2.0L 4-cylinder engine that has 119 kW of power (at 4000 rpm) and 375 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. LDV claims the G10 Base uses 8.2L/100km of Diesel in the combined city and highway cycle while putting out 216g of CO2. It has a 72L fuel tank, meaning it should be able to travel 878km per full tank
The LDV G10 measures 1928mm (75.9 inches) in height, 5168mm (203.5 inches) in length, 1980mm (78.0 inches) in width with a 3198mm (125.9 inches) wheelbase that brings about a total of 2042kg (4501.8 lbs) of unladen weight. The G10 Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2021 LDV G10 Base has a 134mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
How does the G10 compare?
Quickly see how the 2021 LDV G10 Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.71 - 81.55 kW/t
27.76 kW/t
81.55 kW/t
Fuel Efficiency
8.2 - 11.1 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
649 - 878 km
649 km
1,290 km
Price
$34,200 - $37,884
$25,990
$70,606
Warranty (Years)
3 years
3 years
10 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
4 years
3 years
5 years
Service Interval
12 months
6 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,000 kg
1,810 kg
3,500 kg
Gross Comb. Mass
4,750 - 5,000 kg
2,295 kg
5,550 kg
Braked Towing Capacity
1,000 - 1,500 kg
322 kg
2,800 kg
Ground Clearance Unladen
134 mm
134 mm
212 mm
Payload Capacity
990 - 1,085 kg
540 kg
1,387 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,168 mm
1,980 mm
in mirror: 1,980 mm
in mirror: 1,980 mm
1,928 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,168 mm |
| Overall Width | 1,980 mm |
| Overall Width (Inc Mirror) | 1,980 mm |
| Overall Height | 1,928 mm |
| Wheelbase | 3,198 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 958 mm |
Looking for complete LDV G10 size & space specs?
Our LDV G10 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore LDV G10 Features & Specs
Compressor
Compressor: Turbo
Compressor Number Of: 1
Electrical System
Electrical System Voltage: 12
Emission Control Level
Emission Control Level Standard Met: EU5
Emission Control Level Co2 Level Combined: 216
Emission Control Level Co2 Level Cntry Highway: 183
Emission Control Level Co2 Level Urban: 273
Engine
Engine Liters: 2.0
Engine Configuration: In-Line
Engine Cc: 1996
Engine Number Of Cylinders: 4
Engine Bore: 83.0
Engine Stroke: 92.0
Engine Number Of Valves Per Cylinder: 4
Engine Engine Code: Sc20m163q5a
Fuel
Fuel Type: Diesel
Fuel Generic Primary Fuel Type: Diesel
Fuel Minimum Fuel Type: Diesel
Fuel System
Fuel Fuel System Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Fuel Tanks Main Type: Total
Fuel Tanks Main Capacity L: 72
Fuel Tanks Main Capacity Gal: 19.0
Fuel Tanks Main Capacity Uk Gallons: 15.8
Computer
Computer Average Fuel Consumption: yes
Computer Range For Remaining Fuel: yes
Computer Average Speed: yes
Computer Instantaneous Fuel Consumption: yes
Display Screen
Display Screen Dashboard Centre1 Location: Dashboard Centre 1
Display Screen Dashboard Centre1 Screen Size Inch: 7.0
Display Screen Dashboard Centre1 Touch Screen: yes
Display Screen Instrument Cluster1 Location: Instrument Cluster 1
Low Tire Pressure Indicator
Low Tire Pressure Indicator Displays Pressure: yes
Fuel Consumption
Fuel Consumption Adr8102 Standard: Adr 81/02
Fuel Consumption Adr8102 Combined L100km: 8.2
Fuel Consumption Adr8102 Combined Mpg: 29
Fuel Consumption Adr8102 Combined Miles Per Uk Gallon: 34
Fuel Consumption Adr8102 Combined Km Ll: 12.2
Fuel Consumption Adr8102 Calculated Vehicle Range Km: 878
Fuel Consumption Adr8102 Calculated Vehicle Range Miles: 546
Fuel Consumption Adr8102 Urban Mpg: 23
Fuel Consumption Adr8102 Urban L100km: 10.4
Fuel Consumption Adr8102 Country Highway Mpg: 34
Fuel Consumption Adr8102 Country Highway L100km: 7.0
Fuel Consumption Adr8102 Urban Miles Per Uk Gallon: 27
Fuel Consumption Adr8102 Country Highway Miles Per Uk Gallon: 40
Fuel Consumption Adr8102 Urban Km Ll: 9.6
Fuel Consumption Adr8102 Country Highway Km Ll: 14.3
Fuel Economy
Fuel Economy Adr8102 L100km: 8.2
Power
Power Maximum Power Kw: 119
Power Maximum Power Hp Ps: 162
Power Maximum Torque Nm: 375
Power Rpm For Maximum Torque Low: 1500
Power Measurement Standard: ISO
Power Rpm For Maximum Power Low: 4000
Power Primary Or Secondary Fuel Power Figure: Primary
Drive
Drive Driven Wheels: Rear
Transmission
Transmission Type: Manual
Transmission Number Of Speeds: 6
Transmission Description: Manual
Transmission Shift Lever Location: Dash
Disc Brakes
Disc Brakes Number Of: 4
Disc Brakes Number Of Ventilated Discs: 2
Steering Wheel
Steering Wheel Type: Plastic
Steering Wheel Height Adjustment: yes
Suspension
Suspension Rear Location: Rear
Suspension Rear Spring Type: Leaf
Suspension Front Location: Front
Suspension Front Spring Type: Coil
Suspension Rear Wheel Dependence: Rigid
Suspension Front Type: Strut
Suspension Rear Type: Beam
Suspension Front Wheel Dependence: Independent
Tires
Wheels Tire Rear Location: Rear
Wheels Tire Front Location: Front
Wheels Tire Rear Width: 215
Wheels Tire Front Width: 215
Wheels Tire Rear Profile: 70
Wheels Tire Front Profile: 70
Wheels Tire Front Speed Rating: T
Wheels Tire Rear Speed Rating: T
Wheels Tire Front Type: Conventional/Summer
Wheels Tire Rear Type: Conventional/Summer
Wheels Tire Front Load Index: 108
Wheels Tire Rear Load Index: 108
Wheels
Wheels Rear Axle1 Axle Location: 1
Wheels Rear Location: Rear
Wheels Front Location: Front
Wheels Rear Rim Diameter Inch: 16
Wheels Front Rim Diameter Inch: 16
Wheels Front Rim Type: Alloy
Wheels Rear Rim Type: Alloy
Wheels Front Rim Width Inch: 6.5
Wheels Rear Rim Width Inch: 6.5
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Wheelbase Type: Short
Roof Type: Standard
Bumpers
Front Location: Front
Rear Location: Rear
Front Color: Painted
Rear Color: Painted
Cargo Area Dimensions
Cargo Area Standard Measurement: Manufacturer'S Own
Cargo Area Length In: 93.1
Cargo Area Length Mm: 2365
Cargo Area Width Mm: 1590
Cargo Area Width In: 62.6
Cargo Area Height In: 50.0
Cargo Area Height Mm: 1590
Cargo Area Width Between Wheelhouses Mm: 1278
Cargo Area Width Between Wheelhouses In: 50.3
Cargo Area Cargo Volume Cu Ft: 183.6
Cargo Area Cargo Volume L: 5200
External Dimensions
External Dimensions Overall Height In: 75.9
External Dimensions Overall Height Mm: 1928
External Dimensions Wheelbase Mm: 3198
External Dimensions Wheelbase In: 125.9
External Dimensions Overall Width In: 78.0
External Dimensions Overall Width Mm: 1980
External Dimensions Overall Length In: 203.5
External Dimensions Overall Length Mm: 5168
External Dimensions Rear Track Mm: 1660
External Dimensions Rear Track In: 65.4
External Dimensions Front Track Mm: 1680
External Dimensions Front Track In: 66.1
External Dimensions Curb To Curb Turning Circle Mm: 11800
External Dimensions Kerb To Kerb Turning Circle Ft: 38.7
External Dimensions Ground Clearance Unladen Mm: 134
External Dimensions Ground Clearance Unladen In: 5.3
External Dimensions Overall Width Inc Mirror In: 78.0
External Dimensions Overall Width Inc Mirror Mm: 1980
Cargo Doors
Cargo Doors Rear Location: Rear
Cargo Doors Rear Operation: Lifting Gate
Cargo Doors Rear Opening Angle: 90
Cargo Doors Rear Height Mm: 1179
Cargo Doors Rear Height In: 46.4
Cargo Doors Rear Width Mm: 1370
Cargo Doors Rear Width In: 53.9
Cargo Doors Passenger Location: Passenger
Cargo Doors Passenger Operation: Sliding
Cargo Doors Driver Location: Driver
Cargo Doors Driver Operation: Sliding
Cargo Doors Rear Internal Handles: yes
Cargo Doors Passenger Width In: 32.3
Cargo Doors Passenger Width Mm: 820
Cargo Doors Passenger Height Mm: 1165
Cargo Doors Passenger Height In: 45.9
Cargo Doors Driver Width In: 32.3
Cargo Doors Driver Width Mm: 820
Cargo Doors Driver Height In: 45.9
Cargo Doors Driver Height Mm: 1165
Doors
Doors Passenger Location: Passenger
Doors Driver Location: Driver
Doors Passenger Type: Front Hinged
Doors Driver Type: Front Hinged
Headlight Control
Headlight Control Height Adjustment: Manual
Headlights
Headlights Bulb Type Low Beam: Halogen
Headlights Lens Type: Complex Surface
Headlights Bulb Type High Beam: Halogen
Paint
External Color: White
Type: Gloss
Door Mirrors Cameras
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Color: Black
Door Mirrors Cameras Passenger Color: Black
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Windshield Wipers
Windshield Wipers Intermittent Wipe: Variable
Weights
Published Kerb Weight Lbs: 4502
Published Kerb Weight Kg: 2042
Gross Trailer Weight Braked Kg: 1500
Gross Trailer Weight Braked Lbs: 3307
Gross Trailer Weight Unbraked Kg: 750
Gross Trailer Weight Unbraked Lbs: 1653
Gross Vehicle Weight Kg: 3000
Gross Vehicle Weight Lbs: 6614
Tare Weight Kg: 1990
Payload Allowance Lbs: 2227
Payload Allowance Kg: 1010
Front Axle Weight Kg: 1370
Front Axle Weight Lbs: 3020
Rear Axle Weight Kg: 1630
Rear Axle Weight Lbs: 3594
Gross Train Weight Kg: 5000
Gross Train Weight Lbs: 11023
Kerb Weight Includes Driver: yes
Kerb Weight Inc Driver Kg: 2042
Kerb Weight Inc Driver Lbs: 4502
Audio System
System Radio Type: Am/Fm
System In Dash Cd: yes
System Digital Media Card: yes
System Touch Screen: yes
System In Dash Dvd: yes
System Colour Screen: yes
System Audio Player Reads Mp3: yes
Connection To Ext Entertainment Devices
Connection Total Number Of Usb Connections Rear: 0
Connection Total Number Of Usb Connections Front: 0
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 2
Bluetooth
Bluetooth Includes Phone Connection: yes
Bluetooth Includes Music Streaming: yes
Entertainment Display Screen
Ent Display Screen Front Screen Location: Front
Mobile Integration
Mobile Integration Apple Carplay: yes
Parking Distance System
Parking Distance System Rear Location: Rear
Parking Distance System Rear Type: Sensor & Camera
Power Outlet12v
Power Outlet Front Location12v: Front
Smart Card Smart Key
Smart Card Smart Key Includes Keyless Entry: yes
Smart Card Smart Key Type: Automatic
Usb Charging Port
Usb Charging Port Front Location: Front
Usb Charging Port Front Number: 2
Floor Covering
Floor Covering Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Luxury Trim On Instrument Panel: Alloy Look
Luxury Trim On Doors: Alloy Look
Airbags
Number Of Airbags: 2
Crash Test Results
Crash Test Results Ancap Standard: Ancap
Crash Test Results Ancap Overall: 3.00
Crash Test Results Ancap Date Tested: 20150101
Crash Test Results Ancap Version Tested: 2015 G10 2.4l Petrol
Crash Test Results Ancap Rating Year: 2015
Crash Test Results Ancap Rear Crash Protect Head Restraint Rating: Good
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Passenger Seat Position: Passenger
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Driver Height Adjustable: yes
Head Restraints
Head Restraints Front Seats Location: Front Seats
Front Seat
Front Seat Passenger Location: Passenger
Front Seat Driver Location: Driver
Front Seat Passenger Type: Bucket
Front Seat Driver Type: Bucket
Front Seat Driver Height Type: Manual
Front Seat Driver Reach Type: Manual
Front Seat Passenger Reach Type: Manual
Front Seat Driver Reclining Type: Manual
Front Seat Passenger Reclining Type: Manual
Seat Upholstery
Seat Upholstery Main Seat Material: Cloth
Seat Upholstery Additional Seat Material: Cloth
Seating
Seating Capacity: 2
Seating Configuration: 2+0
Cup Holders
Cup Holders Front Seats Location: Front Seats
Air Conditioning
Air Conditioning Type: Manual
Ventilation System
Ventilation System Digital Display: yes
Power Locks
Power Locks Operation: Card Key
Intermediate Service
Intermediate Service Distance Km: 10000
Intermediate Service Distance Miles: 6214
Intermediate Service Period Months: 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
