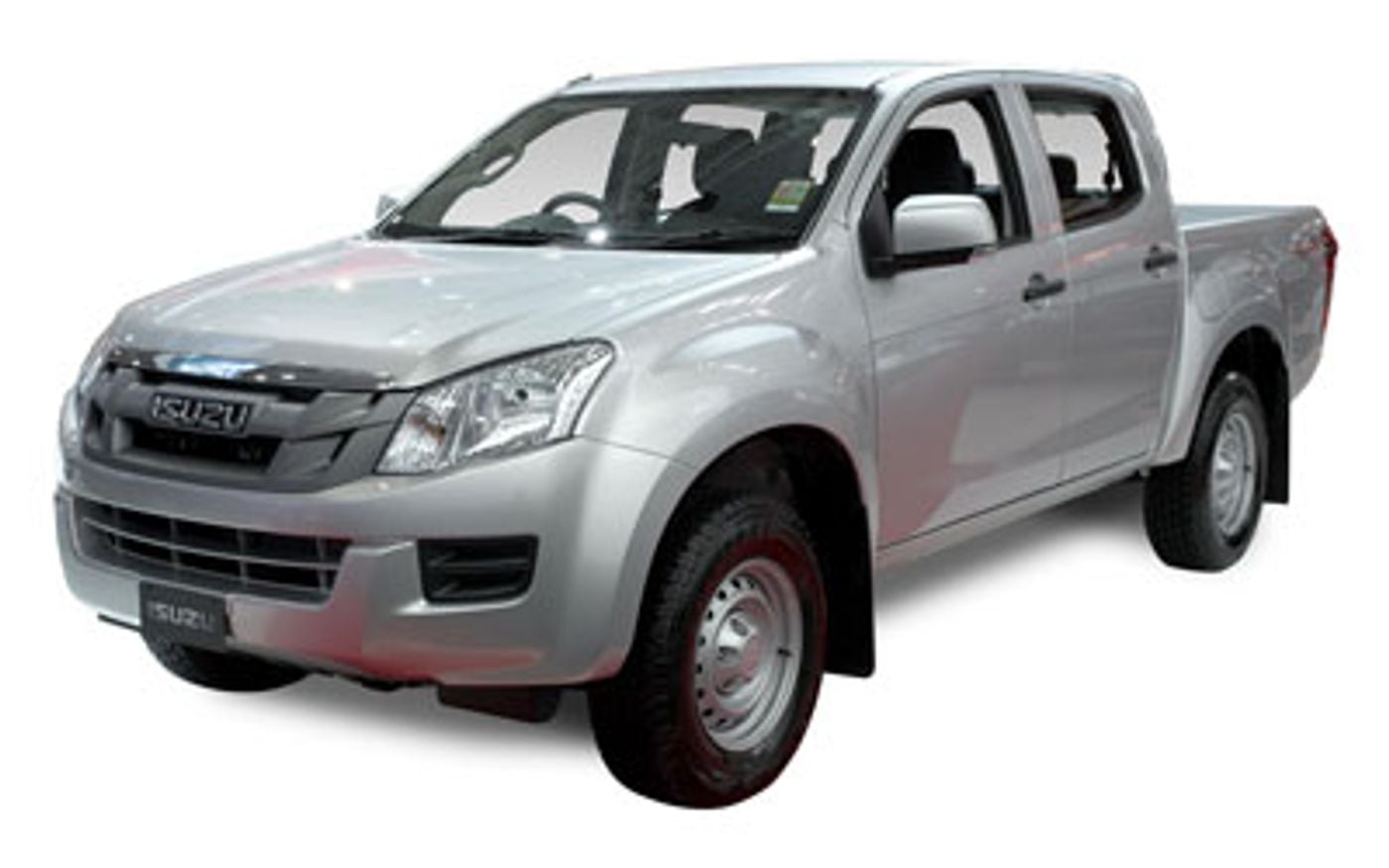

Isuzu D-Max SX (2015) price & specs
Overview
The 2015 Isuzu D-Max SX is a rear-wheel drive, 4-door Utility that was released to the Australian market on 3rd July 2015. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $36,800 before on-road costs.
This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Automatic transmission. Isuzu claims the D-Max SX uses 7.9L/100km of Diesel in the combined city and highway cycle while putting out 209g of CO2. It has a 76L fuel tank, meaning it should be able to travel 962km per full tank
The Isuzu D-Max measures 1785mm (70.3 inches) in height, 5190mm (204.3 inches) in length, 1860mm (73.2 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 1893kg (4173.3 lbs) of unladen weight. The D-Max SX comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, 130,000 km warranty.
The 2015 Isuzu D-Max SX has a 225mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the D-Max compare?
Quickly see how the 2015 Isuzu D-Max SX stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,190 mm |
| Overall Width | 1,860 mm |
| Overall Height | 1,785 mm |
| Wheelbase | 3,095 mm |
| Turning Circle | 12,600 mm |
| Load Capacity | 957 mm |
Looking for complete Isuzu D-Max size & space specs?
Our Isuzu D-Max Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Isuzu D-Max Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 209
Standard Met: EU4
Engine
Bore Engine: 95.4
Engine (cc): 2999
Engine Configuration: In-Line
Engine Code: 4jj1-Tc
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.9
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 962
ADR 81/02 Calculated Vehicle Range (miles): 598
ADR 81/02 Combined (km/L): 12.7
ADR 81/02 Combined (L/100km): 7.9
ADR 81/02 Combined (miles per UK gallon): 36
ADR 81/02 Combined (mpg): 30
ADR 81/02 Country Highway (km/L): 14.5
ADR 81/02 Country Highway (L/100km): 6.9
ADR 81/02 Country Highway (miles per UK gallon): 41
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.3
ADR 81/02 Urban (L/100km): 9.7
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.9
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 380
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Transmission
Code: Awtb50-Ls
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 5
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 111
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 111
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: I-Grip
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Tray/Tub
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Height (in): 18.3
Height (mm): 1530
Length (in): 58.5
Length (mm): 1485
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 43.5
Width Between Wheelhouses (mm): 1105
Width (in): 60.2
Width (mm): 1530
External Dimensions
Kerb to Kerb Turning Circle (mm): 12600
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 8.9
Ground Clearance Unladen (mm): 225
Kerb To Kerb Turning Circle (ft): 41.3
Overall Height (in): 70.3
Overall Height (mm): 1785
Overall Length (in): 204.3
Overall Length (mm): 5190
Overall Width (in): 73.2
Overall Width (mm): 1860
Rear Overhang (in): 46.9
Rear Overhang (mm): 1190
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 121.9
Wheelbase (mm): 3095
Cargo Doors
Rear Height (in): 18.3
Rear Height (mm): 465
Location: Rear
Rear Operation: Dropping Gate
Rear Width (in): 57.5
Rear Width (mm): 1460
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Location: Passenger
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1350
Front Axle Weight (lb): 2976
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5350
Gross Train Weight (lb): 11795
Gross Vehicle Weight (kg): 2850
Gross Vehicle Weight (lb): 6283
Payload Allowance (kg): 957
Payload Allowance (lb): 2110
Published Kerb Weight (kg): 1893
Published Kerb Weight (lb): 4174
Rear Axle Weight (kg): 1870
Rear Axle Weight (lb): 4123
Tare Weight (kg): 1820
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20141024
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 3.0 Litre 4x2 High-Ride Crew Cab
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
