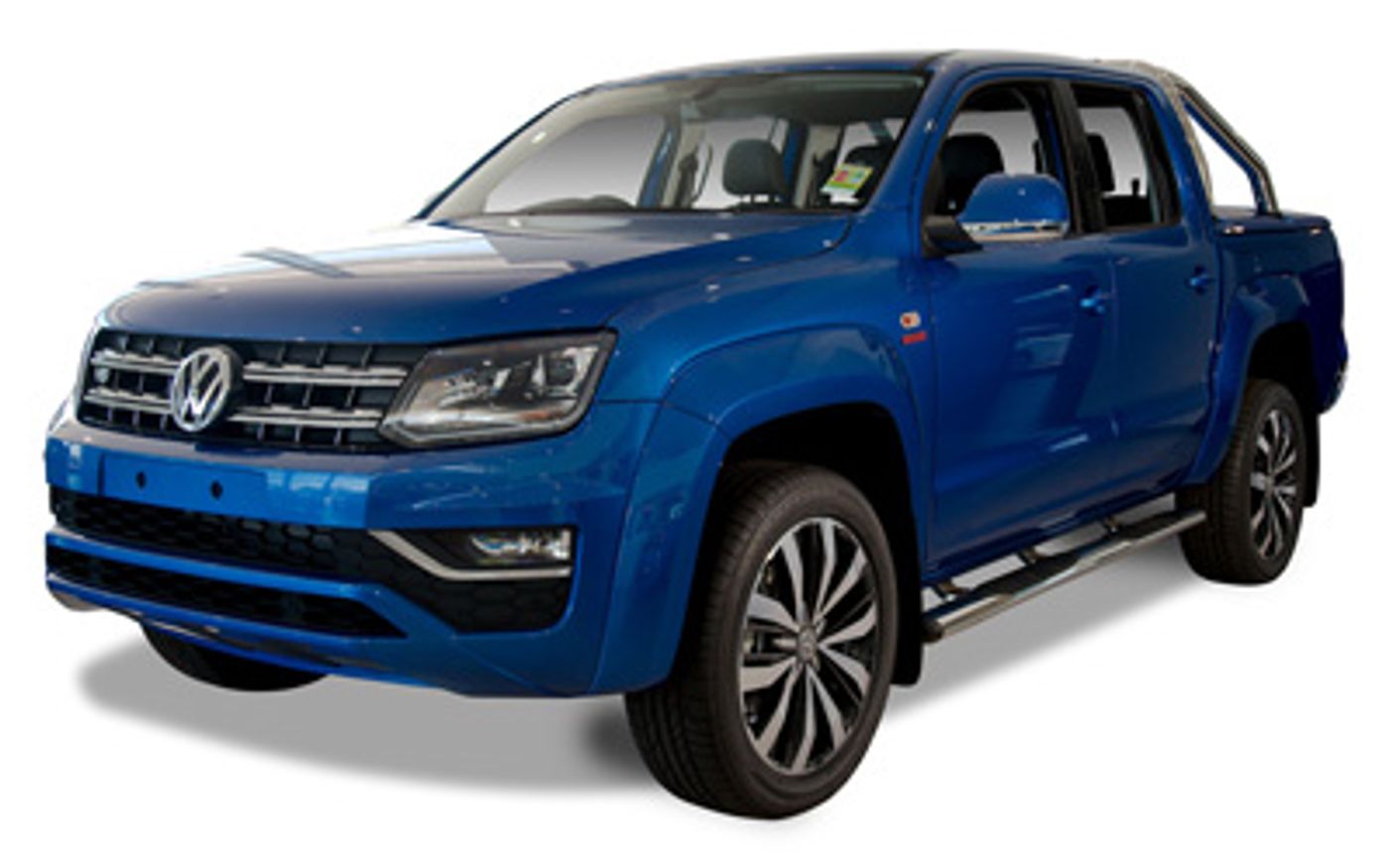

Volkswagen Amarok Ultimate (2020) price & specs
From
$91,785â€
Save thousands with CarExpert*
Ultimate
Overview
The 2020 Volkswagen Amarok Ultimate is a four-wheel drive, 4-door Utility that was released to the Australian market on 7th September 2019 classified as a 2H. The Volkswagen Amarok is regarded as a Pickup built in Germany with prices starting at $91,785 before on-road costs.
This Volkswagen Amarok is powered by a 3.0L 6-cylinder engine that has 200 kW of power (at 3250 rpm) and 580 Nm of torque (at 1400 rpm) via an Eight-speed Automatic transmission. Volkswagen claims the Amarok Ultimate uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out 234g of CO2. It has a 80L fuel tank, meaning it should be able to travel 899km per full tank
The Volkswagen Amarok measures 1834mm (72.2 inches) in height, 5564mm (219.1 inches) in length, 1954mm (76.9 inches) in width with a 3405mm (134.1 inches) wheelbase that brings about a total of 2289kg (5046.4 lbs) of unladen weight. The Amarok Ultimate comes standard with 255/50 R20 front tyres and 255/50 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Volkswagen Amarok Ultimate has a 192mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Amarok compare?
Quickly see how the 2020 Volkswagen Amarok Ultimate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
63.1 - 93.15 kW/t
47.8 kW/t
120.94 kW/t
Fuel Efficiency
8.4 - 9.7 L/100km
6.3 L/100km
12.4 L/100km
Vehicle Range
825 - 952 km
658 km
1,270 km
Price
$38,490 - $94,785
$22,490
$113,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
57,936 km
Unlimited
Years on Sale
New this year - 2 years
1 year
3 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,040 - 3,080 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,550 - 6,000 kg
4,435 kg
7,237 kg
Braked Towing Capacity
3,000 - 3,500 kg
1,800 kg
4,500 kg
Approach Angle
28°
15.2°
40.7°
Departure Angle
23.6 - 28°
15°
29°
Ground Clearance Unladen
192 - 230 mm
174 mm
283 mm
Payload Capacity
751 - 1,155 kg
527 kg
1,476 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,564 mm
1,954 mm
1,834 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,564 mm |
| Overall Width | 1,954 mm |
| Overall Height | 1,834 mm |
| Wheelbase | 3,405 mm |
| Turning Circle | 12,950 mm |
| Load Capacity | 791 mm |
Looking for complete Volkswagen Amarok size & space specs?
Our Volkswagen Amarok Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volkswagen Amarok Features & Specs
Bluetooth
Bluetooth Includes Music Streaming: yes
Bluetooth Includes Phone Connection: yes
Cruise Control
Cruise Control Speed Limiter: yes
Mobile Integration
Mobile Integration Android Auto: yes
Mobile Integration Apple Carplay: yes
Mobile Integration Mirrorlink: yes
Parking Distance System
Parking Distance System Front Location: Front
Parking Distance System Front Type: Sensor
Parking Distance System Rear Location: Rear
Parking Distance System Rear Type: Sensor & Camera
Power Outlet12v
Power Outlet Boot Cargo Location12v: Boot/Cargo
Power Outlet Front Location12v: Front
Power Outlet Rear Location12v: Rear
Compressor
Compressor: Turbo
Compressor Number Of: 1
Emission Control Level
Emission Control Level Co2 Level Combined: 234
Emission Control Level Standard Met: EU6
Energy Recuperation
Energy Recuperation Engine: yes
Engine
Engine Bore: 83.0
Engine Cc: 2967
Engine Configuration: V
Engine Engine Code: Ddxe
Engine Liters: 3.0
Engine Number Of Cylinders: 6
Engine Number Of Valves Per Cylinder: 4
Engine Stroke: 91.4
Fuel
Fuel Generic Primary Fuel Type: Diesel
Fuel Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Fuel Fuel System Injection Carburetion: Diesel Common Rail
Fuel Tanks
Fuel Tanks Main Capacity Gal: 21.1
Fuel Tanks Main Capacity L: 80
Fuel Tanks Main Capacity Uk Gallons: 17.6
Fuel Tanks Main Type: Total
Fuel Consumption
Fuel Consumption Adr8102 Calculated Vehicle Range Km: 899
Fuel Consumption Adr8102 Calculated Vehicle Range Miles: 559
Fuel Consumption Adr8102 Combined Km Ll: 11.2
Fuel Consumption Adr8102 Combined L100km: 8.9
Fuel Consumption Adr8102 Combined Miles Per Uk Gallon: 32
Fuel Consumption Adr8102 Combined Mpg: 26
Fuel Consumption Adr8102 Country Highway Km Ll: 11.8
Fuel Consumption Adr8102 Country Highway L100km: 8.5
Fuel Consumption Adr8102 Country Highway Miles Per Uk Gallon: 33
Fuel Consumption Adr8102 Country Highway Mpg: 28
Fuel Consumption Adr8102 Standard: Adr 81/02
Fuel Consumption Adr8102 Urban Km Ll: 10.4
Fuel Consumption Adr8102 Urban L100km: 9.6
Fuel Consumption Adr8102 Urban Miles Per Uk Gallon: 29
Fuel Consumption Adr8102 Urban Mpg: 25
Fuel Economy
Fuel Economy Adr8102 L100km: 8.9
Power
Power Maximum Power Hp Ps: 272
Power Maximum Power Kw: 200
Power Maximum Torque Nm: 580
Power Measurement Standard: EEC
Power Primary Or Secondary Fuel Power Figure: Primary
Power Rpm For Maximum Power Low: 3250
Power Rpm For Maximum Torque Low: 1400
Differential Lock
Differential Lock Rear Location: Rear
Drive
Drive Descent Control System: yes
Drive Driven Wheels: 4x4
Drive Four Wheel Drive Type: Full-Time
Limited Slip Differential
Limited Slip Differential Center Location: Centre
Limited Slip Differential Center Type: Mechanical
Transmission
Transmission Code: SZZ
Transmission Description: Automatic With Manual Mode
Transmission Manual Mode: yes
Transmission Number Of Speeds: 8
Transmission Type: Automatic
Disc Brakes
Disc Brakes Number Of: 4
Disc Brakes Number Of Ventilated Discs: 4
Display Screen
Display Screen Dashboard Centre1 Location: Dashboard Centre 1
Display Screen Dashboard Centre1 Screen Size Inch: 6.3
Display Screen Dashboard Centre1 Touch Screen: yes
Low Tire Pressure Indicator
Low Tire Pressure Indicator Displays Pressure: yes
Low Tire Pressure Indicator Rim Mounted Sensor: yes
Power Steering
Power Steering Type: Hydraulic
Steering Wheel
Steering Wheel Height Adjustment: yes
Steering Wheel Telescopic Adjustment: yes
Steering Wheel Type: Leather Covered
Suspension
Suspension Front Location: Front
Suspension Front Spring Type: Coil
Suspension Front Stabilizer Bar: yes
Suspension Front Type: Wishbone
Suspension Front Wheel Dependence: Independent
Suspension Rear Location: Rear
Suspension Rear Spring Type: Leaf
Suspension Rear Stabilizer Bar: yes
Suspension Rear Type: Beam
Suspension Rear Wheel Dependence: Rigid
Tires
Wheels Tire Front Load Index: 109
Wheels Tire Front Location: Front
Wheels Tire Front Profile: 50
Wheels Tire Front Speed Rating: H
Wheels Tire Front Type: Conventional/Summer
Wheels Tire Front Width: 255
Wheels Tire Rear Load Index: 109
Wheels Tire Rear Location: Rear
Wheels Tire Rear Profile: 50
Wheels Tire Rear Speed Rating: H
Wheels Tire Rear Type: Conventional/Summer
Wheels Tire Rear Width: 255
Wheels
Wheels Front Location: Front
Wheels Front Rim Diameter Inch: 20
Wheels Front Rim Type: Alloy
Wheels Front Rim Width Inch: 8.0
Wheels Rear Axle1 Axle Location: 1
Wheels Rear Location: Rear
Wheels Rear Rim Diameter Inch: 20
Wheels Rear Rim Type: Alloy
Wheels Rear Rim Width Inch: 8.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: A1
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Mud Flaps Front Location: Front
Mud Flaps Rear Location: Rear
Step
Step Rear Location: Rear
Step Rear Type: Platform
Step Side Location: Side
Pickup Bed
Pickup Bed Liner: Spray-In
Pickup Bed Type: Straight Side
Cargo Area Dimensions
Cargo Area Height In: 20.0
Cargo Area Height Mm: 1620
Cargo Area Length In: 73.4
Cargo Area Length Mm: 1865
Cargo Area Loading Floor Height In: 30.7
Cargo Area Loading Floor Height Mm: 780
Cargo Area Standard Measurement: Manufacturer'S Own
Cargo Area Width Between Wheelhouses In: 48.1
Cargo Area Width Between Wheelhouses Mm: 1222
Cargo Area Width In: 63.8
Cargo Area Width Mm: 1620
External Dimensions
External Dimensions Curb To Curb Turning Circle Mm: 12950
External Dimensions Front Overhang In: 35.4
External Dimensions Front Overhang Mm: 898
External Dimensions Front Track In: 65.1
External Dimensions Front Track Mm: 1654
External Dimensions Ground Clearance Unladen In: 7.6
External Dimensions Ground Clearance Unladen Mm: 192
External Dimensions Kerb To Kerb Turning Circle Ft: 42.5
External Dimensions Overall Height In: 72.2
External Dimensions Overall Height Mm: 1834
External Dimensions Overall Length In: 219.1
External Dimensions Overall Length Mm: 5564
External Dimensions Overall Width In: 76.9
External Dimensions Overall Width Mm: 1954
External Dimensions Rear Overhang In: 49.6
External Dimensions Rear Overhang Mm: 1259
External Dimensions Rear Track In: 65.3
External Dimensions Rear Track Mm: 1658
External Dimensions Wheelbase In: 134.1
External Dimensions Wheelbase Mm: 3405
Ramp Angles
Ramp Angles Approach Angle: 28.0
Ramp Angles Departure Angle: 23.6
Bumpers
Front Color: Painted
Front Location: Front
Rear Color: Chrome
Rear Location: Rear
Cargo Doors
Cargo Doors Rear Height In: 20.0
Cargo Doors Rear Height Mm: 508
Cargo Doors Rear Location: Rear
Cargo Doors Rear Opening Angle: 90
Cargo Doors Rear Operation: Dropping Gate
Cargo Doors Rear Width In: 53.7
Cargo Doors Rear Width Mm: 1364
Doors
Doors Driver Location: Driver
Doors Driver Type: Front Hinged
Doors Passenger Location: Passenger
Doors Passenger Type: Front Hinged
Doors Rear Driver Location: Rear Driver
Doors Rear Driver Type: Front Hinged
Doors Rear Passenger Location: Rear Passenger
Doors Rear Passenger Type: Front Hinged
Headlight Control
Headlight Control Dusk Sensor: yes
Headlight Control Height Adjustment: Automatic
Headlight Control Internal Height Adjustment: yes
Headlights
Headlights Bulb Type High Beam: Bi-Xenon
Headlights Bulb Type Low Beam: Bi-Xenon
Headlights Lens Type: Complex Surface
Led Lights
Led Lights Brake Lights Location: Brake Lights
Led Lights Day Time Running Lights Location: Day Time Running Lights
Paint
External Color: Silver
Type: Gloss
Door Mirrors Cameras
Door Mirrors Cameras Driver Color: Painted
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Color: Painted
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Power Windows Rear Location: Rear
Rear Side Windows
Rear Side Windows Driver Location: Driver
Rear Side Windows Driver Type: Wind-Up
Rear Side Windows Passenger Location: Passenger
Rear Side Windows Passenger Type: Wind-Up
Rear View Mirror Camera
Rear View Mirror Camera Auto Dimming: yes
Windshield Wipers
Windshield Wipers Intermittent Wipe: Automatic
Windshield Wipers Rain Sensor: yes
Weights
Front Axle Weight Kg: 1445
Front Axle Weight Lbs: 3186
Gross Trailer Weight Braked Kg: 3500
Gross Trailer Weight Braked Lbs: 7716
Gross Trailer Weight Unbraked Kg: 750
Gross Trailer Weight Unbraked Lbs: 1653
Gross Train Weight Kg: 6000
Gross Train Weight Lbs: 13228
Gross Vehicle Weight Kg: 3080
Gross Vehicle Weight Lbs: 6790
Payload Allowance Kg: 791
Payload Allowance Lbs: 1744
Published Kerb Weight Kg: 2289
Published Kerb Weight Lbs: 5046
Rear Axle Weight Kg: 1630
Rear Axle Weight Lbs: 3594
Tare Weight Kg: 2230
Audio System
System Cd Player Reads Mp3: yes
System Colour Screen: yes
System Digital Media Card: yes
System Digital Radio: yes
System In Dash Cd: yes
System Radio Type: Am/Fm
System Touch Screen: yes
Connection To Ext Entertainment Devices
Connection External Aux Jack Front: yes
Connection External Ipod Front: yes
Connection External Usb Front: yes
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 6
Floor Covering
Floor Covering Vehicle Cab Compartment: Textile
Luxury Trim
Luxury Trim On Gear Selector: Leather
Luxury Trim On Instrument Panel: Alloy Look
Airbags
Number Of Airbags: 4
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Driver Height Adjustable: yes
Front Seat Belts Driver Pre Tensioners: yes
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Passenger Pre Tensioners: yes
Front Seat Belts Passenger Seat Position: Passenger
Head Restraints
Head Restraints Front Seats Location: Front Seats
Head Restraints Rear Seats Location: Rear Seats
Head Restraints Rear Seats Number: 3
Rear Seat Belts
Rear Seat Belts Center Seat Position: Centre
Rear Seat Belts Center Type: 3-Point
Rear Seat Belts Driver Seat Position: Driver
Rear Seat Belts Passenger Seat Position: Passenger
Side Airbag
Side Airbag Front Head Protection: yes
Side Airbag Front Location: Front
Front Seat
Front Seat Driver Electrically Adjustable: yes
Front Seat Driver Heated: yes
Front Seat Driver Height Type: Electric
Front Seat Driver Location: Driver
Front Seat Driver Lumbar Type: Electric
Front Seat Driver Reach Type: Electric
Front Seat Driver Type: Bucket
Front Seat Passenger Electrically Adjustable: yes
Front Seat Passenger Heated: yes
Front Seat Passenger Height Type: Electric
Front Seat Passenger Location: Passenger
Front Seat Passenger Lumbar Type: Electric
Front Seat Passenger Reach Type: Electric
Front Seat Passenger Type: Bucket
Seat Upholstery
Seat Upholstery Additional Seat Material: Synthetic Leather
Seat Upholstery Main Seat Material: Leather
Seating
Seating Capacity: 5
Seating Configuration: 2+3
Cup Holders
Cup Holders Front Seats Location: Front Seats
Cup Holders Rear Seats Location: Rear Seats
Air Conditioning
Air Conditioning Type: Fully-Auto
Ventilation System
Ventilation System Digital Display: yes
Power Locks
Power Locks Includes Power Windows: yes
Power Locks Operation: Remote
Intermediate Service
Intermediate Service Distance Km: 15000
Intermediate Service Distance Miles: 9321
Intermediate Service Period Months: 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
