SR
2.8L, 6-speed manual, 4-door Cab Chassis, Diesel, 4x4
Save $$$ with CarExpert*
$45,140â€

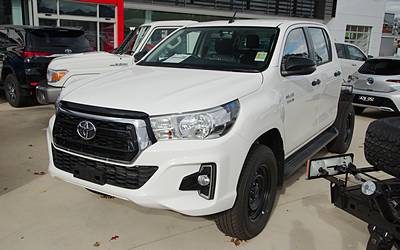

Toyota HiLux SR (2019) price & specs
From
$45,140â€
Save thousands with CarExpert*
Overview
The 2019 Toyota HiLux SR is a four-wheel drive, 4-door Cab Chassis that was released to the Australian market on 2nd January 2019 classified as a Gun126r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $45,140 before on-road costs.
This Toyota HiLux is powered by a 2.8L 4-cylinder engine that has 130 kW of power (at 3400 rpm) and 420 Nm of torque (at 1400 rpm) via a Six-speed Manual transmission. Toyota claims the HiLux SR uses 8.1L/100km of Diesel in the combined city and highway cycle while putting out 212g of CO2. It has a 80L fuel tank, meaning it should be able to travel 988km per full tank
It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2019 Toyota HiLux SR has a 279mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2019 Toyota HiLux SR stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
53.79 - 82.71 kW/t
49.52 kW/t
111.71 kW/t
Fuel Efficiency
7.1 - 11.1 L/100km
6.3 L/100km
12.2 L/100km
Vehicle Range
721 - 1,127 km
658 km
1,270 km
Price
$20,990 - $64,490
$20,990
$139,990
Warranty (Years)
3 - 5 years
3 years
7 years
Warranty (Distance)
100,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
New this year - 10 years
1 year
3 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,700 - 3,050 kg
2,700 kg
4,491 kg
Gross Comb. Mass
5,200 - 5,850 kg
4,435 kg
9,801 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,800 kg
5,890 kg
Approach Angle
28 - 31°
15.2°
35°
Departure Angle
20 - 26°
15°
29°
Ground Clearance Unladen
216 - 279 mm
190 mm
283 mm
Payload Capacity
748 - 1,240 kg
724 kg
1,483 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
1,815 mm
| Specification | Measurement |
|---|---|
| Overall Height | 1,815 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 12,400 mm |
| Load Capacity | 1,045 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiLux Features & Specs
Bluetooth
Bluetooth Includes Music Streaming: yes
Bluetooth Includes Phone Connection: yes
Driver Modes
Driver Modes Includes Engine Mapping: yes
Power Outlet12v
Power Outlet Front Location12v: Front
Compressor
Compressor: Turbo
Compressor Number Of: 1
Emission Control Level
Emission Control Level Co2 Level Combined: 212
Emission Control Level Standard Met: EU5
Engine
Engine Bore: 92.0
Engine Cc: 2755
Engine Configuration: In-Line
Engine Engine Code: 1gd-Ftv
Engine Liters: 2.8
Engine Number Of Cylinders: 4
Engine Number Of Valves Per Cylinder: 4
Engine Stroke: 103.6
Fuel
Fuel Generic Primary Fuel Type: Diesel
Fuel Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Fuel Fuel System Injection Carburetion: Diesel Common Rail
Fuel Tanks
Fuel Tanks Main Capacity Gal: 21.1
Fuel Tanks Main Capacity L: 80
Fuel Tanks Main Capacity Uk Gallons: 17.6
Fuel Tanks Main Type: Total
Fuel Consumption
Fuel Consumption Adr8102 Calculated Vehicle Range Km: 988
Fuel Consumption Adr8102 Calculated Vehicle Range Miles: 614
Fuel Consumption Adr8102 Combined Km Ll: 12.3
Fuel Consumption Adr8102 Combined L100km: 8.1
Fuel Consumption Adr8102 Combined Miles Per Uk Gallon: 35
Fuel Consumption Adr8102 Combined Mpg: 29
Fuel Consumption Adr8102 Country Highway Km Ll: 13.5
Fuel Consumption Adr8102 Country Highway L100km: 7.4
Fuel Consumption Adr8102 Country Highway Miles Per Uk Gallon: 38
Fuel Consumption Adr8102 Country Highway Mpg: 32
Fuel Consumption Adr8102 Standard: Adr 81/02
Fuel Consumption Adr8102 Urban Km Ll: 10.8
Fuel Consumption Adr8102 Urban L100km: 9.3
Fuel Consumption Adr8102 Urban Miles Per Uk Gallon: 30
Fuel Consumption Adr8102 Urban Mpg: 25
Fuel Economy
Fuel Economy Adr8102 L100km: 8.1
Power
Power Maximum Power Hp Ps: 177
Power Maximum Power Kw: 130
Power Maximum Torque Nm: 420
Power Measurement Standard: DIN
Power Primary Or Secondary Fuel Power Figure: Primary
Power Rpm For Maximum Power Low: 3400
Power Rpm For Maximum Torque Low: 1400
Differential Lock
Differential Lock Rear Location: Rear
Drive
Drive Descent Control System: yes
Drive Driven Wheels: 4x4
Drive Four Wheel Drive Type: Part-Time
Drive Selection: Manual
Transmission
Transmission Code: Rc61
Transmission Description: Manual
Transmission Low High Gear Ranges: yes
Transmission Number Of Speeds: 6
Transmission Type: Manual
Disc Brakes
Disc Brakes Number Of: 2
Disc Brakes Number Of Ventilated Discs: 2
Steering Wheel
Steering Wheel Height Adjustment: yes
Steering Wheel Telescopic Adjustment: yes
Steering Wheel Type: Plastic
Suspension
Suspension Front Location: Front
Suspension Front Spring Type: Coil
Suspension Front Stabilizer Bar: yes
Suspension Front Type: Wishbone
Suspension Front Wheel Dependence: Independent
Suspension Rear Location: Rear
Suspension Rear Spring Type: Leaf
Suspension Rear Type: Beam
Suspension Rear Wheel Dependence: Rigid
Tires
Wheels Tire Front Load Index: 112
Wheels Tire Front Location: Front
Wheels Tire Front Profile: 65
Wheels Tire Front Type: All Terrain
Wheels Tire Front Width: 265
Wheels Tire Rear Load Index: 112
Wheels Tire Rear Location: Rear
Wheels Tire Rear Profile: 65
Wheels Tire Rear Type: All Terrain
Wheels Tire Rear Width: 265
Wheels
Wheels Front Location: Front
Wheels Front Rim Diameter Inch: 17
Wheels Front Rim Type: Steel
Wheels Front Rim Width Inch: 7.5
Wheels Rear Axle1 Axle Location: 1
Wheels Rear Location: Rear
Wheels Rear Rim Diameter Inch: 17
Wheels Rear Rim Type: Steel
Wheels Rear Rim Width Inch: 7.5
Body Style
Body Type: Cab Chassis
Cab Type: Double Cab
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Mud Flaps Front Location: Front
Step
Step Side Location: Side
Bumpers
Front Color: Painted
Front Location: Front
External Dimensions
External Dimensions Curb To Curb Turning Circle Mm: 12400
External Dimensions Front Track In: 60.4
External Dimensions Front Track Mm: 1535
External Dimensions Ground Clearance Unladen In: 11.0
External Dimensions Ground Clearance Unladen Mm: 279
External Dimensions Kerb To Kerb Turning Circle Ft: 40.7
External Dimensions Overall Height In: 71.5
External Dimensions Overall Height Mm: 1815
External Dimensions Rear Track In: 61.0
External Dimensions Rear Track Mm: 1550
External Dimensions Wheelbase In: 121.5
External Dimensions Wheelbase Mm: 3085
Doors
Doors Driver Location: Driver
Doors Driver Type: Front Hinged
Doors Passenger Location: Passenger
Doors Passenger Type: Front Hinged
Doors Rear Driver Location: Rear Driver
Doors Rear Driver Type: Front Hinged
Doors Rear Passenger Location: Rear Passenger
Doors Rear Passenger Type: Front Hinged
Headlight Control
Headlight Control Dusk Sensor: yes
Headlight Control Height Adjustment: Manual
Headlights
Headlights Bulb Type High Beam: Halogen
Headlights Bulb Type Low Beam: Halogen
Headlights Lens Type: Complex Surface
Paint
External Color: red
Type: Gloss
Door Mirrors Cameras
Door Mirrors Cameras Driver Color: Black
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Color: Black
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Power Windows Rear Location: Rear
Rear Side Windows
Rear Side Windows Driver Location: Driver
Rear Side Windows Driver Type: Wind-Up
Rear Side Windows Passenger Location: Passenger
Rear Side Windows Passenger Type: Wind-Up
Windshield Wipers
Windshield Wipers Intermittent Wipe: Fixed
Weights
Gross Trailer Weight Braked Kg: 3500
Gross Trailer Weight Braked Lbs: 7716
Gross Trailer Weight Unbraked Kg: 750
Gross Trailer Weight Unbraked Lbs: 1653
Gross Train Weight Kg: 5850
Gross Train Weight Lbs: 12897
Gross Vehicle Weight Kg: 3000
Gross Vehicle Weight Lbs: 6614
Payload Allowance Kg: 1045
Payload Allowance Lbs: 2304
Published Kerb Weight Kg: 1955
Published Kerb Weight Lbs: 4310
Tare Weight Kg: 1896
Trailer Noseweight Kg: 350
Audio System
System Colour Screen: yes
System In Dash Cd: yes
System Radio Type: Am/Fm
System Touch Screen: yes
Connection To Ext Entertainment Devices
Connection External Usb Front: yes
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 6
Display Screen
Display Screen Instrument Cluster1 Location: Instrument Cluster 1
Display Screen Instrument Cluster1 Screen Size Inch: 7.0
Floor Covering
Floor Covering Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Luxury Trim On Instrument Panel: Piano Black
Airbags
Number Of Airbags: 7
Crash Test Results
Crash Test Results Ancap Overall: 5.00
Crash Test Results Ancap Pedestrian: Good
Crash Test Results Ancap Rear Crash Protect Head Restraint Rating: Good
Crash Test Results Ancap Standard: Ancap
Crash Test Results Ancap Version Tested: 01/01/2015
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Driver Height Adjustable: yes
Front Seat Belts Driver Pre Tensioners: yes
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Passenger Pre Tensioners: yes
Front Seat Belts Passenger Seat Position: Passenger
Head Restraints
Head Restraints Front Seats Location: Front Seats
Head Restraints Rear Seats Location: Rear Seats
Head Restraints Rear Seats Number: 3
Knee Airbags
Knee Airbags Driver Location: Driver
Rear Seat Belts
Rear Seat Belts Center Seat Position: Centre
Rear Seat Belts Center Type: 3-Point
Rear Seat Belts Driver Seat Position: Driver
Rear Seat Belts Passenger Seat Position: Passenger
Side Airbag
Side Airbag Front Location: Front
Side Curtain Airbag
Side Curtain Airbag Front And Rear Location: Front And Rear
Front Seat
Front Seat Driver Height Type: Manual
Front Seat Driver Location: Driver
Front Seat Driver Reach Type: Manual
Front Seat Driver Type: Sports
Front Seat Passenger Location: Passenger
Front Seat Passenger Reach Type: Manual
Front Seat Passenger Type: Sports
Seat Upholstery
Seat Upholstery Additional Seat Material: Cloth
Seat Upholstery Main Seat Material: Cloth
Seating
Seating Capacity: 5
Seating Configuration: 2+3
Cup Holders
Cup Holders Front Seats Location: Front Seats
Cup Holders Rear Seats Location: Rear Seats
Air Conditioning
Air Conditioning Type: Manual
Power Locks
Power Locks Operation: Remote
Intermediate Service
Intermediate Service Distance Km: 10000
Intermediate Service Distance Miles: 6214
Intermediate Service Period Months: 6
# Based on VFACTS and EVC data
