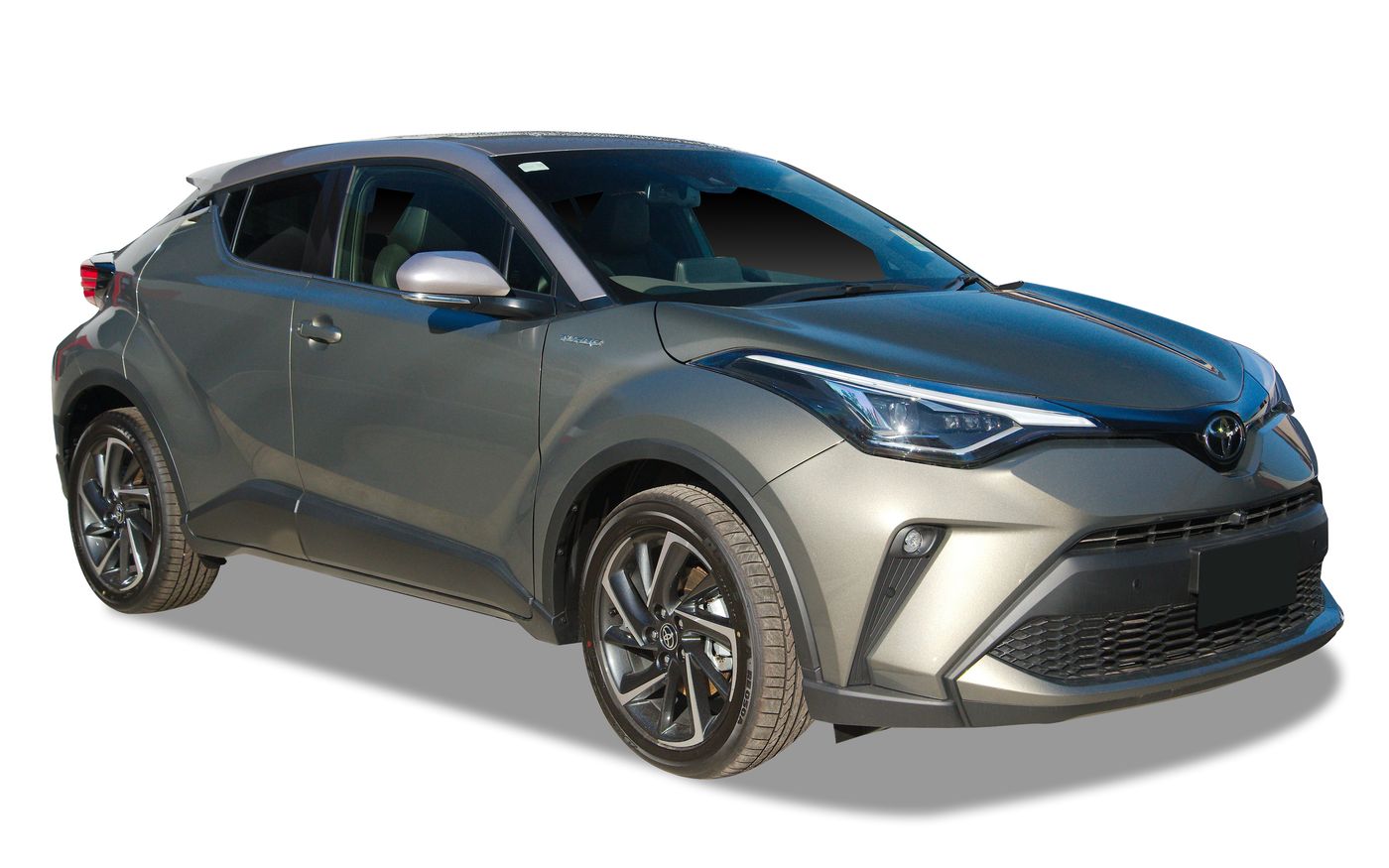

Toyota C-HR Gr Sport (2023) price & specs
From
$38,465â€
Save thousands with CarExpert*
Gr Sport
Overview
The 2023 Toyota C-HR Gr Sport is a front-wheel drive, 5-door SUV that was released to the Australian market on 7th January 2023 classified as a Zyx10r. The Toyota C-HR is regarded as a small SUV built in Japan with prices starting at $38,465 before on-road costs.
This Toyota C-HR is powered by a 1.8L 4-cylinder engine that has 90 kW of power (at 5200 rpm) and 142 Nm of torque via a Variable SP AUTOMATIC transmission. Toyota claims the C-HR Gr Sport uses 4.3L/100km of Premium Unleaded in the combined city and highway cycle while putting out 97g of CO2. It has a 43L fuel tank, meaning it should be able to travel 1000km per full tank
The Toyota C-HR measures 1550mm (61.0 inches) in height, 4395mm (173.0 inches) in length, 1795mm (70.7 inches) in width with a 2640mm (103.9 inches) wheelbase that brings about a total of 1460kg (3218.7 lbs) of unladen weight. The C-HR Gr Sport comes standard with 225/45 R19 front tyres and 225/45 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the C-HR compare?
Quickly see how the 2023 Toyota C-HR Gr Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
56.29 - 61.64 kW/t
56.29 kW/t
135.76 kW/t
Boot Space
318 litres
85 litres
551 litres
Fuel Efficiency
4.3 - 7 L/100km
1.9 L/100km
9.7 L/100km
Vehicle Range
714 - 1,000 km
555 km
1,000 km
Price
$30,915 - $38,465
$21,490
$64,000
Warranty (Years)
5 years
5 years
15 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,860 - 1,930 kg
1,330 kg
2,430 kg
Braked Towing Capacity
600 kg
400 kg
2,000 kg
Ground Clearance Unladen
125 - 137 mm
125 mm
225 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,395 mm
1,795 mm
1,550 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,395 mm |
| Overall Width | 1,795 mm |
| Overall Height | 1,550 mm |
| Wheelbase | 2,640 mm |
| Turning Circle | 10,400 mm |
| Load Capacity | 400 mm |
Looking for complete Toyota C-HR size & space specs?
Our Toyota C-HR Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota C-HR Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop
Driver Modes
Engine Mapping: yes
Steering: yes
Entertainment Display Screen
Location: Front
Front Screen Size (in): 8.00
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 103
CO2 Level (Combined): 97
CO2 Level (Urban): 86
Standard Met: EU5
Engine
Bore Engine: 80.5
Engine (cc): 1798
Engine Configuration: In-Line
Engine Code: 2zr-Fxe
Engine (L): 1.8
Number of Cylinders: 4
Stroke Engine: 88.3
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 11.4
Main Capacity (L): 43
Main Capacity Uk Gallons: 9.5
Main Type: Total
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 163
Motor 1 Location: Transmission-Integrated Motor Generator
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 72.1
Motor 1 Power Output Motor (kW): 53.0
Electric Power Source
Battery (Ah): 6.5
Battery Type: Nickel Metal Hydride
Battery Voltage: 202.0
Max Wireless Charging (kW): 0.0
Maximum Battery (kWh): 1.30
Number of kWh Included: 0
Number of Months Subscription Included: 0
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1000
ADR 81/02 Calculated Vehicle Range (miles): 621
ADR 81/02 Combined (km/L): 23.3
ADR 81/02 Combined (L/100km): 4.3
ADR 81/02 Combined (miles per UK gallon): 66
ADR 81/02 Combined (mpg): 55
ADR 81/02 Country Highway (km/L): 21.7
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 26.3
ADR 81/02 Urban (L/100km): 3.8
ADR 81/02 Urban (miles per UK gallon): 74
ADR 81/02 Urban (mpg): 62
Fuel Economy
ADR 81/02 (L/100km): 4.3
Performance
Acceleration 0 To 100 km/h: 11.0
Maximum Speed (km/h): 170
Maximum Speed (mph): 106
Power
Maximum Power (hp/PS): 122
Maximum Power hp/PS Electric Motor: 72
Maximum Power (kW): 90
Maximum Power kW Electric Motor: 53
Maximum Torque Electric Motor (Nm): 163
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5200
Secondary Power
Maximum Power (hp/PS): 98
Maximum Power (kW): 72
Maximum Torque (Nm): 142
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 3600
Drive
Driven Wheels: Front
Transmission
Code: P610
Description: Continuously Variable With Manual Mode
Manual Mode: yes
Manufacturer Name: Ecvt
Number of Speeds: Variable
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Painted Calipers: yes
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 92
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Hatchback
Local Body Type: SUV
Platform Code: Ga-C
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Rear Seat Up to Lower Window (cu ft): 11.2
Rear Seat Up to Lower Window (L): 318
External Dimensions
Kerb to Kerb Turning Circle (mm): 10400
Front Track (in): 61.0
Front Track (mm): 1550
Ground Clearance Unladen (in): 4.9
Ground Clearance Unladen (mm): 125
Kerb To Kerb Turning Circle (ft): 34.1
Overall Height (in): 61.0
Overall Height (mm): 1550
Overall Length (in): 173.0
Overall Length (mm): 4395
Overall Width (in): 70.7
Overall Width (mm): 1795
Rear Track (in): 61.0
Rear Track (mm): 1550
Wall to Wall Turning Circle (ft): 36.1
Wall to Wall Turning Circle (mm): 11000
Wheelbase (in): 103.9
Wheelbase (mm): 2640
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 1860
Gross Vehicle Weight (lb): 4101
Published Kerb Weight (kg): 1460
Published Kerb Weight (lb): 3219
Tare Weight (kg): 1435
Trailer Noseweight (kg): 0
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Alloy Look
Instrument Panel: Piano Black
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 87.0
ANCAP Child Occupant Score: 77.0
ANCAP Date Tested: 20170227
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 65.0
ANCAP Rating Year: 2017
ANCAP Safety Assist Score: 68.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Engine Heater: yes
Ion Filtering: yes
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
