Tata Xenon Base (2017) price & specs
Base
Overview

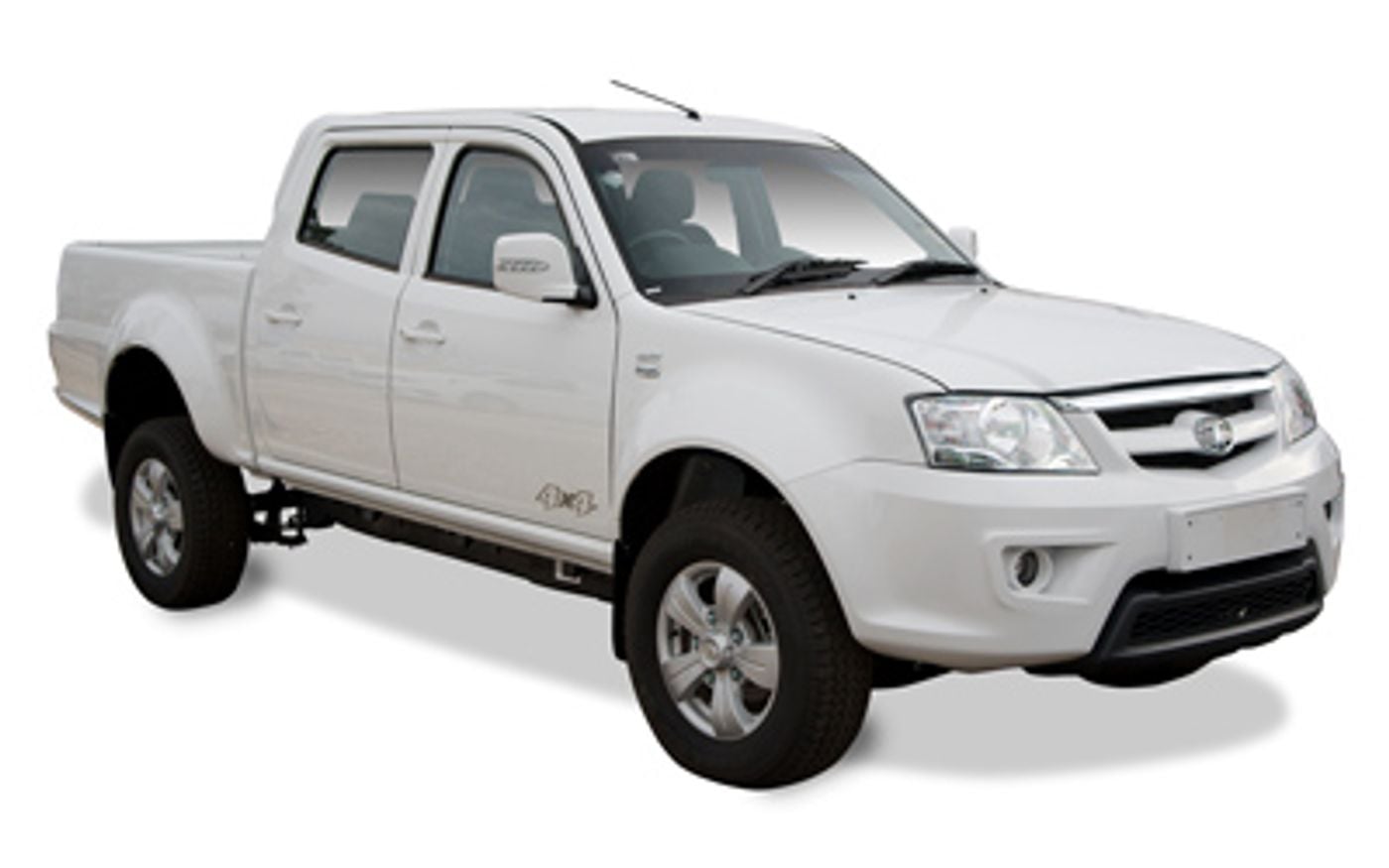

The 2017 Tata Xenon Base is a rear-wheel drive, 4-door Utility that was released to the Australian market on 1st November 2017. The Tata Xenon is regarded as a Pickup built in India with prices starting at $26,990 before on-road costs.
This Tata Xenon is powered by a 2.2L 4-cylinder engine that has 110 kW of power (at 4000 rpm) and 320 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Tata claims the Xenon Base uses 7.4L/100km of Diesel in the combined city and highway cycle while putting out 196g of CO2. It has a 70L fuel tank, meaning it should be able to travel 946km per full tank
The Tata Xenon measures 1803mm (71.0 inches) in height, 5312mm (209.1 inches) in length, 1860mm (73.2 inches) in width with a 3170mm (124.8 inches) wheelbase that brings about a total of 1929kg (4252.7 lbs) of unladen weight. The Xenon Base comes standard with 235/70 R16 front tyres and 235/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 48 month, 100,000 km warranty.
The 2017 Tata Xenon Base has a 210mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Xenon compare?
Quickly see how the 2017 Tata Xenon Base stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,312 mm |
| Overall Width | 1,860 mm |
| Overall Height | 1,803 mm |
| Wheelbase | 3,170 mm |
| Turning Circle | 12,700 mm |
| Load Capacity | 1,071 mm |
Looking for complete Tata Xenon size & space specs?
Our Tata Xenon Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Tata Xenon Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 196
Standard Met: EU5
Engine
Bore Engine: 85.0
Engine (cc): 2179
Engine Configuration: In-Line
Engine Code: 2.2l Dicor 12
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 946
ADR 81/02 Calculated Vehicle Range (miles): 588
ADR 81/02 Combined (km/L): 13.5
ADR 81/02 Combined (L/100km): 7.4
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 32
ADR 81/02 Country Highway (km/L): 15.4
ADR 81/02 Country Highway (L/100km): 6.5
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.1
ADR 81/02 Urban (L/100km): 9.0
ADR 81/02 Urban (miles per UK gallon): 31
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 7.4
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 320
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Description: Automatic
Number of Speeds: 6
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 105
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: Xenon
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Tray/Tub
Liner: Composite
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Height (in): 16.0
Height (mm): 1412
Length (in): 62.4
Length (mm): 1585
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 55.5
Width Between Wheelhouses (mm): 1410
Width (in): 55.6
Width (mm): 1412
External Dimensions
Kerb to Kerb Turning Circle (mm): 12700
Front Track (in): 61.9
Front Track (mm): 1571
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 210
Kerb To Kerb Turning Circle (ft): 41.7
Overall Height (in): 71.0
Overall Height (mm): 1803
Overall Length (in): 209.1
Overall Length (mm): 5312
Overall Width (in): 73.2
Overall Width (mm): 1860
Rear Overhang (in): 43.5
Rear Overhang (mm): 1105
Rear Track (in): 61.9
Rear Track (mm): 1571
Wheelbase (in): 124.8
Wheelbase (mm): 3170
Cargo Doors
Location: Rear
Rear Operation: Dropping Gate
Rear Width (in): 55.5
Rear Width (mm): 1410
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Silver
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Includes Rear View Camera: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3000
Gross Vehicle Weight (lb): 6614
Payload Allowance (kg): 1090
Payload Allowance (lb): 2403
Published Kerb Weight (kg): 1929
Published Kerb Weight (lb): 4253
Tare Weight (kg): 1861
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
iPod Connection (Front): yes
USB (Front): yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Display Screen
Screen Size (in): 7.0
Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 2
Crash Test Results
ANCAP Date Tested: 20130101
ANCAP Overall: 4.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Diesel 4x2 Dual Cab With Esc
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
