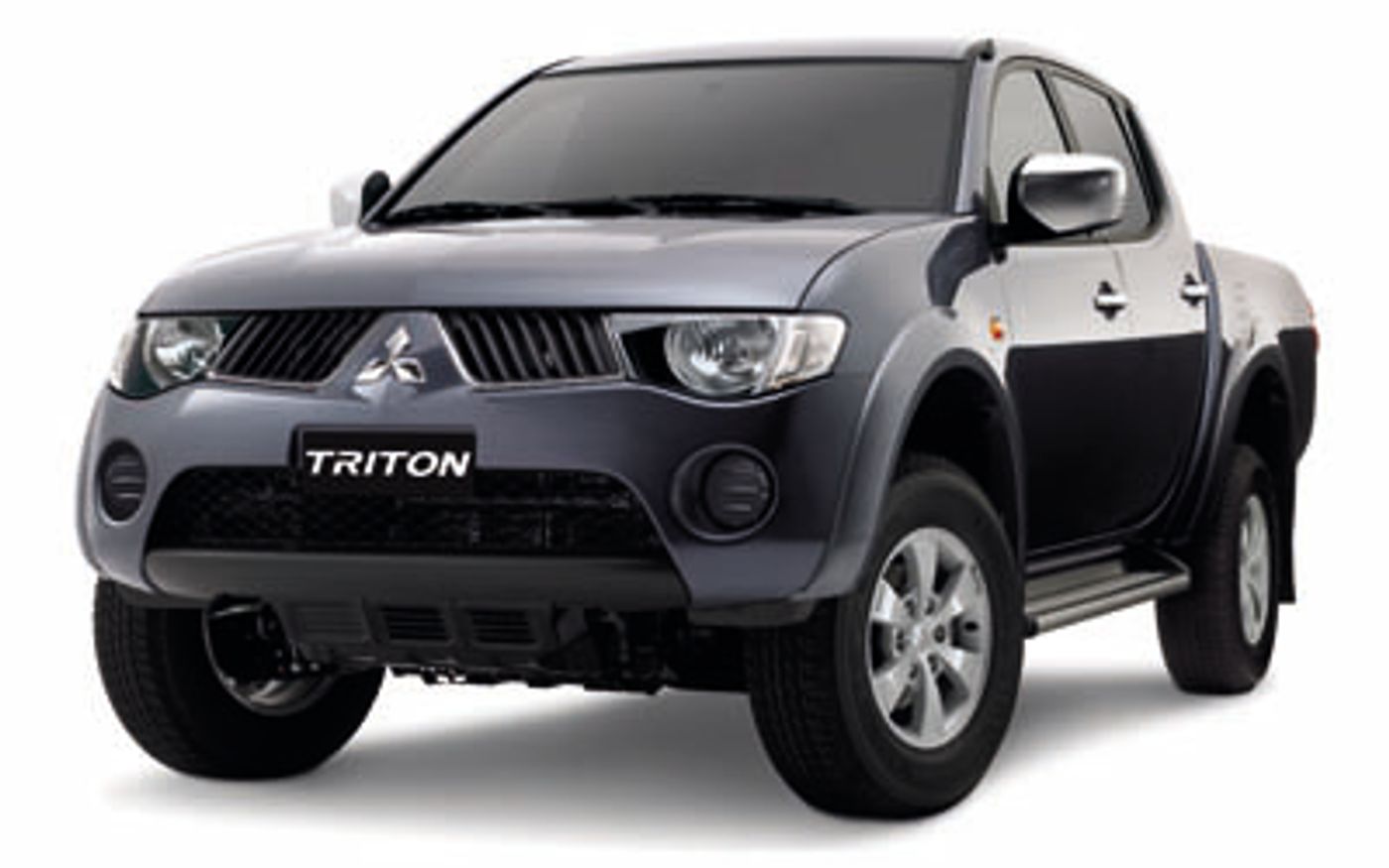

Mitsubishi Triton VR (2009) price & specs
Overview
The 2009 Mitsubishi Triton VR is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a ML. The Mitsubishi Triton is regarded as a Pickup built in Thailand with prices starting at $45,990 before on-road costs.
This Mitsubishi Triton is powered by a 3.2L 4-cylinder engine that has 118 kW of power (at 3800 rpm) and 343 Nm of torque (at 2000 rpm) via a Four-speed Automatic transmission. Mitsubishi claims the Triton VR uses 9.9L/100km of Diesel in the combined city and highway cycle while putting out 261g of CO2. It has a 75L fuel tank, meaning it should be able to travel 758km per full tank
The Mitsubishi Triton measures 1780mm (70.1 inches) in height, 5070mm (199.6 inches) in length, 1800mm (70.9 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1960kg (4321.1 lbs) of unladen weight. The Triton VR comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It has a 60 month, 130,000 km warranty.
The 2009 Mitsubishi Triton VR has a 205mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Triton compare?
Quickly see how the 2009 Mitsubishi Triton VR stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,070 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,780 mm |
| Wheelbase | 3,000 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 980 mm |
Looking for complete Mitsubishi Triton size & space specs?
Our Mitsubishi Triton Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mitsubishi Triton Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 261
Standard Met: EU4
Engine
Bore Engine: 98.5
Engine (cc): 3200
Compression Ratio: 17
Engine Configuration: In-Line
Engine Code: 4m41
Engine (L): 3.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 105
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (L/100km): 9.9
ADR 81/02 Combined (mpg): 24
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 9.9
Power
Maximum Power (hp/PS): 160
Maximum Power (kW): 118
Maximum Torque (Nm): 343
Measurement Standard: DIN
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 2000
Differential Lock
Location: Centre
Location: Rear
Drive
Assisted Four-Wheel Drive Selection: yes
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selectable While Driving: yes
Selection: Manual
Speed Limited Manual Only: yes
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Rear Type: Viscous
Transmission
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 4
Type: Automatic
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: ?
Front Wheels Tire Load Index: 111
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Load Index: 111
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7
Body Style
Body Type: Utility
Cab Type: Double Cab
Driver Location: RHD
Local Body Type: Utility
Platform Code: CK
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Side
Side Step Type: Platform
Load Restraint
Type: Hooks
Tray/Tub
Type: Straight Side
Cargo Area Dimensions
Height (in): 15.9
Height (mm): 1470
Length (in): 52.2
Length (mm): 1325
Loading Floor Height (in): 33.3
Loading Floor Height (mm): 845
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 42.7
Width Between Wheelhouses (mm): 1085
Width (in): 57.9
Width (mm): 1470
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 59.8
Front Track (mm): 1520
Ground Clearance Unladen (in): 8.1
Ground Clearance Unladen (mm): 205
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 70.1
Overall Height (mm): 1780
Overall Length (in): 199.6
Overall Length (mm): 5070
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Track (in): 59.6
Rear Track (mm): 1515
Wheelbase (in): 118.1
Wheelbase (mm): 3000
Ramp Angles
Approach Angle: 33
Departure Angle: 29
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Doors
Location: Rear
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 1
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1260
Front Axle Weight (lb): 2778
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5200
Gross Train Weight (lb): 11464
Gross Vehicle Weight (kg): 2940
Gross Vehicle Weight (lb): 6482
Payload Allowance (kg): 980
Payload Allowance (lb): 2161
Published Kerb Weight (kg): 1960
Published Kerb Weight (lb): 4321
Rear Axle Weight (kg): 1800
Rear Axle Weight (lb): 3968
Antenna
Type: Pillar
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 4
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Instrument Panel: Alloy Look
Crash Test Results
ANCAP Adult Occupant: 4
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Location: Driver
Driver Front Seat Reclining: yes
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 7500
Distance (miles): 4660
