Mercedes-Benz Sprinter Base (2006) price & specs
Base
Overview

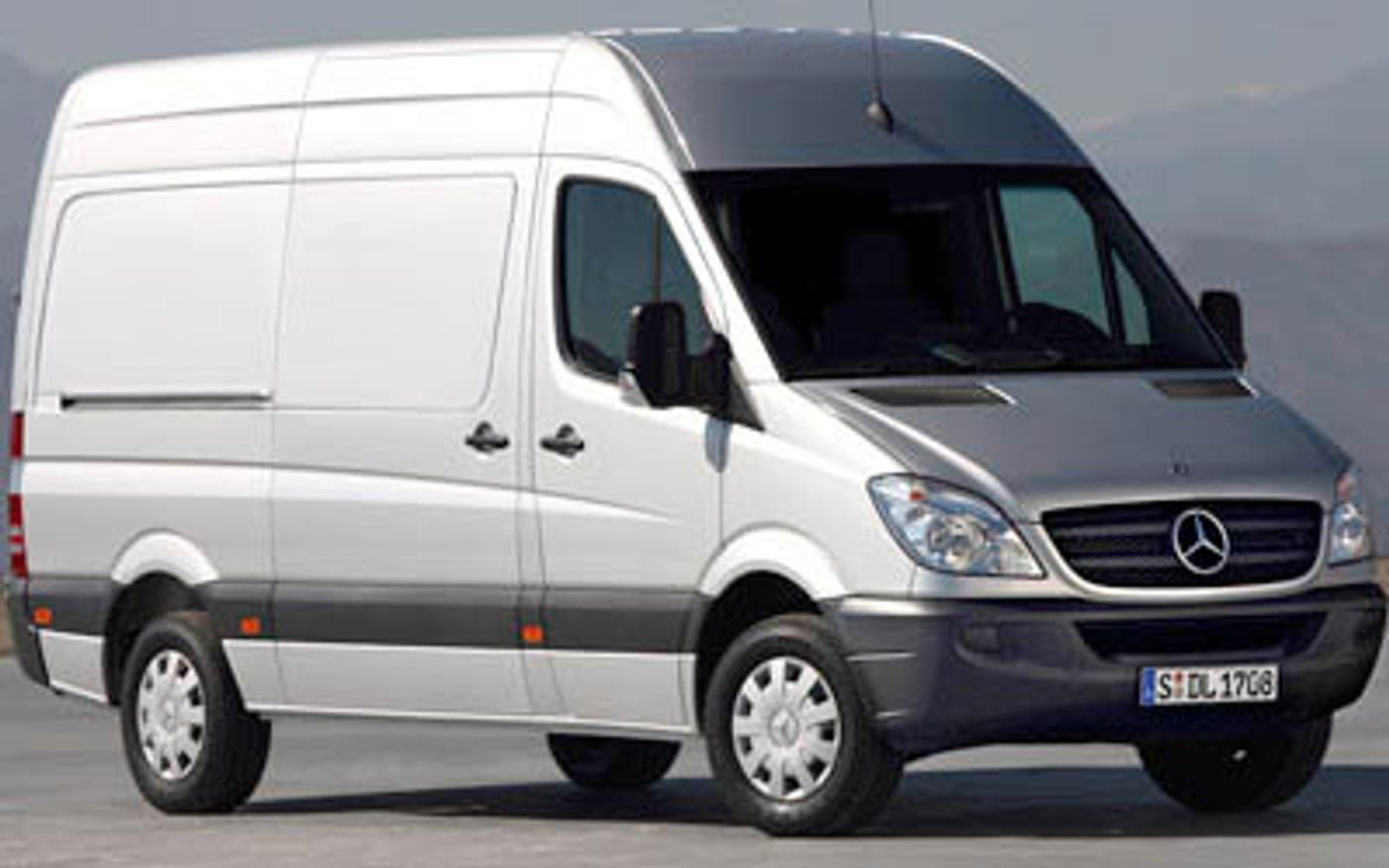

The 2006 Mercedes-Benz Sprinter Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Mercedes-Benz Sprinter is regarded as a Van Over 3.5t built in Germany with prices starting at $53,050 before on-road costs.
This Mercedes-Benz Sprinter is powered by a 3L 6-cylinder engine that has 135 kW of power (at 3800 rpm) and 400 Nm of torque (at 1600 rpm) via a Five-speed Automatic transmission. It has a 75L fuel tank
The Mercedes-Benz Sprinter measures 2435mm (95.9 inches) in height, 5910mm (232.7 inches) in length, 1993mm (78.5 inches) in width with a 3665mm (144.3 inches) wheelbase that brings about a total of 2055kg (4530.5 lbs) of unladen weight. The Sprinter Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Sprinter compare?
Quickly see how the 2006 Mercedes-Benz Sprinter Base stacks up against its competition.
 Select any benchmark to see more details.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,910 mm |
| Overall Width | 1,993 mm |
| Overall Height | 2,435 mm |
| Wheelbase | 3,665 mm |
| Turning Circle | 13,600 mm |
| Load Capacity | 1,495 mm |
Looking for complete Mercedes-Benz Sprinter size & space specs?
Our Mercedes-Benz Sprinter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz Sprinter Features & Specs
Cigar Lighter
Location: Front Seats
Cruise Control
Speed Limiter: yes
Power Outlet 12V
Location (12V): Boot/Cargo
Number of Outlets in Boot Cargo (12V): 1
Location (12V): Front
Number of Outlets in Front (12V): 2
Compressor
Compressor: Turbo
Engine
Bore Engine: 83
Engine (cc): 2987
Compression Ratio: 18
Engine Configuration: V
Engine Code: Mc 4
Engine (L): 3
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 92
Valve Gear Type: Double Overhead Cam
Interested in buying a Mercedes-Benz Sprinter Base?
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
AS 2877 Standard: As 2877
Power
Maximum Power (hp/PS): 184
Maximum Power (kW): 135
Maximum Torque (Nm): 400
Measurement Standard: EEC
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Rear
Transmission
Description: Automatic
Number of Speeds: 5
Type: Automatic
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Alternate Suspension
Type: Heavy Duty
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: ?
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 317.8
Cargo Volume (L): 9000
Height (in): 65
Height (mm): 1780
Length (in): 128.5
Length (mm): 3265
Loading Floor Height (in): 27
Loading Floor Height (mm): 685
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 53.1
Width Between Wheelhouses (mm): 1350
Width (in): 70.1
Width (mm): 1780
External Dimensions
Kerb to Kerb Turning Circle (mm): 13600
Kerb To Kerb Turning Circle (ft): 44.6
Overall Height (in): 95.9
Overall Height (mm): 2435
Overall Length (in): 232.7
Overall Length (mm): 5910
Overall Width (in): 78.5
Overall Width (mm): 1993
Rear Overhang (in): 48.8
Rear Overhang (mm): 1240
Rear Track (in): 61.6
Rear Track (mm): 1565
Wheelbase (in): 144.3
Wheelbase (mm): 3665
Cargo Doors
Driver Internal Handles: yes
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Passenger Height (in): 59.8
Passenger Height (mm): 1520
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 51.2
Passenger Width (mm): 1300
Rear Height (in): 60.6
Rear Height (mm): 1540
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 61.6
Rear Width (mm): 1565
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Directional Headlights: yes
Dusk Sensor: yes
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Third Row Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1650
Front Axle Weight (lb): 3638
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3550
Gross Vehicle Weight (lb): 7826
Payload Allowance (kg): 1495
Payload Allowance (lb): 3296
Published Kerb Weight (kg): 2055
Published Kerb Weight (lb): 4531
Rear Axle Weight (kg): 2250
Rear Axle Weight (lb): 4960
Antenna
Type: Roof
Audio Anti-Theft Protection
Type: Code
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Floor Covering
Load Area: Wood
Vehicle Cab Compartment: Plastic/Rubber
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Adjustable: yes
Center Front Seat Armrest Folding: yes
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
