Base
Overview

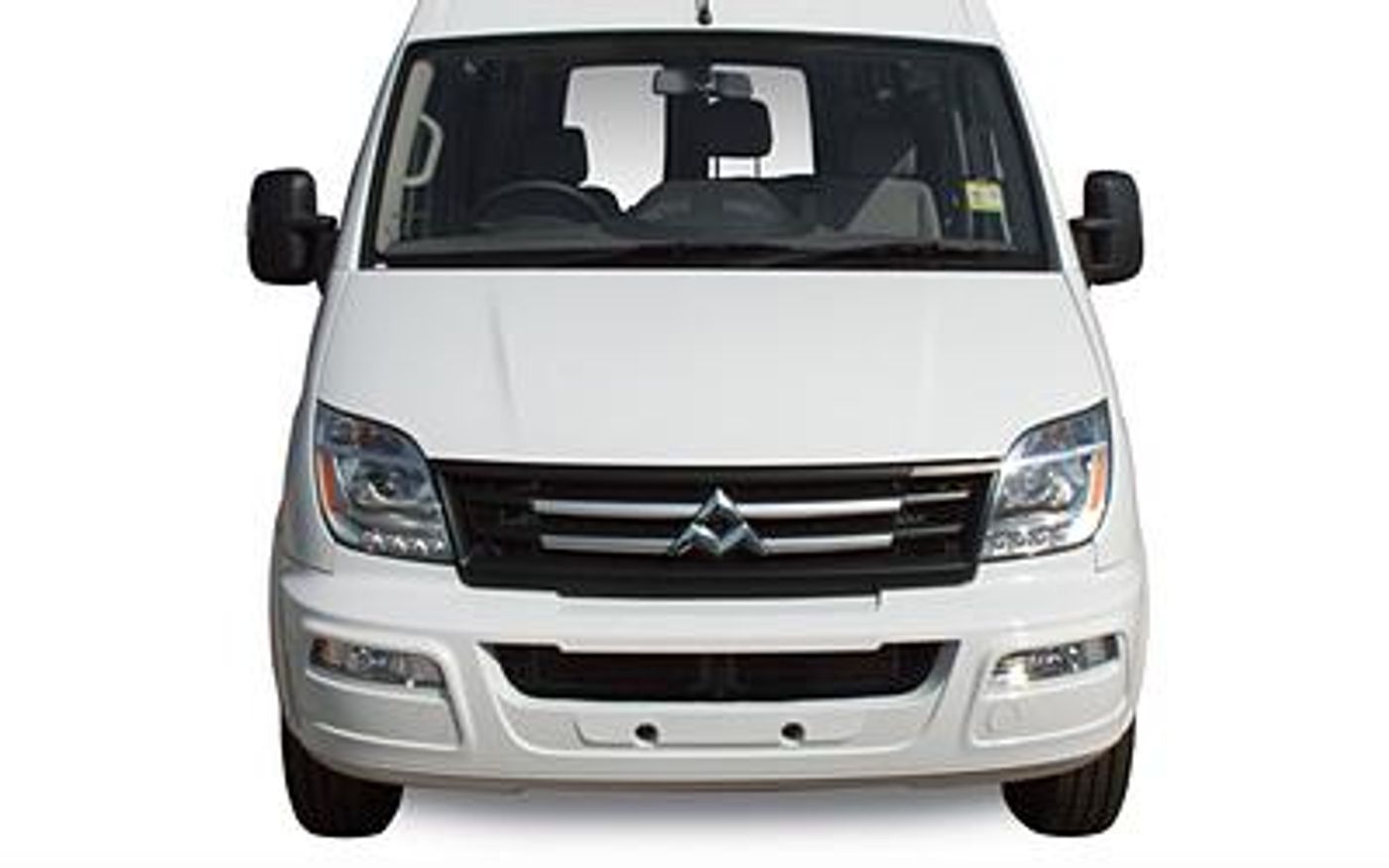

The 2016 LDV V80 Base is a front-wheel drive, 2-door Cab Chassis that was released to the Australian market on 5th April 2016. The LDV V80 is regarded as a Van Under 3.5t built in China and when it was new had prices starting at .
This LDV V80 is powered by a 2.5L 4-cylinder engine that has 100 kW of power (at 3800 rpm) and 330 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. LDV claims the V80 Base uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out 233g of CO2. It has a 80L fuel tank, meaning it should be able to travel 899km per full tank
It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2016 LDV V80 Base has a 234mm ground clearance with a 1200kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the V80 compare?
Quickly see how the 2016 LDV V80 Base stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,620 mm |
| Overall Width | 1,996 mm |
| Overall Height | 2,136 mm |
| Wheelbase | 3,850 mm |
| Turning Circle | 14,800 mm |
| Load Capacity | 1,700 mm |
Looking for complete LDV V80 size & space specs?
Our LDV V80 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore LDV V80 Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 233
Standard Met: EU4
Engine
Bore Engine: 92.0
Engine (cc): 2499
Engine Configuration: In-Line
Engine Code: Sc25r136q4
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 899
ADR 81/02 Calculated Vehicle Range (miles): 559
ADR 81/02 Combined (km/L): 11.2
ADR 81/02 Combined (L/100km): 8.9
ADR 81/02 Combined (miles per UK gallon): 32
ADR 81/02 Combined (mpg): 26
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.9
Power
Maximum Power (hp/PS): 136
Maximum Power (kW): 100
Maximum Torque (Nm): 330
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Rear Wheels Tire Location: Rear
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Cab Chassis
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 14800
Front Overhang (in): 33.6
Front Overhang (mm): 854
Ground Clearance Unladen (in): 9.2
Ground Clearance Unladen (mm): 234
Kerb To Kerb Turning Circle (ft): 48.6
Overall Height (in): 84.1
Overall Height (mm): 2136
Overall Length (in): 221.3
Overall Length (mm): 5620
Overall Width (in): 78.6
Overall Width (mm): 1996
Rear Overhang (in): 36.1
Rear Overhang (mm): 916
Wheelbase (in): 151.6
Wheelbase (mm): 3850
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3500
Gross Vehicle Weight (lb): 7716
Kerb Weight Inc Driver (kg): 1800
Kerb Weight Inc Driver (lb): 3968
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 1700
Payload Allowance (lb): 3748
Published Kerb Weight (kg): 1800
Published Kerb Weight (lb): 3968
Tare Weight (kg): 1741
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
