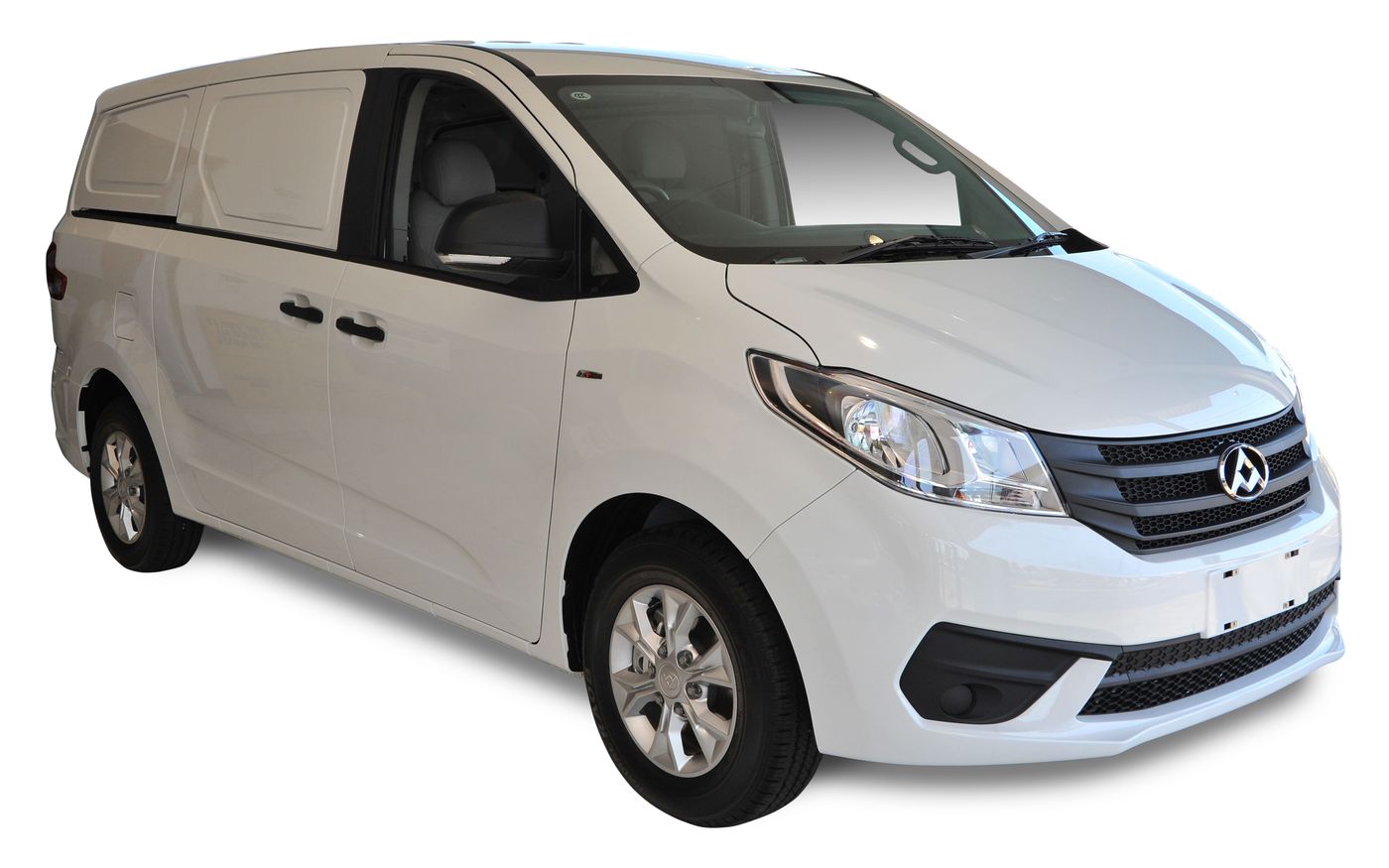

LDV G10 Base (2024) price & specs
Save $$$ with CarExpert*
From
$37,358â€
Base
Overview
The 2024 LDV G10 Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 3rd February 2024 classified as a Sv7c. The LDV G10 is regarded as a Van Under 3.5t built in China with prices starting at $37,358 before on-road costs.
This LDV G10 is powered by a 2.0L 4-cylinder engine that has 119 kW of power (at 4000 rpm) and 375 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. LDV claims the G10 Base uses 8.2L/100km of Diesel in the combined city and highway cycle while putting out 216g of CO2. It has a 72L fuel tank, meaning it should be able to travel 878km per full tank
The LDV G10 measures 1928mm (75.9 inches) in height, 5168mm (203.5 inches) in length, 1980mm (78.0 inches) in width with a 3198mm (125.9 inches) wheelbase that brings about a total of 2042kg (4501.8 lbs) of unladen weight. The G10 Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2024 LDV G10 Base has a 134mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the G10 compare?
Quickly see how the 2024 LDV G10 Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.71 - 81.55 kW/t
35.8 kW/t
81.55 kW/t
Fuel Efficiency
8.2 - 11.1 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
649 - 878 km
649 km
1,231 km
Price
$37,358 - $39,463
$37,358
$136,898
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
5 years
1 year
6 years
Service Interval
12 months
6 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,000 kg
1,970 kg
4,050 kg
Gross Comb. Mass
4,750 - 5,000 kg
3,470 kg
5,725 kg
Braked Towing Capacity
1,000 - 1,500 kg
750 kg
2,500 kg
Ground Clearance Unladen
134 mm
134 mm
202 mm
Payload Capacity
1,010 - 1,093 kg
523 kg
1,350 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,168 mm
1,980 mm
inc mirror: 1,980 mm
inc mirror: 1,980 mm
1,928 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,168 mm |
| Overall Width | 1,980 mm |
| Overall Width (Inc Mirror) | 1,980 mm |
| Overall Height | 1,928 mm |
| Wheelbase | 3,198 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 958 mm |
Looking for complete LDV G10 size & space specs?
Our LDV G10 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore LDV G10 Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 183
CO2 Level (Combined): 216
CO2 Level (Urban): 273
Standard Met: EU5
Engine
Engine (cc): 1996
Engine Configuration: In-Line
Engine Code: Sc20m163q5a
Engine (L): 2.0
Number of Cylinders: 4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 19.0
Main Capacity (L): 72
Main Capacity Uk Gallons: 15.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 7.00
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 878
ADR 81/02 Calculated Vehicle Range (miles): 546
ADR 81/02 Combined (km/L): 12.2
ADR 81/02 Combined (L/100km): 8.2
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.3
ADR 81/02 Country Highway (L/100km): 7.0
ADR 81/02 Country Highway (miles per UK gallon): 40
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.6
ADR 81/02 Urban (L/100km): 10.4
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 8.2
Power
Maximum Power (hp/PS): 162
Maximum Power (kW): 119
Maximum Torque (Nm): 375
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Transmission
Description: Manual
Number of Simulated Gears: 0
Number of Speeds: 6
Shift Lever Location: Dash
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 108
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 183.6
Cargo Volume (L): 5200
Height (in): 50.0
Height (mm): 1590
Length (in): 93.1
Length (mm): 2365
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 50.3
Width Between Wheelhouses (mm): 1278
Width (in): 62.6
Width (mm): 1590
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 66.1
Front Track (mm): 1680
Ground Clearance Unladen (in): 5.3
Ground Clearance Unladen (mm): 134
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 75.9
Overall Height (mm): 1928
Overall Length (in): 203.5
Overall Length (mm): 5168
Overall Width (in): 78.0
Overall Width Inc Mirror (in): 78.0
Overall Width Inc Mirror (mm): 1980
Overall Width (mm): 1980
Rear Track (in): 65.4
Rear Track (mm): 1660
Wheelbase (in): 125.9
Wheelbase (mm): 3198
Cargo Doors
Driver Height (in): 45.9
Driver Height (mm): 1165
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 32.3
Driver Width (mm): 820
Passenger Height (in): 45.9
Passenger Height (mm): 1165
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 32.3
Passenger Width (mm): 820
Rear Height (in): 46.4
Rear Height (mm): 1179
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Rear Width (in): 53.9
Rear Width (mm): 1370
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1370
Front Axle Weight (lb): 3020
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5000
Gross Train Weight (lb): 11023
Gross Vehicle Weight (kg): 3000
Gross Vehicle Weight (lb): 6614
Kerb Weight Inc Driver (kg): 2042
Kerb Weight Inc Driver (lb): 4502
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 1015
Payload Allowance (lb): 2238
Published Kerb Weight (kg): 2042
Published Kerb Weight (lb): 4502
Rear Axle Weight (kg): 1630
Rear Axle Weight (lb): 3594
Tare Weight (kg): 2005
Audio System
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Total 3rd Row USB Connections: 0
Total Front USB Connections: 0
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Entertainment Display Screen
Location: Front
Mobile Integration
Android Number of Months Subscription: 0
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Load Area Side Covering
Exposed Metal: Partial
Type: Plastic/Rubber
Luxury Trim
Doors: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Vinyl
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
