Sport Plus
3.2L, 5-speed manual, 5-door SUV, Petrol, 4x4
Save $$$ with CarExpert*
$39,500â€
Sport Plus
Overview

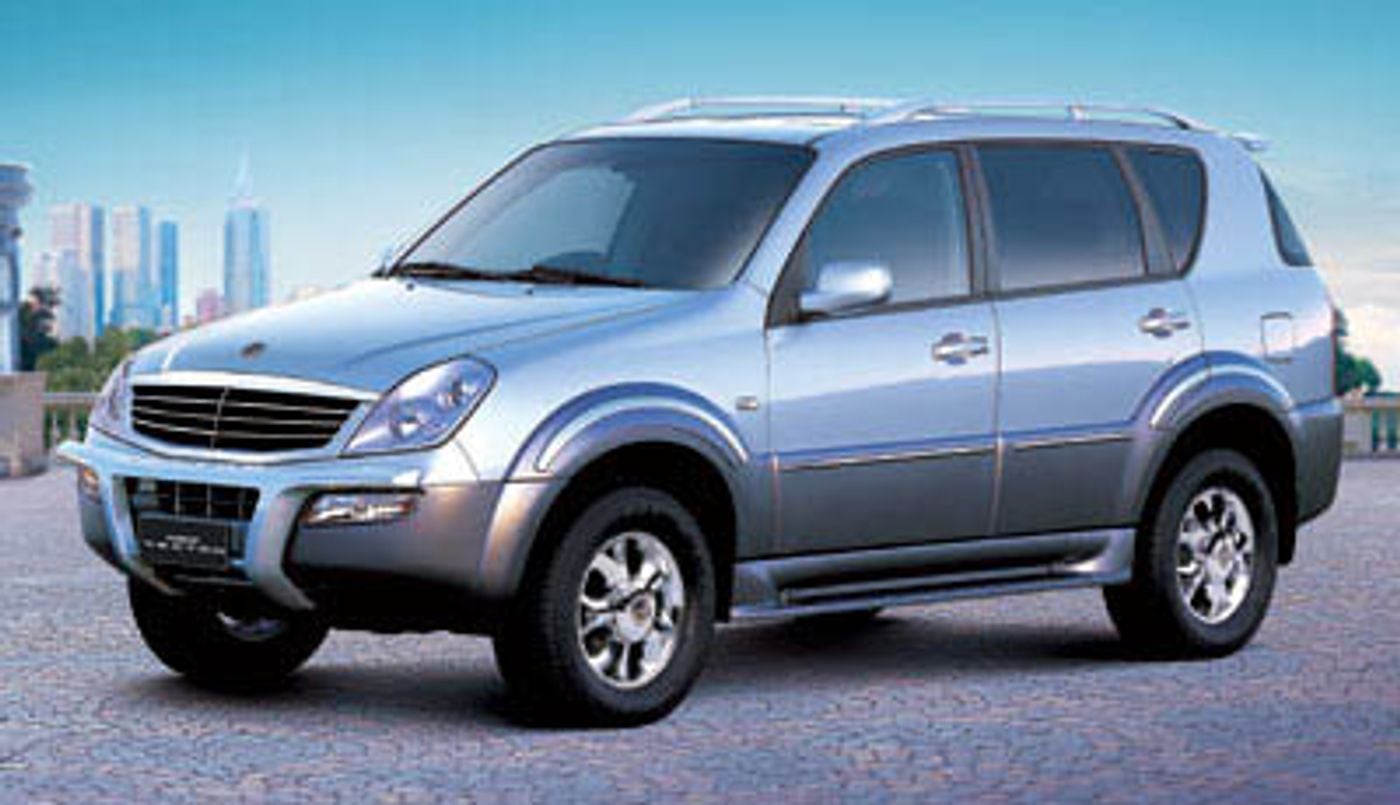

The 2004 KGM Rexton Sport Plus is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The KGM Rexton is regarded as a small SUV built in Korea with prices starting at $39,500 before on-road costs.
This KGM Rexton is powered by a 3.2L 6-cylinder engine that has 162 kW of power (at 6100 rpm) and 312 Nm of torque (at 4600 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The KGM Rexton measures 1760mm (69.3 inches) in height, 4720mm (185.8 inches) in length, 1870mm (73.6 inches) in width with a 2820mm (111.0 inches) wheelbase that brings about a total of 1851kg (4080.8 lbs) of unladen weight. The Rexton Sport Plus comes standard with 255/65 R16 front tyres and 255/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2004 KGM Rexton Sport Plus has a 200mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Rexton compare?
Quickly see how the 2004 KGM Rexton Sport Plus stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.32 - 87.52 kW/t
45.52 kW/t
108.77 kW/t
Price
$36,500 - $52,990
$29,990
$52,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
2,550 kg
1,860 kg
3,050 kg
Braked Towing Capacity
2,270 - 3,500 kg
900 kg
3,500 kg
Approach Angle
28.5°
21.4°
51°
Departure Angle
25°
21.2°
49°
Ground Clearance Unladen
200 mm
170 mm
229 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,720 mm
1,870 mm
1,760 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,720 mm |
| Overall Width | 1,870 mm |
| Overall Height | 1,760 mm |
| Wheelbase | 2,820 mm |
| Turning Circle | 11,200 mm |
| Load Capacity | 699 mm |
Looking for complete KGM Rexton size & space specs?
Our KGM Rexton Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore KGM Rexton Features & Specs
Engine
Bore Engine: 89.9
Engine (cc): 3199
Compression Ratio: 10
Engine Configuration: In-Line
Engine Code: E32
Engine (L): 3.2
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 84
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Fuel Type: Unleaded
Main Type: Total
Performance
Maximum Speed (km/h): 190
Maximum Speed (mph): 118
Power
Maximum Power (hp/PS): 220
Maximum Power (kW): 162
Maximum Torque (Nm): 312
Measurement Standard: EEC
Rpm For Maximum Power Low: 6100
Rpm For Maximum Torque Low: 4600
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Description: Manual
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: T
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7
Body Style
Body Type: SUV
Driver Location: RHD
Local Body Type: SUV
Mud Flaps
Rear Mud Flaps Location: Rear
Non-Corrosive Body
Non-Corrosive Panel Location: Part
Non-Corrosive Panel Type: Galvanised
Step
Step Location: Side
Side Step Type: Platform
Underbody Protection
Location: Engine
Location: Fuel Tank
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 61
Front Track (mm): 1550
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 200
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 69.3
Overall Height (mm): 1760
Overall Length (in): 185.8
Overall Length (mm): 4720
Overall Width (in): 73.6
Overall Width (mm): 1870
Rear Track (in): 60.6
Rear Track (mm): 1540
Wheelbase (in): 111
Wheelbase (mm): 2820
Ramp Angles
Approach Angle: 28.5
Departure Angle: 25
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 1
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2550
Gross Vehicle Weight (lb): 5622
Published Kerb Weight (kg): 1851
Published Kerb Weight (lb): 4081
Antenna
Type: Electric
Audio System
Cassette Player: yes
In-Dash CD: yes
Radio Type: Am/Fm
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Load Restraint
Type: Hooks
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Reading Lights
Location: Front
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood Or Woodlook
Instrument Panel: Wood Or Woodlook
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Upgraded Cloth/Velour
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 5
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Front Seats Type: Pop Out
Location: Rear Seats
Rear Seats Type: Pop Out
Seat Back Storage
Location: Front
Air Conditioning
Climate Control - Number of Zones: 1
Fully Automated Climate Control: yes
Rear Outlet: yes
Ventilation System
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
