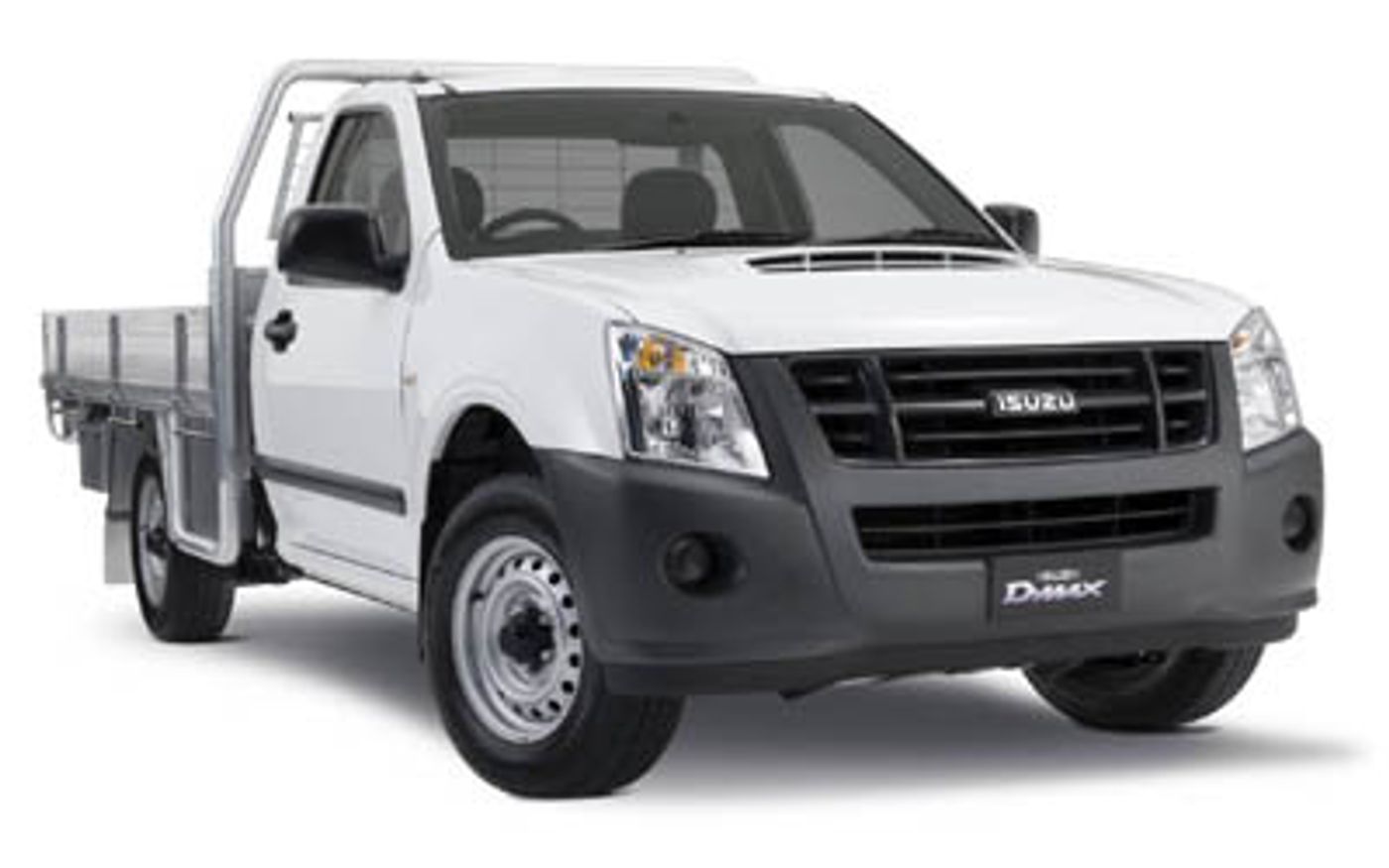

Isuzu D-Max SX (2009) price & specs
Overview
The 2009 Isuzu D-Max SX is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $23,300 before on-road costs.
This Isuzu D-Max is powered by a 3L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 360 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Isuzu claims the D-Max SX uses 7.9L/100km of Diesel in the combined city and highway cycle while putting out 208g of CO2. It has a 76L fuel tank, meaning it should be able to travel 962km per full tank
The Isuzu D-Max measures 1635mm (64.4 inches) in height, 5025mm (197.8 inches) in length, 1720mm (67.7 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1505kg (3318.0 lbs) of unladen weight. The D-Max SX comes standard with 215/70 R15 front tyres and 215/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Isuzu D-Max SX has a 195mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the D-Max compare?
Quickly see how the 2009 Isuzu D-Max SX stacks up against its competition.
Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,025 mm |
| Overall Width | 1,720 mm |
| Overall Height | 1,635 mm |
| Wheelbase | 3,200 mm |
| Turning Circle | 12,400 mm |
| Load Capacity | 1,295 mm |
Looking for complete Isuzu D-Max size & space specs?
Our Isuzu D-Max Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Isuzu D-Max Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 208
Standard Met: EU4
Engine
Bore Engine: 95.4
Engine (cc): 2999
Compression Ratio: 17.5
Engine Configuration: In-Line
Engine Code: 4jj1-Tc
Engine (L): 3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.9
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (L/100km): 7.9
ADR 81/02 Combined (mpg): 30
ADR 81/02 Country Highway (L/100km): 6.5
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (L/100km): 10.4
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 7.9
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 360
Measurement Standard: DIN
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Transmission
Description: Manual
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: yes
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Extra Load
Front Wheels Tire Width: 215
Rear Wheels Tire Extra Load: yes
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Extra Load
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12400
Front Overhang (in): 30.3
Front Overhang (mm): 770
Front Track (in): 57.5
Front Track (mm): 1460
Ground Clearance Unladen (in): 7.7
Ground Clearance Unladen (mm): 195
Kerb To Kerb Turning Circle (ft): 40.7
Overall Height (in): 64.4
Overall Height (mm): 1635
Overall Length (in): 197.8
Overall Length (mm): 5025
Overall Width (in): 67.7
Overall Width (mm): 1720
Rear Overhang (in): 41.5
Rear Overhang (mm): 1055
Rear Track (in): 57.5
Rear Track (mm): 1460
Wheelbase (in): 126
Wheelbase (mm): 3200
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 1
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2800
Gross Vehicle Weight (lb): 6173
Payload Allowance (kg): 1295
Payload Allowance (lb): 2855
Published Kerb Weight (kg): 1505
Published Kerb Weight (lb): 3318
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Adult Occupant: 3
ANCAP Pedestrian: 1
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Location: Driver
Driver Front Seat Reclining: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
