Trialmaster Edition
3.0L, 8-speed auto, 5-door SUV, Diesel, 4x4
Save $$$ with CarExpert*
$109,525â€

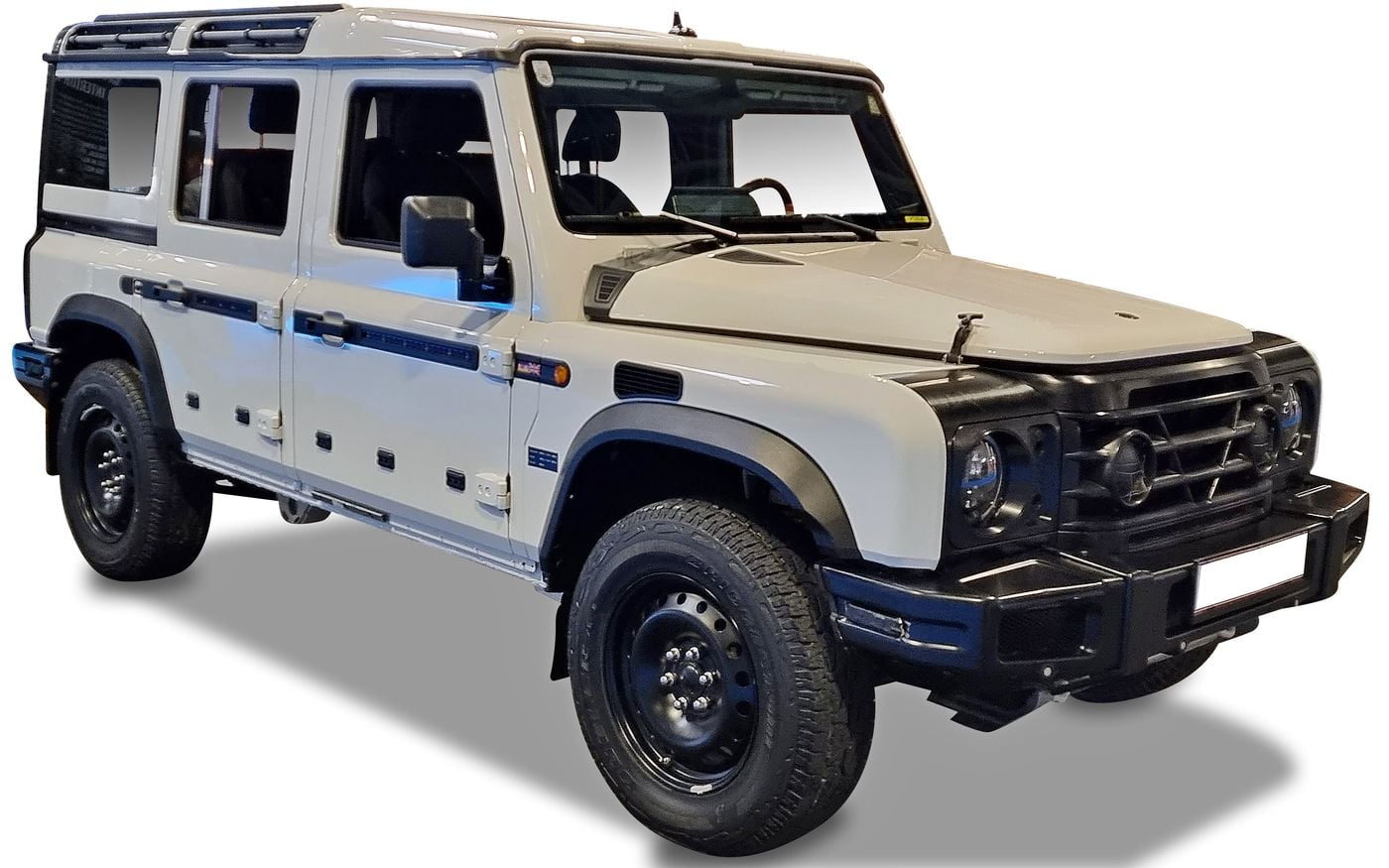

Ineos Grenadier Trialmaster Edition (2023) price & specs
From
$109,525â€
Save thousands with CarExpert*
Trialmaster Edition
Overview
The 2023 Ineos Grenadier Trialmaster Edition is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th November 2022. The Ineos Grenadier is regarded as a large SUV built in France with prices starting at $109,525 before on-road costs.
This Ineos Grenadier is powered by a 3.0L 6-cylinder engine that has 183 kW of power (at 3250 rpm) and 550 Nm of torque (at 1250 rpm) via an Eight-speed Automatic transmission. Ineos claims the Grenadier Trialmaster Edition uses 10.1L/100km of Diesel in the combined city and highway cycle while putting out 263g of CO2. It has a 90L fuel tank, meaning it should be able to travel 891km per full tank
The Ineos Grenadier measures 2036mm (80.2 inches) in height, 4856mm (191.2 inches) in length, 1930mm (76.0 inches) in width with a 2922mm (115.0 inches) wheelbase that brings about a total of 2811kg (6197.2 lbs) of unladen weight. The Grenadier Trialmaster Edition comes standard with 265/70 R17 front tyres and 265/70 R17 rear tyres. It has a 60 month, unlimited km warranty.
The 2023 Ineos Grenadier Trialmaster Edition has a 264mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Grenadier compare?
Quickly see how the 2023 Ineos Grenadier Trialmaster Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
65.1 - 79.43 kW/t
60.21 kW/t
115.27 kW/t
Boot Space
1,152 litres
131 litres
1,152 litres
Fuel Efficiency
10.1 - 13.2 L/100km
1.6 L/100km
13.2 L/100km
Vehicle Range
682 - 891 km
638 km
1,682 km
Price
$84,500 - $109,525
$36,990
$109,525
Warranty (Years)
5 years
5 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 4 years
1 year
5 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,500 - 3,550 kg
2,200 kg
3,550 kg
Gross Comb. Mass
7,000 kg
6,560 kg
7,000 kg
Braked Towing Capacity
3,500 kg
1,350 kg
3,500 kg
Approach Angle
36.2°
14.7°
36.6°
Departure Angle
36.1°
15.3°
36.1°
Breakover Angle
28.2°
15.6°
28.2°
Ground Clearance Unladen
264 mm
176 mm
317 mm
Payload Capacity
739 - 906 kg
739 kg
1,215 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,856 mm
1,930 mm
inc mirror: 2,146 mm
inc mirror: 2,146 mm
2,036 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,856 mm |
| Overall Width | 1,930 mm |
| Overall Width (Inc Mirror) | 2,146 mm |
| Overall Height | 2,036 mm |
| Wheelbase | 2,922 mm |
| Turning Circle | 13,500 mm |
| Load Capacity | 689 mm |
Looking for complete Ineos Grenadier size & space specs?
Our Ineos Grenadier Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ineos Grenadier Features & Specs
Ashtray
Location: Front
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Location: Front Seats
Driver Modes
Engine Mapping: yes
Traction Control: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 263
Standard Met: EU6
Engine
Bore Engine: 84.0
Engine (cc): 2993
Engine Configuration: In-Line
Engine Code: B57
Engine (L): 3.0
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Interested in buying a Ineos Grenadier Trialmaster Edition?
Save $$$ with CarExpert*
From
$109,525â€
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 891
ADR 81/02 Calculated Vehicle Range (miles): 554
ADR 81/02 Combined (km/L): 9.9
ADR 81/02 Combined (L/100km): 10.1
ADR 81/02 Combined (miles per UK gallon): 28
ADR 81/02 Combined (mpg): 23
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 10.1
Performance
Acceleration 0 To 100 km/h: 9.9
Maximum Speed (km/h): 160
Maximum Speed (mph): 99
Power
Maximum Power (hp/PS): 249
Maximum Power (kW): 183
Maximum Torque (Nm): 550
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3250
Rpm For Maximum Torque Low: 1250
Differential Lock
Location: Centre
Location: Front
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Code: Zf 8hp76
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Diameter: 17
Front Wheels Tire Load Index: 118
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 265
Rear Wheels Tire Diameter: 17
Rear Wheels Tire Load Index: 118
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Locking Wheel Nuts: yes
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Locking Wheel Nuts: yes
Rear Rim Diameter (In): 17
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 8.0
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 71.9
Rear Seat Down (L): 2035
Rear Seat Up to Lower Window (cu ft): 40.7
Rear Seat Up to Lower Window (L): 1152
External Dimensions
Kerb to Kerb Turning Circle (mm): 13500
Front Track (in): 64.8
Front Track (mm): 1645
Ground Clearance Unladen (in): 10.4
Ground Clearance Unladen (mm): 264
Kerb To Kerb Turning Circle (ft): 44.3
Overall Height (in): 80.2
Overall Height (mm): 2036
Overall Length (in): 191.2
Overall Length (mm): 4856
Overall Width (in): 76.0
Overall Width Inc Mirror (in): 84.5
Overall Width Inc Mirror (mm): 2146
Overall Width (mm): 1930
Rear Track (in): 64.8
Rear Track (mm): 1645
Wheelbase (in): 115.0
Wheelbase (mm): 2922
Internal Dimensions
Front Headroom (in): 39.4
Front Headroom (mm): 1001
Rear Headroom (in): 39.4
Rear Headroom (mm): 1002
Front Leg Room (in): 39.4
Front Leg Room (mm): 1000
Rear Leg Room (in): 30.2
Rear Leg Room (mm): 768
Ramp Angles
Approach Angle: 36.2
Break Over Angle: 28.2
Departure Angle: 36.1
Black Trim
Around Side Windows: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Wheelbase Type: Long
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Double Hinged
Headlight Control
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Manual
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3500
Gross Vehicle Weight (lb): 7716
Published Kerb Weight (kg): 2811
Published Kerb Weight (lb): 6197
Tare Weight (kg): 2743
Trailer Noseweight (kg): 350
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Floor Covering
Vehicle Cab Compartment: Textile
Floor Mats
Material: Textile
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Branded
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Branded
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Engine Heater: yes
Power Locks
Operation: Remote
Intermediate Service
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
