    Hyundai iLoad vs Hyundai iMax

    Comparing 2 of 3 vehicles

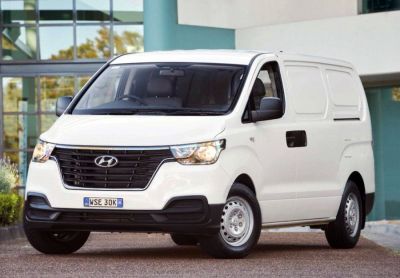

    2021 Hyundai iLoad - Base

    2021 Hyundai iLoad - Base

    2.5L, 6-speed manual, 5-door Panel Van, Diesel, RWD

    Better deals with CarExpert
    From
    $44,440†
    driveaway
    Base auto-selected
    Change variant

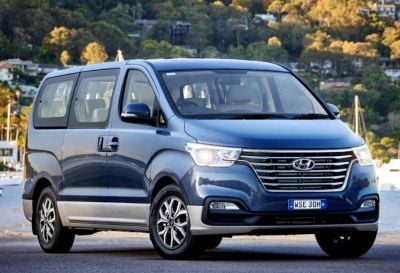

    2021 Hyundai iMax - Active

    2021 Hyundai iMax - Active

    2.5L, 5-speed auto, 5-door Mpv, Diesel, RWD

    Better deals with CarExpert
    From
    $49,101†
    driveaway
    Base auto-selected
    Change variant
    Add a vehicle

    Overview

    Variant
    —
    Variant
    Active
    Body type
    Panel Van
    Body type
    MPV
    Engine size
    2.5 L
    Engine size
    2.5 L
    Drive type
    Rear
    Drive type
    Rear
    Fuel efficiency (combined)
    7.6 / 100 km
    Fuel efficiency (combined)
    8.8 / 100 km
    Power and torque
    100kW / 343Nm
    Power and torque
    125kW / 441Nm
    987km
    852km
    Warranty
    5 years
    Warranty
    5 years
    Doors
    5
    Doors
    5
    Seats
    3
    Seats
    8
    Fuel type
    Diesel
    Fuel type
    Diesel
    Safety rating
    4 Stars
    Safety rating
    4 Stars
    Find a deal
    Find a deal

    Specifications

    Compressor
    Compressor: Turbo
    Number of Compressors: 1
    Compressor
    Compressor: Turbo
    Number of Compressors: 1
    Electrical System
    Voltage: 12
    Electrical System
    Voltage: 12
    Emission Control Level
    CO2 Level (Country Highway): 173
    CO2 Level (Combined): 199
    CO2 Level (Urban): 244
    Standard Met: EU5
    Emission Control Level
    CO2 Level (Country Highway): 193
    CO2 Level (Combined): 231
    CO2 Level (Urban): 297
    Standard Met: EU5
    Engine
    Bore Engine: 91.0
    Engine (cc): 2497
    Engine Configuration: In-Line
    Engine Code: VGT
    Engine (L): 2.5
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 96.0
    Engine
    Bore Engine: 91.0
    Engine (cc): 2497
    Engine Configuration: In-Line
    Engine (L): 2.5
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 96.0
    Fuel
    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel
    Fuel
    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel
    Fuel System
    Injection Carburetion: Diesel Common Rail
    Fuel System
    Injection Carburetion: Diesel Common Rail
    Fuel Tanks
    Main Capacity Gal: 19.8
    Main Capacity (L): 75
    Main Capacity Uk Gallons: 16.5
    Main Type: Total
    Fuel Tanks
    Main Capacity Gal: 19.8
    Main Capacity (L): 75
    Main Capacity Uk Gallons: 16.5
    Main Type: Total
    Fuel Consumption
    ADR 81/02 Calculated Vehicle Range (km): 987
    ADR 81/02 Calculated Vehicle Range (miles): 613
    ADR 81/02 Combined (km/L): 13.2
    ADR 81/02 Combined (L/100km): 7.6
    ADR 81/02 Combined (miles per UK gallon): 37
    ADR 81/02 Combined (mpg): 31
    ADR 81/02 Country Highway (km/L): 15.4
    ADR 81/02 Country Highway (L/100km): 6.5
    ADR 81/02 Country Highway (miles per UK gallon): 44
    ADR 81/02 Country Highway (mpg): 36
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 10.8
    ADR 81/02 Urban (L/100km): 9.3
    ADR 81/02 Urban (miles per UK gallon): 30
    ADR 81/02 Urban (mpg): 25
    Fuel Consumption
    ADR 81/02 Calculated Vehicle Range (km): 852
    ADR 81/02 Calculated Vehicle Range (miles): 529
    ADR 81/02 Combined (km/L): 11.4
    ADR 81/02 Combined (L/100km): 8.8
    ADR 81/02 Combined (miles per UK gallon): 32
    ADR 81/02 Combined (mpg): 27
    ADR 81/02 Country Highway (km/L): 13.7
    ADR 81/02 Country Highway (L/100km): 7.3
    ADR 81/02 Country Highway (miles per UK gallon): 39
    ADR 81/02 Country Highway (mpg): 32
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 8.9
    ADR 81/02 Urban (L/100km): 11.2
    ADR 81/02 Urban (miles per UK gallon): 25
    ADR 81/02 Urban (mpg): 21
    Power
    Maximum Power (hp/PS): 136
    Maximum Power (kW): 100
    Maximum Torque (Nm): 343
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3800
    Rpm For Maximum Torque Low: 1500
    Power
    Maximum Power (hp/PS): 170
    Maximum Power (kW): 125
    Maximum Torque (Nm): 441
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3600
    Rpm For Maximum Torque Low: 2000
    Fuel Economy
    ADR 81/02 (L/100km): 7.6
    Fuel Economy
    ADR 81/02 (L/100km): 8.8
    Drive
    Driven Wheels: Rear
    Drive
    Driven Wheels: Rear
    Transmission
    Description: Manual
    Number of Speeds: 6
    Shift Lever Location: Dash
    Type: Manual
    Transmission
    Description: Automatic With Manual Mode
    Manual Mode: yes
    Number of Speeds: 5
    Shift Lever Location: Dash
    Type: Automatic
    Disc Brakes
    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2
    Disc Brakes
    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2
    Steering Wheel
    Height Adjustment: yes
    Telescopic Adjustment: yes
    Type: Plastic
    Steering Wheel
    Height Adjustment: yes
    Multi Function: yes
    Telescopic Adjustment: yes
    Type: Leather Covered
    Suspension
    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid
    Suspension
    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent
    Tires
    Front Wheels Tire Load Index: 108
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Speed Rating: T
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 215
    Rear Wheels Tire Load Index: 108
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Speed Rating: T
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 215
    Tires
    Front Wheels Tire Load Index: 108
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Speed Rating: T
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 215
    Rear Wheels Tire Load Index: 108
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Speed Rating: T
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 215
    Wheels
    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.5
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.5
    Wheels
    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Alloy
    Front Wheels Rim Width (In): 6.5
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Alloy
    Rear Wheels Rim Width (In): 6.5
    Mud Flaps
    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear
    Mud Flaps
    —
    Body Style
    Body Type: Panel Van
    Local Body Type: Panel Van
    Platform Code: CK
    Roof Type: Standard
    Wheelbase Type: Short
    Body Style
    Body Type: MPV
    Local Body Type: MPV
    Platform Code: CK
    Wheelbase Type: Short
    Bumpers
    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear
    Cargo Area Dimensions
    Cargo Volume (cu ft): 156.3
    Cargo Volume (L): 4426
    Height (in): 52.8
    Height (mm): 1340
    Length (in): 93.5
    Length (mm): 2375
    Loading Floor Height (in): 23.8
    Loading Floor Height (mm): 605
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 50.1
    Width Between Wheelhouses (mm): 1272
    Width (in): 63.8
    Width (mm): 1620
    Cargo Area Dimensions
    —
    External Dimensions
    Kerb to Kerb Turning Circle (mm): 11220
    Front Track (in): 66.3
    Front Track (mm): 1685
    Ground Clearance Unladen (in): 7.5
    Ground Clearance Unladen (mm): 190
    Kerb To Kerb Turning Circle (ft): 36.8
    Overall Height (in): 76.2
    Overall Height (mm): 1935
    Overall Length (in): 202.8
    Overall Length (mm): 5150
    Overall Width (in): 75.6
    Overall Width (mm): 1920
    Rear Track (in): 65.4
    Rear Track (mm): 1660
    Wheelbase (in): 126.0
    Wheelbase (mm): 3200
    External Dimensions
    Kerb to Kerb Turning Circle (mm): 11220
    Front Track (in): 66.3
    Front Track (mm): 1685
    Ground Clearance Unladen (in): 7.5
    Ground Clearance Unladen (mm): 190
    Kerb To Kerb Turning Circle (ft): 36.8
    Overall Height (in): 75.8
    Overall Height (mm): 1925
    Overall Length (in): 202.8
    Overall Length (mm): 5150
    Overall Width (in): 75.6
    Overall Width (mm): 1920
    Rear Track (in): 65.4
    Rear Track (mm): 1660
    Wheelbase (in): 126.0
    Wheelbase (mm): 3200
    Cargo Capacity
    —
    Cargo Capacity
    Measurement Standard: VDA
    Rear Seat Down (cu ft): 29.7
    Rear Seat Down (L): 842
    Internal Dimensions
    —
    Internal Dimensions
    3rd Row Headroom (in): 39.8
    3rd Row Headroom (mm): 1010
    Front Headroom (in): 40.0
    Front Headroom (mm): 1017
    Rear Headroom (in): 40.1
    Rear Headroom (mm): 1018
    3rd Row Hip Room (in): 57.5
    3rd Row Hip Room (mm): 1460
    Front Hip Room (in): 60.2
    Front Hip Room (mm): 1530
    Rear Hip Room (in): 65.0
    Rear Hip Room (mm): 1652
    3rd Row Leg Room (in): 36.4
    3rd Row Leg Room (mm): 925
    Front Leg Room (in): 41.0
    Front Leg Room (mm): 1041
    Rear Leg Room (in): 39.2
    Rear Leg Room (mm): 995
    3rd Row Shoulder Room (in): 62.0
    3rd Row Shoulder Room (mm): 1575
    Front Shoulder Room (in): 63.4
    Front Shoulder Room (mm): 1610
    Rear Shoulder Room (in): 65.0
    Rear Shoulder Room (mm): 1650
    Cargo Doors
    Driver Height (in): 62.2
    Driver Height (mm): 1580
    Driver Location: Driver
    Driver Operation: Sliding
    Driver Width (in): 48.2
    Driver Width (mm): 1225
    Passenger Height (in): 62.2
    Passenger Height (mm): 1580
    Location: Passenger
    Passenger Operation: Sliding
    Passenger Width (in): 48.2
    Passenger Width (mm): 1225
    Rear Height (in): 54.7
    Rear Height (mm): 1390
    Location: Rear
    Rear Opening Angle: 90
    Rear Operation: Lifting Gate
    Rear Width (in): 60.6
    Rear Width (mm): 1540
    Cargo Doors
    —
    Doors
    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Doors
    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Sliding
    Location: Rear Passenger
    Rear Passenger Door Type: Sliding
    Rear Door
    Type: Double Hinged
    Rear Door
    Type: Lifting Gate
    Headlights
    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Ellipsoidal
    Headlights
    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Ellipsoidal
    Headlight Control
    Dusk Sensor: yes
    Headlight Control
    Dusk Sensor: yes
    Paint
    External Colour: White
    Type: Gloss
    Paint
    External Colour: White
    Type: Gloss
    Door Mirrors/Cameras
    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable
    Door Mirrors/Cameras
    Driver Door Mirrors/Cameras Colour: Painted
    Driver Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Passenger Door Mirror Indicator Lights: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable
    Power Windows
    Front Electric Windows: Front
    Power Windows
    Front Electric Windows: Front
    Windshield Wipers
    Intermittent Wipe Windshield Wipers: Variable
    Windshield Wipers
    Intermittent Wipe Windshield Wipers: Variable
    Weights
    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 5160
    Gross Train Weight (lb): 11376
    Gross Vehicle Weight (kg): 3160
    Gross Vehicle Weight (lb): 6967
    Payload Allowance (kg): 1113
    Payload Allowance (lb): 2454
    Published Kerb Weight (kg): 2047
    Published Kerb Weight (lb): 4513
    Tare Weight (kg): 1992
    Weights
    Gross Trailer Weight Braked (kg): 1500
    Gross Trailer Weight Braked (lb): 3307
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 3030
    Gross Vehicle Weight (lb): 6680
    Published Kerb Weight (kg): 2230
    Published Kerb Weight (lb): 4916
    Tare Weight (kg): 2175
    Trailer Noseweight (kg): 150
    Audio System
    Colour Screen: yes
    Radio Type: Am/Fm
    Touch Screen: yes
    Audio System
    Colour Screen: yes
    Radio Type: Am/Fm
    Touch Screen: yes
    External Connections
    USB (Front): yes
    Total Front USB Connections: 1
    External Connections
    USB (Front): yes
    Total Front USB Connections: 1
    Remote Audio Controls
    Type: Steering Wheel Mounted
    Remote Audio Controls
    Type: Steering Wheel Mounted
    Speakers
    Number of Speakers: 2
    Speakers
    Number of Speakers: 4
    Power Outlet 12V
    Location (12V): Front
    Power Outlet 12V
    Location (12V): Front
    Bluetooth
    Includes Music Streaming: yes
    Includes Phone Connection: yes
    Bluetooth
    Includes Music Streaming: yes
    Includes Phone Connection: yes
    Mobile Integration
    Android Auto: yes
    Android Number of Months Subscription: Unlimited
    Apple Carplay: yes
    Apple Number of Months Subscription: Unlimited
    Mobile Integration
    Android Auto: yes
    Android Number of Months Subscription: Unlimited
    Apple Carplay: yes
    Apple Number of Months Subscription: Unlimited
    Mirrorlink Months Subscription Included: 0
    Other Months Subscription Included: 0
    Parking Distance System
    Location: Rear
    Rear Type: Camera
    Parking Distance System
    Location: Rear
    Rear Type: Sensor & Camera
    USB Charging Port
    Location: Front
    Number of Ports in Front: 1
    USB Charging Port
    Location: Front
    Number of Ports in Front: 1
    Media Control
    —
    Media Control
    Touch Screen: yes
    Vanity Mirror
    —
    Vanity Mirror
    Driver Mirror Illuminated: yes
    Driver Mirror Location: Driver
    Passenger Mirror Illuminated: yes
    Location: Passenger
    Display Screen
    Location: Dashboard Centre 1
    Dashboard Centre 1 Screen Size (in): 7.00
    Dashboard Centre 1 Touch Screen: yes
    Display Screen
    Location: Dashboard Centre 1
    Dashboard Centre 1 Screen Size (in): 7.00
    Dashboard Centre 1 Touch Screen: yes
    Luxury Trim
    Gear Selector: Alloy Look
    Luxury Trim
    Centre Floor Console: Alloy Look
    Doors: Alloy Look
    Gear Selector: Leather
    Instrument Panel: Alloy Look
    Airbags
    Number of Airbags: 4
    Airbags
    Number of Airbags: 4
    Front Airbag
    Location: Driver
    Location: Passenger
    Front Airbag
    Location: Driver
    Location: Passenger
    Front Seat Belts
    Center Seat Position: Center
    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger
    Front Seat Belts
    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger
    Head Restraints
    Front Seats Location: Front Seats
    Head Restraints
    Location: 3rd Row Seats
    3rd Row Seats Number: 3
    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3
    Side Airbag
    Location: Front
    Side Airbag
    Location: Front
    Crash Test Results
    ANCAP Date Tested: 20110101
    ANCAP Overall: 4.0
    ANCAP Pedestrian: Poor
    ANCAP Rating Year: 2011
    ANCAP Standard: Ancap
    ANCAP Version Tested: 2.4 Manual Van
    Crash Test Results
    ANCAP Date Tested: 20090101
    ANCAP Overall: 4.0
    ANCAP Pedestrian: Poor
    ANCAP Rating Year: 2009
    ANCAP Standard: Ancap
    ANCAP Version Tested: 2.4 Manual
    Rear Seat Belts
    —
    Rear Seat Belts
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger
    Front Seat
    Location: Centre
    Center Front Seat Type: Bench
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bench
    Front Seat
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket
    Seat Upholstery
    Additional Seat Material: Cloth
    Main Seat Material: Cloth
    Seat Upholstery
    Additional Seat Material: Cloth
    Main Seat Material: Cloth
    Seating
    Capacity: 3
    Configuration: 3+0
    Seating
    Capacity: 8
    Configuration: 2+3+3
    Cup Holders
    Location: Front Seats
    Cup Holders
    Location: Front Seats
    Location: Rear Seats
    Air Conditioning
    Type: Manual
    Air Conditioning
    Type: Fully-Auto
    Climate Control - Number of Zones: 2
    Secondary Ventilation Controls
    —
    Secondary Ventilation Controls
    3rd Row Location: 3rd Row
    Rear Seats Location: Rear Seats
    Ventilation System
    —
    Ventilation System
    Heater Type: Combustion
    Power Locks
    Operation: Remote
    Power Locks
    Operation: Remote
    Intermediate Service
    Distance (km): 15000
    Distance (miles): 9321
    Period (Months): 12
    Intermediate Service
    Distance (km): 15000
    Distance (miles): 9321
    Period (Months): 12

    Related News and Reviews
