Base
2.8L, 5-speed manual, 2-door Cab Chassis, Diesel, 4x4
Save $$$ with CarExpert*
$25,990â€

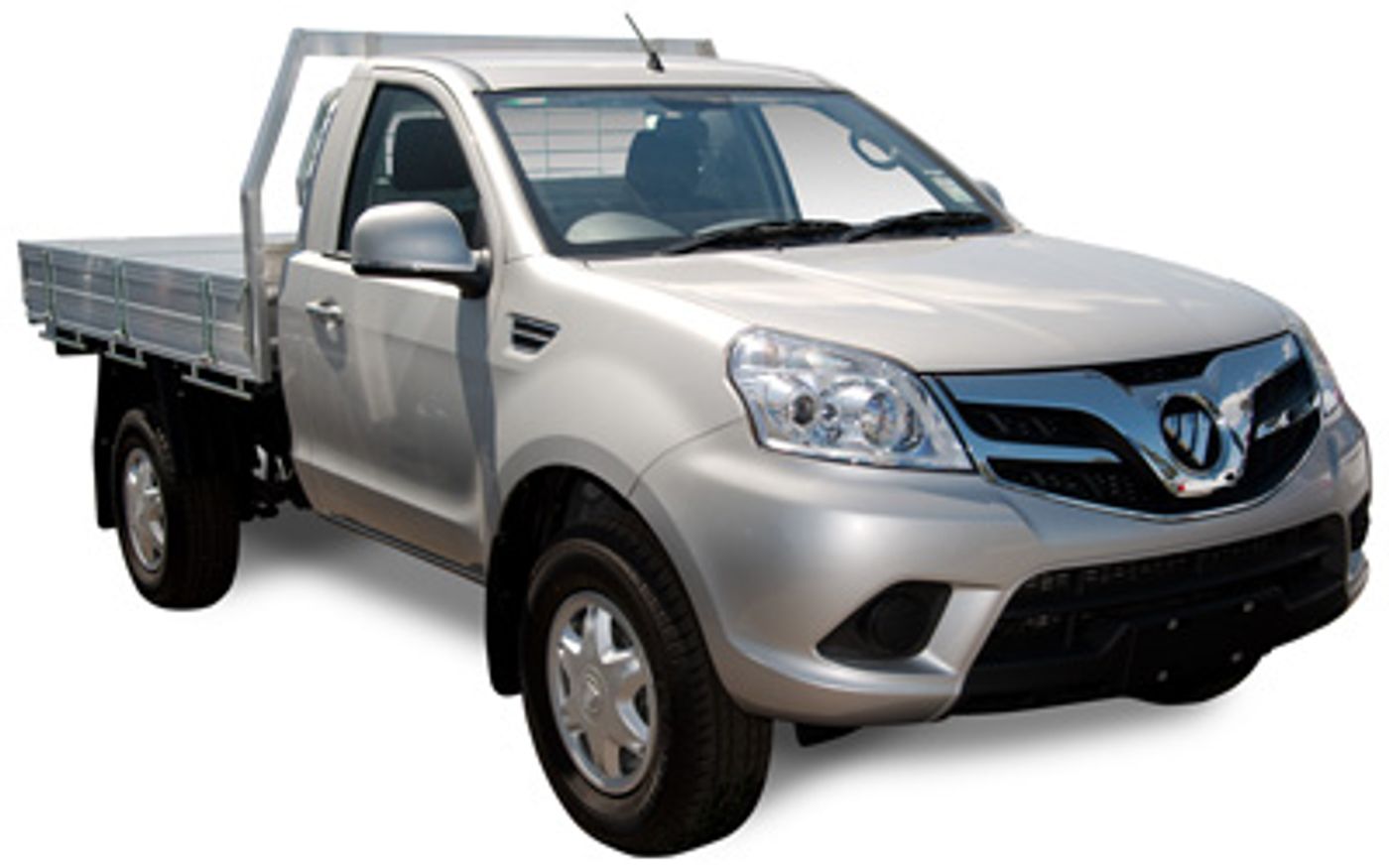

Foton Tunland Base (2015) price & specs
From
$25,990â€
Save thousands with CarExpert*
Base
Overview
The 2015 Foton Tunland Base is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 2nd September 2015. The Foton Tunland is regarded as a Pickup built in China with prices starting at $25,990 before on-road costs.
This Foton Tunland is powered by a 2.8L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 360 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Foton claims the Tunland Base uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 219g of CO2. It has a 76L fuel tank, meaning it should be able to travel 916km per full tank
The Foton Tunland measures 1910mm (75.2 inches) in height, 5250mm (206.7 inches) in length, 1880mm (74.0 inches) in width with a 3105mm (122.2 inches) wheelbase that brings about a total of 1879kg (4142.5 lbs) of unladen weight. The Tunland Base comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2015 Foton Tunland Base has a 200mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tunland compare?
Quickly see how the 2015 Foton Tunland Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
53.66 - 64.52 kW/t
42 kW/t
97.49 kW/t
Fuel Efficiency
8 - 8.3 L/100km
6.6 L/100km
12 L/100km
Vehicle Range
916 - 950 km
667 km
1,212 km
Price
$22,490 - $30,990
$19,990
$65,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 year
1 year
4 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,804 - 2,975 kg
2,700 kg
3,500 kg
Gross Comb. Mass
5,370 - 5,475 kg
4,480 kg
6,800 kg
Braked Towing Capacity
2,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
200 mm
190 mm
314 mm
Payload Capacity
1,015 - 1,025 kg
740 kg
1,528 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,250 mm
1,880 mm
1,910 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,250 mm |
| Overall Width | 1,880 mm |
| Overall Height | 1,910 mm |
| Wheelbase | 3,105 mm |
| Turning Circle | 12,600 mm |
| Load Capacity | 1,015 mm |
Looking for complete Foton Tunland size & space specs?
Our Foton Tunland Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Foton Tunland Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 219
Standard Met: EU4
Engine
Bore Engine: 94.0
Engine (cc): 2776
Engine Configuration: In-Line
Engine Code: Cummings Isf 2.8s416p
Engine (L): 2.8
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100.0
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 916
ADR 81/02 Calculated Vehicle Range (miles): 569
ADR 81/02 Combined (km/L): 12.0
ADR 81/02 Combined (L/100km): 8.3
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 28
ADR 81/02 Country Highway (km/L): 13.5
ADR 81/02 Country Highway (L/100km): 7.4
ADR 81/02 Country Highway (miles per UK gallon): 38
ADR 81/02 Country Highway (mpg): 32
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.3
ADR 81/02 Urban (L/100km): 9.7
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 8.3
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 360
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Code: Jc538
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 245
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12600
Front Overhang (in): 36.4
Front Overhang (mm): 925
Front Track (in): 63.0
Front Track (mm): 1600
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 200
Kerb To Kerb Turning Circle (ft): 41.3
Overall Height (in): 75.2
Overall Height (mm): 1910
Overall Length (in): 206.7
Overall Length (mm): 5250
Overall Width (in): 74.0
Overall Width (mm): 1880
Rear Overhang (in): 38.2
Rear Overhang (mm): 970
Rear Track (in): 62.4
Rear Track (mm): 1585
Wheelbase (in): 122.2
Wheelbase (mm): 3105
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Metallic
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1310
Front Axle Weight (lb): 2888
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5410
Gross Train Weight (lb): 11927
Gross Vehicle Weight (kg): 2894
Gross Vehicle Weight (lb): 6380
Kerb Weight Inc Driver (kg): 1879
Kerb Weight Inc Driver (lb): 4143
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 1015
Payload Allowance (lb): 2238
Published Kerb Weight (kg): 1879
Published Kerb Weight (lb): 4143
Rear Axle Weight (kg): 1800
Rear Axle Weight (lb): 3968
Tare Weight (kg): 1823
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Wood Or Woodlook
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
# Based on VFACTS and EVC data
