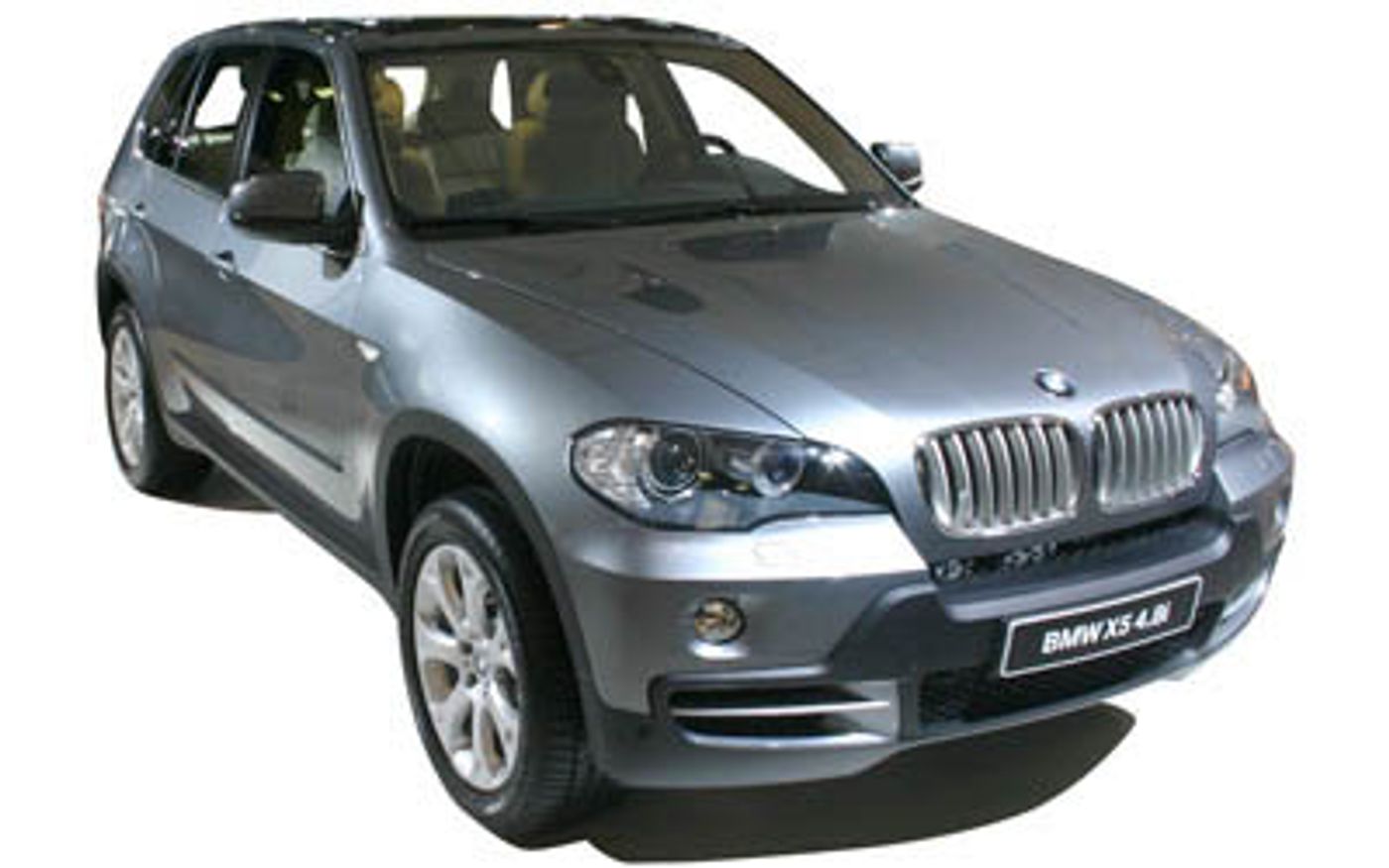

BMW X5 Base (2009) price & specs
Base
Overview
The 2009 BMW X5 Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a E70. The BMW X5 is regarded as a Suv Large Luxury built in USA with prices starting at $105,490 before on-road costs.
This BMW X5 is powered by a 3.0L 6-cylinder engine that has 210 kW of power (at 4400 rpm) and 580 Nm of torque (at 1750 rpm) via a Six-speed Automatic transmission. BMW claims the X5 Base uses 8.8L/100km of Diesel in the combined city and highway cycle while putting out 233g of CO2. It has a 85L fuel tank, meaning it should be able to travel 966km per full tank
The BMW X5 measures 1766mm (69.5 inches) in height, 4854mm (191.1 inches) in length, 1933mm (76.1 inches) in width with a 2933mm (115.5 inches) wheelbase that brings about a total of 2110kg (4651.7 lbs) of unladen weight. The X5 Base comes standard with 255/55 R18 front tyres and 255/55 R18 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the X5 compare?
Quickly see how the 2009 BMW X5 Base stacks up against its competition.
 Select any benchmark to see more details.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 4,854 mm |
| Overall Width | 1,933 mm |
| Overall Height | 1,766 mm |
| Wheelbase | 2,933 mm |
| Load Capacity | 680 mm |
Looking for complete BMW X5 size & space specs?
Our BMW X5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore BMW X5 Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 233
Standard Met: EU4
Engine
Bore Engine: 84.0
Engine (cc): 2993
Engine Configuration: In-Line
Engine (L): 3.0
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 22.5
Main Capacity (L): 85
Main Capacity Uk Gallons: 18.7
Main Fuel Type: Diesel
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 966
ADR 81/02 Calculated Vehicle Range (miles): 600
ADR 81/02 Combined (km/L): 11.4
ADR 81/02 Combined (L/100km): 8.8
ADR 81/02 Combined (miles per UK gallon): 32
ADR 81/02 Combined (mpg): 27
ADR 81/02 Country Highway (km/L): 13.3
ADR 81/02 Country Highway (L/100km): 7.5
ADR 81/02 Country Highway (miles per UK gallon): 38
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.0
ADR 81/02 Urban (L/100km): 11.1
ADR 81/02 Urban (miles per UK gallon): 25
ADR 81/02 Urban (mpg): 21
Fuel Economy
ADR 81/02 (L/100km): 8.8
Performance
Acceleration 0 To 100 km/h: 7.0
Maximum Speed (km/h): 235
Maximum Speed (mph): 146
Power
Maximum Power (hp/PS): 286
Maximum Power (kW): 210
Maximum Torque (Nm): 580
Measurement Standard: EEC
Rpm For Maximum Power Low: 4400
Rpm For Maximum Torque Low: 1750
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: 6hp26 Tü
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Electric Adjustment: yes
Heated: yes
Height Adjustment: yes
Multi Function: yes
Sports Steering Wheel: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Adjustable Anti Roll Bar: yes
Driver Selectable: yes
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Load Index: 107
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 107
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Body Side Molding
Colour of Body Side Moulding: Body Colour
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: E70
Mud Flaps
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Step
Step Location: Side
Side Step Type: Platform
Underbody Protection
Location: Engine
Location: Fuel Tank
Location: Transfer Case
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 61.8
Rear Seat Down (L): 1750
Rear Seat Up to Lower Window (cu ft): 21.9
Rear Seat Up to Lower Window (L): 620
External Dimensions
Front Track (in): 64.7
Front Track (mm): 1644
Overall Height (in): 69.5
Overall Height (mm): 1766
Overall Length (in): 191.1
Overall Length (mm): 4854
Overall Width (in): 76.1
Overall Width (mm): 1933
Rear Track (in): 65.0
Rear Track (mm): 1650
Wall to Wall Turning Circle (ft): 42.0
Wall to Wall Turning Circle (mm): 12800
Wheelbase (in): 115.5
Wheelbase (mm): 2933
Internal Dimensions
Front Headroom (in): 39.3
Front Headroom (mm): 998
Rear Headroom (in): 39.0
Rear Headroom (mm): 991
Front Hip Room (in): 61.1
Front Hip Room (mm): 1551
Rear Hip Room (in): 60.0
Rear Hip Room (mm): 1524
Front Shoulder Room (in): 60.0
Front Shoulder Room (mm): 1523
Rear Shoulder Room (in): 58.0
Rear Shoulder Room (mm): 1474
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Split Gate
Headlight Control
Dusk Sensor: yes
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Configuration: Twin
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Luxury Inner Roof Upholstery
Material: Suede
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Tilting: yes
Front to Rear Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2700
Gross Trailer Weight Braked (lb): 5953
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2790
Gross Vehicle Weight (lb): 6151
Published Kerb Weight (kg): 2110
Published Kerb Weight (lb): 4652
Audio System
CD Player Reads MP3: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
In-Dash CD: yes
Radio Type: Am/Fm
Disc Player
Glove Box Capacity: 6
Location: Glove Box
Glove Box Media Type: CD
External Connections
Aux Jack (Front): yes
MP3 Devices Connection: yes
WMA Devices Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Load Restraint
Sliding Anchorage Points: yes
Type: Hooks
Bluetooth
Type: Bluetooth
Entertainment Display Screen
Location: Front
Front TV: yes
Location: Single Rear Middle
Memorised Adjustment
Door Mirror Position: yes
Number of Memorised Driver Seat Positions: 6
Wheel Position: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Type: Manual
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Active: yes
Front Seats Electric Adjustable: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Active Massage: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Thigh Support: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Active Massage: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Climate Control - Number of Zones: 2
Fully Automated Climate Control: yes
Rear Outlet: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Digital Display: yes
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Includes Trunk Hatch: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
