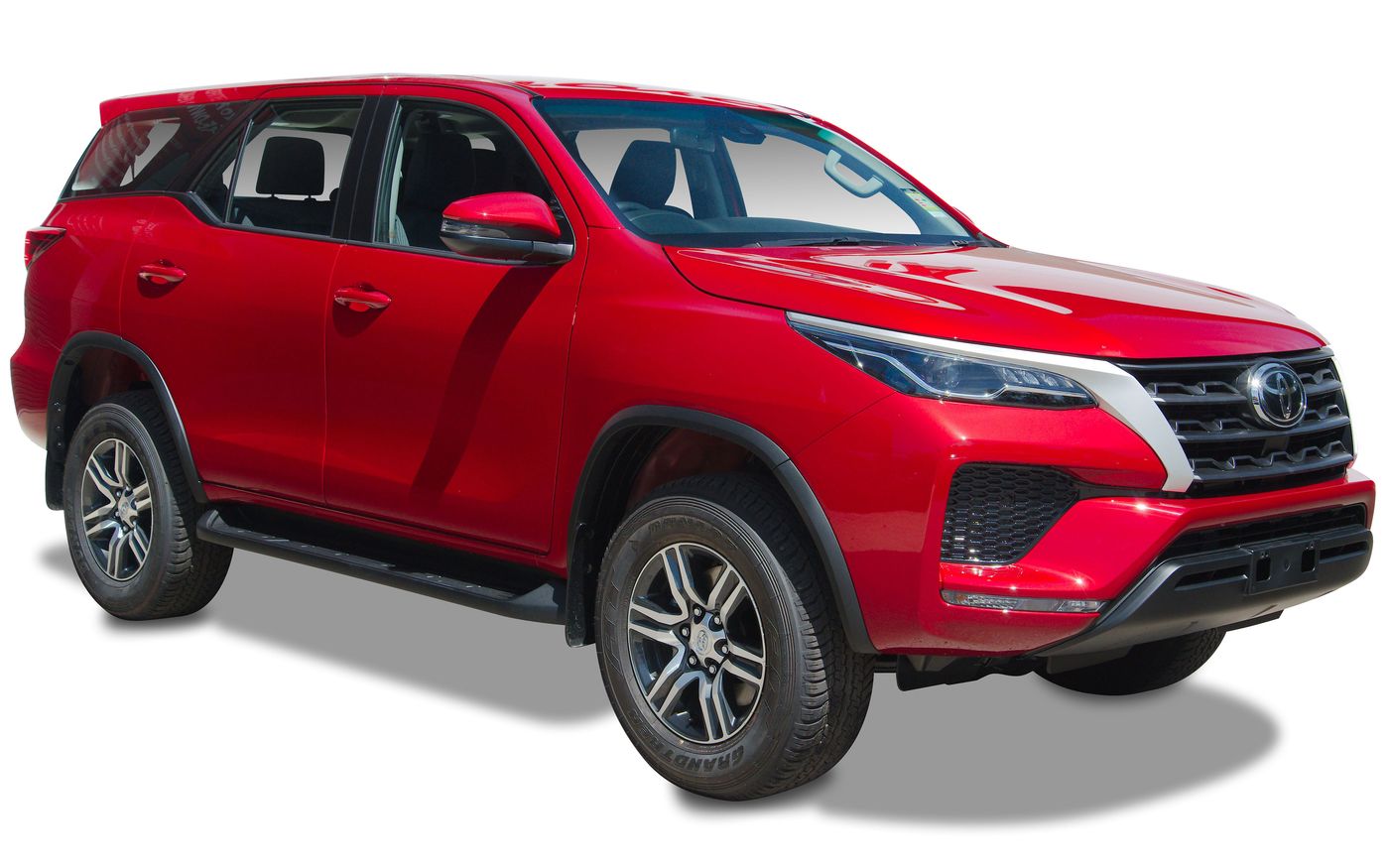

Toyota Fortuner GXL (2023) price & specs
Save $$$ with CarExpert*
From
$58,895â€
GXL
Overview
The 2023 Toyota Fortuner GXL is a four-wheel drive, 5-door SUV that was released to the Australian market on 6th July 2023 classified as a Gun156r. The Toyota Fortuner is regarded as a large SUV built in Thailand with prices starting at $58,895 before on-road costs.
This Toyota Fortuner is powered by a 2.8L 4-cylinder engine that has 150 kW of power (at 3400 rpm) and 500 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Toyota claims the Fortuner GXL uses 7.6L/100km of Diesel in the combined city and highway cycle while putting out 201g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1053km per full tank
The Toyota Fortuner measures 1835mm (72.2 inches) in height, 4795mm (188.8 inches) in length, 1855mm (73.0 inches) in width with a 2745mm (108.1 inches) wheelbase that brings about a total of 2185kg (4817.1 lbs) of unladen weight. The Fortuner GXL comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2023 Toyota Fortuner GXL has a 216mm ground clearance with a 3100kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Fortuner compare?
Quickly see how the 2023 Toyota Fortuner GXL stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
68.49 - 68.97 kW/t
60.21 kW/t
115.27 kW/t
Fuel Efficiency
7.6 L/100km
1.6 L/100km
13.2 L/100km
Vehicle Range
1,053 km
638 km
1,682 km
Price
$51,965 - $66,755
$36,990
$109,525
Warranty (Years)
5 years
5 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
6 years
1 year
5 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,800 kg
2,200 kg
3,550 kg
Braked Towing Capacity
3,100 kg
1,350 kg
3,500 kg
Approach Angle
29°
14.7°
36.6°
Departure Angle
25°
15.3°
36.1°
Ground Clearance Unladen
216 mm
176 mm
317 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,795 mm
1,855 mm
1,835 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,795 mm |
| Overall Width | 1,855 mm |
| Overall Height | 1,835 mm |
| Wheelbase | 2,745 mm |
| Turning Circle | 11,600 mm |
| Load Capacity | 615 mm |
Looking for complete Toyota Fortuner size & space specs?
Our Toyota Fortuner Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota Fortuner Sales rolling 12-months#
Explore Toyota Fortuner Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Entertainment Display Screen
Location: Front
Front Screen Size (in): 8.00
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote Services
Driving History Analysis: yes
Find My Car: yes
Geo Fencing: yes
Months Subscription Included: 12
Speed Alert: yes
Theft Alert: yes
Vehicle Diagnostics: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Telematics
Advanced Auto Collision Notification: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 179
CO2 Level (Combined): 201
CO2 Level (Urban): 240
Standard Met: EU5
Engine
Bore Engine: 92.0
Engine (cc): 2755
Engine Configuration: In-Line
Engine Code: 1gd-Ftv
Engine (L): 2.8
Number of Cylinders: 4
Stroke Engine: 103.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.00
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1053
ADR 81/02 Calculated Vehicle Range (miles): 654
ADR 81/02 Combined (km/L): 13.2
ADR 81/02 Combined (L/100km): 7.6
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 14.7
ADR 81/02 Country Highway (L/100km): 6.8
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.0
ADR 81/02 Urban (L/100km): 9.1
ADR 81/02 Urban (miles per UK gallon): 31
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 7.6
Power
Maximum Power (hp/PS): 204
Maximum Power (kW): 150
Maximum Torque (Nm): 500
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3400
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Code: Ac60f
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Low High Gear Ranges: yes
Manual Mode: yes
Number of Simulated Gears: 0
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: Manufacturer’S Own
External Dimensions
Kerb to Kerb Turning Circle (mm): 11600
Front Track (in): 60.6
Front Track (mm): 1540
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 216
Kerb To Kerb Turning Circle (ft): 38.1
Overall Height (in): 72.2
Overall Height (mm): 1835
Overall Length (in): 188.8
Overall Length (mm): 4795
Overall Width (in): 73.0
Overall Width (mm): 1855
Rear Track (in): 61.2
Rear Track (mm): 1555
Wheelbase (in): 108.1
Wheelbase (mm): 2745
Internal Dimensions
Front Headroom (in): 38.0
Front Headroom (mm): 964
Rear Headroom (in): 36.7
Rear Headroom (mm): 933
Front Leg Room (in): 37.4
Front Leg Room (mm): 950
Rear Leg Room (in): 33.6
Rear Leg Room (mm): 854
Front Shoulder Room (in): 56.4
Front Shoulder Room (mm): 1433
Rear Shoulder Room (in): 55.7
Rear Shoulder Room (mm): 1414
Ramp Angles
Approach Angle: 29.0
Departure Angle: 25.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: IMV
Wheelbase Type: Short
Spoiler
Location: Roof
Step
Step Location: Side
Side Step Type: Platform
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 3100
Gross Trailer Weight Braked (lb): 6834
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2800
Gross Vehicle Weight (lb): 6173
Published Kerb Weight (kg): 2185
Published Kerb Weight (lb): 4817
Tare Weight (kg): 2126
Trailer Noseweight (kg): 310
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Piano Black
Airbags
Number of Airbags: 7
Autonomous Drive
Level: 1 - Driver Assistance
Traffic Sign Response: yes
Traffic Sign Response Activation: Manual
Crash Test Results
ANCAP Adult Occupant Score: 95.0
ANCAP Child Occupant Score: 84.0
ANCAP Date Tested: 20191001
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 88.0
ANCAP Rating Year: 2019
ANCAP Safety Assist Score: 78.0
ANCAP Standard: Ancap
ANCAP Version Tested: Hilux Dual Cab Utility Rhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Engine Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
