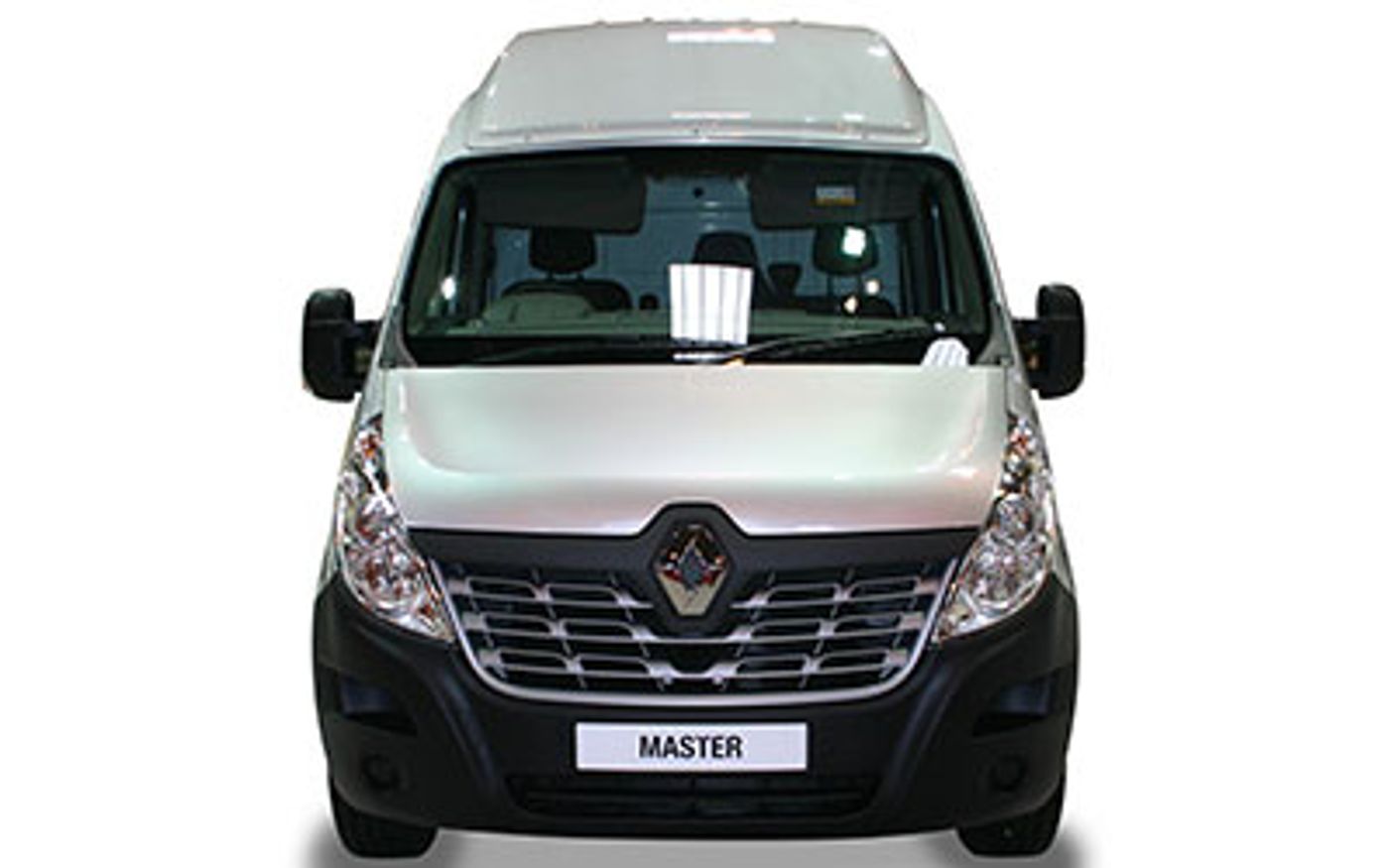

Renault Master Base (2015) price & specs
From
$49,990â€
Save thousands with CarExpert*
Base
Overview
The 2015 Renault Master Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 5th January 2016 classified as a X-62. The Renault Master is regarded as a Van Over 3.5t built in France with prices starting at $49,990 before on-road costs.
This Renault Master is powered by a 2.3L 4-cylinder engine that has 120 kW of power (at 3500 rpm) and 360 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Renault Master measures 2273mm (89.5 inches) in height, 6749mm (265.7 inches) in length, 2070mm (81.5 inches) in width with a 4332mm (170.6 inches) wheelbase that brings about a total of 2005kg (4420.3 lbs) of unladen weight. The Master Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
The 2015 Renault Master Base has a 166mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Master compare?
Quickly see how the 2015 Renault Master Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.49 - 75 kW/t
32.97 kW/t
75 kW/t
Fuel Efficiency
8.3 - 8.7 L/100km
7.7 L/100km
8.9 L/100km
Vehicle Range
1,149 - 1,205 km
1,011 km
1,205 km
Price
$40,990 - $56,490
$38,000
$97,240
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
6 years
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,510 - 4,495 kg
3,510 kg
5,000 kg
Braked Towing Capacity
2,500 - 3,000 kg
2,000 kg
3,500 kg
Ground Clearance Unladen
166 - 219 mm
166 mm
219 mm
Payload Capacity
1,540 - 2,490 kg
945 kg
3,025 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,749 mm
2,070 mm
2,273 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,749 mm |
| Overall Width | 2,070 mm |
| Overall Height | 2,273 mm |
| Wheelbase | 4,332 mm |
| Turning Circle | 15,700 mm |
| Load Capacity | 2,490 mm |
Looking for complete Renault Master size & space specs?
Our Renault Master Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Renault Master Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Power Outlet 12V
Location (12V): Boot/Cargo
Number of Outlets in Boot Cargo (12V): 1
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Type: Automatic
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 85.0
Engine (cc): 2299
Engine Configuration: In-Line
Engine Code: M9T
Engine (L): 2.3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 101.3
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 360
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Code: PF6
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: X62
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Painted
Location: Rear
External Dimensions
Kerb to Kerb Turning Circle (mm): 15700
Front Overhang (in): 33.1
Front Overhang (mm): 842
Front Track (in): 68.9
Front Track (mm): 1750
Ground Clearance Unladen (in): 6.5
Ground Clearance Unladen (mm): 166
Kerb To Kerb Turning Circle (ft): 51.5
Overall Height (in): 89.5
Overall Height (mm): 2273
Overall Length (in): 265.7
Overall Length (mm): 6749
Overall Width (in): 81.5
Overall Width (mm): 2070
Rear Overhang (in): 62.0
Rear Overhang (mm): 1575
Rear Track (in): 68.1
Rear Track (mm): 1730
Wheelbase (in): 170.6
Wheelbase (mm): 4332
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Directional Headlights: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1850
Front Axle Weight (lb): 4079
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 4495
Gross Vehicle Weight (lb): 9910
Manufacturer Driver Weight (kg): 75
Manufacturer Driver Weight (lb): 165
Payload Allowance (kg): 2490
Payload Allowance (lb): 5490
Payload Inc Driver (kg): 2490
Payload Inc Driver (lb): 5490
Published Kerb Weight (kg): 2005
Published Kerb Weight (lb): 4420
Rear Axle Weight (kg): 3200
Rear Axle Weight (lb): 7055
Tare Weight (kg): 1894
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: D
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Seat Suspension: Mechanical
Driver Front Seat Type: Captains
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Below Seat Storage
Location: Passenger
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Climate Control - Number of Zones: 1
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 12
