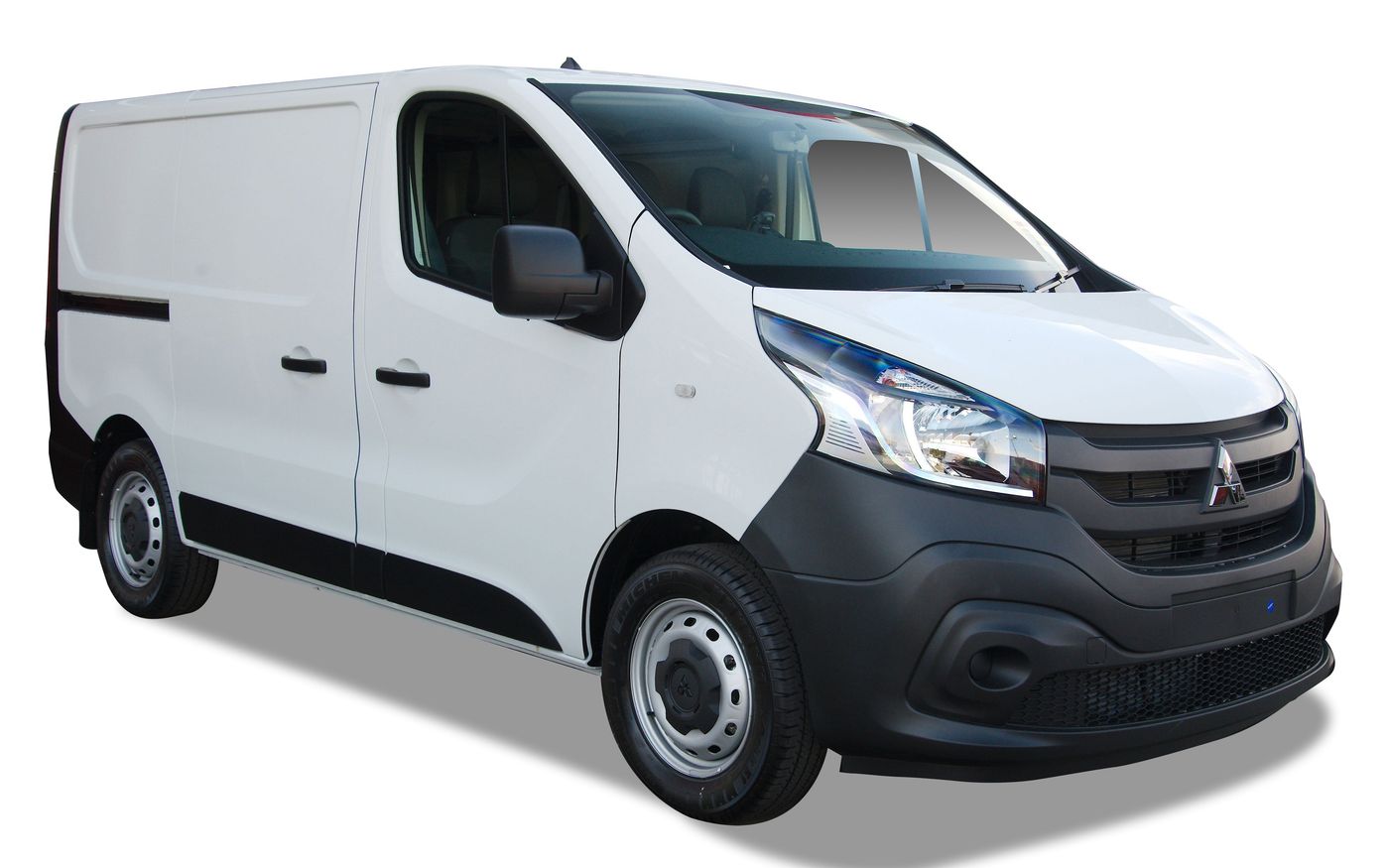

Mitsubishi Express GLX (2022) price & specs
GLX
Overview
The 2022 Mitsubishi Express GLX is a front-wheel drive, 5-door Panel Van that was released to the Australian market on 6th May 2021. The Mitsubishi Express is regarded as a Van Under 3.5t built in France with prices starting at $40,490 before on-road costs.
This Mitsubishi Express is powered by a 1.6L 4-cylinder engine that has 103 kW of power (at 3500 rpm) and 340 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Mitsubishi claims the Express GLX uses 6.2L/100km of Diesel in the combined city and highway cycle while putting out 164g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1290km per full tank
The Mitsubishi Express measures 1971mm (77.6 inches) in height, 5399mm (212.6 inches) in length, 1956mm (77.0 inches) in width with a 3498mm (137.7 inches) wheelbase that brings about a total of 1860kg (4100.6 lbs) of unladen weight. The Express GLX comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 120 month, 200,000 km warranty.
The 2022 Mitsubishi Express GLX has a 160mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Express compare?
Quickly see how the 2022 Mitsubishi Express GLX stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,399 mm |
| Overall Width | 1,956 mm |
| Overall Height | 1,971 mm |
| Wheelbase | 3,498 mm |
| Turning Circle | 13,200 mm |
| Load Capacity | 1,200 mm |
Looking for complete Mitsubishi Express size & space specs?
Our Mitsubishi Express Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mitsubishi Express Features & Specs
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 150
CO2 Level (Combined): 164
CO2 Level (Urban): 187
Standard Met: EU5
Engine
Bore Engine: 80.0
Engine (cc): 1598
Engine Configuration: In-Line
Engine Code: R9m 450
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 79.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1290
ADR 81/02 Calculated Vehicle Range (miles): 802
ADR 81/02 Combined (km/L): 16.1
ADR 81/02 Combined (L/100km): 6.2
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 38
ADR 81/02 Country Highway (km/L): 17.5
ADR 81/02 Country Highway (L/100km): 5.7
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.9
ADR 81/02 Urban (L/100km): 7.2
ADR 81/02 Urban (miles per UK gallon): 39
ADR 81/02 Urban (mpg): 33
Fuel Economy
ADR 81/02 (L/100km): 6.2
Power
Maximum Power (hp/PS): 140
Maximum Power (kW): 103
Maximum Torque (Nm): 340
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Code: PF6
Description: Manual
Number of Speeds: 6
Shift Lever Location: Dash
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 109
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 106
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Platform Code: X82
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 211.9
Cargo Volume (L): 6000
Height (in): 54.6
Height (mm): 1662
Length (in): 115.6
Length (mm): 2937
Loading Floor Height (in): 21.7
Loading Floor Height (mm): 551
Standard Measurement: VDA
Width Between Wheelhouses (in): 49.9
Width Between Wheelhouses (mm): 1268
Width (in): 65.4
Width (mm): 1662
External Dimensions
Kerb to Kerb Turning Circle (mm): 13200
Front Overhang (in): 36.7
Front Overhang (mm): 933
Front Track (in): 63.6
Front Track (mm): 1615
Ground Clearance Unladen (in): 6.3
Ground Clearance Unladen (mm): 160
Kerb To Kerb Turning Circle (ft): 43.3
Overall Height (in): 77.6
Overall Height (mm): 1971
Overall Length (in): 212.6
Overall Length (mm): 5399
Overall Width (in): 77.0
Overall Width (mm): 1956
Rear Overhang (in): 38.1
Rear Overhang (mm): 968
Rear Track (in): 64.1
Rear Track (mm): 1628
Wall to Wall Turning Circle (ft): 45.0
Wall to Wall Turning Circle (mm): 13730
Wheelbase (in): 137.7
Wheelbase (mm): 3498
Cargo Doors
Driver Height (in): 50.6
Driver Height (mm): 1284
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 38.9
Driver Width (mm): 988
Passenger Height (in): 50.6
Passenger Height (mm): 1284
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 38.9
Passenger Width (mm): 988
Rear Height (in): 60.5
Rear Height (mm): 1536
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 54.8
Rear Width (mm): 1393
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1625
Front Axle Weight (lb): 3583
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5060
Gross Train Weight (lb): 11155
Gross Vehicle Weight (kg): 3060
Gross Vehicle Weight (lb): 6746
Payload Allowance (kg): 1200
Payload Allowance (lb): 2646
Payload Inc Driver (kg): 1200
Payload Inc Driver (lb): 2646
Published Kerb Weight (kg): 1860
Published Kerb Weight (lb): 4101
Rear Axle Weight (kg): 1650
Rear Axle Weight (lb): 3638
Tare Weight (kg): 1801
Trailer Noseweight (kg): 80
Audio System
Digital Radio: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Airbags
Number of Airbags: 4
Crash Test Results
ANCAP Adult Occupant Score: 55.0
ANCAP Child Occupant Score: 0.0
ANCAP Date Tested: 20210301
ANCAP Overall: 0.0
ANCAP Pedestrian Score: 40.0
ANCAP Rating Year: 2021
ANCAP Safety Assist Score: 7.0
ANCAP Standard: Ancap
ANCAP Version Tested: 1.6 Diesel Swb Rhd Van
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
