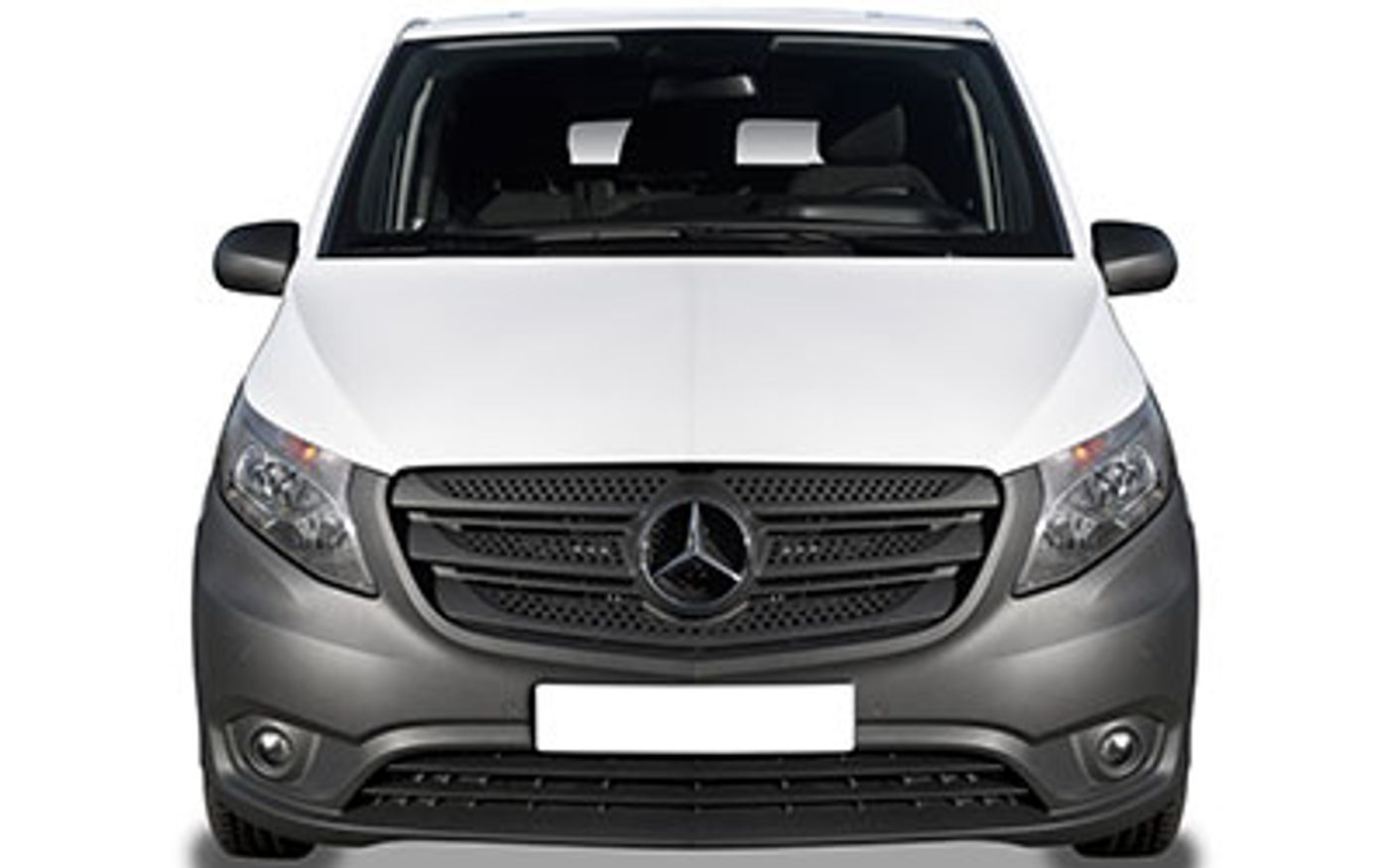

2017 Mercedes-Benz Vito Base Pricing and Spec
From
$54,420†
Save thousands with CarExpert*
Base
Overview
The 2017 Mercedes-Benz Vito Base is a rear-wheel drive, 5-door Combi that was released to the Australian market on 4th January 1970. The Mercedes-Benz Vito is regarded as a Van Under 3.5t built in Spain with prices starting at $54,420 before on-road costs.
This Mercedes-Benz Vito is powered by a 2.1L 4-cylinder engine that has 100 kW of power (at 3800 rpm) and 330 Nm of torque (at 1200 rpm) via a Seven-speed Automatic transmission. Mercedes-Benz claims the Vito Base uses 6.4L/100km of Diesel in the combined city and highway cycle while putting out 169g of CO2. It has a 70L fuel tank, meaning it should be able to travel 1094km per full tank
The Mercedes-Benz Vito measures 1910mm (75.2 inches) in height, 5370mm (211.4 inches) in length, 1928mm (75.9 inches) in width with a 3430mm (135.0 inches) wheelbase that brings about a total of 2225kg (4905.3 lbs) of unladen weight. The Vito Base comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
How does the Vito compare?
Quickly see how the 2017 Mercedes-Benz Vito Base stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
44.94 - 73.49 kW/t
29.14 kW/t
75.95 kW/t
Fuel Efficiency
6 - 6.4 L/100km
4.7 L/100km
10.5 L/100km
Vehicle Range
1,094 - 1,167 km
667 km
1,290 km
Price
$37,320 - $60,370
$23,490
$60,370
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
1 year
3 years
5 years
Service Interval
12 months
6 months
12 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,370 mm
1,928 mm
1,910 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,370 mm |
| Overall Width | 1,928 mm |
| Overall Height | 1,910 mm |
| Wheelbase | 3,430 mm |
| Load Capacity | 825 mm |
Looking for complete Mercedes-Benz Vito size & space specs?
Our Mercedes-Benz Vito Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz Vito Features & Specs
Bluetooth
Bluetooth Includes Phone Connection: yes
Bluetooth Includes Music Streaming: yes
Cruise Control
Cruise Control Speed Limiter: yes
Parking Assistance
Parking Assistance Rear Location: Rear
Parking Assistance Rear Type: Guidance Display
Parking Distance System
Parking Distance System Rear Location: Rear
Parking Distance System Rear Type: Camera
Parking Distance System Front Location: Front
Parking Distance System Front Type: Sensor
Power Outlet12v
Power Outlet Front Location12v: Front
Compressor
Compressor: Turbo
Emission Control Level
Emission Control Level Standard Met: EU6
Emission Control Level Co2 Level Combined: 169
Engine
Engine Liters: 2.1
Engine Configuration: In-Line
Engine Cc: 2143
Engine Number Of Cylinders: 4
Engine Bore: 83.0
Engine Stroke: 99.0
Engine Number Of Valves Per Cylinder: 4
Engine Engine Code: Om 651 De22la
Fuel
Fuel Type: Diesel
Fuel Generic Primary Fuel Type: Diesel
Fuel Minimum Fuel Type: Diesel
Fuel System
Fuel Fuel System Injection Carburetion: Diesel Common Rail
Fuel Tanks
Fuel Tanks Main Type: Total
Fuel Tanks Main Capacity L: 70
Fuel Tanks Main Capacity Gal: 18.5
Fuel Tanks Main Capacity Uk Gallons: 15.4
Fuel Consumption
Fuel Consumption Adr8102 Standard: Adr 81/02
Fuel Consumption Adr8102 Combined L100km: 6.4
Fuel Consumption Adr8102 Combined Mpg: 37
Fuel Consumption Adr8102 Combined Miles Per Uk Gallon: 44
Fuel Consumption Adr8102 Combined Km Ll: 15.6
Fuel Consumption Adr8102 Calculated Vehicle Range Km: 1094
Fuel Consumption Adr8102 Calculated Vehicle Range Miles: 680
Fuel Consumption Adr8102 Urban Mpg: 31
Fuel Consumption Adr8102 Urban L100km: 7.5
Fuel Consumption Adr8102 Country Highway Mpg: 40
Fuel Consumption Adr8102 Country Highway L100km: 5.9
Fuel Consumption Adr8102 Urban Miles Per Uk Gallon: 38
Fuel Consumption Adr8102 Country Highway Miles Per Uk Gallon: 48
Fuel Consumption Adr8102 Urban Km Ll: 13.3
Fuel Consumption Adr8102 Country Highway Km Ll: 16.9
Fuel Economy
Fuel Economy Adr8102 L100km: 6.4
Power
Power Maximum Power Kw: 100
Power Maximum Power Hp Ps: 136
Power Maximum Torque Nm: 330
Power Rpm For Maximum Torque Low: 1200
Power Measurement Standard: EEC
Power Rpm For Maximum Power Low: 3800
Power Primary Or Secondary Fuel Power Figure: Primary
Drive
Drive Driven Wheels: Rear
Transmission
Transmission Type: Automatic
Transmission Number Of Speeds: 7
Transmission Manual Mode: yes
Transmission Description: Automatic With Manual Mode
Disc Brakes
Disc Brakes Number Of: 4
Disc Brakes Number Of Ventilated Discs: 2
Power Steering
Power Steering Type: Hydraulic
Steering Wheel
Steering Wheel Type: Plastic
Steering Wheel Height Adjustment: yes
Steering Wheel Telescopic Adjustment: yes
Suspension
Suspension Rear Location: Rear
Suspension Rear Spring Type: Coil
Suspension Front Location: Front
Suspension Front Spring Type: Coil
Suspension Rear Wheel Dependence: Independent
Suspension Front Type: Strut
Suspension Rear Type: Trailing Arm
Suspension Front Stabilizer Bar: yes
Suspension Front Wheel Dependence: Independent
Tires
Wheels Tire Rear Location: Rear
Wheels Tire Front Location: Front
Wheels Tire Rear Width: 205
Wheels Tire Front Width: 205
Wheels Tire Rear Profile: 65
Wheels Tire Front Profile: 65
Wheels Tire Front Type: Conventional/Summer
Wheels Tire Rear Type: Conventional/Summer
Wheels Tire Front Load Index: 103
Wheels Tire Rear Load Index: 103
Wheels
Wheels Rear Axle1 Axle Location: 1
Wheels Rear Location: Rear
Wheels Front Location: Front
Wheels Rear Rim Diameter Inch: 16
Wheels Front Rim Diameter Inch: 16
Wheels Front Rim Type: Steel
Wheels Rear Rim Type: Steel
Wheels Front Rim Width Inch: 6.5
Wheels Rear Rim Width Inch: 6.5
Body Style
Body Type: Combi
Local Body Type: Combi
Platform Code: Ncv2
Wheelbase Type: Long
Roof Type: Standard
Bumpers
Front Location: Front
Rear Location: Rear
Front Color: Black
Rear Color: Black
Cargo Area Dimensions
Cargo Area Standard Measurement: VDA
Cargo Area Length In: 64.1
Cargo Area Length Mm: 1627
Cargo Area Width Mm: 1685
Cargo Area Width In: 66.3
Cargo Area Height In: 49.3
Cargo Area Height Mm: 1685
Cargo Area Width Between Wheelhouses Mm: 1270
Cargo Area Width Between Wheelhouses In: 50.0
Cargo Area Loading Floor Height In: 22.0
Cargo Area Loading Floor Height Mm: 558
External Dimensions
External Dimensions Overall Height In: 75.2
External Dimensions Overall Height Mm: 1910
External Dimensions Wheelbase Mm: 3430
External Dimensions Wheelbase In: 135.0
External Dimensions Overall Width In: 75.9
External Dimensions Overall Width Mm: 1928
External Dimensions Overall Length In: 211.4
External Dimensions Overall Length Mm: 5370
External Dimensions Rear Track Mm: 1646
External Dimensions Rear Track In: 64.8
External Dimensions Front Track Mm: 1666
External Dimensions Front Track In: 65.6
External Dimensions Wall To Wall Turning Circle Ft: 41.0
External Dimensions Wall To Wall Turning Circle Mm: 12500
External Dimensions Rear Overhang In: 41.1
External Dimensions Rear Overhang Mm: 1045
External Dimensions Front Overhang Mm: 895
External Dimensions Front Overhang In: 35.2
Cargo Doors
Cargo Doors Rear Location: Rear
Cargo Doors Rear Operation: Lifting Gate
Cargo Doors Rear Opening Angle: 90
Cargo Doors Rear Height Mm: 1261
Cargo Doors Rear Height In: 49.6
Cargo Doors Rear Width Mm: 1391
Cargo Doors Rear Width In: 54.8
Cargo Doors Passenger Location: Passenger
Cargo Doors Passenger Operation: Sliding
Cargo Doors Driver Location: Driver
Cargo Doors Driver Operation: Sliding
Cargo Doors Passenger Width In: 37.8
Cargo Doors Passenger Width Mm: 961
Cargo Doors Passenger Height Mm: 1252
Cargo Doors Passenger Height In: 49.3
Cargo Doors Driver Width In: 37.8
Cargo Doors Driver Width Mm: 961
Cargo Doors Driver Height In: 49.3
Cargo Doors Driver Height Mm: 1252
Doors
Doors Passenger Location: Passenger
Doors Driver Location: Driver
Doors Passenger Type: Front Hinged
Doors Driver Type: Front Hinged
Doors Rear Passenger Location: Rear Passenger
Doors Rear Passenger Type: Sliding
Doors Rear Driver Location: Rear Driver
Doors Rear Driver Type: Sliding
Headlight Control
Headlight Control Dusk Sensor: yes
Headlight Control Height Adjustment: Manual
Headlight Control Internal Height Adjustment: yes
Headlights
Headlights Bulb Type Low Beam: Halogen
Headlights Lens Type: Complex Surface
Headlights Bulb Type High Beam: Halogen
Paint
External Color: White
Type: Gloss
Door Mirrors Cameras
Door Mirrors Cameras Passenger Location: Passenger
Door Mirrors Cameras Driver Location: Driver
Door Mirrors Cameras Driver Color: Black
Door Mirrors Cameras Passenger Color: Black
Door Mirrors Cameras Driver Type: Electrically Adjustable
Door Mirrors Cameras Passenger Type: Electrically Adjustable
Power Windows
Power Windows Front Location: Front
Rear Side Windows
Rear Side Windows Driver Location: Driver
Rear Side Windows Driver Type: Fixed
Rear Side Windows Passenger Location: Passenger
Rear Side Windows Passenger Type: Fixed
Windshield Wipers
Windshield Wipers Intermittent Wipe: Fixed
Weights
Published Kerb Weight Lbs: 4905
Published Kerb Weight Kg: 2225
Gross Trailer Weight Braked Kg: 2500
Gross Trailer Weight Braked Lbs: 5512
Gross Trailer Weight Unbraked Kg: 750
Gross Trailer Weight Unbraked Lbs: 1653
Gross Vehicle Weight Kg: 3050
Gross Vehicle Weight Lbs: 6724
Tare Weight Kg: 2174
Payload Allowance Lbs: 1819
Payload Allowance Kg: 825
Front Axle Weight Kg: 1550
Front Axle Weight Lbs: 3417
Rear Axle Weight Kg: 1650
Rear Axle Weight Lbs: 3638
Audio System
System Radio Type: Am/Fm
System Digital Media Card: yes
System Colour Screen: yes
Connection To Ext Entertainment Devices
Connection External Usb Front: yes
Connection External Ipod Front: yes
Connection External Aux Jack Front: yes
Remote Audio Controls
Remote Control Type: Steering Wheel Mounted
Speakers
Speaker Number Of Speakers: 2
Display Screen
Display Screen Size Inch: 5.8
Floor Covering
Floor Covering Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number Of Airbags: 2
Crash Test Results
Crash Test Results Ancap Standard: Ancap
Crash Test Results Ancap Overall: 5.00
Crash Test Results Ancap Date Tested: 20160509
Crash Test Results Ancap Version Tested: 2.2 Litre Diesel
Front Airbag
Front Airbag Driver Location: Driver
Front Airbag Passenger Location: Passenger
Front Seat Belts
Front Seat Belts Passenger Seat Position: Passenger
Front Seat Belts Driver Seat Position: Driver
Front Seat Belts Passenger Height Adjustable: yes
Front Seat Belts Driver Height Adjustable: yes
Front Seat Belts Passenger Pre Tensioners: yes
Front Seat Belts Driver Pre Tensioners: yes
Front Seat Belts Center Seat Position: Center
Front Seat Belts Center Operation: Reel
Front Seat Belts Center Type: 3-Point
Head Restraints
Head Restraints Front Seats Location: Front Seats
Head Restraints Rear Seats Location: Rear Seats
Head Restraints Rear Seats Number: 3
Head Restraints Front Seats Number: 3
Rear Seat Belts
Rear Seat Belts Driver Seat Position: Driver
Rear Seat Belts Passenger Seat Position: Passenger
Rear Seat Belts Center Seat Position: Centre
Rear Seat Belts Center Type: 3-Point
Side Airbag
Side Airbag Location: D
Side Curtain Airbag
Side Curtain Airbag Front Location: Front
Front Seat
Front Seat Passenger Location: Passenger
Front Seat Driver Location: Driver
Front Seat Passenger Type: Bucket
Front Seat Driver Type: Bucket
Front Seat Driver Height Type: Manual
Front Seat Driver Reach Type: Manual
Front Seat Passenger Reach Type: Manual
Front Seat Center Location: Centre
Front Seat Center Type: Bench
Seat Upholstery
Seat Upholstery Main Seat Material: Cloth
Seat Upholstery Additional Seat Material: Cloth
Seating
Seating Capacity: 5
Seating Configuration: 2+3
Cup Holders
Cup Holders Front Seats Location: Front Seats
Air Conditioning
Air Conditioning Type: Manual
Anti Theft Protection
Anti Theft Protection Anti Lift: yes
Power Locks
Power Locks Operation: Remote
Intermediate Service
Intermediate Service Distance Km: 25000
Intermediate Service Distance Miles: 15534
Intermediate Service Period Months: 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
† Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
